A22

last update: April 1, 2020

Lighted/Non-lighted Pushbutton Switches (The following illustrations are for momentary operation.)

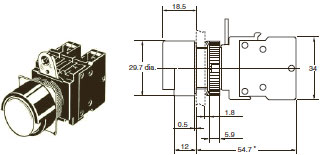

Half-guard Type/A22-H/A22L-H

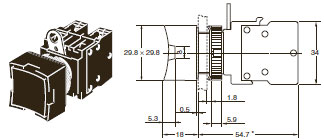

Square/Projection type/A22-C/A22L-C

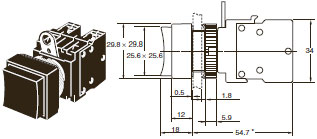

Square/Full-guard Type/A22-D/A22L-D

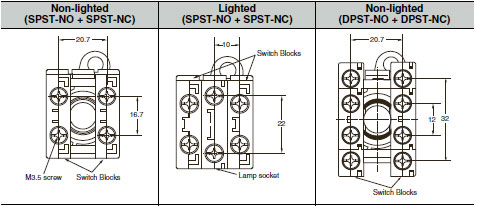

Terminal Arrangement (Bottom View)

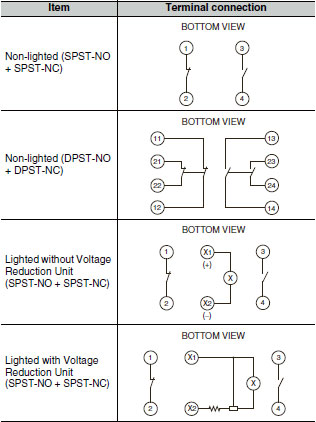

Terminal Connection

Panel Cutouts

Lock ring is provided as a standard item.

Accessories

Legend Plate Frames

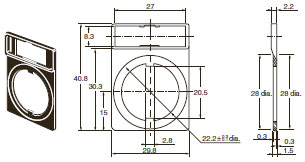

Standard Models A22Z-332[]

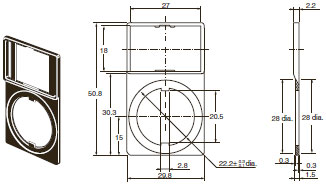

Large A22Z-333[]

Lamp

LED A22-6[], 12[], 24[]

Lock Ring A22Z-3360

25-dia. Ring A22Z-R25

Color Cap A22Z-30T[]

Hole Plug (Round) A22Z-3530

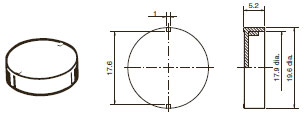

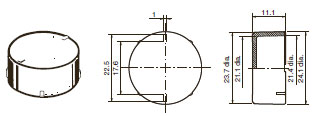

Caps

A22 (for round models) A22Z-3490

M22 (for round models) A22Z-3495

Sealing Caps

For Flat Models A22Z-3600F

For projection models A22Z-3600T

For full-guard models A22Z-3600G

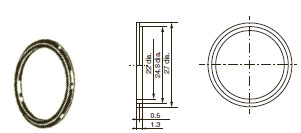

Metallic Bezel Rings

For Flat/Projection Models A22Z-3580

For full-guard models A22Z-3582

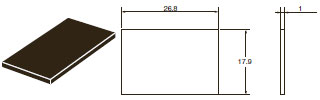

Snap-in Legend Plates

For Standard Models A22Z-3443[]-[]

For Large Models A22Z-3453[]

For Emergency-stop Models

A22Z-3476-1 (90 dia.)

A22Z-3466-1 (60 dia.)

Character Film

For Round Models A22Z-3460-[]

For Square Models A22Z-3480

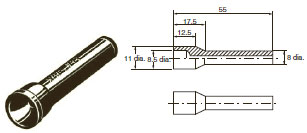

Lamp Extractor A22Z-3901

Tightening Wrench A22Z-3905

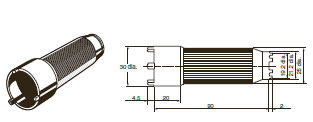

Cap Tightening Tool A22Z-3908

30-dia. Resin Attachment A22Z-A30

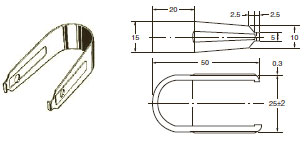

Cap Puller A3PJ-5080

Lock Plate A22Z-3380

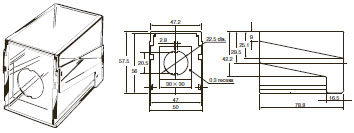

Simple Protective Cover A22Z-3700

Three-throw Spacer A22Z-3003

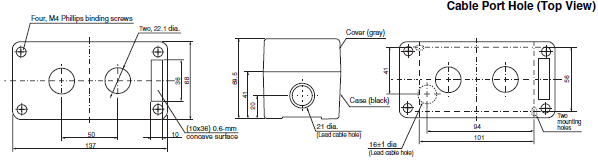

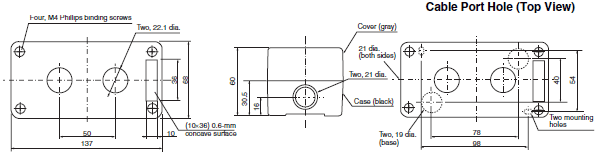

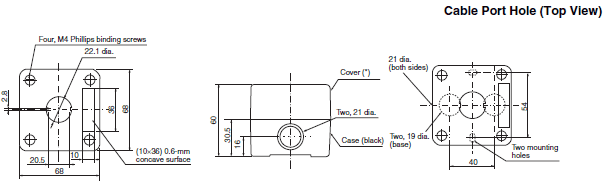

Control Box (Enclosure) A22Z-B10[]

A22Z-B101 (One Hole)
A22Z-B101Y

A22Z-B102 (Two Holes)

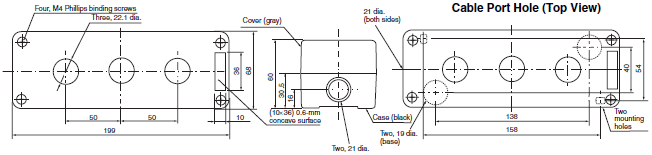

A22Z-B103 (Three Holes)

(Panel Mounting Hole)

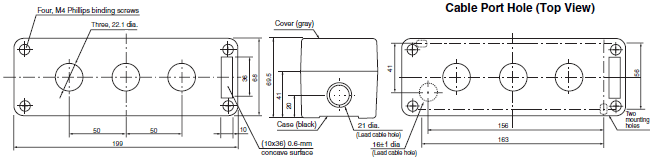

Control Box A22Z-B20[]

A22Z-B201 (One Hole)
A22Z-B201Y

A22Z-B202 (Two Holes)

A22Z-B203 (Three Holes)

(Panel Mounting Hole)
