E2V-X[]

All Metals and Long-distance Types

E2V-X[]

Aluminum and Iron Both Detectable from Long Distances

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Pre-wired Models

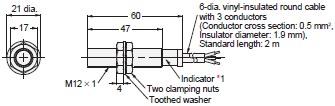

E2V-X2/X4

E2V-X[] Dimensions 4

E2V-X5/X8

E2V-X[] Dimensions 5

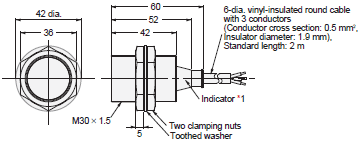

E2V-X10/X15

E2V-X[] Dimensions 6

*1 NO Models: Operation indicator (yellow) (flashing)
                            Setting indicator (yellow) (ON)
      NC Models: Operation indicator (yellow) (ON)

Pre-wired Connector Models

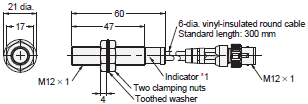

E2V-X4-M1TJ

E2V-X[] Dimensions 8

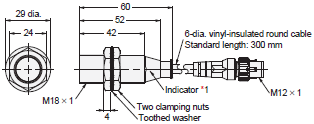

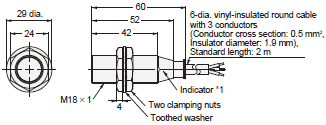

E2V-X8-M1TJ

E2V-X[] Dimensions 9

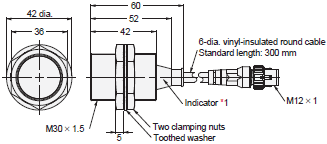

E2V-X15-M1TJ

E2V-X[] Dimensions 10

*1 NO Models: Operation indicator (yellow) (flashing)
                            Setting indicator (yellow) (ON)
      NC Models: Operation indicator (yellow) (ON)

Connector Models

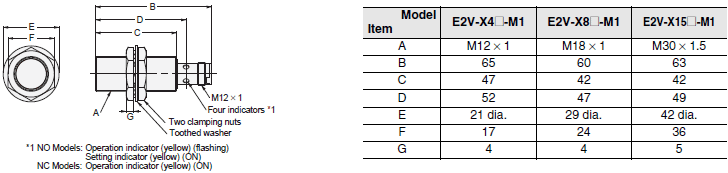

E2V-X[][]-M1

E2V-X[] Dimensions 12

*1 NO Models: Operation indicator (yellow) (flashing)
                            Setting indicator (yellow) (ON)
      NC Models: Operation indicator (yellow) (ON)

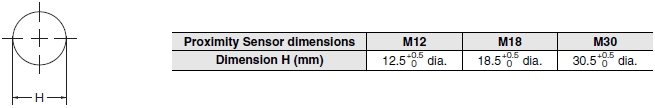

Mounting Hole Dimensions

E2V-X[] Dimensions 13
