Industrial Automation
ZC-[]55
Enclosed Switch
![ZC-[]55](/Images/l_332-25-119080-198x198.jpg)
Small, High-precision Enclosed Switch
Related Contents
Application Solutions
last update: November 12, 2012
(Unit: mm)
Plunger
ZC-D55
![ZC-[]55 Dimensions 1](/Images/ZC-%5B%5D55_dm_125-111733.jpg)

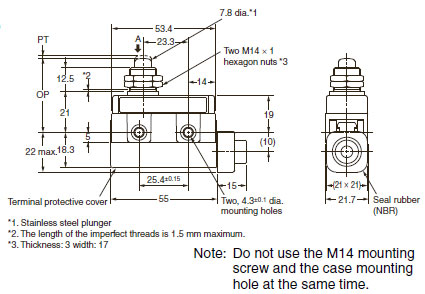

Panel Mount Plunger
ZC-Q55
![ZC-[]55 Dimensions 2](/Images/ZC-%5B%5D55_dm_225-111735.jpg)
Panel Mount Roller Plunger
ZC-Q2255
![ZC-[]55 Dimensions 3](/Images/ZC-%5B%5D55_dm_325-111737.jpg)

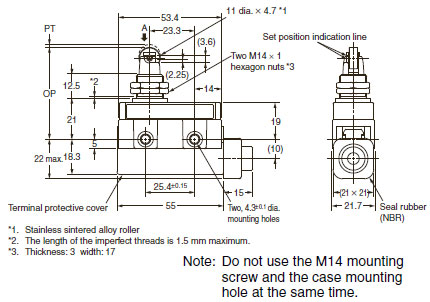

Panel Mount Crossroller Plunger
ZC-Q2155
![ZC-[]55 Dimensions 4](/Images/ZC-%5B%5D55_dm_425-111739.jpg)

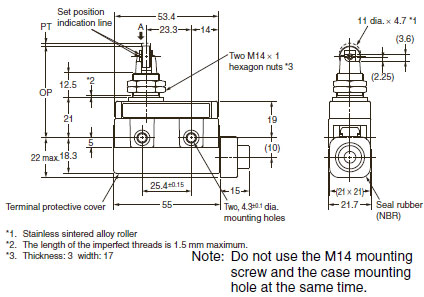

Sealed Roller Plunger
ZC-N2255

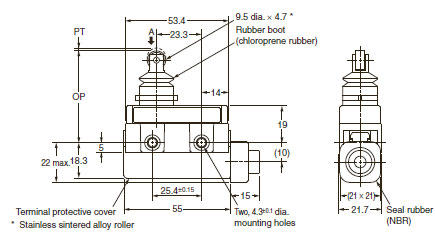

![ZC-[]55 Dimensions 5](/Images/ZC-%5B%5D55_dm_525-111741.jpg)
Sealed Crossroller Plunger
ZC-N2155

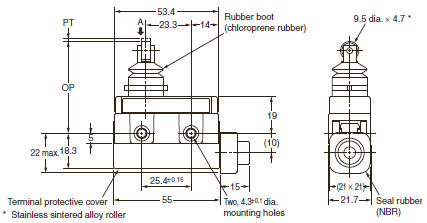

![ZC-[]55 Dimensions 6](/Images/ZC-%5B%5D55_dm_625-111743.jpg)

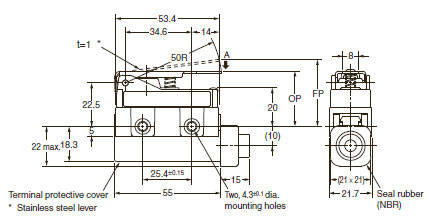

Short Hinge Roller Lever
ZC-W55
![ZC-[]55 Dimensions 7](/Images/ZC-%5B%5D55_dm_725-111745.jpg)

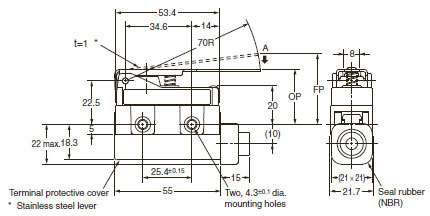

Hinge Lever
ZC-W155
![ZC-[]55 Dimensions 8](/Images/ZC-%5B%5D55_dm_825-111747.jpg)
Short Hinge Roller Lever
ZC-W255
![ZC-[]55 Dimensions 9](/Images/ZC-%5B%5D55_dm_925-111749.jpg)

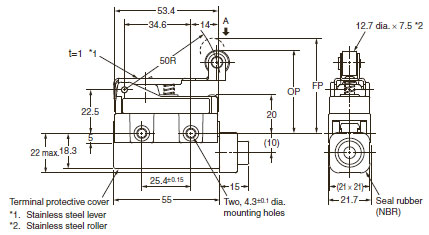

Hinge Roller Lever
ZC-W2155
![ZC-[]55 Dimensions 10](/Images/ZC-%5B%5D55_dm_1025-111751.jpg)

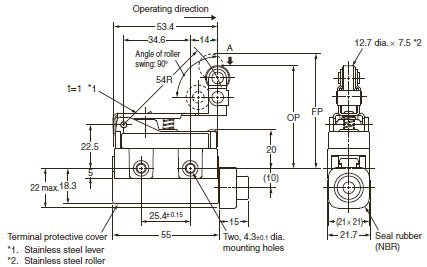

One-way Action Short Hinge Roller Lever
ZC-W355
![ZC-[]55 Dimensions 11](/Images/ZC-%5B%5D55_dm_1125-111753.jpg)

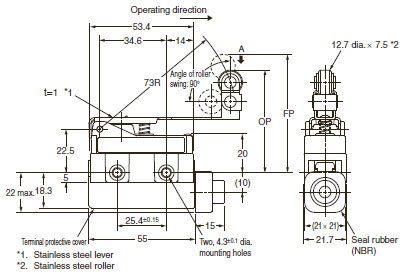

One-way Action Hinge Roller Lever
ZC-W3155
![ZC-[]55 Dimensions 12](/Images/ZC-%5B%5D55_dm_1225-111755.jpg)
Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

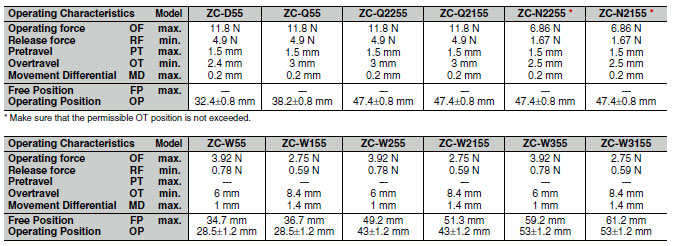

2. Operating characteristics are for when the Switch is operated from direction A.
2. Operating characteristics are for when the Switch is operated from direction A.
![ZC-[]55 Dimensions 14](/Images/ZC-%5B%5D55_dm_1325-111758.jpg)
