Multiple Limit Switch

VB

A New Monoblock Multiple Limit Switch Incorporating a Head Box with a Tough Head and Ensuring High Sealing Performance and a Mechanical Durability of 5,000,000 Operations

Switches

Note:The actual model numbers of each of the above VB models have a figure 2 to 6, which indicate the number of plungers.

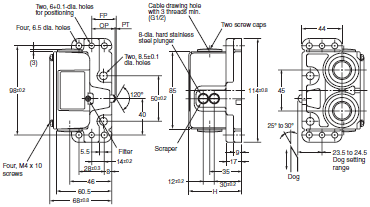

Bevel Plunger
VB-[]111

VB Dimensions 4 VB-[]111_Dim

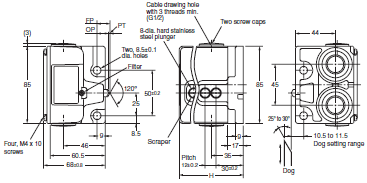

Bevel Plunger
VB-[]141

VB Dimensions 6 VB-[]141_Dim

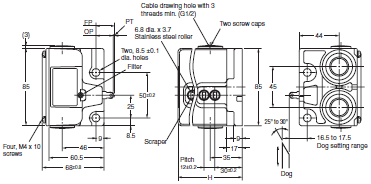

Roller Plunger
VB-[]211

VB Dimensions 8 VB-[]211_Dim

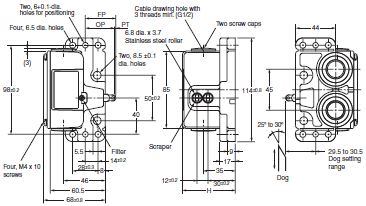

Roller Plunger
VB-[]241

VB Dimensions 10 VB-[]241_Dim

Note:Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

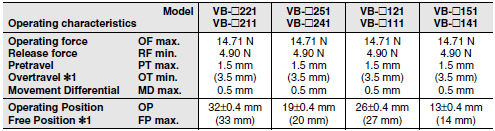

VB Dimensions 12 Operating Characteristics_fig1

Note:The operating characteristic values apply to a single switch.

Note:The OT and FP values are reference values.
The actual model numbers of each of the above VB models have a figure 2 to 6, which indicate the number of plungers.

VB Dimensions 15 Operating Characteristics_fig2

Note:When five plungers are mounted in series, no outer actuator will be provided.
