A30NS / A30NW
Selector Switches
30-mm dia. Knob-type Selector Switches Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring. Workability and safety improvements.
Related Contents
Application Solutions
last update: December 20, 2021
(Unit: mm)
Lighted and Non-lighted Selection Switches

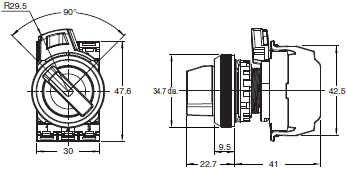

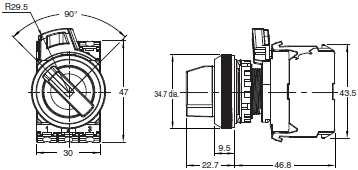

Two-position Switches with Brushed Metal Bezels
A30N[]-2M[]-[][]A-G[]-[][]
A30N[]-2M[]-[][]A-P[]-[][]

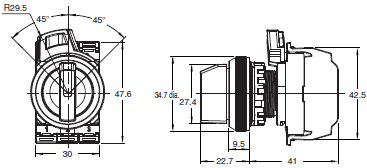

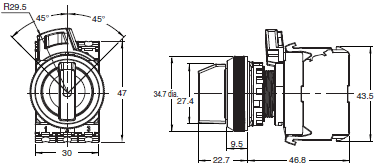

Three-position Switches with Brushed Metal Bezels
A30N[]-3M[]-[][]A-G[]-[][]
A30N[]-3M[]-[][]A-P[]-[][]
Depth with Linked Units
(Screw terminal block type)
Depth when a double-contact unit is mounted
(Push-In Plus terminal block type)
Subassemblies (Common)
LED Lamps
A22NZ-L-[][]
Mounting Collar
A22NZ-H-01
Screw terminal block
Contact Blocks
A22NZ-S-G1[]
Lighting Units
A22NZ-T-[]
Push-In Plus Terminal Blocks
Contact Blocks (Single Contact)
A22NZ-S-P1[]
Contact Blocks (Double Contact)
A22NZ-S-P2[]
Lighting Units
A22NZ-T-[]P
Accessories and Tools
Protective Cover
A22NZ-A303
Plastic Hole Plug
A22NZ-A-401
Metal Hole Plug
A22NZ-A-402
Lock Ring
A22NZ-A-403
Lock Ring
A22NZ-A-50501
Reinforcement Plate
A22NZ-A-C01
Control Box
A22NZ-A-B101
A22NZ-A-B101Y

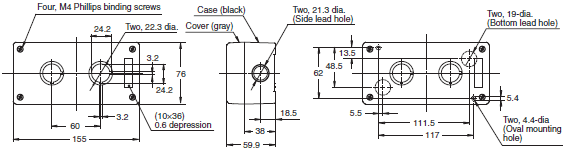

Control Box (2 holes)
A22NZ-A-B102
Control Box (3 holes)
A22NZ-A-B103

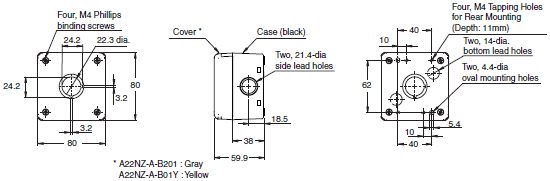

Control Box
A22NZ-A-B201
A22NZ-A-B01Y

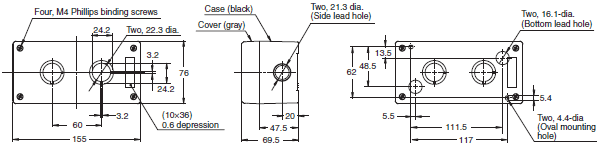

Control Box (2 holes)
A22NZ-A-B202
Control Box (3 holes)
A22NZ-A-B203
Sealing cap
For Flat Models A22Z-3600F
For projection models A22Z-3600T
For full-guard models A22Z-3600G
Resin Attachment for 30 dia.
A22Z-A30
Legend Plate Frames
General A22NZ-A-50103
Large A22NZ-A-51103
Legend Plates
General A22Z-3443[]-[]
Large A22Z-3453[]
Tightening Wrench
A22NZ-A-301
LED Lamp Extractor
A22NZ-A-302
Cap Tightening Wrench
A22Z-3908
