NX1P2

NX-series NX1P2 CPU Units

NX1P2

Up to eight axes of control via EtherCAT

(Unit: mm)

NX-series NX1P2 CPU Units

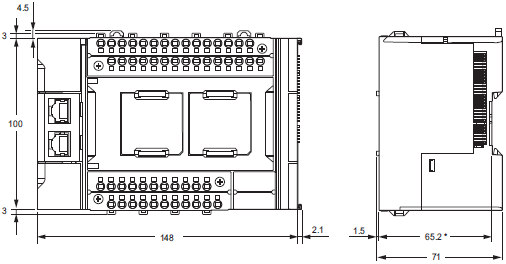

NX1P2-1[]40[][][]

NX1P2 Dimensions 2

* The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.

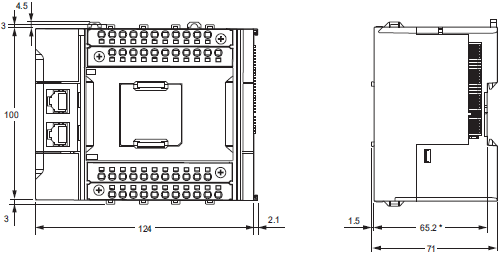

NX1P2-9024[][][]

NX1P2 Dimensions 3

* The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.

End cover

NX-END02

NX1P2 Dimensions 5

* The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.
