Temperature Sensors for Packaging Machines

E52 (For Packing Machine)

Accurately Measure Seal Temperature. Temperature Sensors for Packaging Machines.

Temperature Sensors for Packaging Machines

Classification Description Model and
appearance
Temper-
ature
range
Element
type
Con-
ductor
type
Class Protective
tubing
material
Terminal
type
Special models
for packaging
machines
Sheathed
thermocouple
E52-CA[]A[]
D=1 S[]
3670_lu_1_1
0 to
650°C
K (CA) Grounded
type
2
(0.75)
ASTM316L Exposed
lead wires

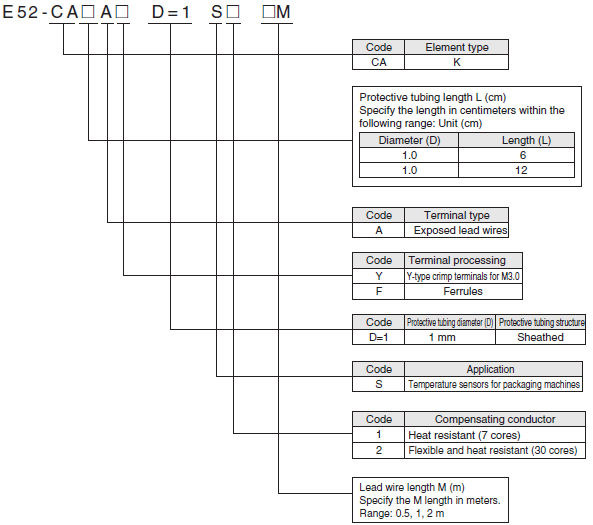

Model Number Legend

The type of protective tubing length, and lead length can be specified as shown below.

E52 (For Packing Machine) Lineup 3

Example:
Element: K, protective tubing length: 12 cm, exposed leads, Y-type crimp terminals for M3.0, protective tubing diameter: 1 mm, flexible and heat resistive, lead length: 2 m
E52-CA12AY D=1 S2 2M

List of Models

Custom-made models are available on request. Refer to Model Number Legend for details.

Y-type crimp terminals for M3.0

Terminal
type
Protective
tubing
diameter D
(mm)
Protective
tubing
length L
(cm)
Lead wire
type
Lead wire length M (m)
0.51
Model
Exposed-
lead
Models
1 dia.6Heat resistiveE52-CA6AY D=1 S1 0.5ME52-CA6AY D=1 S1 1M
Flexible
Heat resistive
---E52-CA6AY D=1 S2 1M
12Heat resistiveE52-CA12AY D=1 S1 0.5ME52-CA12AY D=1 S1 1M
Flexible
Heat resistive
---E52-CA12AY D=1 S2 1M

Terminal typeProtective tubing
diameter D
(mm)
Protective tubing
length L
(cm)
Lead wire typeLead wire length M (m)
2
Model
Exposed-lead
Models
1 dia.6Heat resistive---
Flexible Heat resistiveE52-CA6AY D=1 S2 2M
12Heat resistive---
Flexible Heat resistiveE52-CA12AY D=1 S2 2M

Ferrules

Terminal
type
Protective
tubing
diameter D
(mm)
Protective
tubing
length L
(cm)
Lead wire
type
Lead wire length M (m)
0.5 1
Model
Exposed-
lead
Models
1 dia. 6 Heat resistive E52-CA6AF D=1 S1 0.5M E52-CA6AF D=1 S1 1M
Flexible
Heat resistive
--- E52-CA6AF D=1 S2 1M
12 Heat resistive E52-CA12AF D=1 S1 0.5M E52-CA12AF D=1 S1 1M
Flexible
Heat resistive
--- E52-CA12AF D=1 S2 1M

Terminal type Protective tubing
diameter D
(mm)
Protective tubing
length L
(cm)
Lead wire type Lead wire length M (m)
2
Model
Exposed-lead
Models
1 dia. 6 Heat resistive ---
Flexible Heat resistive E52-CA6AF D=1 S2 2M
12 Heat resistive ---
Flexible Heat resistive E52-CA12AF D=1 S2 2M
