S8VK-WA

Switch Mode Power Supply (240/480/960/2000-W Models)

S8VK-WA

200 V Three-phase Input Power Supplies A solution to three-phase balance problems

(Unit: mm)

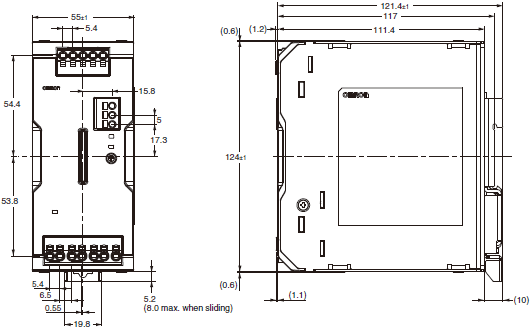

S8VK-WA24024

S8VK-WA Dimensions 1

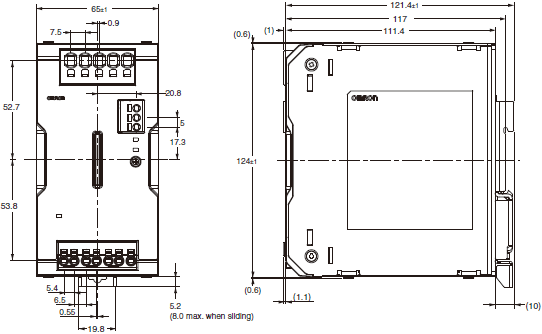

S8VK-WA48024

S8VK-WA Dimensions 2

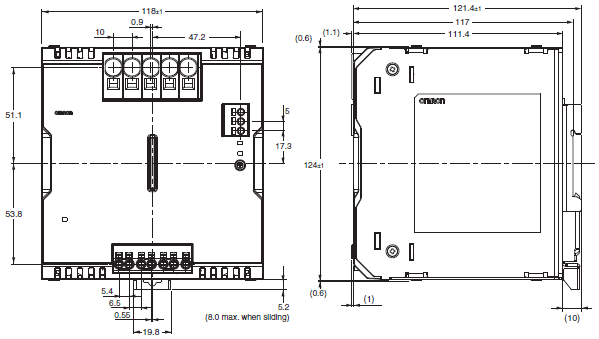

S8VK-WA96024

S8VK-WA Dimensions 3

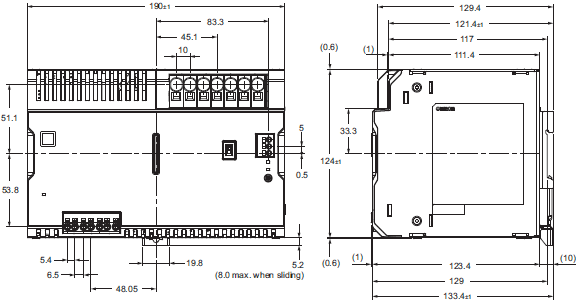

S8VK-WA20224

S8VK-WA Dimensions 4

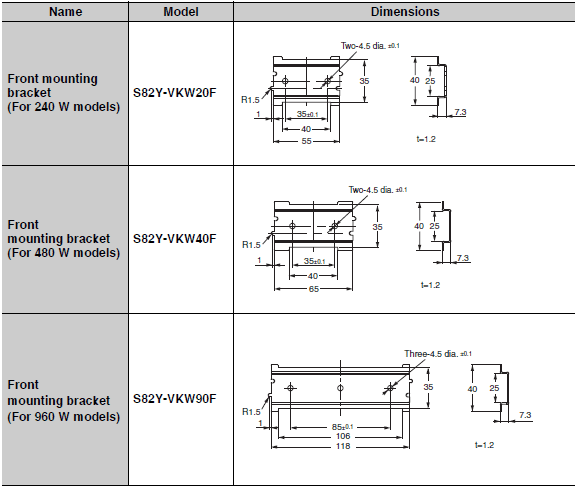

Mounting Brackets (Order Separately)

S8VK-WA Dimensions 5

Note: The front mounting bracket can be used for front, side-by-side mounting as well.

DIN Rail Mounting (Order Separately)

End Plate

PFP-M

S8VK-WA Dimensions 7

Note: If the Unit may be subjected to sliding to either side, attach an End Plate (PFP-M) on each side of the Unit.
