E2E NEXT

Proximity Sensor

E2E NEXT

Enables easier and standardized designs previously not possible. IO-Link as a standard feature

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

DC 3-Wire

PREMIUM Model

DC 3-wire (Quadruple/Triple distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

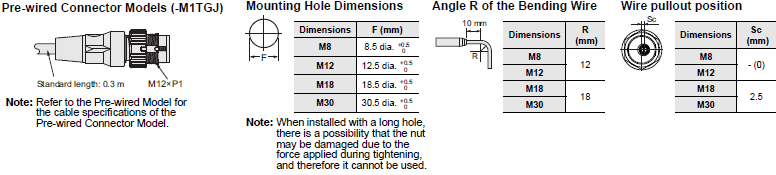

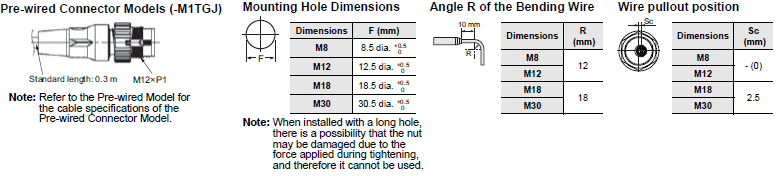

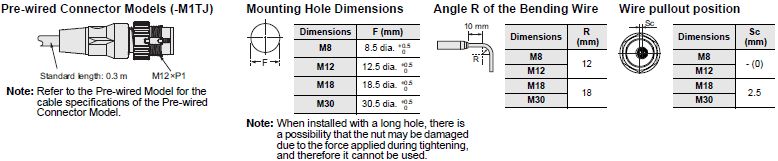

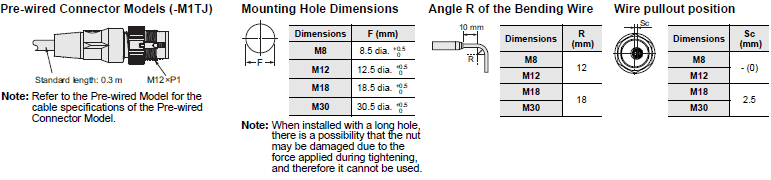

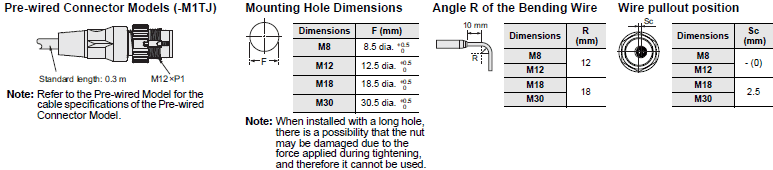

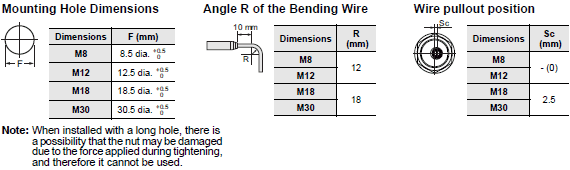

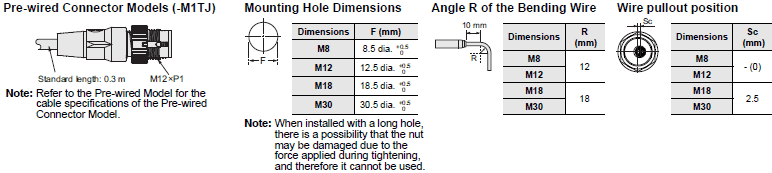

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

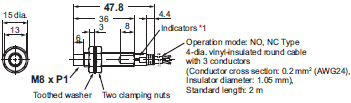

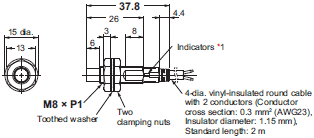

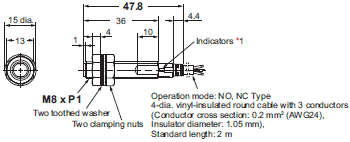

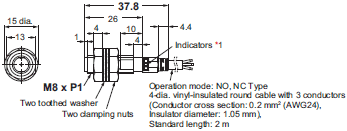

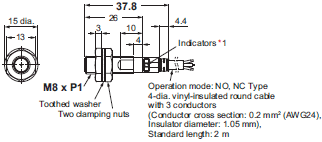

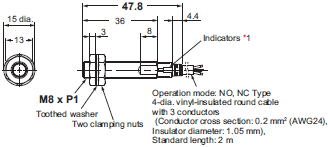

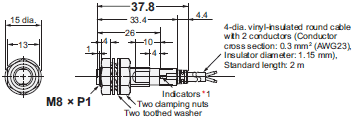

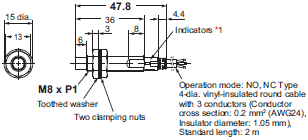

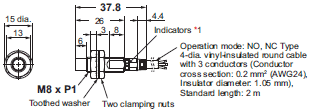

E2E-X[]8

E2E NEXT Dimensions 5

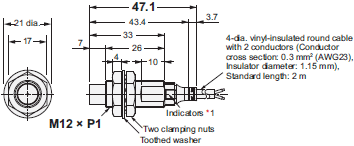

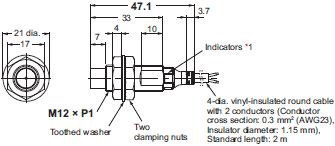

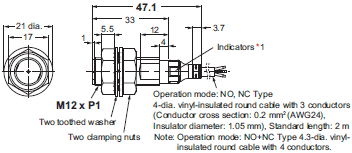

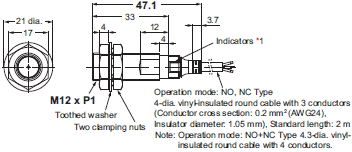

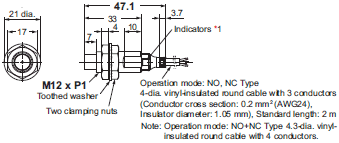

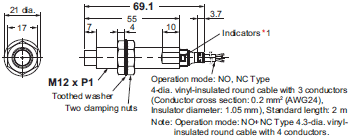

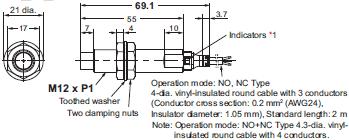

E2E-X[]12

E2E NEXT Dimensions 6

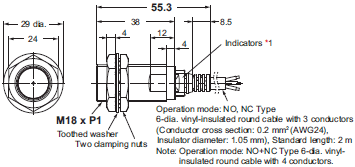

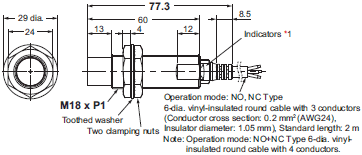

E2E-X[]18

E2E NEXT Dimensions 7

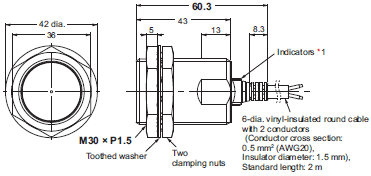

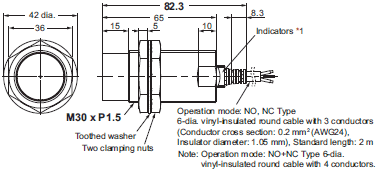

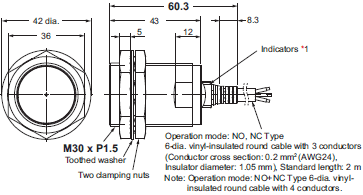

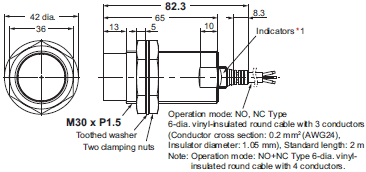

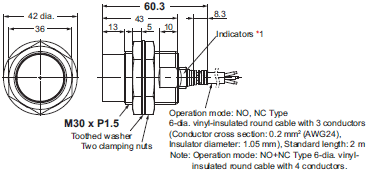

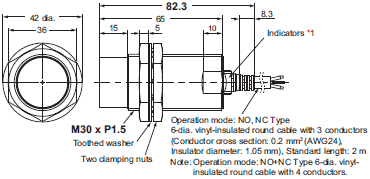

E2E-X[]30

E2E NEXT Dimensions 8

DC 3-wire (Long-body Quadruple/Triple distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]L8

E2E NEXT Dimensions 10

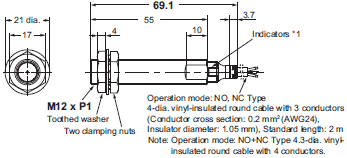

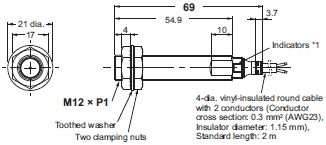

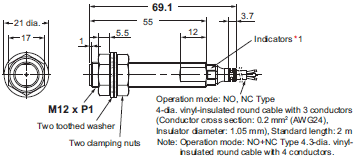

E2E-X[]L12

E2E NEXT Dimensions 11

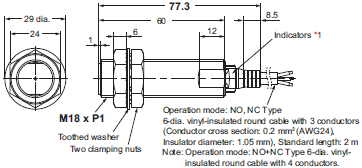

E2E-X[]L18

E2E NEXT Dimensions 12

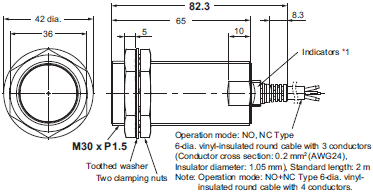

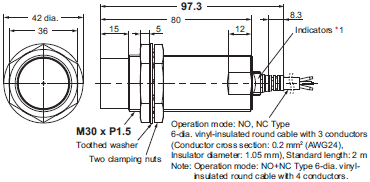

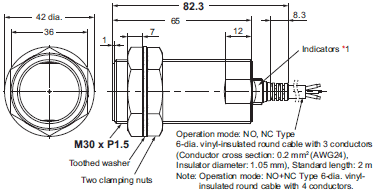

E2E-X[]L30

E2E NEXT Dimensions 13

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 15

DC 3-wire (Quadruple/Triple distance model)

Pre-wired Models
Pre-wired Connector Models
(Unshielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]M[]8

E2E NEXT Dimensions 17

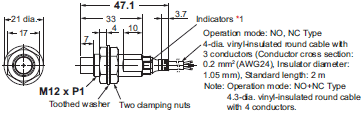

E2E-X[]M[]12

E2E NEXT Dimensions 18

DC 3-wire (Long-body Quadruple/Triple distance model)

Pre-wired Models
Pre-wired Connector Models
(Unshielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]M[]L8

E2E NEXT Dimensions 20

E2E-X[]M[]L12

E2E NEXT Dimensions 21

E2E-X[]M[]L18

E2E NEXT Dimensions 22

E2E-X40M[]L30

E2E NEXT Dimensions 23

E2E-X50M[]L30

E2E NEXT Dimensions 24

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 26

DC 3-wire (Quadruple/Triple distance model)

Connector Models (Shielded)

E2E-X[]8-M3/M5

E2E NEXT Dimensions 28

E2E-X[]8-M1

E2E NEXT Dimensions 29

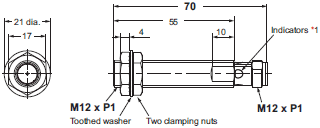

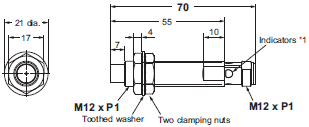

E2E-X[]12-M1

E2E NEXT Dimensions 30

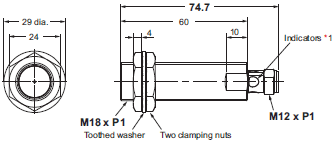

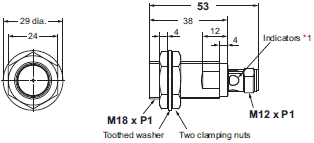

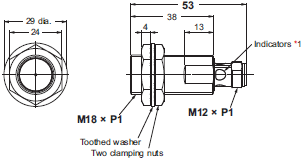

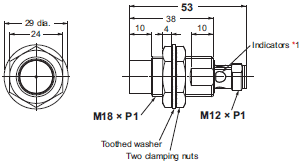

E2E-X[]18-M1

E2E NEXT Dimensions 31

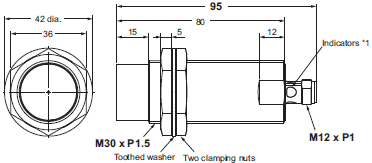

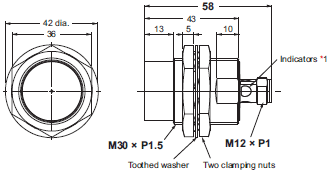

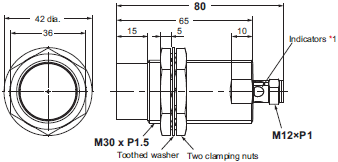

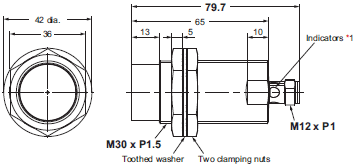

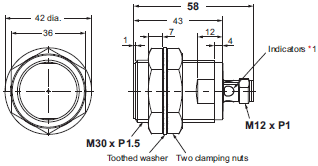

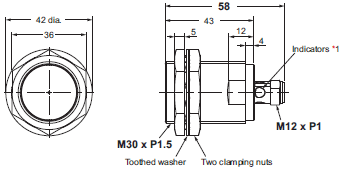

E2E-X[]30-M1

E2E NEXT Dimensions 32

DC 3-wire (Long-body Quadruple/Triple distance model)

Connector Models (Shielded)

E2E-X[]L8-M3/M5

E2E NEXT Dimensions 34

E2E-X[]L8-M1

E2E NEXT Dimensions 35

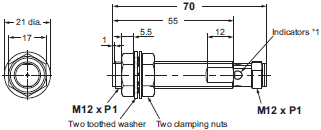

E2E-X[]L12-M1

E2E NEXT Dimensions 36

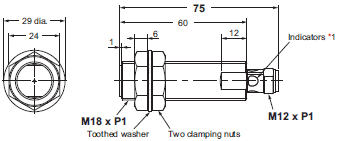

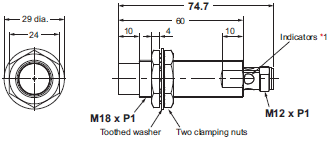

E2E-X[]L18-M1

E2E NEXT Dimensions 37

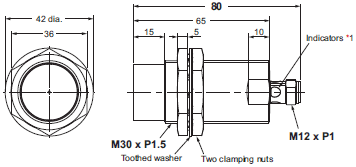

E2E-X[]L30-M1

E2E NEXT Dimensions 38

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 40

DC 3-wire (Quadruple/Triple distance model)

Connector Models (Unshielded)

E2E-X[]M[]8-M3/M5

E2E NEXT Dimensions 42

E2E-X[]M[]8-M1

E2E NEXT Dimensions 43

E2E-X[]M[]12-M1

E2E NEXT Dimensions 44

DC 3-wire (Long-body Quadruple/Triple distance model)

Connector Models (Unshielded)

E2E-X[]M[]L8-M3/M5

E2E NEXT Dimensions 46

E2E-X[]M[]L8-M1

E2E NEXT Dimensions 47

E2E-X[]M[]L12-M1

E2E NEXT Dimensions 48

E2E-X[]M[]L18-M1

E2E NEXT Dimensions 49

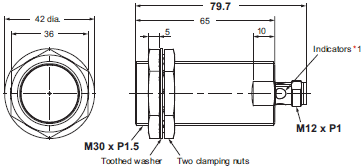

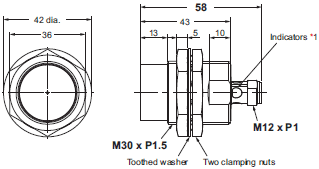

E2E-X40M[]L30-M1

E2E NEXT Dimensions 50

E2E-X50M[]L30-M1

E2E NEXT Dimensions 51

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 53

BASIC Model

DC 3-wire (Double/Single distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]8

E2E NEXT Dimensions 56

E2E-X[]12

E2E NEXT Dimensions 57

E2E-X[]18

E2E NEXT Dimensions 58

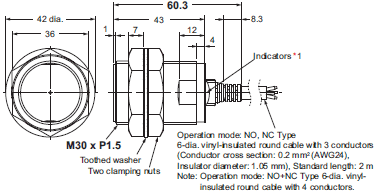

E2E-X[]30

E2E NEXT Dimensions 59

DC 3-wire (Long-body Double/Single distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]L8

E2E NEXT Dimensions 61

E2E-X[]L12

E2E NEXT Dimensions 62

E2E-X[]L18

E2E NEXT Dimensions 63

E2E-X[]L30

E2E NEXT Dimensions 64

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 66

DC 3-wire (Double/Single distance model)

Pre-wired Models
Pre-wired Connector Models
(Unshielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]M[]8

E2E NEXT Dimensions 68

E2E-X[]M[]12

E2E NEXT Dimensions 69

E2E-X[]M[]18

E2E NEXT Dimensions 70

E2E-X18M[]30

E2E NEXT Dimensions 71

DC 3-wire (Long-body Double/Single distance model)

Pre-wired Models
Pre-wired Connector Models
(Unshielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X[]M[]L8

E2E NEXT Dimensions 73

E2E-X[]M[]L12

E2E NEXT Dimensions 74

E2E-X[]M[]L18

E2E NEXT Dimensions 75

E2E-X18M[]L30

E2E NEXT Dimensions 76

E2E-X30M[]L30

E2E NEXT Dimensions 77

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 79

DC 3-wire (Double/Single distance model)

Connector Models (Shielded)

E2E-X[]8-M3/M5

E2E NEXT Dimensions 81

E2E-X[]8-M1

E2E NEXT Dimensions 82

E2E-X[]12-M1

E2E NEXT Dimensions 83

E2E-X[]18-M1

E2E NEXT Dimensions 84

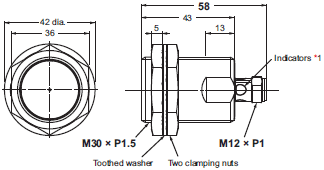

E2E-X[]30-M1

E2E NEXT Dimensions 85

DC 3-wire (Long-body Double/Single distance model)

Connector Models (Shielded)

E2E-X[]L8-M3/M5

E2E NEXT Dimensions 87

E2E-X[]L8-M1

E2E NEXT Dimensions 88

E2E-X[]L12-M1

E2E NEXT Dimensions 89

E2E-X[]L18-M1

E2E NEXT Dimensions 90

E2E-X[]L30-M1

E2E NEXT Dimensions 91

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 93

DC 3-wire (Double/Single distance model)

Connector Models (Unshielded)
Note: The sensing surface of size M30 is light gray.

E2E-X[]M[]8-M3/M5

E2E NEXT Dimensions 95

E2E-X[]M[]8-M1

E2E NEXT Dimensions 96

E2E-X[]M[]12-M1

E2E NEXT Dimensions 97

E2E-X[]M[]18-M1

E2E NEXT Dimensions 98

E2E-X18M[]30-M1

E2E NEXT Dimensions 99

DC 3-wire (Long-body Double/Single distance model)

Connector Models (Unshielded)
Note: The sensing surface of size M30 is light gray.

E2E-X[]M[]L8-M3/M5

E2E NEXT Dimensions 101

E2E-X[]M[]L8-M1

E2E NEXT Dimensions 102

E2E-X[]M[]L12-M1

E2E NEXT Dimensions 103

E2E-X[]M[]L18-M1

E2E NEXT Dimensions 104

E2E-X18M[]L30-M1

E2E NEXT Dimensions 105

E2E-X30M[]L30-M1

E2E NEXT Dimensions 106

*1. Standard I/O mode (SIO mode): Operation indicator (orange/ON), communication indicator (green/OFF)
      IO-Link Communication mode (COM mode): Operation indicator (orange/ON), communication indicator (green/Flashing
      (1sec cycle))

E2E NEXT Dimensions 108

Accessories (Sold Separately)

e-jig (Mounting Sleeves)

Y92E-J8S12

E2E NEXT Dimensions 111

Y92E-J12S18

E2E NEXT Dimensions 112

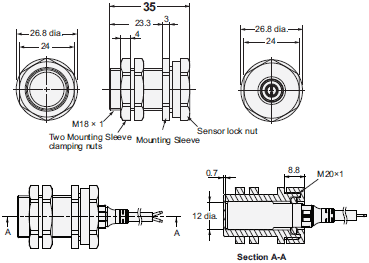

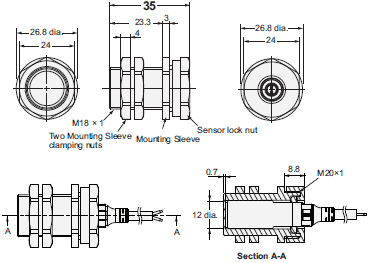

Y92E-J18S30

E2E NEXT Dimensions 113

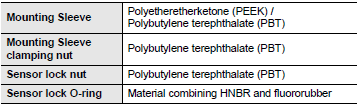

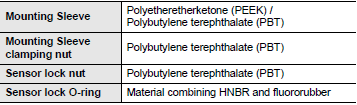

Material

E2E NEXT Dimensions 114

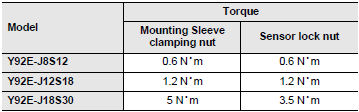

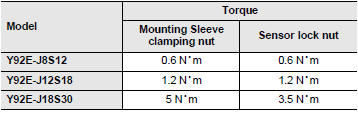

Tightening Force

E2E NEXT Dimensions 115

DC 2-wire (Triple distance model)

DC 2-wire (Triple distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

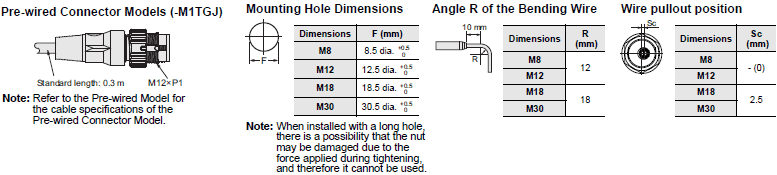

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

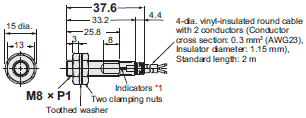

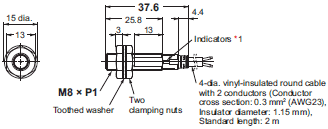

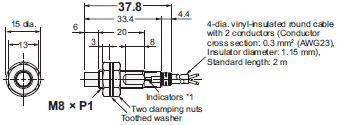

E2E-X3D[]8

E2E NEXT Dimensions 118

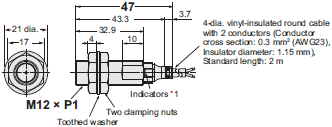

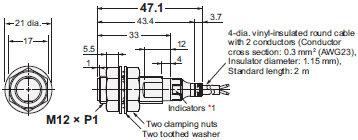

E2E-X7D[]12

E2E NEXT Dimensions 119

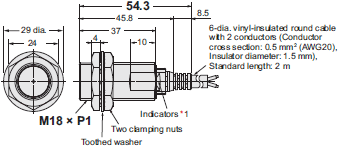

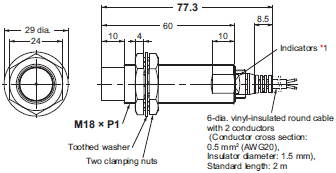

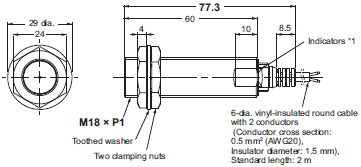

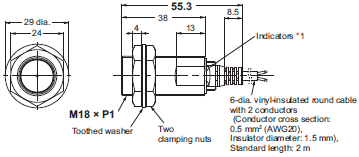

E2E-X11D[]18

E2E NEXT Dimensions 120

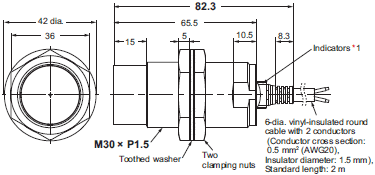

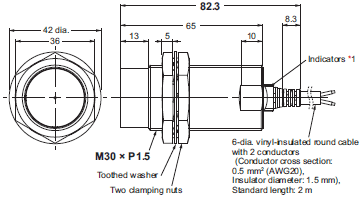

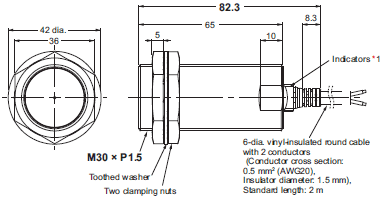

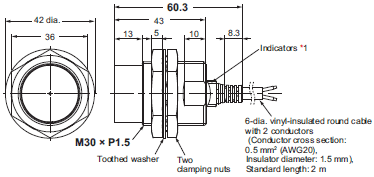

E2E-X20D[]30

E2E NEXT Dimensions 121

Pre-wired Models
Pre-wired Connector Models
(Unshielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X6MD[]8

E2E NEXT Dimensions 123

E2E-X10MD[]12

E2E NEXT Dimensions 124

E2E-X20MD[]L18

E2E NEXT Dimensions 125

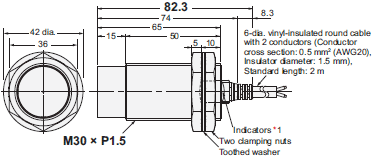

E2E-X40MD[]L30

E2E NEXT Dimensions 126

*1. D1 Models: Operation indicator (Orange), Setting indicator (Green) / D2 Models: Operation indicator (Orange)

E2E NEXT Dimensions 128

Accessories (Sold Separately)

e-jig (Mounting Sleeves)

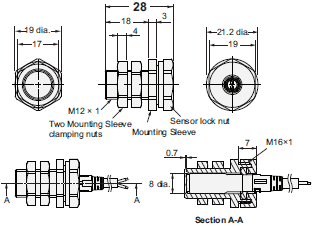

Y92E-J8S12

E2E NEXT Dimensions 131

Y92E-J12S18

E2E NEXT Dimensions 132

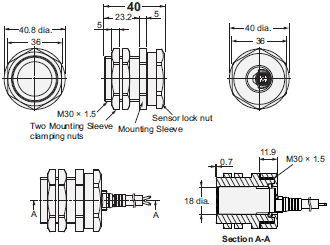

Y92E-J18S30

E2E NEXT Dimensions 133

Material

E2E NEXT Dimensions 134

Tightening Force

E2E NEXT Dimensions 135

DC 2-wire (Standard/ Double/ Single distance model)

DC 2-wire (Standard/Double distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X2D[]

E2E NEXT Dimensions 138

E2E-X3D[]
E2E-X4D[]

E2E NEXT Dimensions 139

E2E-X7D[]
E2E-X8D[]

E2E NEXT Dimensions 140

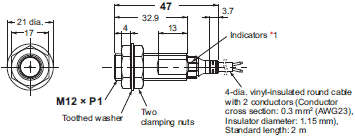

E2E-X10D[]
E2E-X15D[]

E2E NEXT Dimensions 141

Pre-wired Models
Pre-wired Connector Models
(Unshielded)

Note: Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X4MD[]

E2E NEXT Dimensions 143

E2E-X8MD[]

E2E NEXT Dimensions 144

E2E-X14MD[]

E2E NEXT Dimensions 145

E2E-X20MD[]

E2E NEXT Dimensions 146

*1. D1 Models: Operation indicator (Orange), Setting indicator (Green)/ D2 Models: Operation indicator (Orange)

E2E NEXT Dimensions 148

DC 2-wire (Long-body Standard/Double distance model)

Pre-wired Models (Shielde)

E2E-X3D[]L

E2E NEXT Dimensions 150

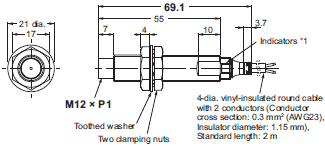

E2E-X7D[]L

E2E NEXT Dimensions 151

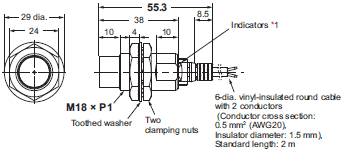

E2E-X10D[]L

E2E NEXT Dimensions 152

Pre-wired Models (Unshielded)

E2E-X8MD[]L

E2E NEXT Dimensions 154

E2E-X14MD[]L
E2E-X16MD[]L

E2E NEXT Dimensions 155

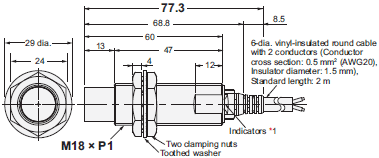

E2E-X20MD[]L

E2E NEXT Dimensions 156

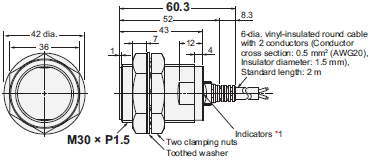

E2E-X30MD[]L

E2E NEXT Dimensions 157

*1. D1 Models: Operation indicator (Orange), Setting indicator (Green)/ D2 Models: Operation indicator (Orange)

E2E NEXT Dimensions 159

DC 2-wire (Standard model)

M12 Connector Models (Shielded)

E2E-X2D[]-M1/-M1G

E2E NEXT Dimensions 161

E2E-X3D[]-M1/-M1G

E2E NEXT Dimensions 162

E2E-X7D[]-M1/-M1G

E2E NEXT Dimensions 163

E2E-X10D[]-M1/-M1G

E2E NEXT Dimensions 164

M12 Connector Models (Unshielded)

E2E-X4MD[]-M1/-M1G

E2E NEXT Dimensions 166

E2E-X8MD[]-M1/-M1G

E2E NEXT Dimensions 167

E2E-X14MD[]-M1/-M1G

E2E NEXT Dimensions 168

E2E-X20MD[]-M1/-M1G

E2E NEXT Dimensions 169

*1. D1 Models: Operation indicator (Orange), Setting indicator (Green)/ D2 Models: Operation indicator (Orange)

E2E NEXT Dimensions 171

DC 2-wire (Standard model)

M8 Connector Models (Shielded)

E2E-X2D[]-M3G

E2E NEXT Dimensions 173

M8 Connector Models (Unshielded)

E2E-X4MD[]-M3G

E2E NEXT Dimensions 175

DC 2-wire (Single distance model)

Pre-wired Models
Pre-wired Connector Models
(Shielded)

Note: 1. Refer to the figure below the table for the connections of the Pre-wired Connector Model.

E2E-X1R5D[]

E2E NEXT Dimensions 177

E2E-X2R5D[]

E2E NEXT Dimensions 178

E2E-X5D[]

E2E NEXT Dimensions 179

*1. D1 Models: Operation indicator (Orange), Setting indicator (Green)/ D2 Models: Operation indicator (Orange)
