STC Series (CoaXPress)

CoaXPress

STC Series (CoaXPress)

High Speed CMOS CoaXPress Camera

Related Contents

last update: January 5, 2023

(Unit: mm)

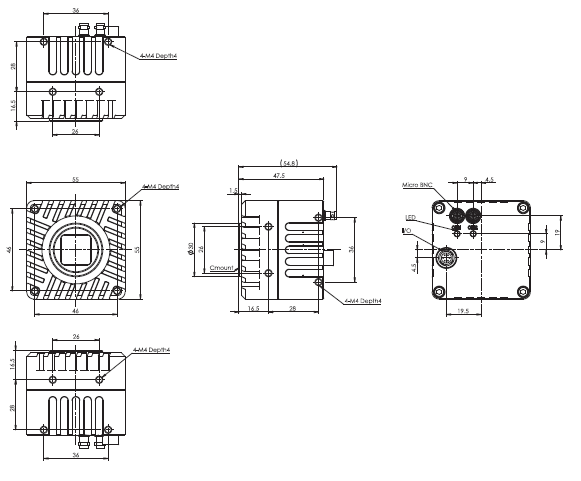

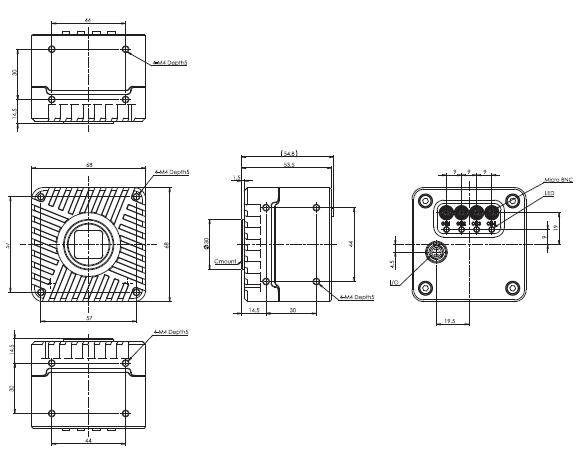

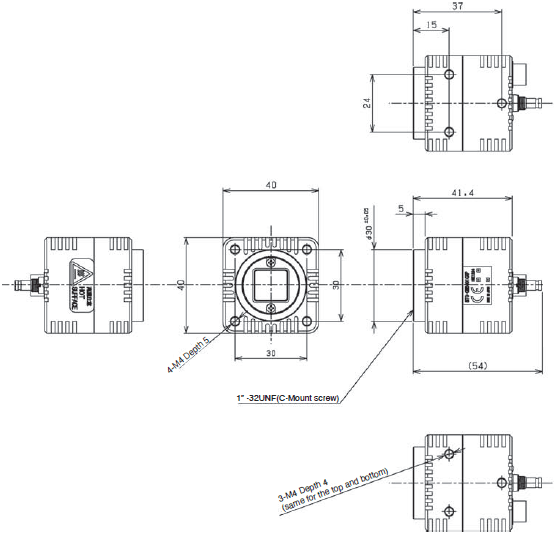

STC-CMB/CMC120ACXP-T

STC Series (CoaXPress) Dimensions 1

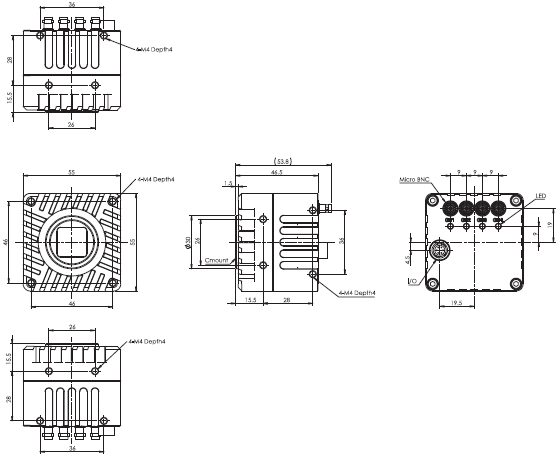

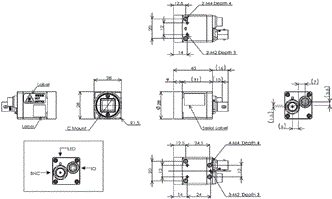

STC-CMB/CMC120ACXP

STC Series (CoaXPress) Dimensions 2

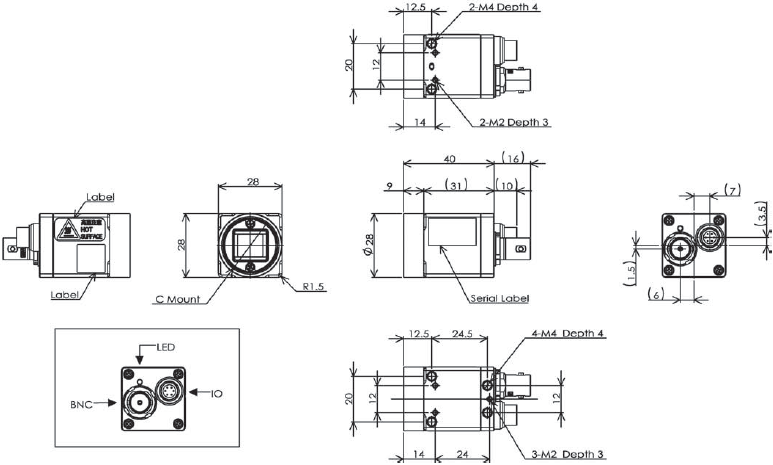

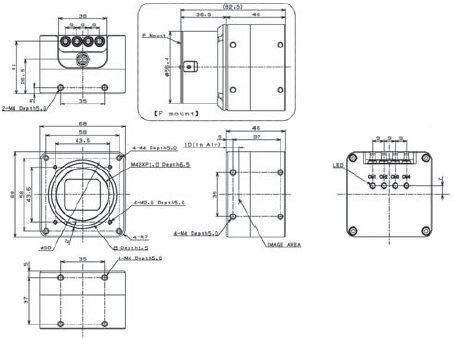

STC-CMB/CMC401CXP

STC Series (CoaXPress) Dimensions 3

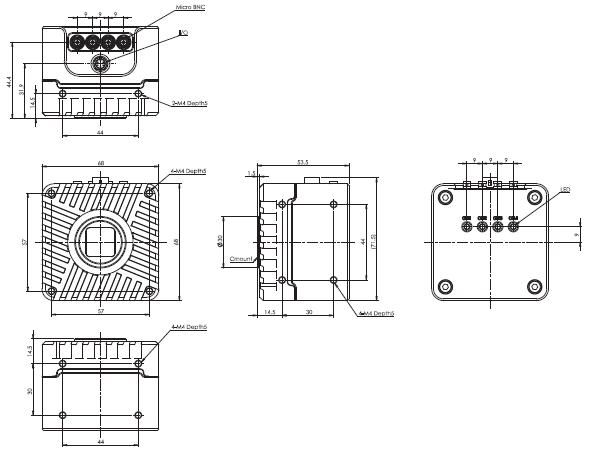

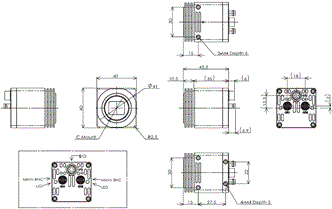

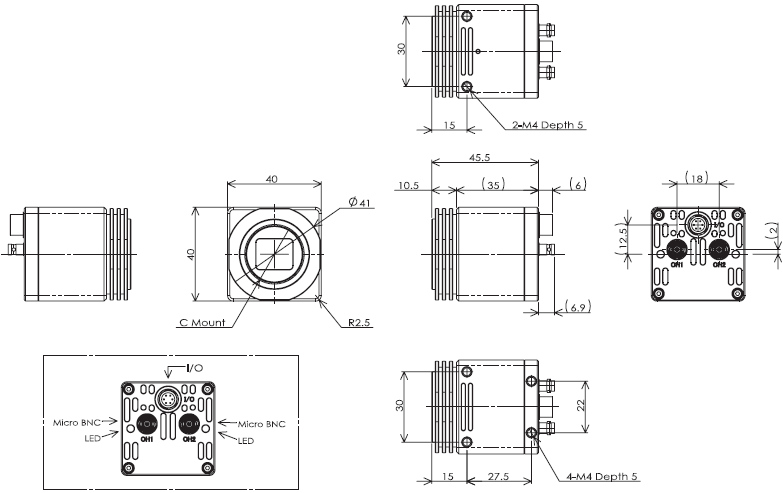

STC-MBS/MCS43CXP3, STC-MBS/MCS510CXP6
STC-MBS/MCS163CXP6, STC-MBS/MCS800CXP6
STC-MBS/MCS212CXP6, STC-MBS/MCS1221CXP6
STC-MBS/MCS322CXP6

STC Series (CoaXPress) Dimensions 4

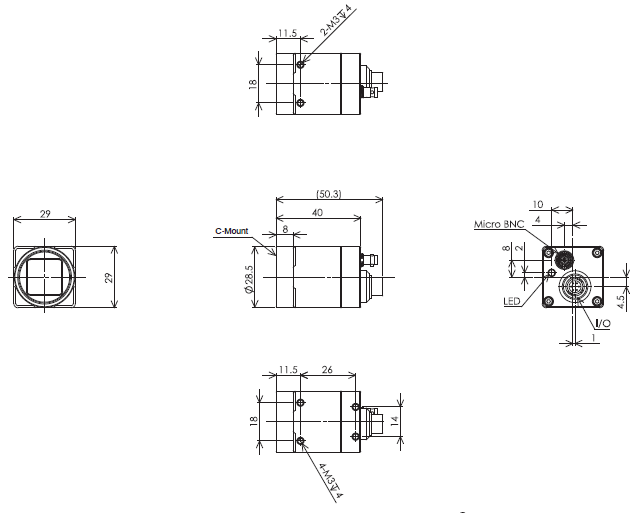

STC-SBS/SCS510CXP62
STC-SBS/SCS123BCXP62

STC Series (CoaXPress) Dimensions 5

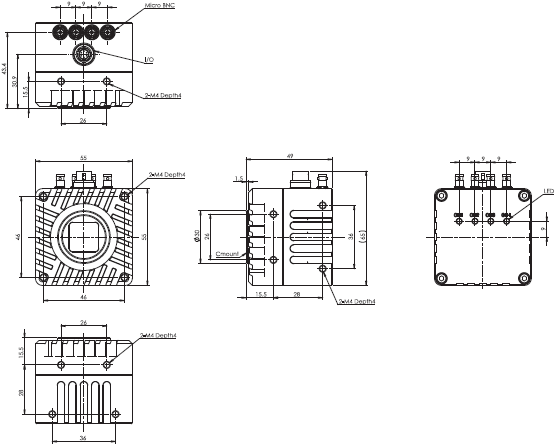

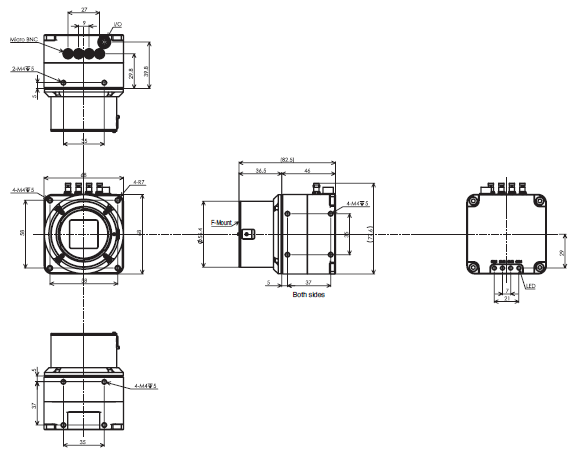

STC-LBS/LCS162BCXP124
STC-LBS/LCS204BCXP124
STC-LBS/LCS246CCXP124

STC Series (CoaXPress) Dimensions 6

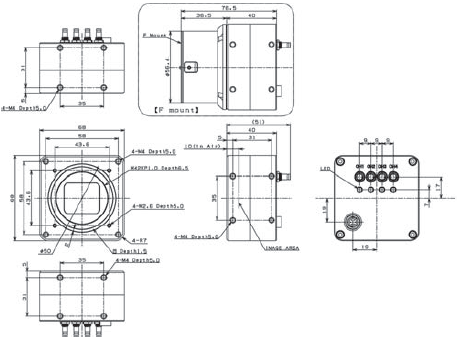

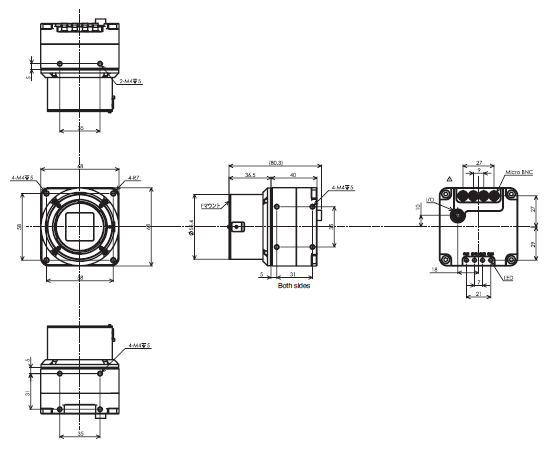

STC-LBS/LCS162BCXP124-T
STC-LBS/LCS204BCXP124-T
STC-LBS/LCS246CCXP124-T

STC Series (CoaXPress) Dimensions 7

last update: January 5, 2023
