The Ultimate Fiber Amplifier for Maximum Ease of Use and High Performance
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
*1. The Mounting Bracket can also be used on side A.
*2. E3X-DA11-N/DA41-N/DAB11-N: 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2
mm2;
Insulationdiameter: 1.1 mm).
Standard length: 2 m.
E3X-DA21-N/DA51-N: 4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm2;
Insulation diameter:1.1 mm).
Standard length: 2 m.
Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted
side by side.
*1. The Mounting Bracket can also be used on side A.

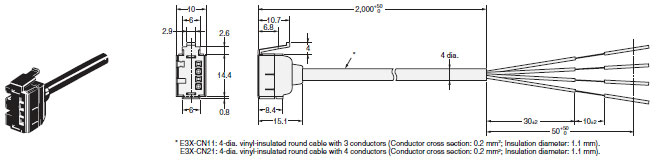

*2. 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2 mm2;
Insulation diameter: 1.1 mm).
Standard length: 2 m.
*1. The Mounting Bracket can also be used on side A.
*2. 4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm2;
Insulation diameter: 1.1 mm).
Standard length: 2 m.
Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted
side by side.

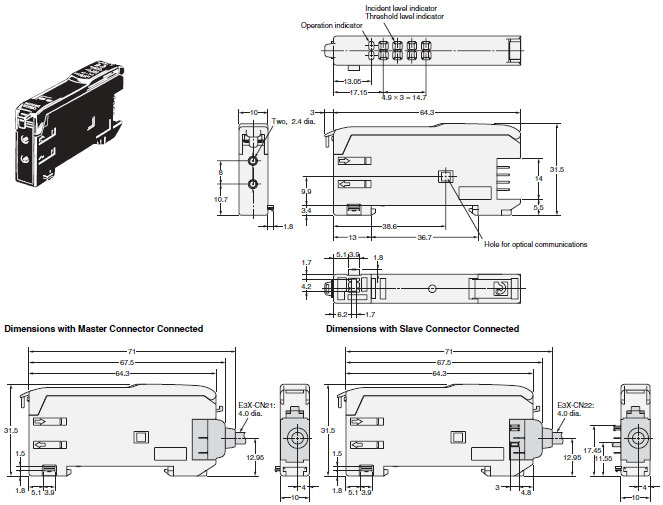

Amplifiers with Standard Connectors E3X-DA6, E3X-DAG6, E3X-DA7, E3X-DAH6 E3X-DA8, E3X-DAB8, E3X-DA9, E3X-DAG8 E3X-DAB6, E3X-DAH8, E3X-DA6D, E3X-DA6-P

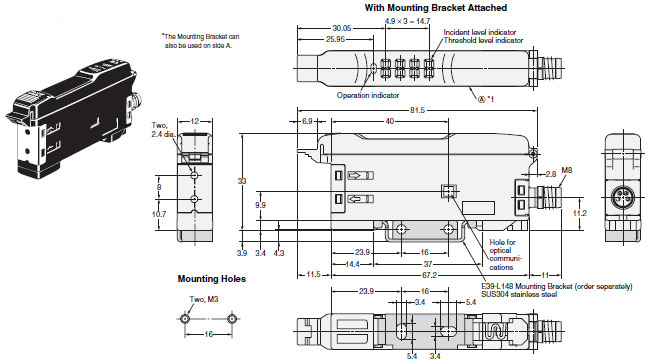

Amplifiers with M8 Connectors, Water-resistant Models E3X-DA14V E3X-DA44V
Amplifiers with Standard Connectors, Twin-output Models E3X-DA6TW E3X-DA8TW
