A22NE-PD / A22NE-P / A22E

Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)

A22NE-PD / A22NE-P / A22E

Install in 22-dia. or 25-dia. Panel Cutout (When Using a Ring)

A22NE-PD Push-in Plus Terminal Block Models

Certified Standard Ratings

• UL508 (File No. E76675), CSA C22.2 No.14
   5 A at 125 VAC, 3 A at 250 VAC B300
• TÜV (EN60947-5-1) - Certified direct opening -
         (EN60947-5-5)
   AC-15 3 A at 125 VAC
   DC-13 1 A at 30 VDC
• CCC (GB/T14048.5)
   AC-15 3 A at 125 VAC
   DC-13 1 A at 30 VDC

Applicable Standards

UL1059, UL486E

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device.
         This fuse is not provided in the main unit.

Certified Standards

Certification body Standards File No.
UL * UL508, C22.2 No.14 E76675
TÜV SÜD EN60947-5-1(Certified direct opening),
EN60947-5-5
Consult your OMRON representative for details.
CQC (CCC) GB/T14048.5 Consult your OMRON representative for details.

Note: Only models with NC contacts have a direct opening mechanism.
* UL-certification for CSA C22.2 No. 14 has been obtained.

Ratings

Contacts (Standard Load)

Rated
insulation
voltage (V)
Rated carry
current (A)
Rated
voltage
(V)
Rated current (A)
AC15
(Inductive load)
AC12
(Resistive load)
DC13
(Inductive load)
DC12
(Resistive load)
250 5 30 VAC --- --- --- ---
125 VAC 3 A 5 A --- ---
250 VAC 1.5 A 3 A --- ---
30 VDC --- --- 1 A 2 A
125 VDC --- --- 0.22 A 0.4 A
250 VDC --- --- 0.1 A 0.2 A

Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 20 operations/minute
Note: 2. Minimum applicable load: 1 mA at 5 VDC (Resistive load)
        The operating range may vary depending on the usage conditions and type of load.

LED Lamp (A22NZ-L-RC)

Rated voltage Operating voltage Current value
24 VAC/VDC 24 VAC/VDC ± 10% Approx. 12 mA

Characteristics

Operation Turn-reset Pull-reset
Non-lighted model Lighted Model Non-lighted model Non-lighted model
(Models with IP69K)
A22NE-[]-PD[][]-N-[] A22NE-M-PD[][]-C-[] A22NE-MP-PD[][]-N-[] A22NE-MP-PD[][]-N-69K
Allowable
operating
frequency
Mechanical 30 operations/minute or less (One operation consists of set and reset operations.)
Electrical 30 operations/minute or less (One operation consists of set and reset operations.)
Insulation resistance *1 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength
Between
terminals of
same polarity*1
2,000 VAC, 50/60 Hz 1 minute (initial value)
Between
terminals of
different polarity
2,000 VAC, 50/60 Hz 1 minute (initial value)
Between each
terminal and
ground
2,000 VAC, 50/60 Hz 1 minute (initial value)
Vibration
resistance
Malfunction 10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms)
Shock
resistance
Malfunction 250 m/s2 max. (contact separation within 1 ms)
Durability Mechanical 300,000 operations min. (One operation consists of set and reset operations.) 100,000 operations min.
(One operation consists of
set and reset operations.)
Electrical
(100 mA at 24
VAC (Resistive
load))
250,000 operations min. (One operation consists of set and reset operations.) 100,000 operations min.
(One operation consists of
set and reset operations.)
Electrical
(3 mA at 250
VAC (Resistive
load))
100,000 operations min. (One operation consists of set and reset operations.)
Ambient operating temperature *2 -20 to +70°C -20 to +55°C -20 to +70°C -20 to +70°C *3
Ambient operating humidity 35 to 85% RH
Ambient storage temperature *2 -40 to +70°C
Degree of protection *4 IP65 oil-resistant models IP65 IP65 oil-resistant models IP69K
Electric shock protection class Class II
PTI (tracking characteristic) 175
Degree of contamination 3 (EN 60947-5-1)
Minimum direct opening stroke 11 mm
Minimum direct opening force 45 N
Conditional short-circuit current 100 A (EN 60947-5-1)
Wight (for a 40-dia. head
2NC/2NO Operation Unit)
Approx. 95 g Approx. 95 g Approx. 125 g Approx. 135 g

*1. State when an LED is not added between terminals of the same polarity on a lighting unit.
*2. With no icing or condensation.
*3. Capable of operation at up to 80°C under IP[]9K testing conditions per JIS D 5020.
*4. The degree of protection from the front of the panel.

Operating Characteristics

Item Turn-reset Pull-reset
Lighted / non-lighted models Non-lighted model Non-lighted model
(Models with IP69K)
Total travel force (TTF) 45 N max. 60 N max. 70 N max.
Return force (RF) 0.25N·m max. * 60 N max. 70 N max.
Total travel (TT) 10 ±1 mm 5.5 ±1 mm

* Rotation torque value.

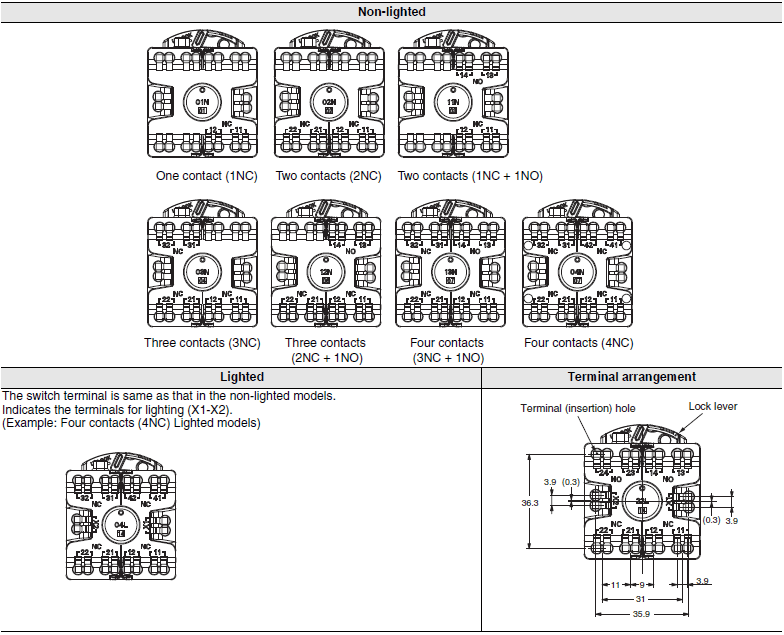

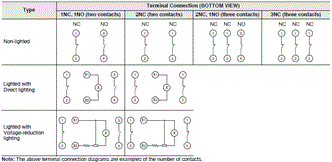

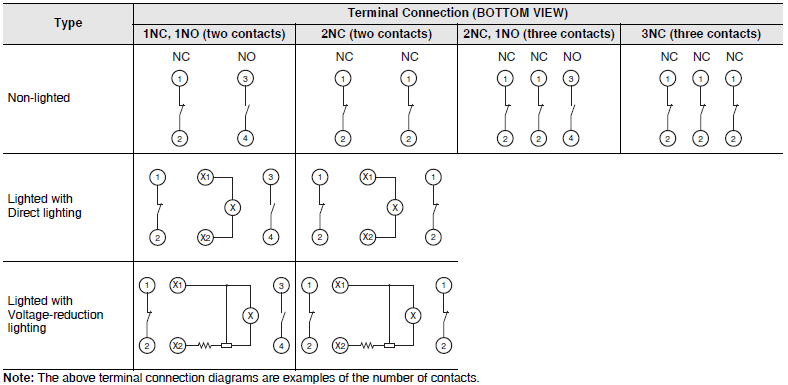

Terminal Arrangement (BOTTOM VIEW)

A22NE-PD / A22NE-P / A22E Specifications 14

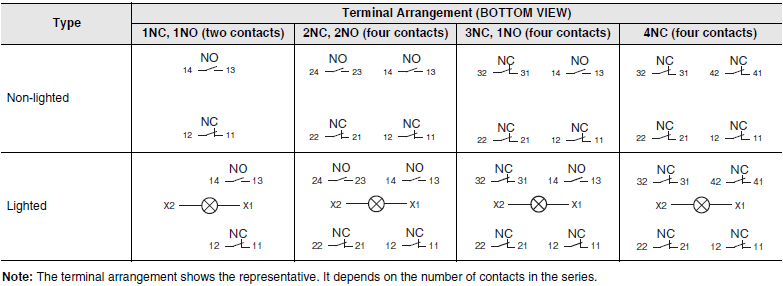

Terminal Arrangement

A22NE-PD / A22NE-P / A22E Specifications 15

A22NE-P Push-in Plus Terminal Block Models

Certified Standard Ratings

• UL508 (File No. E76675), CSA C22.2 No.14
   6 A at 240 VAC, 10 A at 120 VAC
• TÜV (EN60947-5-1) - Certified direct opening -
         (EN60947-5-5)
   AC-15 3 A at 240 VAC
   DC-13 4 A at 24 VDC
• CCC (GB/T14048.5)
   AC-15 3 A at 240 VAC
   DC-13 4 A at 24 VDC

Applicable Standards

UL1059, UL486E (Push-in Plus Terminal Block Types)

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not
         provided in the main unit.

Certified Standards

Certification body Standards File No.
UL * UL508, C22.2 No.14 E76675
TÜV SÜD EN60947-5-1 (Certified direct opening),
EN60947-5-5
Consult your OMRON representative for details.
CQC (CCC) GB/T14048.5 Consult your OMRON representative for details.

Note: Only models with NC contacts have a direct opening mechanism.
* UL-certification for CSA C22.2 No. 14 has been obtained.

Ratings

Contacts (Standard Load)

Rated
insulation
voltage (V)
Rated carry
current (A)
Rated
voltage
(V)
Rated current (A)
AC15
(Inductive load)
AC12
(Resistive load)
DC13
(Inductive load)
DC12
(Resistive load)
600 10 24 VAC 10 10 --- ---
120 VAC 6 10
240 VAC 3 6
380 VAC 1.9 2
440 VAC 1.6 2
24 VDC --- --- 4 8
120 VDC 1.1 2.2
240 VDC 0.55 1.1

Note: 1. The above ratings were obtained by conducting tests under the following conditions.
             (1) Ambient temperature: 20°±2°C
             (2) Ambient humidity: 65±5%
             (3)Operating frequency: 20 operations/minute
         2. Minimum applicable load: 10 mA at 5 VDC (Resistive load)
             The operating range may vary depending on the usage conditions and type of load.

LED Lamp

Rated voltage Operating voltage Current value
6 VAC/VDC 6 VAC/VDC ± 10% Approx. 11 mA
12 VAC/VDC 12 VAC/VDC ± 10% Approx. 12 mA
24 VAC/VDC 24 VAC/VDC ± 10% Approx. 12 mA
100 VAC 100 VAC ± 10% Approx. 12 mA
110 VAC 110 VAC ± 10%
120 VAC 100 VAC to 130 VAC
200 VAC 200 VAC ± 10% Approx. 12 mA
220 VAC 220 VAC ± 10%
230 VAC 230 VAC ± 10%
240 VAC 220 VAC to 250 VAC

Characteristics

Operation Turn-reset Pull-reset
Non-lighted model Lighted Model Non-lighted model
A22NE-[]-P[][][]-N A22NE-M-P[][][]-[] A22NE-MP-P[][][]-N A22NE-MP-P[][][]-N-69K
Allowable
operating
frequency
Mechanical 30 operations/minute or less
(One operation consists of set and reset operations.)
Electrical 30 operations/minute or less
(One operation consists of set and reset operations.)
Insulation resistance *1 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength
Between
terminals of
same polarity
*1
2,500 VAC, 50/60 Hz 1 minute (initial value)
Between each
terminal and
ground
2,500 VAC, 50/60 Hz 1 minute (initial value)
Vibration
resistance
Malfunction 10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms)
Shock
resistance
Malfunction 250 m/s2 max. (contact separation within 1 ms)
Durability Mechanical 300,000 operations min.
(One operation consists of set and reset operations.)
100,000 operations min.
(One operation consists of
set and reset operations.)
Electrical 300,000 operations min.
(One operation consists of set and reset operations.)
100,000 operations min.
(One operation consists of
set and reset operations.)
Ambient operating
temperature *2
-20 to +70°C -20 to +55°C -20 to +70°C -20 to +70°C *3
Ambient operating
humidity
35 to 85% RH
Ambient storage
temperature *2
-40 to +70°C
Degree of protection*4 IP65 oil-resistant models *5 IP65 IP65 oil-resistant models *5 IP69K
Electric shock
protection class
Class II
PTI
(tracking characteristic)
175
Degree of contamination 3 (EN 60947-5-1)
Minimum direct
opening stroke
11 mm
Minimum direct
opening force
45 N
Conditional
short-circuit current
100 A (EN 60947-5-1)
Wight (for a 40-dia. Head
1NC/1NO Operation Unit)
Approx. 55 g Approx. 60 g Approx. 85 g Approx. 115 g

*1. State when an LED is not added between terminals of the same polarity on a lighting unit. Does not apply to
      lighted-type 100 to 200 V lighting units.
*2. With no icing or condensation.
*3. Capable of operation at up to 80°C under IP[]9K testing conditions per JIS D 5020.
*4. The degree of protection from the front of the panel.
*5. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.

Operating Characteristics

Item Turn-reset Pull-reset
Lighted /
non-lighted models
Non-lighted model Non-lighted model
(Models with IP69K)
Total travel force (TTF) 45 N max. 60 N max. 70 N max.
Return force (RF) 0.25N·m * max. 60 N max. 70 N max.
Total travel (TT) 10 ±1 mm 5.5 ±1 mm 5.5 ±1 mm

* Rotation torque value.

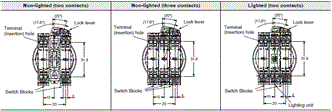

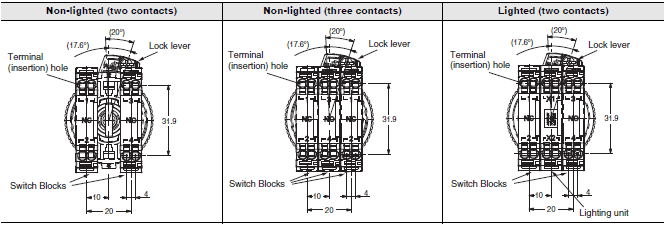

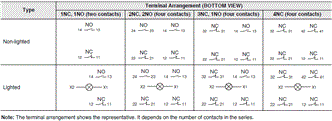

Terminal Arrangement (BOTTOM VIEW)

A22NE-PD / A22NE-P / A22E Specifications 29

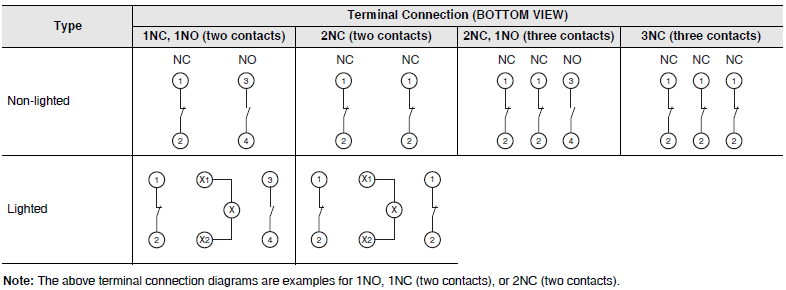

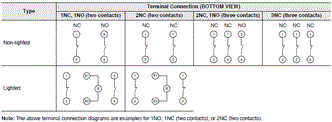

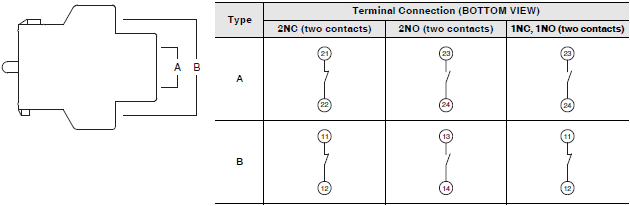

Terminal connection

A22NE-PD / A22NE-P / A22E Specifications 30

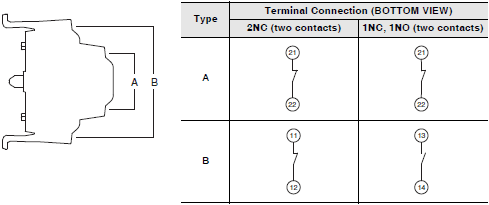

Terminal wiring drawings of two-contact Switch Units

A22NE-PD / A22NE-P / A22E Specifications 31

A22E Screw Terminal Block types

Certified Standard Ratings

• UL, cUL (File No. E41515)
   6 A at 220 VAC, 10 A at 110 VAC
• TÜV (EN60947-5-1) (Low Voltage Directive)
   3 A at 220 VAC
• CCC (GB14048.5)
   3 A at 240 VAC, 1.5 A at 24 VDC

Certified Standards

Certification body Standards File No.
UL *1 UL508, C22.2 No.14 E41515
TÜV SÜD EN60947-5-1 (Certified direct opening),
EN60947-5-5
Consult your OMRON representative for details.
CQC (CCC) GB/T14048.5 2003010303070635
KOSHA *2 EN60947-5-1 Consult your OMRON representative for details.

Note: 1. Only models with NC contacts have a direct opening mechanism.
         2. A fuse is not provided.
*1. UL-certification for CSA C22.2 No. 14 has been obtained.
      Certification has been obtained for individual Switch Blocks and Lighting Units.
*2. Some models have been certified.

Ratings

Contacts (Standard Load)

Rated carry
current (A)
Rated
voltage (V)
Rated current (A)
AC15
(Inductive load)
AC12
(Resistive load)
DC13
(Inductive load)
DC12
(Resistive load)
10 24 VAC 10 10 --- ---
110 VAC 5 10
220 VAC 3 6
380 VAC 2 3
440 VAC 1 2
24 VDC --- --- 1.5 10
110 VDC 0.5 2
220 VDC 0.2 0.6
380 VDC 0.1 0.2

Note: 1. Rated current values are determined according to the testing conditions. The above ratings were obtained by
            conducting tests under the following conditions.
            (1) Ambient temperature: 20°±2°C
            (2) Ambient humidity: 65±5%
            (3)Operating frequency: 20 operations/minute
         2. Minimum applicable load: 10 mA at 5 VDC

Contacts (Microload)

Rated applicable load 100 mA at 30 VDC (Resistive load)
Minimum applicable load 1 mA at 5 VDC

LED Lamp

Rated voltage Operating voltage Current value
6 VAC/VDC 6 VAC/VDC ± 5% Approx. 8 mA
12 VAC/VDC 12 VAC/VDC ± 5%
24 VAC/VDC 24 VAC/VDC ± 5%

Voltage-reduction lighting

Rated voltage Operating voltage Rated current Applicable lamp
(BA9S/Base: 13)
110 VAC 100 VAC
(95 to 115 V)
Approx. 8 mA LED lamp
A22-24A[]
220 VAC 200 VAC
(190 to 230 V)

Characteristics

Type Turn-reset Pull-reset
Non-lighted model Lighted model Non-lighted model
Allowable
operating
frequency
Mechanical 30 operations/minute (One operation consists of set and reset operations.)
Electrical 30 operations/minute (One operation consists of set and reset operations.)
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength
Between terminals
of same polarity
2,500 VAC, 50/60 Hz for 1 min.
Between each
terminal and ground
2,500 VAC, 50/60 Hz for 1 min.
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude (contact separation within 1 ms)
Shock
resistance
Destruction 1000 m/s2
Malfunction 250 m/s2 max. (contact separation within 1 ms)
Durability Mechanical 300,000 operations min. (One operation consists of set and reset operations.)
Electrical 300,000 operations min. (One operation consists of set and reset operations.)
Ambient operating temperature *1 -20 to +70°C -20 to +55°C -20 to +70°C
Ambient operating humidity 35 to 85% RH
Ambient storage temperature -40 to +70°C
Degree of protection IP65 oil-resistant models *2 *3 IP65 *2 IP65 oil-resistant models *2 *3
Electric shock protection class Class II
PTI (tracking characteristic) 175
Degree of contamination 3 (EN60947-5-1)
Minimum direct opening stroke 11 mm
Minimum direct opening force 45 N
Conditional short-circuit current 100 A (EN 60947-5-1)
Weight (for a 40-dia. head 1NC/1NO
Operation Unit)
Approx. 65 g Approx. 80 g Approx. 100 g

*1. With no icing or condensation.
*2. The degree of protection from the front of the panel.
*3. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.

Operating Characteristics

Item Turn-reset Pull-reset
Total travel force (TTF) 44.1 N max. 58.8 N max.
Return force (RF) 0.25 N·m max. * 58.8 N max.
Total travel (TT) 10 ±1 mm 5.5 ±1 mm

* Rotation torque value.

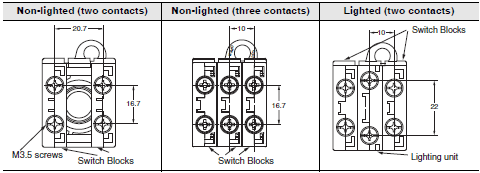

Terminal Arrangement (BOTTOM VIEW)

A22NE-PD / A22NE-P / A22E Specifications 46

Terminal connection

A22NE-PD / A22NE-P / A22E Specifications 47

Terminal wiring drawings of two-contact Switch Units

A22NE-PD / A22NE-P / A22E Specifications 48
