E3X-DA-S / MDA

Digital Fiber Amplifier Unit

E3X-DA-S / MDA

Advanced Fiber Amplifier Units

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: October 1, 2015

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

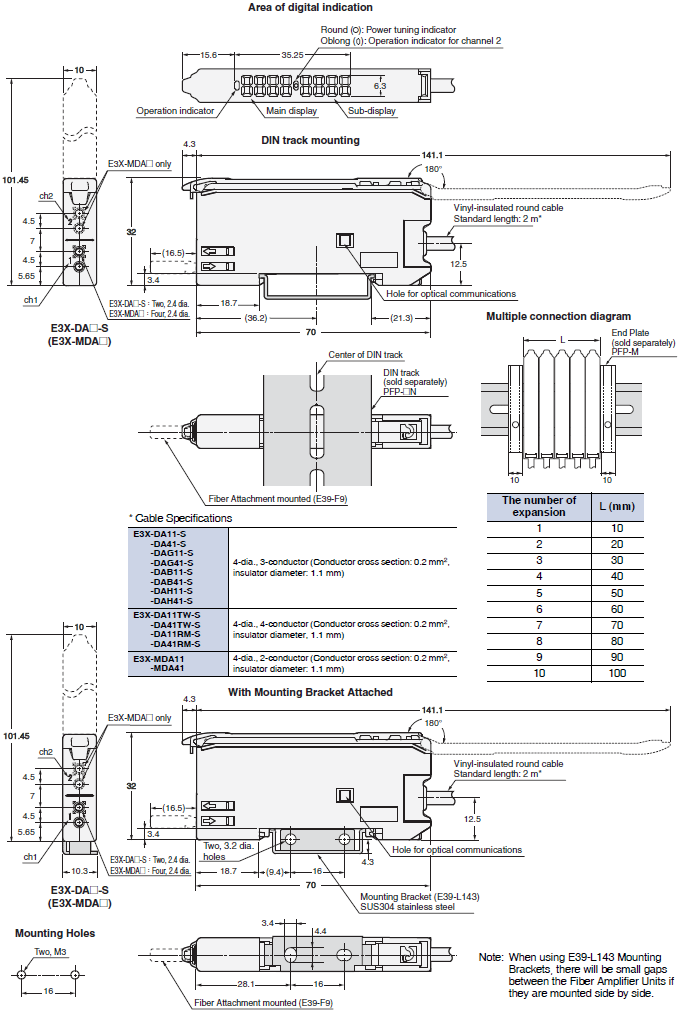

Amplifier Units with Cables
E3X-DA11-S, E3X-DA41-S
E3X-DAG11-S, E3X-DAG41-S
E3X-DAB11-S, E3X-DAB41-S
E3X-DAH11-S, E3X-DAH41-S
E3X-DA11RM-S, E3X-DA41RM-S
E3X-DA11TW-S, E3X-DA41TW-S
E3X-DA11SE-S, E3X-DA41SE-S
E3X-DA11AT-S, E3X-DA41AT-S
E3X-DA11AN-S, E3X-DA41AN-S
E3X-MDA11, E3X-MDA41

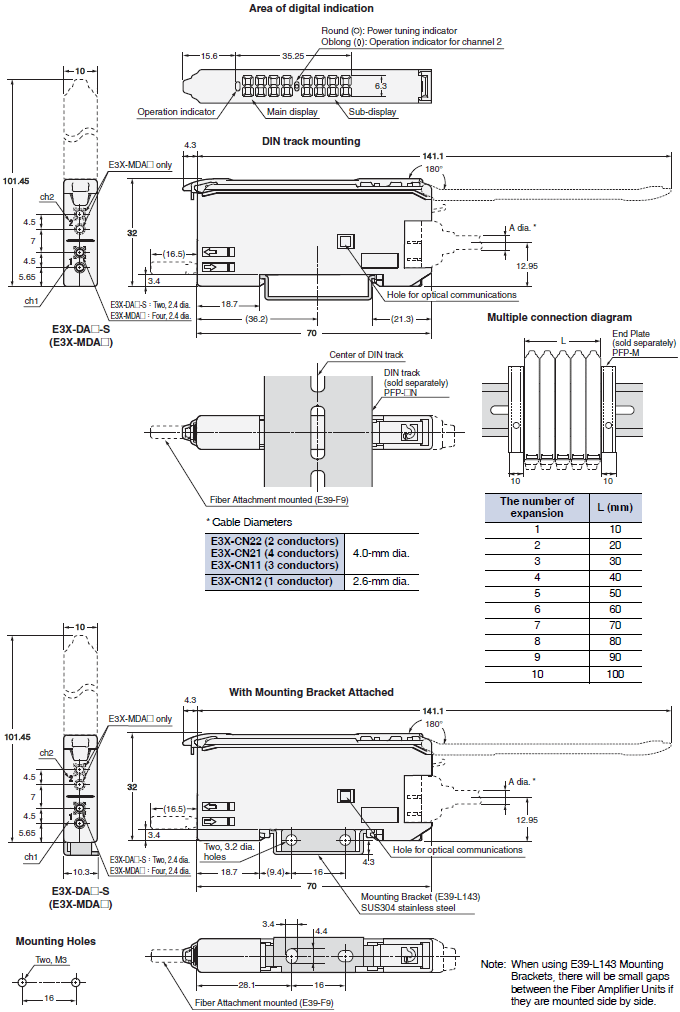

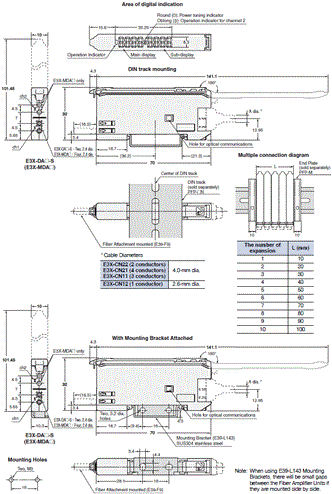

Amplifier Units with Wire-saving Connectors
E3X-DA6-S, E3X-DA8-S,
E3X-DAG6-S, E3X-DAG8-S,
E3X-DAB6-S, E3X-DAB8-S,
E3X-DAH6-S, E3X-DAH8-S,
E3X-DA6RM-S, E3X-DA8RM-S,
E3X-DA6TW-S, E3X-DA8TW-S,
E3X-DA6SE-S, E3X-DA8SE-S,
E3X-DA6AT-S, E3X-DA8AT-S,
E3X-MDA6, E3X-MDA8

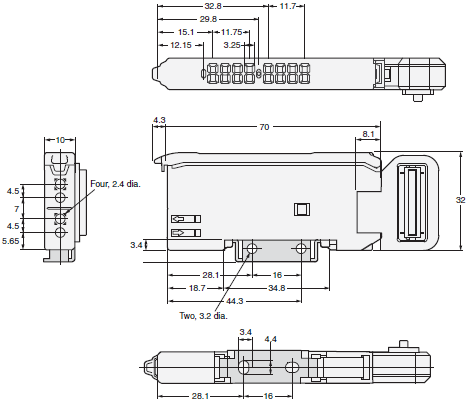

Amplifier Unit with Connector for Sensor Communications Unit
E3X-MDA0

Amplifier Unit Connectors

Master Connectors
E3X-CN11
E3X-CN21

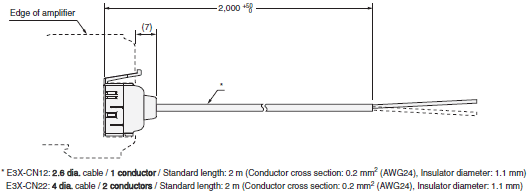

Slave Connectors
E3X-CN12
E3X-CN22

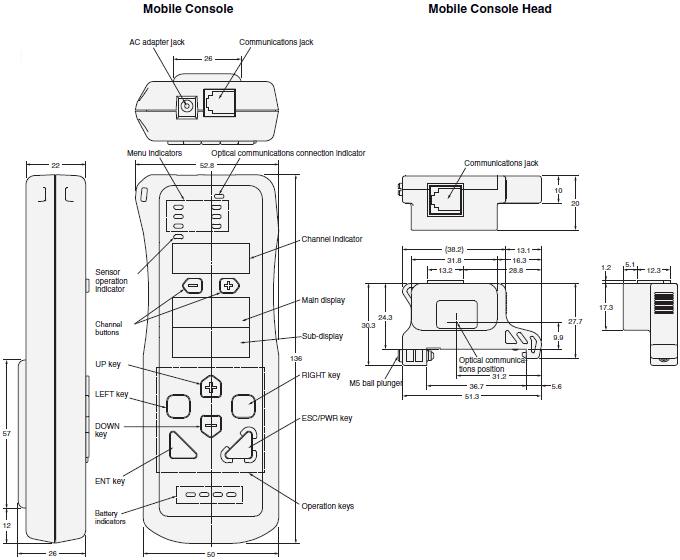

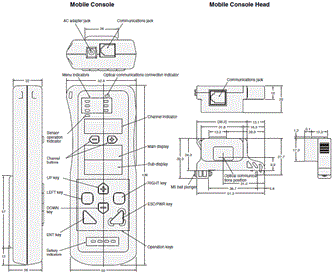

Mobile Console

E3X-MC11-SV2
