D4GL, D4GL-SK10-LK[]

Guard Lock Safety-door Switch/Slide key

D4GL, D4GL-SK10-LK[]

Vertically Mounting Guard Lock Safety-door Switch Ideal for Limited Installation Space

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Related Contents

last update: September 10, 2014

(Unit: mm)

Switches

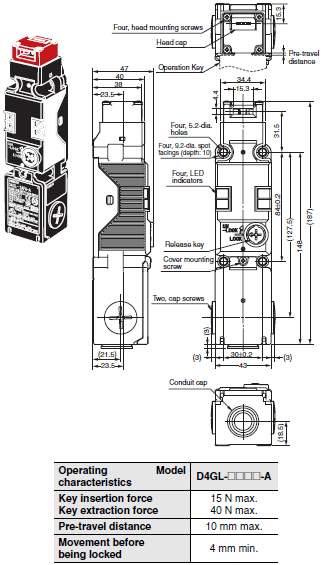

D4GL-[][][][]-A

D4GL, D4GL-SK10-LK[] Dimensions 2

D4GL-[][][][]-A4

D4GL, D4GL-SK10-LK[] Dimensions 3

Operation Keys

D4DS-K1

D4GL, D4GL-SK10-LK[] Dimensions 5

D4DS-K2

D4GL, D4GL-SK10-LK[] Dimensions 6

D4DS-K3

D4GL, D4GL-SK10-LK[] Dimensions 7

D4DS-K5

D4GL, D4GL-SK10-LK[] Dimensions 8

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

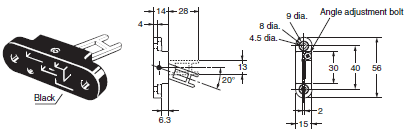

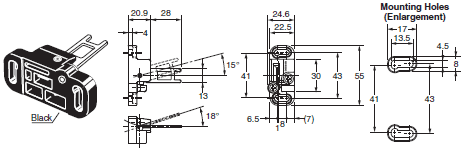

Slide keys

D4GL-SK10-LK

D4GL, D4GL-SK10-LK[] Dimensions 11

D4GL-SK10-LKH

D4GL, D4GL-SK10-LK[] Dimensions 12

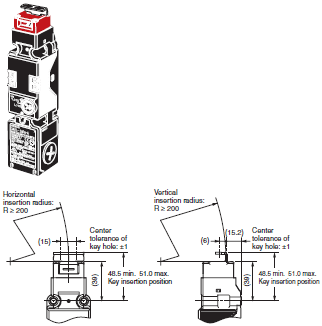

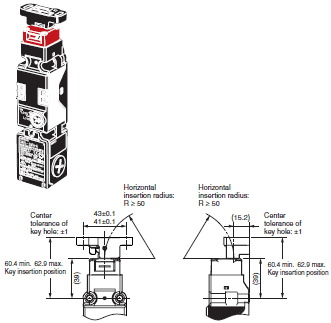

With Operation Key Inserted

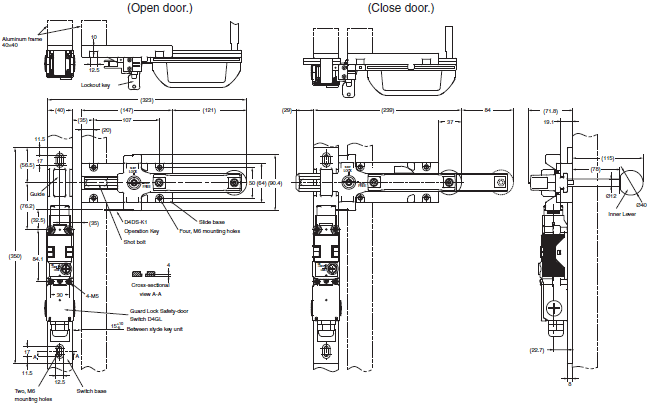

D4GL + D4DS-K1
(with Front-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 14

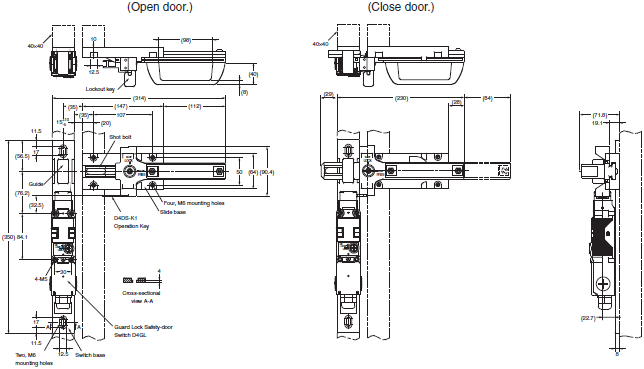

D4GL + D4DS-K1
(with Top-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 15

　

D4GL + D4DS-K2
(with Front-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 17

D4GL + D4DS-K2
(with Top-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 18

　

D4GL + D4DS-K3
(with Front-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 20

D4GL + D4DS-K3
(with Top-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 21

　

D4GL + D4DS-K3
(with Front-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 23

D4GL + D4DS-K3
(with Top-inserted Operation Key)

D4GL, D4GL-SK10-LK[] Dimensions 24
