H5CN

Digital Timer

H5CN

Miniature DIN-sized (48 x 48 mm) Quartz Timer with Abundant Series Versions

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: April 9, 2014

(Unit: mm)

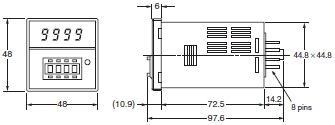

Dimensions without Flush Mounting Adapter

H5CN-X[]N/-Y[]N/-X[]NS (Flush Mounting/Surface Mounting Models)

H5CN-X[]NM (Flush Mounting/Surface Mounting Models)

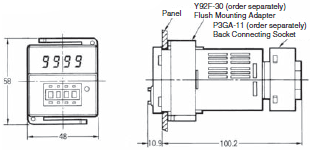

Dimensions with Flush Mounting Adapter

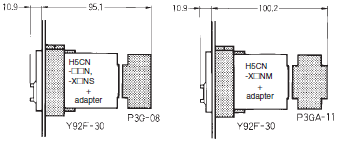

H5CN-X[]N/-Y[]N/-X[]NS (Adapter Ordered Separately)

H5CN-X[]NM (Adapter Ordered Separately)

Panel Cutout

The standard panel cutout is as below. (Panel cutout conforms to DIN 43700.)

Gang-mounting of more than 2 units (horizontally)

Note: 1. Panel thickness: 1 to 5 mm
2. When gang-mounting the Unit, the orientation of the Adapter must be changed depending on whether Units are
mounted horizontally or vertically.
3. No cover: N = (48n − 2.5) +1/−0
With hard cover: N = {48n − 2.5 + (n − 1) x 3} +1/−0

Dimensions with Front Connecting Socket

Flush Mounting

Note: These dimensions vary with the kind of DIN track (reference value).

Accessories (Order Separately)

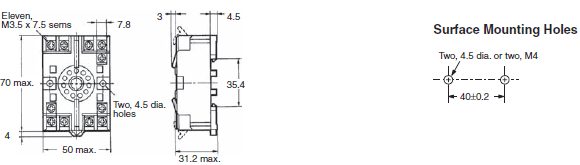

Track Mounting/Front Connecting Socket

P2CF-08

Track Mounting/Front Connecting Socket

P2CF-11

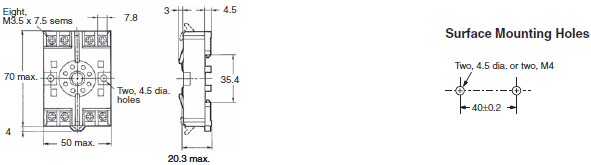

Back Connecting Socket

P3G-08

P3GA-11

Protective Cover

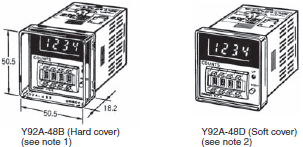

The Protective Cover shields the front panel, particularly the count value setting section from dust, dirt and water, and prevent malfunctioning of the Timer due to static electricity.

Note: 1. The Hard Protective Cover prevents the set count value from being altered due to accidental contact with the
pushtype thumbwheel switch.
2. The Soft Protective Cover allows the set value to be set by depressing the thumbwheel switches through it.
It may be, however, difficult to make setting changes of the Timer with the Y92A-48B Protective Cover
attached, which must be taken into consideration before using the Y92A-48B Protective Cover.

Mounting Track

PFP-100N, PFP-50N

Note: The values shown in parentheses are for the PFP-50N.

PFP-100N2

End Plate

PFP-M

Spacer

PFP-S
