Industrial Ethernet Cables

XS5, XS6

Cables and Connectors for EtherNet/IP™, EtherCAT® and Other Industrial Ethernet Networks

Cables with Standard RJ45 Connectors

Model Number Structure

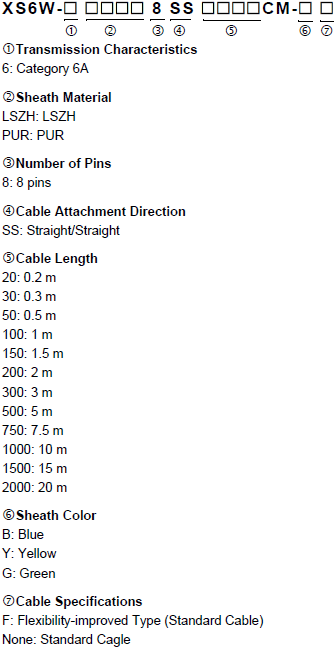

Model Number Legend

Use this legend when determining the product specifications from the model number. Choose from the model numbers listed in Ordering Information when ordering.

XS5, XS6 Lineup 3

Appearance Cable
specifications
Type Category Cable sheath
material
Cable
length (m)
Model
2715_lu_1_5 Flexibility-
improved
Type
(Standard
Cable)
Cable with
Connectors
on Both Ends
(RJ45/RJ45)
Cat6A PUR 0.2 XS6W-6PUR8SS20CM-YF
0.3 XS6W-6PUR8SS30CM-YF
0.5 XS6W-6PUR8SS50CM-YF
1 XS6W-6PUR8SS100CM-YF
1.5 XS6W-6PUR8SS150CM-YF
2 XS6W-6PUR8SS200CM-YF
3 XS6W-6PUR8SS300CM-YF
5 XS6W-6PUR8SS500CM-YF
7.5 XS6W-6PUR8SS750CM-YF
10 XS6W-6PUR8SS1000CM-YF
15 XS6W-6PUR8SS1500CM-YF
20 XS6W-6PUR8SS2000CM-YF
2715_lu_1_1 Standard
Cable
LSZH 0.2 XS6W-6LSZH8SS20CM-B
0.3 XS6W-6LSZH8SS30CM-B
0.5 XS6W-6LSZH8SS50CM-B
1 XS6W-6LSZH8SS100CM-B
1.5 XS6W-6LSZH8SS150CM-B
2 XS6W-6LSZH8SS200CM-B
3 XS6W-6LSZH8SS300CM-B
5 XS6W-6LSZH8SS500CM-B
7.5 XS6W-6LSZH8SS750CM-B
10 XS6W-6LSZH8SS1000CM-B
15 XS6W-6LSZH8SS1500CM-B
20 XS6W-6LSZH8SS2000CM-B
2715_lu_1_2 0.2 XS6W-6LSZH8SS20CM-Y
0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
1.5 XS6W-6LSZH8SS150CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
7.5 XS6W-6LSZH8SS750CM-Y
10 XS6W-6LSZH8SS1000CM-Y
15 XS6W-6LSZH8SS1500CM-Y
20 XS6W-6LSZH8SS2000CM-Y
2715_lu_1_3 0.2 XS6W-6LSZH8SS20CM-G
0.3 XS6W-6LSZH8SS30CM-G
0.5 XS6W-6LSZH8SS50CM-G
1 XS6W-6LSZH8SS100CM-G
1.5 XS6W-6LSZH8SS150CM-G
2 XS6W-6LSZH8SS200CM-G
3 XS6W-6LSZH8SS300CM-G
5 XS6W-6LSZH8SS500CM-G
7.5 XS6W-6LSZH8SS750CM-G
10 XS6W-6LSZH8SS1000CM-G
15 XS6W-6LSZH8SS1500CM-G
20 XS6W-6LSZH8SS2000CM-G
2715_lu_1_4 Cat5 PUR 0.5 XS6W-5PUR8SS50CM-G
1 XS6W-5PUR8SS100CM-G
1.5 XS6W-5PUR8SS150CM-G
2 XS6W-5PUR8SS200CM-G
3 XS6W-5PUR8SS300CM-G
5 XS6W-5PUR8SS500CM-G
7.5 XS6W-5PUR8SS750CM-G
10 XS6W-5PUR8SS1000CM-G
15 XS6W-5PUR8SS1500CM-G
20 XS6W-5PUR8SS2000CM-G

Cables with Rugged RJ45 Connectors, and Cables with M12 Connectors (Round Water-resistant Connectors)

Model Number Structure

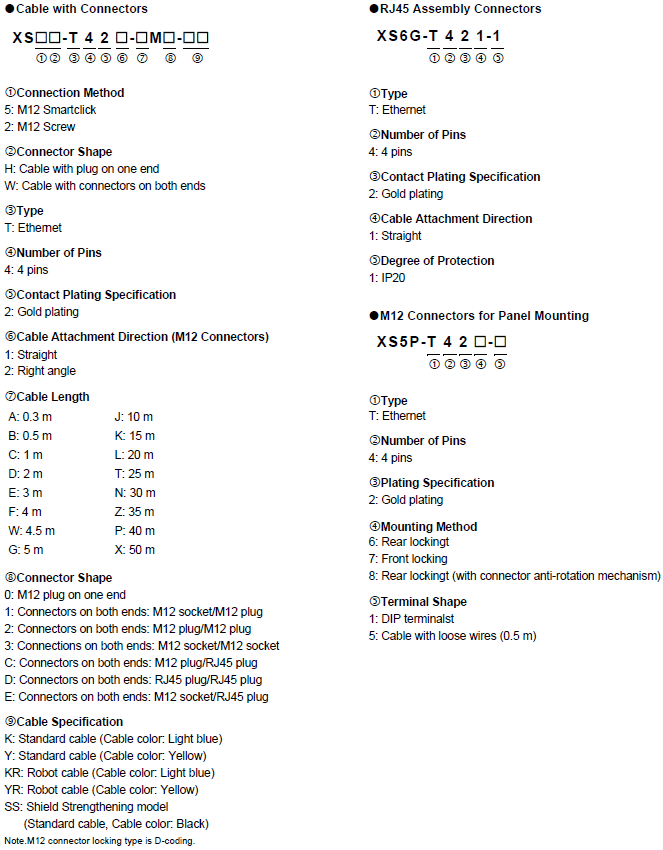

Model Number Legend

Use this legend when determining the product specifications from the model number. Choose from the model numbers listed in Ordering Information when ordering.

XS5, XS6 Lineup 7

Appearance Cable
specifi-
cations
Category Cable
sheath
material
Type Cable
length
(m)
Model
2715_lu_2_1 Standard
Cable
Cat5e PVC Cable with Plug
on One End
(M12 Straight)
0.5 XS5H-T421-BM0-K
1 XS5H-T421-CM0-K
2 XS5H-T421-DM0-K
3 XS5H-T421-EM0-K
5 XS5H-T421-GM0-K
10 XS5H-T421-JM0-K
15 XS5H-T421-KM0-K
2715_lu_2_2 Cable with Plugs
on Both Ends
(M12 Straight/
M12 Straight)
0.5 XS5W-T421-BM2-K
1 XS5W-T421-CM2-K
2 XS5W-T421-DM2-K
3 XS5W-T421-EM2-K
5 XS5W-T421-GM2-K
10 XS5W-T421-JM2-K
15 XS5W-T421-KM2-K
0.3 XS5W-T421-AM2-Y
0.5 XS5W-T421-BM2-Y
1 XS5W-T421-CM2-Y
2 XS5W-T421-DM2-Y
3 XS5W-T421-EM2-Y
5 XS5W-T421-GM2-Y
2715_lu_2_3 Cable with Plugs
on Both Ends
(M12 Straight/RJ45)
0.3 XS5W-T421-AMC-K
0.5 XS5W-T421-BMC-K
1 XS5W-T421-CMC-K
2 XS5W-T421-DMC-K
3 XS5W-T421-EMC-K
5 XS5W-T421-GMC-K
10 XS5W-T421-JMC-K
15 XS5W-T421-KMC-K
0.3 XS5W-T421-AMC-Y
0.5 XS5W-T421-BMC-Y
1 XS5W-T421-CMC-Y
2 XS5W-T421-DMC-Y
3 XS5W-T421-EMC-Y
5 XS5W-T421-GMC-Y
2715_lu_2_4 Cable with Plug
on One End
(M12 Right-angle)
0.3 XS5H-T422-AM0-K
0.5 XS5H-T422-BM0-K
1 XS5H-T422-CM0-K
2 XS5H-T422-DM0-K
3 XS5H-T422-EM0-K
5 XS5H-T422-GM0-K
10 XS5H-T422-JM0-K
15 XS5H-T422-KM0-K
2715_lu_2_5 Cable with Plugs
on Both Ends
(M12 Right-angle/
M12 Right-angle)
0.3 XS5W-T422-AM2-K
0.5 XS5H-T422-BM2-K
1 XS5W-T422-CM2-K
2 XS5W-T422-DM2-K
3 XS5W-T422-EM2-K
5 XS5W-T422-GM2-K
10 XS5W-T422-JM2-K
15 XS5W-T422-KM2-K
2715_lu_2_6 Cable with Plugs
on Both Ends
(M12 Right-angle/
RJ45)
0.3 XS5W-T422-AMC-K
0.5 XS5W-T422-BMC-K
1 XS5W-T422-CMC-K
2 XS5W-T422-DMC-K
3 XS5W-T422-EMC-K
5 XS5W-T422-GMC-K
10 XS5W-T422-JMC-K
15 XS5W-T422-KMC-K
2715_lu_2_7 Cable with Plugs
on Both Ends
(RJ45/RJ45)
0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
3 XS5W-T421-EMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
15 XS5W-T421-KMD-K
2715_lu_2_8 Cable with Plug
on One End and
Socket on
Other End
(M12 Straight/
M12 Straight)
0.5 XS5W-T421-BM1-K
1 XS5W-T421-CM1-K
2 XS5W-T421-DM1-K
3 XS5W-T421-EM1-K
5 XS5W-T421-GM1-K
10 XS5W-T421-JM1-K
15 XS5W-T421-KM1-K
2715_lu_2_9 Cable with Plug
on One End
and Socket on
Other End
(M12 Straight/RJ45)
0.5 XS5W-T421-BME-K
1 XS5W-T421-CME-K
2 XS5W-T421-DME-K
3 XS5W-T421-EME-K
5 XS5W-T421-GME-K
10 XS5W-T421-JME-K
15 XS5W-T421-KME-K
2715_lu_2_10 Cable with Socket
on Both Ends
(M12 Straight/
M12 Straight)
1 XS5W-T421-CM3-K
2 XS5W-T421-DM3-K
Robot
Cable
0.5 XS5W-T421-BM3-YR
2715_lu_2_11 Cable with Plug
on One End
and Socket on
Other End
(M12 Straight/
M12 Straight)
0.5 XS5W-T421-BM1-KR
1 XS5W-T421-CM1-KR
2 XS5W-T421-DM1-KR
3 XS5W-T421-EM1-KR
5 XS5W-T421-GM1-KR
10 XS5W-T421-JM1-KR
15 XS5W-T421-KM1-KR
2715_lu_2_12 Cable with Plugs
on Both Ends
(M12 Straight/
M12 Straight)
0.5 XS5W-T421-BM2-KR
1 XS5W-T421-CM2-KR
2 XS5W-T421-DM2-KR
3 XS5W-T421-EM2-KR
5 XS5W-T421-GM2-KR
10 XS5W-T421-JM2-KR
15 XS5W-T421-KM2-KR
1 XS5W-T421-CM2-YR
2 XS5W-T421-DM2-YR
3 XS5W-T421-EM2-YR
5 XS5W-T421-GM2-YR
2715_lu_2_13 Cable with Plugs
on Both Ends
(M12 Straight/RJ45)
0.5 XS5W-T421-BMC-KR
1 XS5W-T421-CMC-KR
2 XS5W-T421-DMC-KR
3 XS5W-T421-EMC-KR
5 XS5W-T421-GMC-KR
10 XS5W-T421-JMC-KR
15 XS5W-T421-KMC-KR
3 XS5W-T421-EMC-YR
5 XS5W-T421-GMC-YR
10 XS5W-T421-JMC-YR
15 XS5W-T421-KMC-YR
20 XS5W-T421-LMC-YR
2715_lu_2_14 Cable with Plugs
on Both Ends
(RJ45/RJ45)
0.5 XS5W-T421-BMD-KR
1 XS5W-T421-CMD-KR
2 XS5W-T421-DMD-KR
3 XS5W-T421-EMD-KR
5 XS5W-T421-GMD-KR
10 XS5W-T421-JMD-KR
15 XS5W-T421-KMD-KR
0.5 XS5W-T421-BMD-YR
1 XS5W-T421-CMD-YR
2 XS5W-T421-DMD-YR
3 XS5W-T421-EMD-YR
5 XS5W-T421-GMD-YR
2715_lu_2_15 Shield
Streng-
thening
model
(Standard
cable)
Cable with Plugs
on Both Ends
(M12 Straight/
M12 Straight)
0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
2715_lu_2_16 Cable with Plugs
on Both Ends
(M12 Straight/RJ45)
0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS

Note. For cable lengths other than those listed above, refer to Catalog.

Appearance Cable
specifi-
cations
Category Cable
sheath
material
Type Cable
length
(m)
Model
2715_lu_2_17 --- Cat5 --- RJ45 Assembly
Connector
--- XS6G-T421-1
2715_lu_2_18 Cat5e M12
Connector
for Panel
Mounting
*
Rear locking 0.5 XS5P-T426-5
Rear locking
(with
connector
anti-rotation
mechanism)
0.5 XS5P-T428-5
Front locking 0.5 XS5P-T427-5
2715_lu_2_19 M12 Panel-mounting
PCB Straight Terminals
*
--- XS5P-T426-1

Note. Please consult with OMRON for types other than the above.
* The rear locking type is attached from the front of the panel, and the nut is tightened from the back.
 The front locking type is attached from the back of the panel, and the nut is tightened from the front.
