G3R-I/O
I/O Solid State Relays
SSR with Plug-in Terminals The Same Shape as the G2R-1-S Power Relays
Related Contents
Application Solutions
last update: November 18, 2024
Input Modules for Microloads
| Insulation
method |
Operation
indicator |
Response
speed |
Applicable load | Input rated voltage | Model |
|---|---|---|---|---|---|
| Photocoupler | Yes | --- | 4 to 32 VDC
0.1 to 100 mA |
100 to 240 VAC | G3R-IAZR1SN-UTU AC100-240 |
| High-speed | 5 VDC | G3R-IDZR1SN-UTU DC5 | |||
| 12 to 24 VDC | G3R-IDZR1SN-UTU DC12-24 | ||||
| Low-speed | 5 VDC | G3R-IDZR1SN-1-UTU DC5 | |||
| 12 to 24 VDC | G3R-IDZR1SN-1-UTU DC12-24 |
Output Modules for Standard Loads
| Insulation
method |
Operation
indicator |
Zero cross
function |
Applicable load | Input rated
voltage |
Model |
|---|---|---|---|---|---|
| Phototriac | Yes | Yes | 2 A at 100 to 240 VAC | 5 to 24 VDC | G3R-OA202SZN-UTU DC5-24 |
| No | G3R-OA202SLN-UTU DC5-24 | ||||
| Photocoupler | --- | 2 A at 5 to 48 VDC | G3R-ODX02SN-UTU DC5-24 | ||
| 1.5 A at 48 to 200 VDC | G3R-OD201SN-UTU DC5-24 |
Accessories (Order Separately)
Connection Sockets
| Classification | Terminal type | Appearance | Model |
|---|---|---|---|
| Front-mounting | Screw terminals |  |
P2RFZ-05 |
| Screw terminals
(finger protection structure) |
 |
P2RFZ-05-E | |
| Push-In Plus terminal blocks |  |
P2RF-05-PU | |
| Back-mounting | Relays with PCB Terminals |  |
P2R-05P |
 |
P2R-057P | ||
| Solder terminals |  |
P2R-05A |
For Push-In Plus Terminal Block Sockets
Short Bars
| Appli-
cable sockets |
Pitch | Applica-
tion |
Shape/external
dimensions |
Number
of poles |
L
(Length) |
Insulation
color |
Short Bars
Model*1 |
Maxi-
mum carry current |
|---|---|---|---|---|---|---|---|---|
| P2RF-
05-PU |
7.75
mm |
Bridging
Output terminals |
 |
2 | 15.1 | Red (R)
Blue (S) Yellow(Y) |
PYDN-7.75-020[] | 20 A |
| 3 | 22.85 | PYDN-7.75-030[] | ||||||
| 4 | 30.6 | PYDN-7.75-040[] | ||||||
| 20 | 154.6 | PYDN-7.75-200[] | ||||||
| 15.5
mm |
Input
terminals |
 |
8 | 115.55 | PYDN-15.5-080[] |
*1. Replace the box ([]) in the model number with the code for the covering color. []Color selection: R = Red, S = Blue,
Y = Yellow
Y = Yellow
Labels
| Applicable sockets | Model |
|---|---|
| P2RF-05-PU | XW5Z-P4.0LB1
(1 sheet/60 pieces) |
For Screw Terminal Sockets
Short Bars
| Applicable
sockets |
Pitch | Dimensions (mm) | Number
of poles |
Insu-
ation color |
Short Bars
Model |
Maximum
carry current |
Minimum
order (set) |
|---|---|---|---|---|---|---|---|
| P2RFZ-05-E | 15.7
mm |
 |
10 | Blue
(S) |
P2DN-15.7-100S | 20 A | 1 |
| P2RFZ-05 | 19.4
mm |
 |
10 | Blue
(S) |
P2DN-19.4-100S | 20 A | 1 |
Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
2. Use the Short Bars for crossover wiring within one Socket or between Sockets.

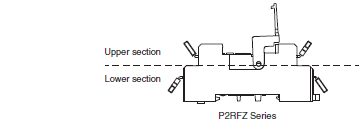

3. Use the short bars on the lower section of the socket.
When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
(see the figure below).
Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.
2. Use the Short Bars for crossover wiring within one Socket or between Sockets.
3. Use the short bars on the lower section of the socket.
When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
(see the figure below).
Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.
* One set (order unit) contains 10 short bars and 20 caps.
Accessories for Short Bars (P2DN)
Cap
| Short Bars Models | Appearance | Dimensions (mm) | Model |
|---|---|---|---|
| P2DN-19.4-100S
P2DN-15.7-100S |
 |
 |
P2DN-CP100 |
For Screw Terminal Sockets (P2RFZ-05)
Terminal covers
| Applicable sockets | Appearance | Model | Minimum order (set) |
|---|---|---|---|
| P2RFZ-05 |  |
P2CZ-C |
Note: 1. Use these covers in a combination with P2RFZ-05.
2. Do not install short bars (optional) on the upper section (see the figure below).
Short bars may interfere with the terminal cover, making the terminal cover unusable.
2. Do not install short bars (optional) on the upper section (see the figure below).
Short bars may interfere with the terminal cover, making the terminal cover unusable.

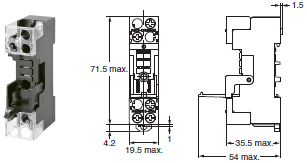

Dimensions with terminal cover
P2RFZ-05
Labels
| Applicable sockets | Model | Minimum order (sheet)
(quantity per sheet) |
|---|---|---|
| P2RFZ-05-E | XW5Z-P2.5LB1 | 5
1 sheet (72 pieces) |
Note: This label cannot be applied on sockets other than P2RFZ-05-E.
DIN Track Mounting Parts
| Classification/division | Type | Appearance | Model | |
|---|---|---|---|---|
| For front-mounting | DIN Tracks | Shallow type, total length: 1 m |  |
PFP-100N |
| Shallow type, total length: 0.5 m | PFP-50N | |||
| Deep type, total length: 1 m |  |
PFP-100N2 | ||
| End Plate |  |
PFP-M | ||
| Spacer |  |
PFP-S | ||
| For back-mounting | Mounting Plates for Sockets *
(For 5 Sockets) |
--- | P2R-P | |
* Used to mount several P2R-05A Connecting Sockets side by side.
