Discontinued On Mar. 2018

FZ4 Series

Vision Sensor

FZ4 Series

Speed evolution by Quad Processing. Shape Search II: Cutting edge algorithm for search evolution.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

 FZ4-series Controllers

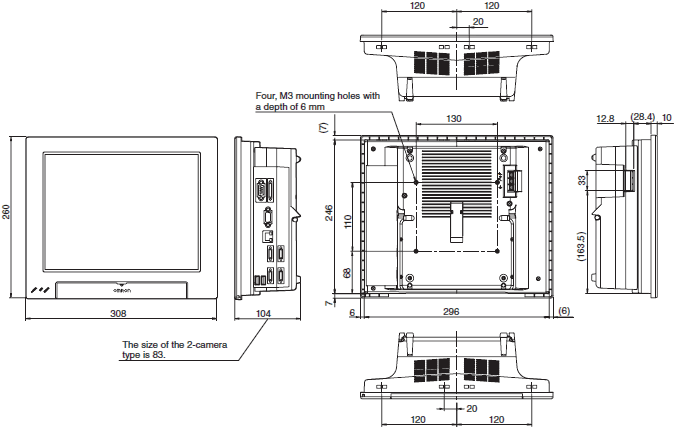

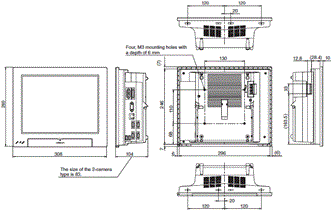

LCD-integrated type
FZ4-H110[]/-H110[]-10
FZ4-110[]/-110[]-10
FZ4-H70[]/-H70[]-10
FZ4-70[]/-70[]-10
FZ4-H60[]/-H60[]-10
FZ4-60[]/-60[]-10

FZ4 Series Dimensions 2

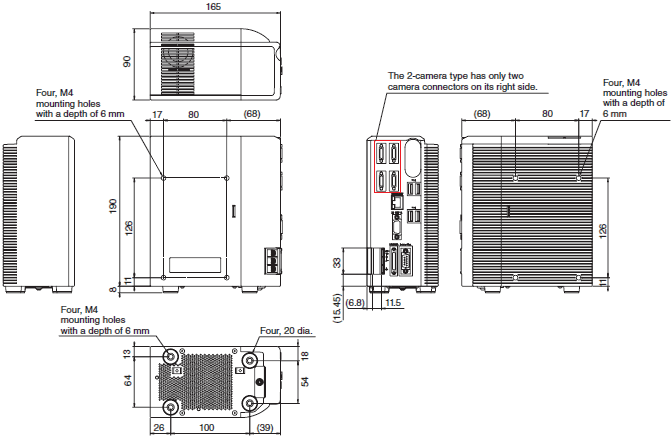

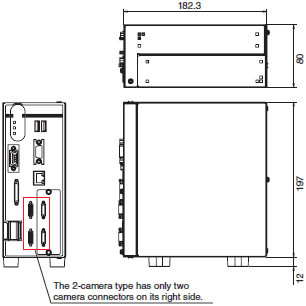

Box-type
FZ4-H115[]/-H115[]-10
FZ4-115[]/-115[]-10
FZ4-H75[]/-H75[]-10
FZ4-75[]/-75[]-10
FZ4-H65[]/-H65[]-10
FZ4-65[]/-65[]-10

FZ4 Series Dimensions 3

FZ4-L35[]/-L35[]-10

FZ4 Series Dimensions 4

Cameras

Digital Cameras

300,000-pixel camera
FZ-S
FZ-SC

FZ4 Series Dimensions 7

2 million-pixel camera
FZ-S2M
FZ-SC2M

FZ4 Series Dimensions 8

High-speed Camera

FZ-SH
FZ-SHC

FZ4 Series Dimensions 10

Small digital cameras

Camera head

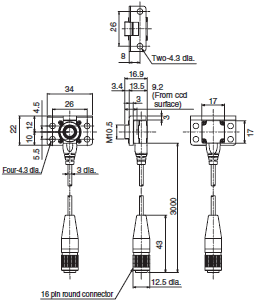

Flat camera

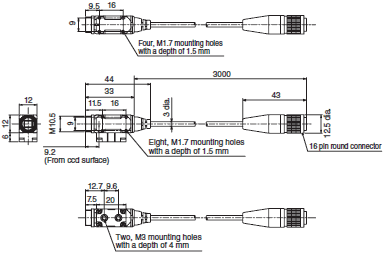

FZ-SF
FZ-SFC

FZ4 Series Dimensions 13

Pen-shaped camera
FZ-SP
FZ-SPC

FZ4 Series Dimensions 14

Camera amplifier

Can be used for both flat cameras and pen-shaped cameras

FZ4 Series Dimensions 15

Intelligent Compact Cameras

(Dimensional drawings are provided here only for the products that have undergone design changes as of Dec. 2012.)

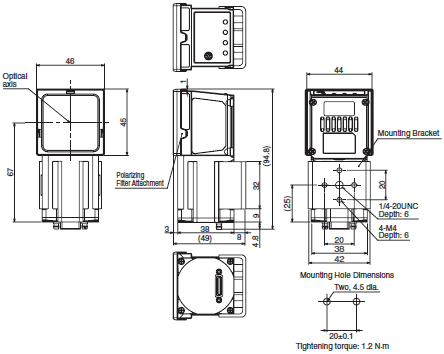

Narrow view/Standard
FZ-SQ010F
FZ-SQ050F

FZ4 Series Dimensions 17

Note 1: The mounting brackets can be connected to either side.

Wide View
FZ-SQ100F (long-distance)
FZ-SQ100N (short-distance)

FZ4 Series Dimensions 19

Note 1: The mounting brackets can be connected to either side.

Cables

Camera Cables

Camera Cables
FZ-VS3

FZ4 Series Dimensions 23

Bend resistant Camera Cable
FZ-VSB3

FZ4 Series Dimensions 24

Right-angle Camera Cable
FZ-VSL3

FZ4 Series Dimensions 25

Bend resistant Right-angle Camera Cable
FZ-VSLB3

FZ4 Series Dimensions 26

Long-distance Camera Cable
FZ-VS4

FZ4 Series Dimensions 27

Long-distance Right-angle Camera Cable
FZ-VSL4

FZ4 Series Dimensions 28

Note 1: Cable is available in 2 m/3 m/5 m/10 m.
         2: Each camera cables has polarity.
               Please ensure that the name plate side of the cable is connected to the controller.
         3: Cable is available in 15 m.

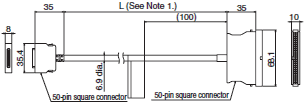

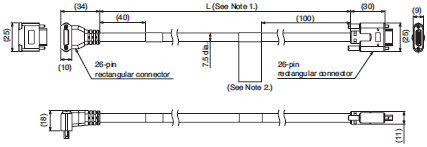

Parallel Cable

FZ-VP

FZ4 Series Dimensions 31

Note 1: cable is available in 2 m/5 m.

FZ-VPX

FZ4 Series Dimensions 33

Note 1: cable is available in 2 m/5 m.

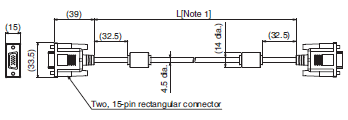

Monitor Cable

FZ-VM

FZ4 Series Dimensions 36

Note 1: Cable is available in 2 m/5 m.

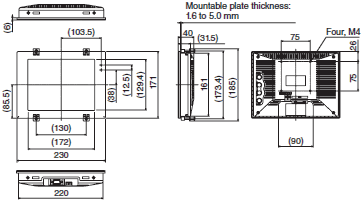

LCD Monitor

FZ-M08

FZ4 Series Dimensions 39

Camera Cable Extension Unit

FZ-VSJ

FZ4 Series Dimensions 41

Extension Tubes for Small Camera

FZ-LESR

FZ4 Series Dimensions 43

Lens for Small Camera

FZ-LES Series

FZ4 Series Dimensions 45
FZ4 Series Dimensions 46
