ZX1

Smart Sensor Laser Sensor with Built-in Amplifier

ZX1

A CMOS Laser Sensor That's Optimum for Simple Measurements

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Pre-wired Models
ZX1-LD50A61(L)
ZX1-LD50A81(L)
ZX1-LD100A61(L)
ZX1-LD100A81(L)
Pre-wired Connector Models
ZX1-LD50A66
ZX1-LD50A86
ZX1-LD100A66
ZX1-LD100A86

ZX1 Dimensions 3

* ZX1-LD50: L = 50, A = 21°
   ZX1-LD100: L = 100, A = 11.5°

Pre-wired Models
ZX1-LD300A61(L)
ZX1-LD300A81(L)
ZX1-LD600A61(L)
ZX1-LD600A81(L)
Pre-wired Connector Models
ZX1-LD300A66
ZX1-LD300A86
ZX1-LD600A66
ZX1-LD600A86

ZX1 Dimensions 4

* ZX1-LD300: L = 300, A = 6.6°
   ZX1-LD600: L = 600, A = 3.4°

Display, Indicators, and Controls

ZX1 Dimensions 5

Pre-wired connector

ZX1 Dimensions 6

Accessories (sold separately)

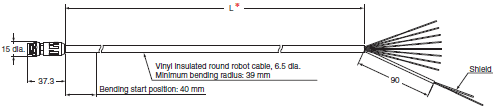

Extension Cables for Pre-wired Connector Models
ZX0-XC10R (10 m)
ZX0-XC20R (20 m)

ZX1 Dimensions 8

* Cable length (L) is as follows.
    ZX0-XC10R: 10 m, ZX0-XC20R: 20 m

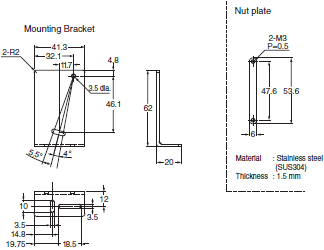

Mounting Bracket for ZX1-LD50[]/ZX1-LD100[]
E39-L180

ZX1 Dimensions 9

Material : Stainless steel (SUS304)
Thickness : 2.0 mm
Accessories : Two phillips screws (M3×30, P = 0.5, Stainless steel) and one nut plate

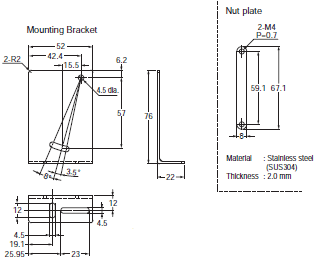

Mounting Bracket for ZX1-LD300[]/ZX1-LD600[]
E39-L181

ZX1 Dimensions 10

Material: Stainless steel (SUS304)
Thickness: 2.0 mm
Accessories: Two phillips screws (M4×35, P = 0.7, Stainless steel) and one nut plate

Installation Method (ZX1-LD50[]/ZX1-LD100[])
Using E39-L180 Mounting Bracket

ZX1 Dimensions 11

Installation Method (ZX1-LD300[]/ZX1-LD600[])
Using E39-L181 Mounting Bracket

ZX1 Dimensions 12
