A3P (Super Luminosity Type)

Lighted Pushbutton Switch (Square) Ultra Bright LED Type

Large Square-bodied Lighted Pushbutton Switches New models added with Ultra LEDs.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: April 1, 2022

Model Number Structure

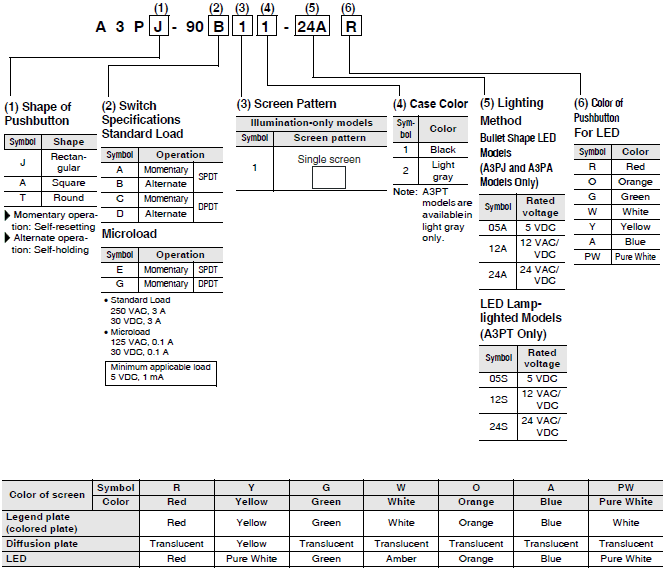

Model Number Legend

The model numbers used to order sets of Units are illustrated below. One set comprises the Pushbutton, Lamp, and Switch.
For information on combinations, refer to Ordering Information.

Ordering Information

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.
(Not all combinations are possible. Ask your OMRON representative for details.)

Lighting method			Operation	Momentary operation (Self-resetting)		Alternate operation (Self-holding)
Contact type	No. of outputs	Pushbutton color symbol	Case color	Black	Light gray	Black	Light gray
Standard Loads	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PJ-90A11-12A(1)	A3PJ-90A12-12A(1)	A3PJ-90B11-12A(1)	A3PJ-90B12-12A(1)
	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PJ-90A11-24A(1)	A3PJ-90A12-24A(1)	A3PJ-90B11-24A(1)	A3PJ-90B12-24A(1)
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PJ-90C11-12A(1)	A3PJ-90C12-12A(1)	A3PJ-90D11-12A(1)	A3PJ-90D12-12A(1)
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PJ-90C11-24A(1)	A3PJ-90C12-24A(1)	A3PJ-90D11-24A(1)	A3PJ-90D12-24A(1)
Microloads	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PJ-90E11-12A(1)	A3PJ-90E12-12A(1)	---	---
	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PJ-90E11-24A(1)	A3PJ-90E12-24A(1)	---	---
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PJ-90G11-12A(1)	A3PJ-90G12-12A(1)	---	---
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PJ-90G11-24A(1)	A3PJ-90G12-24A(1)	---	---

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.

Lighting method			Operation	Momentary operation (Self-resetting)		Alternate operation (Self-holding)
Contact type	No. of outputs	Pushbutton color symbol	Case color	Black	Light gray	Black	Light gray
Standard Loads	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PA-90A11-12A(1)	A3PA-90A12-12A(1)	A3PA-90B11-12A(1)	A3PA-90B12-12A(1)
	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PA-90A11-24A(1)	A3PA-90A12-24A(1)	A3PA-90B11-24A(1)	A3PA-90B12-24A(1)
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PA-90C11-12A(1)	A3PA-90C12-12A(1)	A3PA-90D11-12A(1)	A3PA-90D12-12A(1)
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PA-90C11-24A(1)	A3PA-90C12-24A(1)	A3PA-90D11-24A(1)	A3PA-90D12-24A(1)
Microloads	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PA-90E11-12A(1)	A3PA-90E12-12A(1)	---	---
	SPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PA-90E11-24A(1)	A3PA-90E12-24A(1)	---	---
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	A3PA-90G11-12A(1)	A3PA-90G12-12A(1)	---	---
	DPDT	Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	A3PA-90G11-24A(1)	A3PA-90G12-24A(1)	---	---

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

Operation				Momentary operation (Self-resetting)	Alternate operation (Self-holding)	Pushbutton color symbol
Contact type	No. of outputs	Lighting method	Case color	Light gray	Light gray	Pushbutton color symbol
Standard Loads	SPDT	LED lamp	24 VAC/DC	A3PT-90A12-24S(1)	A3PT-90B12-24S(1)	R O G W Y A PW
Standard Loads	DPDT	LED lamp	24 VAC/DC	A3PT-90C12-24S(1)	A3PT-90D12-24S(1)	R O G W Y A PW

Note: Enter the desired color symbols for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

Accessories and Tools

Accessories, Tools, and the replacement parts (caps only) are the same as those for the A3P. Refer to the A3P datasheet.
Individual colored plates and legend plates are not available.

last update: April 1, 2022
