M2P (Super Luminosity Type)

Indicator (Square) Ultra Bright LED Type

Large Square-bodied Indicators. New models added with Ultra LEDs.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: April 1, 2022

Model Number Structure

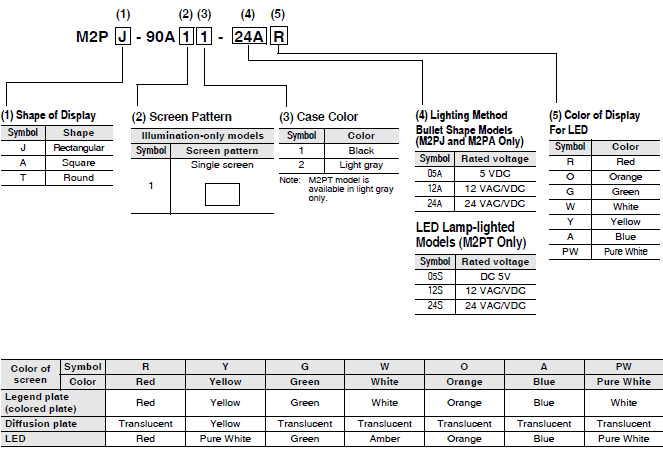

Model Number Legend

The model numbers used to order sets of Units are illustrated below. One set comprises the Display, Lamp, and Socket.
For information on combinations, refer to Ordering Information.

Ordering Information

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket.

M2PJ (Rectangular) Single-screen Models

Case color		Black	Light gray
Lighting method		Black	Light gray
Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	M2PJ-90A11-12A(1)	M2PJ-90A12-12A(1)
Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	M2PJ-90A11-24A(1)	M2PJ-90A12-24A(1)

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

M2PA (Square) Single-screen Models

Case color		Black	Light gray
Lighting method		Black	Light gray
Bullet Shape LEDs R, O, G, W, Y, A or PW	12 VAC/DC	M2PA-90A11-12A(1)	M2PA-90A12-12A(1)
Bullet Shape LEDs R, O, G, W, Y, A or PW	24 VAC/DC	M2PA-90A11-24A(1)	M2PA-90A12-24A(1)

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

M2PT (Round) Single-screen Models

Case color		Light gray	Lamp holder color symbol
Lighting method		Light gray	Lamp holder color symbol
LED lamp	24 VAC/DC	M2PT-90A12-24S(1)	R, O, G, W, Y, A or PW

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

Accessories, Parts, and Tools

The accessories, parts, and tools are the same as those for the A3P Lighted Pushbutton Switches. Refer to the A3P datasheet.
