M2S (Super Luminosity Type)

Indicator (Square) Ultra Bright LED Type

Indicator Series with Square 40-mm Body. New models added with Ultra LEDs.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: April 1, 2022

Model Number Structure

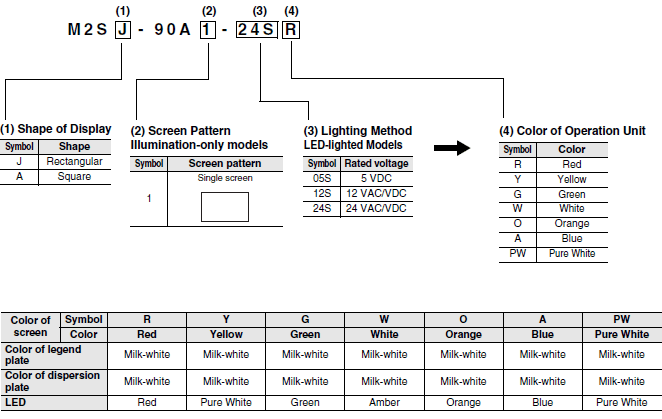

Model Number Legend

The model numbers used to order sets of Units are illustrated below. One set comprises the Display, Lamp, and Socket Unit.
For information on combinations, refer to Ordering Information.

Ordering Information

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Operation Unit, Lamp, and Socket Unit.

Rectangular M2SJ

Rectangular Models

Case color		Black	Lamp holder color symbol (color)
Lighting method		Black	Lamp holder color symbol (color)
LED lamp	5 VDC	M2SJ-90A1-05S(1)	R, O, G, W, Y, A, or PW
	12 VAC/DC	M2SJ-90A1-12S(1)
	24 VAC/DC	M2SJ-90A1-24S(1)

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White,
(Y) = Yellow, (A) = Blue, (PW) = Pure White.

Square M2SA

Square Models

Case color		Black	Lamp holder color symbol (color)
Lighting method		Black	Lamp holder color symbol (color)
LED lamp	12 VAC/DC	M2SA-90A1-12S(1)	R, O, G, W, Y, A, or PW
LED lamp	24 VAC/DC	M2SA-90A1-24S(1)	R, O, G, W, Y, A, or PW

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White,
(Y) = Yellow, (A) = Blue, (PW) = Pure White.

Accessories, Replacements, and Tools

The accessories, replacements, and tools are the same as those for the A3S. Refer to the A3S datasheet.
