NY5[][]-1
Industrial PC Platform NY-series IPC Machine Controller
![NY5[][]-1](/Images/l_3635-25-267187-198x198.jpg)
The future will be IT driven, we make you part of it
Related Contents
Application Solutions
last update: October 23, 2023
(Unit: mm)

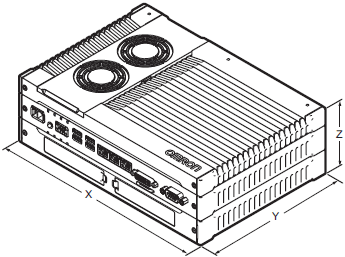

Industrial Box PC type
![NY5[][]-1 Dimensions 1](/Images/csm001054878_dm_125-267185.gif)
![NY5[][]-1 Dimensions 2](/Images/csm001054878_dm_225-267186.gif)
Bracket Specifications
The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

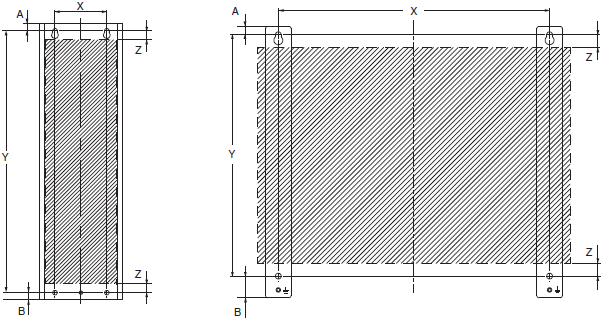

Mounting screw locations for book mount and wall mount orientation:
![NY5[][]-1 Dimensions 3](/Images/csm001054878_dm_325-267181.gif)
![NY5[][]-1 Dimensions 4](/Images/csm001054878_dm_425-303962.gif)
Industrial Panel PC type

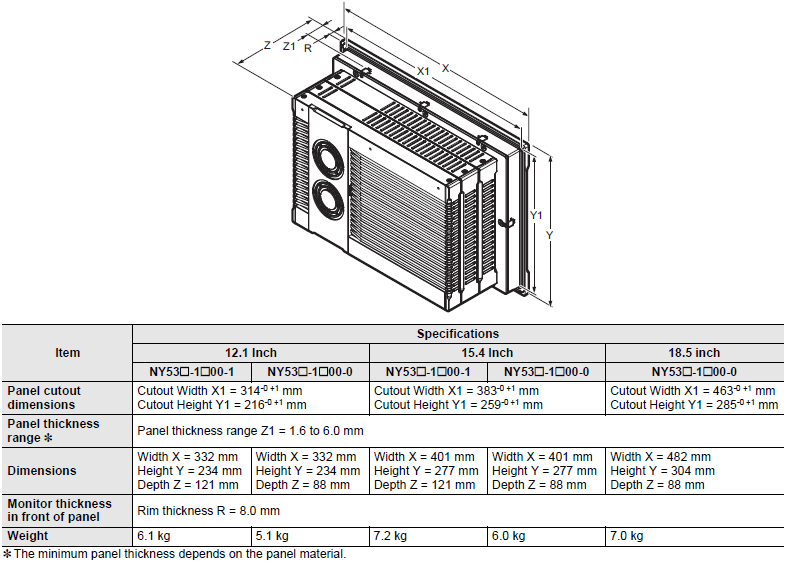

![NY5[][]-1 Dimensions 5](/Images/csm001054878_dm_525-267182.gif)
Bracket Specifications

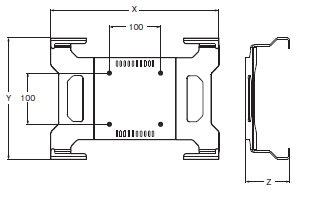

Without handle
![NY5[][]-1 Dimensions 7](/Images/csm001054878_dm_725-307790.gif)

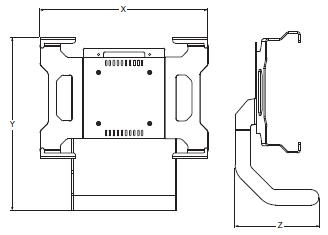

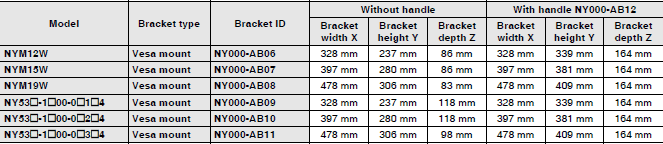

With handle NY000-AB12
![NY5[][]-1 Dimensions 8](/Images/csm001054878_dm_825-307788.gif)
![NY5[][]-1 Dimensions 9](/Images/csm001054878_dm_925-307789.gif)
