Industrial Automation

NX701-1[]20

NX-Series NX701 Database Connection CPU Units

NX701-1[]20

The Controller can be directly connected to a database. No special Unit, software, nor middleware is required.

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: October 1, 2021

(Unit: mm)

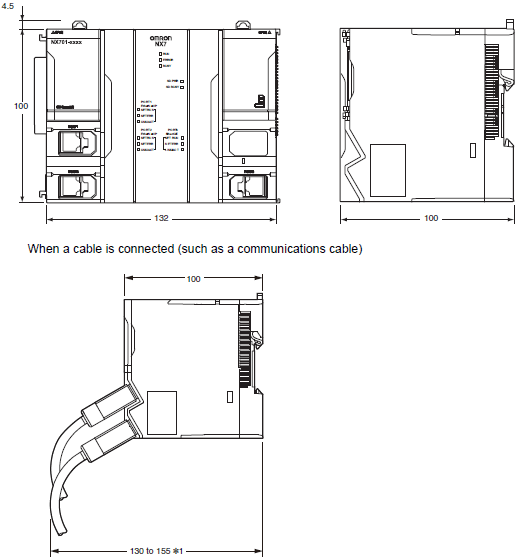

CPU Units

NX701-[][][][]

*1. This is the dimension from the back of the Unit to the communications cables.
130 mm: When an MPS588-C Connector is used.
155 mm: When an XS6G-T421-1 Connector is used.

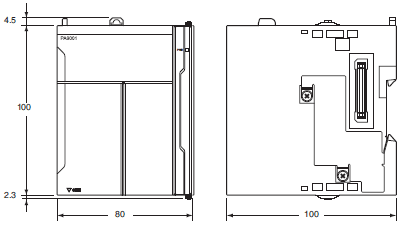

Power Supply Units

NX-PA9001

NX-PD7001

End Cover (included with CPU Units)

NX-END01

last update: October 1, 2021
