E8FC
IoT Flow Sensors
Detect signs of abnormalities in cooling water, water-soluble coolant, and water-insoluble oil by simultaneous measurement of “flow rate + temperature”
Related Contents
Application Solutions
last update: August 1, 2022
Sensors
| Appearance | Applicable Medium | Control output | Communication
method |
IO-Link baud rate | Model |
|---|---|---|---|---|---|
 |
Liquid | PNP/NPN
selectable |
IO-Link Analog | COM2 | E8FC-25SD |
| COM3 | E8FC-25ST |
Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).
Adapters
It must be selected from the adapters below.
| Appearance | Applicable diameter * | Thread type | Materials | Model | |
|---|---|---|---|---|---|
| Nominal
diameter A |
Nominal
diameter B |
||||
 |
10 A | 3/8” | R (taper thread) | SUS304 | E8FC-YA-R10A |
| NPT (taper thread) | E8FC-YA-N10A | ||||
 |
15 A | 1/2” | R (taper thread) | E8FC-YA-R15A | |
| NPT (taper thread) | E8FC-YA-N15A | ||||
 |
20 A | 3/4” | R (taper thread) | E8FC-YA-R20A | |
| NPT (taper thread) | E8FC-YA-N20A | ||||
 |
25 A | 1” | R (taper thread) | E8FC-YA-R25A | |
| NPT (taper thread) | E8FC-YA-N25A | ||||

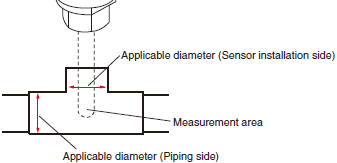

* It is recommended that the piping fitting diameters be theme on both the piping side and the sensor mounting side.
Because the sensor is designed so that the measurement area is in the center of the piping, correct measurement
may not be possible with different diameter fittings.
Refer to Piping Method on Catalog for the recommended pipe joint.
Because the sensor is designed so that the measurement area is in the center of the piping, correct measurement
may not be possible with different diameter fittings.
Refer to Piping Method on Catalog for the recommended pipe joint.
Cables (Sensor I/O Connectors)
A Cable is not provided with the Sensor. It must be ordered separately.
| Type | Appearance | Cable | Model |
|---|---|---|---|
| Socket on one
cable end |
Straight
 |
2 m | XS5F-D421-D80-F |
| 5 m | XS5F-D421-G80-F | ||
L-shaped
 |
2 m | XS5F-D422-D80-F | |
| 5 m | XS5F-D422-G80-F | ||
| Socket and plug on
cable ends * |
Straight/straight
 |
2 m | XS5W-D421-D81-F |
| 5 m | XS5W-D421-G81-F | ||
L-shaped/L-shaped
 |
2 m | XS5W-D422-D81-F | |
| 5 m | XS5W-D422-G81-F |
Note: Refer to Sensor I/O Connectors/Sensor Controllers on OMRON website for details.
* Straight type/L-shape type combinations are also available.
O-ring (for replacement)
| Appearance | Type | Model |
|---|---|---|
 |
For E8FC-25[][] | E8FC-YL-1 |
last update: August 1, 2022
