F3SG-SR / PG Series

Safety Light Curtain/Safety Multi-Light Beam

F3SG-SR / PG Series

Easy to monitor and ready for IoT

Related Contents

last update: July 8, 2024

F3SG-SR

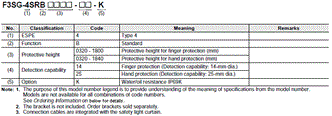

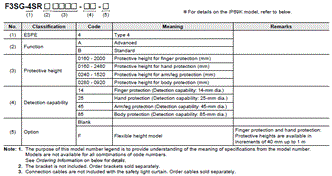

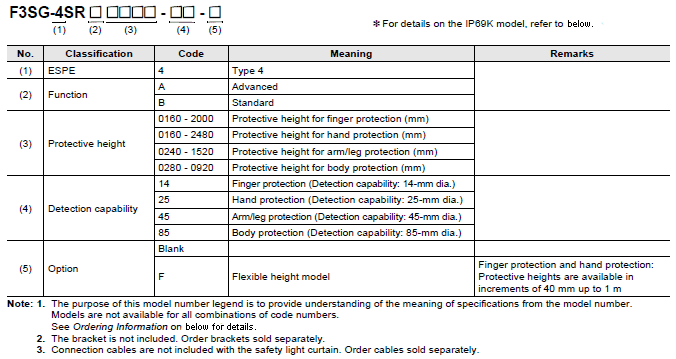

Model Number Legend

Safety Light Curtain F3SG-SR

F3SG-SR / PG Series Lineup 3

Ordering Information

Main Units

Safety Light Curtain F3SG-SR



Finger protection (Detection capability: 14-mm dia.)

Number of beams Protective height (mm) Advanced Standard
Model Model
15 160 F3SG-4SRA0160-14 F3SG-4SRB0160-14
19 200 F3SG-4SRA0200-14-F F3SG-4SRB0200-14-F
23 240 F3SG-4SRA0240-14 F3SG-4SRB0240-14
27 280 F3SG-4SRA0280-14-F F3SG-4SRB0280-14-F
31 320 F3SG-4SRA0320-14 F3SG-4SRB0320-14
35 360 F3SG-4SRA0360-14-F F3SG-4SRB0360-14-F
39 400 F3SG-4SRA0400-14 F3SG-4SRB0400-14
43 440 F3SG-4SRA0440-14-F F3SG-4SRB0440-14-F
47 480 F3SG-4SRA0480-14 F3SG-4SRB0480-14
51 520 F3SG-4SRA0520-14-F F3SG-4SRB0520-14-F
55 560 F3SG-4SRA0560-14 F3SG-4SRB0560-14
59 600 F3SG-4SRA0600-14-F F3SG-4SRB0600-14-F
63 640 F3SG-4SRA0640-14 F3SG-4SRB0640-14
67 680 F3SG-4SRA0680-14-F F3SG-4SRB0680-14-F
71 720 F3SG-4SRA0720-14-F F3SG-4SRB0720-14-F
75 760 F3SG-4SRA0760-14-F F3SG-4SRB0760-14-F
79 800 F3SG-4SRA0800-14 F3SG-4SRB0800-14
83 840 F3SG-4SRA0840-14-F F3SG-4SRB0840-14-F
87 880 F3SG-4SRA0880-14-F F3SG-4SRB0880-14-F
91 920 F3SG-4SRA0920-14-F F3SG-4SRB0920-14-F
95 960 F3SG-4SRA0960-14-F F3SG-4SRB0960-14-F
99 1,000 F3SG-4SRA1000-14 F3SG-4SRB1000-14
119 1,200 F3SG-4SRA1200-14 F3SG-4SRB1200-14
139 1,400 F3SG-4SRA1400-14 F3SG-4SRB1400-14
159 1,600 F3SG-4SRA1600-14 F3SG-4SRB1600-14
179 1,800 F3SG-4SRA1800-14 F3SG-4SRB1800-14
199 2,000 F3SG-4SRA2000-14 F3SG-4SRB2000-14

Hand protection (Detection capability: 25-mm dia.)

Number of beams Protective height (mm) Advanced Standard
Model Model
8 160 F3SG-4SRA0160-25 F3SG-4SRB0160-25
10 200 F3SG-4SRA0200-25-F F3SG-4SRB0200-25-F
12 240 F3SG-4SRA0240-25 F3SG-4SRB0240-25
14 280 F3SG-4SRA0280-25-F F3SG-4SRB0280-25-F
16 320 F3SG-4SRA0320-25 F3SG-4SRB0320-25
18 360 F3SG-4SRA0360-25-F F3SG-4SRB0360-25-F
20 400 F3SG-4SRA0400-25 F3SG-4SRB0400-25
22 440 F3SG-4SRA0440-25-F F3SG-4SRB0440-25-F
24 480 F3SG-4SRA0480-25 F3SG-4SRB0480-25
26 520 F3SG-4SRA0520-25-F F3SG-4SRB0520-25-F
28 560 F3SG-4SRA0560-25 F3SG-4SRB0560-25
30 600 F3SG-4SRA0600-25-F F3SG-4SRB0600-25-F
32 640 F3SG-4SRA0640-25 F3SG-4SRB0640-25
34 680 F3SG-4SRA0680-25-F F3SG-4SRB0680-25-F
36 720 F3SG-4SRA0720-25 F3SG-4SRB0720-25
38 760 F3SG-4SRA0760-25-F F3SG-4SRB0760-25-F
40 800 F3SG-4SRA0800-25 F3SG-4SRB0800-25
42 840 F3SG-4SRA0840-25-F F3SG-4SRB0840-25-F
44 880 F3SG-4SRA0880-25 F3SG-4SRB0880-25
46 920 F3SG-4SRA0920-25-F F3SG-4SRB0920-25-F
48 960 F3SG-4SRA0960-25 F3SG-4SRB0960-25
50 1,000 F3SG-4SRA1000-25-F F3SG-4SRB1000-25-F
52 1,040 F3SG-4SRA1040-25 F3SG-4SRB1040-25
56 1,120 F3SG-4SRA1120-25 F3SG-4SRB1120-25
60 1,200 F3SG-4SRA1200-25 F3SG-4SRB1200-25
64 1,280 F3SG-4SRA1280-25 F3SG-4SRB1280-25
68 1,360 F3SG-4SRA1360-25 F3SG-4SRB1360-25
72 1,440 F3SG-4SRA1440-25 F3SG-4SRB1440-25
76 1,520 F3SG-4SRA1520-25 F3SG-4SRB1520-25
80 1,600 F3SG-4SRA1600-25 F3SG-4SRB1600-25
84 1,680 F3SG-4SRA1680-25 F3SG-4SRB1680-25
88 1,760 F3SG-4SRA1760-25 F3SG-4SRB1760-25
92 1,840 F3SG-4SRA1840-25 F3SG-4SRB1840-25
96 1,920 F3SG-4SRA1920-25 F3SG-4SRB1920-25
104 2,080 F3SG-4SRA2080-25 F3SG-4SRB2080-25
114 2,280 F3SG-4SRA2280-25 F3SG-4SRB2280-25
124 2,480 F3SG-4SRA2480-25 F3SG-4SRB2480-25

Arm/Leg protection (Detection capability: 45-mm dia.)

Number of beams Protective height (mm) Advanced Standard
Model Model
6 240 F3SG-4SRA0240-45 F3SG-4SRB0240-45
10 400 F3SG-4SRA0400-45 F3SG-4SRB0400-45
14 560 F3SG-4SRA0560-45 F3SG-4SRB0560-45
18 720 F3SG-4SRA0720-45 F3SG-4SRB0720-45
22 880 F3SG-4SRA0880-45 F3SG-4SRB0880-45
30 1,200 F3SG-4SRA1200-45 F3SG-4SRB1200-45
38 1,520 F3SG-4SRA1520-45 F3SG-4SRB1520-45

Body protection (Detection capability: 85-mm dia.)

Number of beams Protective height (mm) Advanced Standard
Model Model
4 280 F3SG-4SRA0280-85 F3SG-4SRB0280-85
6 440 F3SG-4SRA0440-85 F3SG-4SRB0440-85
8 600 F3SG-4SRA0600-85 F3SG-4SRB0600-85
10 760 F3SG-4SRA0760-85 F3SG-4SRB0760-85
12 920 F3SG-4SRA0920-85 F3SG-4SRB0920-85

F3SG-PG

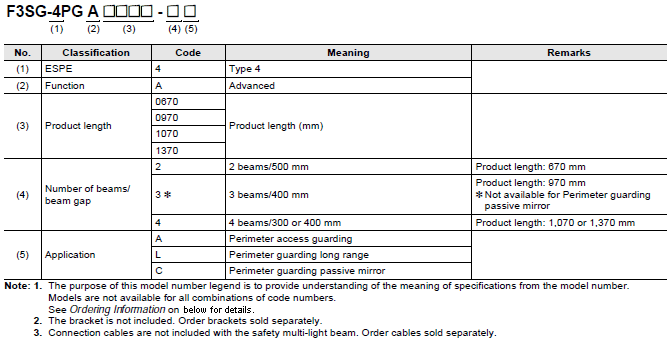

Model Number Legend

Safety Multi-Light Beam F3SG-PG

F3SG-SR / PG Series Lineup 13

Ordering Information

Main Units

Safety Multi-Light Beam F3SG-PG



Perimeter access guarding (Beam gap: 300 to 500 mm)

Number of beams Beam gap (mm) Product length (mm) Advanced
Model
2 500 670 F3SG-4PGA0670-2A
3 400 970 F3SG-4PGA0970-3A
4 300 1,070 F3SG-4PGA1070-4A
4 400 1,370 F3SG-4PGA1370-4A

Perimeter guarding long range (Beam gap: 300 to 500 mm)

Number of beams Beam gap (mm) Product length (mm) Advanced
Model
2 500 670 F3SG-4PGA0670-2L
3 400 970 F3SG-4PGA0970-3L
4 300 1,070 F3SG-4PGA1070-4L
4 400 1,370 F3SG-4PGA1370-4L

Perimeter guarding passive mirror (Beam gap: 300 to 500 mm)

Number of beams Beam gap (mm) Product length (mm) Advanced
Model
2 500 670 F3SG-4PGA0670-2C
4 300 1,070 F3SG-4PGA1070-4C
4 400 1,370 F3SG-4PGA1370-4C

F3SG-SR/PG Accessories

(Sold separately)

Bracket Common to F3SG-SR and F3SG-PG

Side mounting and backside mounting are possible.

For fixed mounting

Appearance Type Application/Specifications Model
3736_lu_10_1 Side-Mount Bracket
(Intermediate Bracket)		 Bracket to mount the F3SG-SR/PG.
Side mounting and backside mounting possible.
Beam alignment after mounting of F3SG-SR/PG not possible.
Two brackets per set (See * below for the number of sets
required for each model.)		 F39-LSGF

* Protective height of 0160 to 1440: 2 set (4 brackets), protective height of 1520 to 2480: 3 sets (6 brackets)

The bracket allows beam adjustment after the F3SG-SR/PG is mounted on it.

For angle adjustment mounting

Appearance Type Application/Specifications Model
3736_lu_11_1 Adjustable Side-Mount
Bracket
(Intermediate Bracket)		 The angle adjustment range is ±15°.
Two brackets per set (See *1 below for the number of
sets required for each model.)		 F39-LSGA
3736_lu_11_2 Adjustable Top/Bottom
Bracket
F3SJ, F3SN Adapter		 Use this bracket at the top and bottom positions of the
F3SG-SR/PG.
The angle adjustment range is ±22.5°.
Use this bracket when replacing an existing F3SJ or
F3SN Safety Light Curtain.
Two brackets per set (See *2 below for the number of
sets required for each model.)		 F39-LSGTB-SJ
3736_lu_11_3 Adjustable Top/Bottom
Bracket
F3SG-RA/RE Adapter		 Use this bracket at the top and bottom positions of the
F3SG-SR/PG.
The angle adjustment range is ±22.5°.
Use this bracket when replacing an existing F3SG-RA/
RE Safety Light Curtain.
Two brackets per set (See *2 below for the number of
sets required for each model.)		 F39-LSGTB-RE
3736_lu_11_4 Adjustable Top/Bottom
Bracket
MS4800, F3SR Adapter		 Use this bracket at the top and bottom positions of the
F3SG-SR/PG.
The angle adjustment range is ±22.5°.
Use this bracket when replacing an existing MS4800
or F3SR Safety Light Curtain.
Two brackets per set (See *2 below for the number of
sets required for each model.)		 F39-LSGTB-MS

*1. Protective height of 0160 to 0280: 1 set (2 brackets), protective height of 0320 to 1440: 2 sets (4 brackets),
      protective height of 1520 to 2480: 3 sets (6 brackets)
*2. Using Adjustable Top/Bottom Brackets with Side-Mount Brackets (Intermediate Brackets) or Adjustable Side-Mount
      Brackets (Intermediate Brackets)
      Protective height of 0840 or less:
      The Side-Mount Bracket (Intermediate Bracket) or Adjustable Side-Mount Bracket (Intermediate Bracket) is not
      required. Use 2 sets of Adjustable Top/Bottom Brackets.
      Protective height of 0880 to 1680:
      Use 2 sets of Adjustable Top/Bottom Brackets and 1 set of Side-Mount Brackets (Intermediate Brackets) or Adjustable
      Side-Mount Brackets (Intermediate Brackets).
      Protective height of 1760 to 2480:
      Use 2 sets of Adjustable Top/Bottom Brackets and 2 sets of Side-Mount Brackets (Intermediate Brackets) or Adjustable
      Side-Mount Brackets (Intermediate Brackets).
      Refer to Dimensions on Catalog and following.

Connecting Cable Common to F3SG-SR and F3SG-PG

[Root Cable]

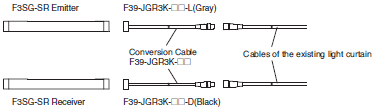

Root-Straight Cable

Appearance Type Specifications Cable
length		 Model
3736_lu_12_1 For emitter
To sensors: dedicated connector,
To external: open-ended type 5 wires
Color: Gray		 3736_lu_12_2 3 m F39-JG3C-L
7 m F39-JG7C-L
10 m F39-JG10C-L
For receiver or
emitter/receiver of F3SG-PG
Perimeter Guarding Passive Mirror
To sensors: dedicated connector,
To external: open-ended type 8 wires
Color: Black		 3736_lu_12_3 3 m F39-JG3C-D
7 m F39-JG7C-D
10 m F39-JG10C-D

Note: Cables are not included with the safety light curtain/safety multi-light beam.
         Order the F39-JG[]C-[] Root-Straight Cable or F39-JGR3K-L/-D Root-Plug Cable for Extended.

Root-Plug Cable for Extended

Appearance Type Specifications Cable
length		 Model
3736_lu_13_1 For emitter
To sensors: dedicated connector,
To external: M12 connector type
(5-pin)
Color: Gray		 3736_lu_13_2 0.3 m F39-JGR3K-L
For receiver or
emitter/receiver of F3SG-PG
Perimeter Guarding Passive Mirror
To sensors: dedicated connector,
To external: M12 connector type
(8-pin)
Color: Black		 3736_lu_13_3 0.3 m F39-JGR3K-D

Note: 1. Cables are not included with the safety light curtain/safety multi-light beam.
             Order the F39-JG[]C-[] Root-Straight Cable or F39-JGR3K-L/-D Root-Plug Cable for Extended.
         2. Use with the F39-JG[]A-[] Extended Socket-Straight Cable or F39-JG[]B-[] Extended Plug-Socket Cable.

[Extension Cable]

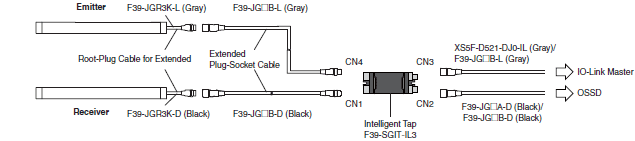

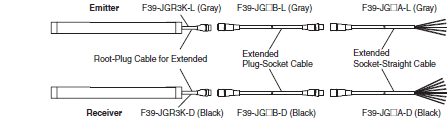

Extended Socket-Straight Cable

Appearance Type Specifications Cable
length		 Model
3736_lu_14_1 For emitter
M12 connector (5-pin),
5 wires
Color: Gray		 3736_lu_14_2 3 m F39-JG3A-L
7 m F39-JG7A-L
10 m F39-JG10A-L
15 m F39-JG15A-L
20 m F39-JG20A-L
For receiver or
emitter/receiver of F3SG-PG
Perimeter Guarding Passive
Mirror
M12 connector (8-pin),
8 wires
Color: Black		 3736_lu_14_3 3 m F39-JG3A-D
7 m F39-JG7A-D
10 m F39-JG10A-D
15 m F39-JG15A-D
20 m F39-JG20A-D

* When the accessory is used, protect it from cutting oil.
Note: 1. Use with the F39-JGR3K-L/-D Root-Plug Cable for Extended.
         2. To extend the cable length to more than 20 m, connect the F39-JG[]B-[] Extended Plug-Socket Cable to the
             F39-JG[]A-[] Extended Socket-Straight Cable.

Extended Plug-Socket Cable

Appearance Type Specifications Cable
length		 Model
3736_lu_15_1 For emitter
M12 connector (5-pin) on
both ends
Color: Gray		 3736_lu_15_2 0.5 m F39-JGR5B-L
1 m F39-JG1B-L
3 m F39-JG3B-L
5 m F39-JG5B-L
7 m F39-JG7B-L
10 m F39-JG10B-L
15 m F39-JG15B-L
20 m F39-JG20B-L
For receiver or
emitter/receiver of F3SG-PG
Perimeter Guarding Passive
Mirror
M12 connector (8-pin) on
both ends
Color: Black		 3736_lu_15_3 0.5 m F39-JGR5B-D
1 m F39-JG1B-D
3 m F39-JG3B-D
5 m F39-JG5B-D
7 m F39-JG7B-D
10 m F39-JG10B-D
15 m F39-JG15B-D
20 m F39-JG20B-D

* When the accessory is used, protect it from cutting oil.
Note: 1. Use with the F39-JGR3K-L/-D Root-Plug Cable for Extended.
         2. To extend the cable length to more than 40 m, connect two or more F39-JG[]B-[] Extended Plug-Socket Cable to the
             F39-JG[]A-[] Extended Socket-Straight Cable.
             Example: To extend the cable length to 50 m, connect two F39-JG20B-[] (20 m) Extended Plug-Socket Cables and
             one F39-JG10A-[] (10 m) Extended Socket-Straight Cable.

F3SG-SR / PG Series Lineup 37

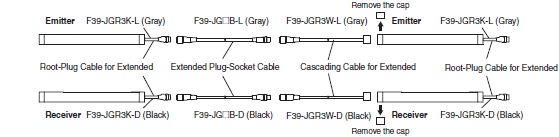

[Cascading Cable]

Side-by-side Cascading Cable (Two cables per set, one for emitter and one for receiver)

Appearance Type Application/Specifications Cable length Model
3736_lu_16_1 For emitter
To sensors: dedicated connector 1,
To cascading sensors: dedicated
connector 2
Color: Gray
For receiver
To sensors: dedicated connector 1,
To cascading sensors: dedicated
connector 2
Color: Black		 Used to series-connect
sensors with the minimum
cable length of 12 cm.
IP67 and IP67G (JIS C 0920
Annex 1) rated when mated.		 12 cm F39-JGR12L

Note: To extend the cable length between the series-connected sensors to more than 12 cm, add the F39-JGR3W
         Cascading Cable for Extended.

Cascading Cable for Extended (Two cables per set, one for emitter and one for receiver)

Appearance Type Application/Specifications Cable length Model
3736_lu_17_1 For emitter
To sensors: dedicated connector,
To cascading sensors: M12
connector type (5 pin)
Color: Gray
For receiver
To sensors: dedicated connector,
To cascading sensors: M12
connector type (8 pin)
Color: Black		 Used together with the F39-
JGR3K Root-Plug Cable for
Extended to extend the cable
length between the series-
connected sensors to more than
12 cm.
IP67 and IP67G (JIS C 0920
Annex 1) rated when mated.		 0.3 m F39-JGR3W

Note: To extend the cable length between the series-connected sensors to more than 60 cm, connect the F39-JG[]B-[]
         Extended Plug-Socket Cable (up to 10 m: F39-JG10B-[]) to the F39-JGR3W Cascading Cable for Extended.
         Extension cable between sensors: 10 m max. (not including Cascading Cable for Extended (F39-JGR3W) and
         Root Cable (F39-JGR3K-L/-D).)

F3SG-SR / PG Series Lineup 42

[Conversion Cable: Converting Wiring for Existing Light Curtain]

Conversion Cable

Appearance Type Application Cable length Model
3736_lu_18_1 F3SJ-A/-B Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for F3SJ-A/B,
F3SR-B or F3SN:
M12 connector type (8 pin)
Color: Gray		 Used to convert the wiring
for F3SJ-A/B, F3SR-B or F3SN
Safety Light Curtain to that for the
F3SG-SR.		 0.3 m F39-JGR3K-SJ-L
F3SJ-A/B Conversion Cable
For receiver
To sensor: dedicated connector 1,
To wires for F3SJ-A/B,
F3SR-B or F3SN:
M12 connector type (8 pin)
Color: Black		 F39-JGR3K-SJ-D
F3SG-RE Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for F3SG-RE:
M12 connector type (4 pin)
Color: Gray		 Used to convert the wiring for F3SG-RE
Safety Light Curtain to that for the
F3SG-SR.		 0.3 m F39-JGR3K-RE-L
F3SG-RE Conversion Cable
For receiver
To sensor: dedicated connector 1,
To wires for F3SG-RE:
M12 connector type (4 pin)
Color: Black		 F39-JGR3K-RE-D
MS48 Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for MS4800:
M12 connector type (5 pin)
Color: Gray		 Used to convert the wiring for MS4800
Safety Light Curtain to that for the
F3SG-SR.		 0.3 m F39-JGR3K-MS-L
MS48 Conversion Cable
For receiver
To sensor: dedicated connector 1,
To wires for MS4800:
M12 connector type (8 pin)
Color: Black		 F39-JGR3K-MS-D
F3SJ-A-TS/-T or F3SJ-B-TS/-T or
F3SR-RA-TS Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for F3SJ-A-TS/-T or
F3SJ-B-TS/-T or F3SR-RA-TS:
M12 connector type (8 pin)
Color: Gray		 Used to convert the wiring for
F3SJ-A-TS/-T or F3SJ-B-TS/-T or
F3SR-RA-TS Safety Light Curtain to that
for the F3SG-SR.		 0.3 m F39-JGR3K-SW-L
F3SJ-A-TS/-T or F3SJ-B-TS/-T or
F3SR-RA-TS Conversion Cable
For receiver
To sensor: dedicated connector 1,
To wires for F3SJ-A-TS/-T or
F3SJ-B-TS/-T or F3SR-RA-TS:
M12 connector type (8 pin)
Color: Black		 F39-JGR3K-SJ-D

* The wiring for the F3SG-RA can be used without the need for a conversion cable.
Note: 1. Cables are not included with the safety light curtain/safety multi-light beam.
             When connecting to the cables of the existing light curtain, order the conversion cables.
             Conversion cables are only for PNP connection. To use for NPN, connect the 24 VDC line and the 0 VDC line in
             reverse. For details, refer to User's Manual (Man. No. Z405).

F3SG-SR / PG Series Lineup 45

Note: 2. Do not connect the Conversion Cable for the following purposes. Failure to do so may result in failure.
             1. Connecting with the F39-SGIT-IL3, F39-GCNY2, F39-GCNY3 or F39-GCN5
             2. Connecting between the F3SG-SR's

Configuration Tool SD Manager 3 and Intelligent Tap

Configuration tool SD Manager 3

Type Specifications
SD Manager 3 Configuration tool running on a PC.
Use with the Intelligent Tap. (The Bluetooth® communication unit is required to connect
using Bluetooth®.)
For details, refer to your local Omron website.
SD Manager 3 Mobile APP Monitoring tool running on a smartphone.
Use with the Intelligent Tap and Bluetooth® communication unit.
For details, refer to your local Omron website.

Intelligent Tap, Optional Accessories for Intelligent Tap

Appearance Type Application/Specifications Model
3736_lu_20_1 Intelligent Tap Used to configure the F3SG-SR/PG and connect
external devices via IO-Link. The F3SG-SR/PG
can be configured on a PC or with the DIP switch
on the Intelligent Tap.
IP67 and IP67G (JIS C 0920 Annex 1) rated when
mated.		 F39-SGIT-IL3
3736_lu_20_2 Bluetooth®
Communication Unit		 Mounted to the Intelligent Tap to connect with the
SD Manager 3 via Bluetooth®.
IP67 and IP67G (JIS C 0920 Annex 1) rated when
mated.
* For the regions where the Bluetooth®
Communication Unit can be used, refer to
Legislation and Standards on Catalog.		 F39-SGBT
3736_lu_20_3 Intelligent Tap Bracket
For DIN in Panel		 Bracket to mount the Intelligent Tap on a DIN
track.		 F39-LITF1

Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file)..

Intelligent Tap-to-IO-Link Master Cable

Omron IO-Link
master unit		 Type Specifications Cable
length		 Model
NX-ILM400 Single-ended cable
M12 connector (5-pin),
5 wires
Color: Gray		 3736_lu_21_1 2 m XS5F-D521-DJ0-IL
GX-ILM08C Double-ended cable
M12 connector (5-pin),
5 wires
Color: Gray		 3736_lu_21_2 3 m F39-JG3B-L
10 m F39-JG10B-L
20 m F39-JG20B-L

* When the accessory is used, protect it from cutting oil.
Note: Use the F39-JG[]A-D Extended Socket-Straight Cable or F39-JG[]B-D Extended Plug-Socket Cable for safety output
         (OSSD).

F3SG-SR / PG Series Lineup 52

Reduced Wiring System

Y-Joint Plug/Socket Connector

Appearance Type Specifications Cable length Model
3736_lu_22_1 M12 connectors.
Used for reduced wiring.
IP67*1 rated when mated.		 3736_lu_22_2 0.5 m F39-GCNY2

*1. When the accessory is used, protect it from cutting oil.
*2. Order the cable (root-plug cable for extended and extended cable) for emitter (end of model: -L) and the cable for
      receiver (end of model: -D).

Reset Switch Connector

Appearance Type Specifications Cable length Model
3736_lu_23_1 M12 connectors.
Used for reduced wiring.
IP67*1 rated when mated.		 3736_lu_23_2 0.5 m F39-GCNY3

Note: Purchase a reset switch (NC contact) separately.
*1. When the accessory is used, protect it from cutting oil.
*2. Order the extended socket-straight cable for receiver (end of model: -D).
*3. The External Device Monitoring (EDM) function cannot be used with this accessory.

Reset Switch Connector-to-Reset Switch Cable

Connector Connected to Cable, Socket on One Cable End

Appearance Type Specifications Cable length Model
3736_lu_24_1 M12 connector (4-pin),
4 wires		 3736_lu_24_2 1 m XS5F-D421-C80-F
2 m XS5F-D421-D80-F
3 m XS5F-D421-E80-F
5 m XS5F-D421-G80-F
10 m XS5F-D421-J80-F
20 m XS5F-D421-L80-F

* When the accessory is used, protect it from cutting oil.

Muting System

Muting Sensor E3Z (M8 Connector)

Sensing method Sensing distance Mounter Output type Model
Through-beam
3736_lu_25_1		 10 m
(Red light)		 F39-FMA[][][]T NPN output E3Z-T66A
PNP output E3Z-T86A
Retro-reflective *1
3736_lu_25_2		 4 m *2
(Red light)		 F39-FMA[][][]R NPN output E3Z-R66
PNP output E3Z-R86
Reflectors E39-R1S

Note: The muting sensor arm mounter is not included with the muting sensor. Order the muting sensor arm mounter.
*1. The reflector is not included with the muting sensor. Order the E39-R1S Reflector when using the E3Z-R[]6
      Retroreflective Muting Sensor.
*2. The minimum required distance between the E3Z Muting Sensor and reflector is 100 mm.
For details, refer to your local Omron website.

Muting Sensor Arm Mounter (Two mounters per set, for emitter and receiver)

Appearance Application Length Model
3736_lu_26_1 The through-beam muting sensor can be mounted easily. 150 mm F39-FMA150T
400 mm F39-FMA400T
The retroreflective muting sensor can be mounted easily. 150 mm F39-FMA150R
400 mm F39-FMA400R

Note: 1. The muting sensor is not included with the muting sensor arm mounter. Order the Muting Sensor.
         2. When mounting the muting sensor arm mounter to the safety light curtain, order the F39-LMAF1 Muting Sensor
             Arm Mounter Bracket for SLC. When the muting sensor arm mounter is mounted to the floor mount column, no
             brackets are required.

Muting Sensor Arm Mounter Bracket for SLC (Two brackets per set, for emitter and receiver) *

Appearance Application Model
3736_lu_27_1 For F3SG-SR/PG F39-LMAF1

Note: The F39-LMAF1 Muting Sensor Arm Mounter Bracket for SLC cannot be used for the F3SG-SR/PG with a product
         length smaller than 280 mm.
* Order when mounting the muting sensor arm mounter to the safety light curtain. When the muting sensor arm mounter
   is mounted to the floor mount column, no brackets are required.

Muting Sensor Connection Box

Appearance Application Specifications Cable Length Model
3736_lu_28_1 Speeds up wiring muting sensors. PNP/NPN selection
Main Unit: M12 socket (5 pin) ×7,
M12 socket (8 pin) ×1
Cable: M12 plug (8 pin) ×1
IP67*1 rated when mated.		 0.5 m F39-GCN5

*1. When the accessory is used, protect it from cutting oil.
*2. When using four muting sensors, order the E3Z-R[][] Muting Sensor (Retro-reflective) that can be connected to the
      F39-GCN5 Muting Sensor Connection Box.

Connection Cable for Muting Sensor Connection Box

Appearance Type Application Cable
Length		 Model
3736_lu_29_1 Connectors connected to
cable, M8 socket and M12
plug on cable ends (4 pin)		 Cable to connect the Muting
Sensor and F39-GCN5 Muting
Sensor Connection Box.		 0.2 m XS3W-M42C-4C2-A
3736_lu_29_2 Connectors connected to
cable, M8 socket and M8
plug on cable ends (4 pin)
Straight (socket, plug)		 Sensor I/O Connectors
Connectors with Cables,
Connectors on Both Cable Ends
(Socket/Plug)		 1 m XS3W-M421-401-R
2 m XS3W-M421-402-R
5 m XS3W-M421-405-R
10 m XS3W-M421-410-R
3736_lu_29_3 Connectors connected to
cable, M8 socket and M8
plug on cable ends (4 pin)
Right-angle (socket)/
straight (plug)		 Sensor I/O Connectors
Connectors with Cables,
Connectors on Both Cable Ends
(Socket/Plug)
Used together with the XS3W-
M42C-4C2-A when the space to
connect to the connector of the
E3Z Muting Sensor is between
40 and 80 mm.		 2 m XS3W-M424-402-R
5 m XS3W-M424-405-R
3736_lu_29_4 Connector connected to
cable, M12 plug on one
cable end (4 pin)		 Cable to connect the device for
auxiliary output and F39-GCN5
Muting Sensor Connection Box		 0.3 m XS5H-D421-A80-F
1 m XS5H-D421-C80-F
2 m XS5H-D421-D80-F
5 m XS5H-D421-G80-F
3736_lu_29_5 Connector connected to
cable, M12 plug on one
cable end (5 pin)		 Cable to connect the device for
reset input and F39-GCN5
Muting Sensor Connection Box		 0.3 m XS2H-D521-AG0-A
1 m XS2H-D521-CG0-A

Note: 1. Select the same output type for both the safety light curtain/safety multi-light beam (PNP/NPN selection by wiring)
             and muting sensor (PNP or NPN model).
         2. For details of the XS3W, XS5H and XS2H cables with connector(s), refer to your local OMRON website.
         3. Use the F39-JG[]B-D Extended Plug-Socket Cable to connect the muting sensor connection box with the Intelligent
             Tap.

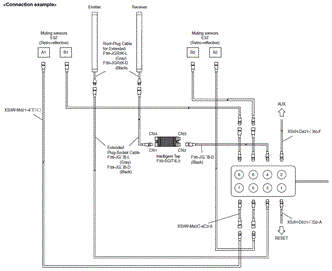

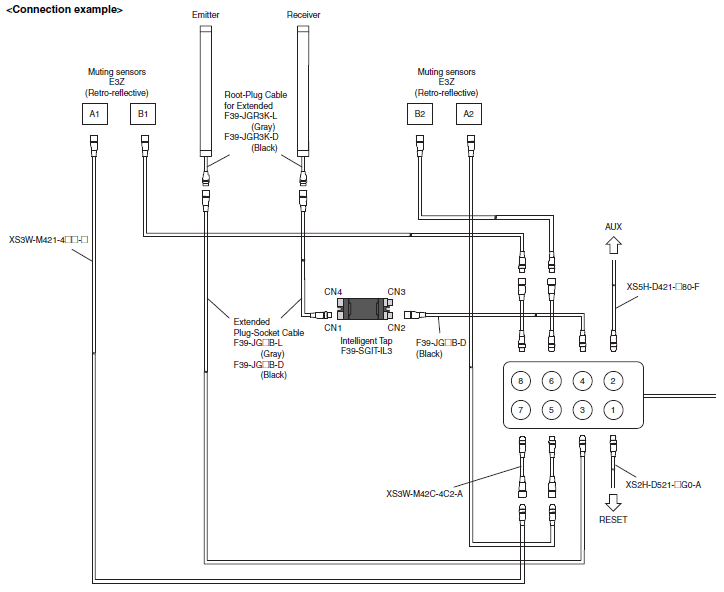

             The connection example for optical synchronization is shown below.

F3SG-SR / PG Series Lineup 71

Floor Mount System

Floor Mount Column

Appearance Applicable sensor Column height Model
F3SG-SR
Safety Light Curtain		 F3SG-PG
Safety Multi-Light Beam
3736_lu_30_1 Protective height up to 0880 F3SG-4PGA0670-2[] 990 mm F39-ST0990
Protective height up to 1280 F3SG-4PGA0970-3A/3L
F3SG-4PGA1070-4[]		 1,310 mm F39-ST1310
Protective height up to 1520 F3SG-4PGA1370-4[] 1,630 mm F39-ST1630
Protective height up to 1840 --- 1,950 mm F39-ST1950
Protective height up to 2080 --- 2,270 mm F39-ST2270

*1. Floor Mount Column, Mirror Column, Mount-Column Adjustable Base: Each model includes one product.
      When using for both the emitter and receiver, order two sets.
*2. The mount-column adjustable base is sold separately.
*3. When mounting F3SG-SR/PG on the Floor-Mount Column, the Adjustable Top/Bottom Brackets (F39-LSGTB-SJ, RE, MS), Standard Brackets (F39-LSGF), and Adjustable Top/Bottom Brackets (F39-LSGA) can be used. Intermediate brackets are not required when using the Adjustable Top/Bottom Brackets for safety light curtains with a protective height of 860 mm or more.

Mirror Column

Appearance Applicable sensor Column
height		 Model
F3SG-SR
Safety Light Curtain		 F3SG-PG
Safety Multi-Light Beam
3736_lu_31_1
(Operating range becomes
15% shorter than the rating)		 Protective height up to 0880 F3SG-4PGA0670-2A/2L 990 mm F39-SML0990
Protective height up to 1200 F3SG-4PGA0970-3A/3L
F3SG-4PGA1070-4A/4L		 1,310 mm F39-SML1310
Protective height up to 1520 F3SG-4PGA1370-4A/4L 1,630 mm F39-SML1630
Protective height up to 1840 --- 1,950 mm F39-SML1950
3736_lu_31_2
(Operating range becomes
10% shorter than the rating)		 --- F3SG-4PGA0670-2A/2L 990 mm F39-PML0990-2
--- F3SG-4PGA0970-3A/3L 1,310 mm F39-PML1310-3
--- F3SG-4PGA1070-4A/4L F39-PML1310-4
--- F3SG-4PGA1370-4A/4L 1,630 mm F39-PML1630-4

Note: The F3SG-SR Safety Light Curtain with the protective height of 1920 or more cannot be used.
*1. Floor Mount Column, Mirror Column, Mount-Column Adjustable Base: Each model includes one product.
      When using for both the emitter and receiver, order two sets.
*2. The mount-column adjustable base is sold separately.

Mount-Column Adjustable Base

Appearance Application Model
3736_lu_32_1 Mounted to the floor mount column or mirror column.
The angle and height of the column can be adjusted.		 F39-STB

*1. Floor Mount Column, Mirror Column, Mount-Column Adjustable Base: Each model includes one product.
      When using for both the emitter and receiver, order two sets.
*2. The floor mount column and mirror column are sold separately.

Other Optional Accessories Common to F3SG-SR and F3SG-PG

Laser Alignment Pointer

• The laser alignment pointer is attached on the optical surface of the F3SG-SR/PG to help coarse adjustment of beams.

Appearance Application/Specifications Model
3736_lu_33_2 Mountable from the front.
This can be easily mounted and removed to/from the main unit, even as a set with the F39-ST.
(Red semiconductor laser (wavelength 650 nm, 1 mW max, JIS Class 2, IEC Class 2, FDA
Class II))		 F39-PTS
3736_lu_33_1 This can be mounted even from above the Spatter Protection Cover.
(Red semiconductor laser (wavelength 650 nm, 1 mW max, JIS Class 2, IEC Class 2, FDA
Class II))		 F39-PTG

Lamp

Appearance Application/Specifications Model
3736_lu_34_1 The lamp can be connected to emitter, receiver, or emitter/receiver and turned ON
based on the operation of F3SG-SR/PG.
The lamp can indicate red, orange, and green colors, to which three different states
can be assigned.
IP67 * rated when mated.		 F39-SGLP

* When the accessory is used, protect it from cutting oil.
Note: The Lamp does not support Bluetooth® communication.

Optional Accessories for F3SG-SR

Spatter Protection Cover (2 covers per set, one for emitter and one for receiver)

Appearance Safety light curtain Model
Finger protection Hand protection Arm/leg protection and
Body protection
3736_lu_35_1
(Operating range becomes
10% shorter than the rating)		 F3SG-4SR[]0160-14 F3SG-4SR[]0160-25 --- F39-HSG0160
F3SG-4SR[]0200-14-F F3SG-4SR[]0200-25-F --- F39-HSG0200
F3SG-4SR[]0240-14 F3SG-4SR[]0240-25 F3SG-4SR[]0240-45 F39-HSG0240
F3SG-4SR[]0280-14-F F3SG-4SR[]0280-25-F F3SG-4SR[]0280-85 F39-HSG0280
F3SG-4SR[]0320-14 F3SG-4SR[]0320-25 --- F39-HSG0320
F3SG-4SR[]0360-14-F F3SG-4SR[]0360-25-F --- F39-HSG0360
F3SG-4SR[]0400-14 F3SG-4SR[]0400-25 F3SG-4SR[]0400-45 F39-HSG0400
F3SG-4SR[]0440-14-F F3SG-4SR[]0440-25-F F3SG-4SR[]0440-85 F39-HSG0440
F3SG-4SR[]0480-14 F3SG-4SR[]0480-25 --- F39-HSG0480
F3SG-4SR[]0560-14 F3SG-4SR[]0560-25 F3SG-4SR[]0560-45 F39-HSG0560
F3SG-4SR[]0640-14 F3SG-4SR[]0640-25 --- F39-HSG0640
--- F3SG-4SR[]0720-25 F3SG-4SR[]0720-45 F39-HSG0720
F3SG-4SR[]0800-14 F3SG-4SR[]0800-25 --- F39-HSG0800
--- F3SG-4SR[]0880-25 F3SG-4SR[]0880-45 F39-HSG0880
F3SG-4SR[]0960-14-F F3SG-4SR[]0960-25 --- F39-HSG0960
--- F3SG-4SR[]1040-25 --- F39-HSG1040
--- F3SG-4SR[]1120-25 --- F39-HSG1120
F3SG-4SR[]1200-14 F3SG-4SR[]1200-25 F3SG-4SR[]1200-45 F39-HSG1200
--- F3SG-4SR[]1280-25 --- F39-HSG1280
--- F3SG-4SR[]1360-25 --- F39-HSG1360
--- F3SG-4SR[]1440-25 --- F39-HSG1440
--- F3SG-4SR[]1520-25 F3SG-4SR[]1520-45 F39-HSG1520
F3SG-4SR[]1600-14 F3SG-4SR[]1600-25 --- F39-HSG1600
--- F3SG-4SR[]1680-25 --- F39-HSG1680
--- F3SG-4SR[]1760-25 --- F39-HSG1760
--- F3SG-4SR[]1840-25 --- F39-HSG1840
--- F3SG-4SR[]1920-25 --- F39-HSG1920

Note: Two or more spatter protection covers can be attached to the safety light curtain with a protective height not listed
         above.

Test Rod *

Appearance Diameter Model
--- 14 mm F39-TRD14
25 mm F39-TRD25
30 mm F39-TRD30

* When you need a test rod larger than 30 mm in diameter, prepare it by yourself.

F3SG-SR-K

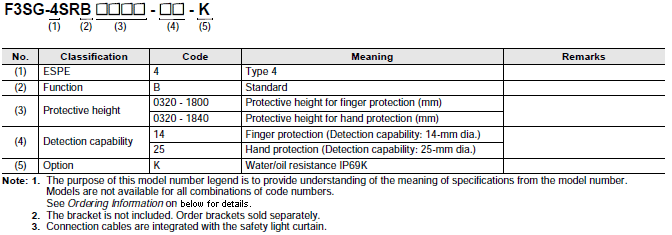

Model Number Legend

IP69K Model F3SG-SR-K

F3SG-SR / PG Series Lineup 91

Ordering Information

Safety Light Curtain IP69K Model

Main Unit F3SG-SR-K

Finger protection (Detection capability: 14-mm dia.)

Number of beams Protective height (mm) Standard
Model
31 320 F3SG-4SRB0320-14-K
39 400 F3SG-4SRB0400-14-K
47 480 F3SG-4SRB0480-14-K
55 560 F3SG-4SRB0560-14-K
63 640 F3SG-4SRB0640-14-K
71 720 F3SG-4SRB0720-14-K
79 800 F3SG-4SRB0800-14-K
87 880 F3SG-4SRB0880-14-K
95 960 F3SG-4SRB0960-14-K
99 1,000 F3SG-4SRB1000-14-K
119 1,200 F3SG-4SRB1200-14-K
139 1,400 F3SG-4SRB1400-14-K
159 1,600 F3SG-4SRB1600-14-K
179 1,800 F3SG-4SRB1800-14-K

Note: Connection cables are integrated with the safety light curtain.

Hand protection (Detection capability: 25-mm dia.)

Number of beams Protective height (mm) Standard
Model
16 320 F3SG-4SRB0320-25-K
20 400 F3SG-4SRB0400-25-K
24 480 F3SG-4SRB0480-25-K
28 560 F3SG-4SRB0560-25-K
32 640 F3SG-4SRB0640-25-K
36 720 F3SG-4SRB0720-25-K
40 800 F3SG-4SRB0800-25-K
44 880 F3SG-4SRB0880-25-K
48 960 F3SG-4SRB0960-25-K
50 1,000 F3SG-4SRB1000-25-K
52 1,040 F3SG-4SRB1040-25-K
56 1,120 F3SG-4SRB1120-25-K
60 1,200 F3SG-4SRB1200-25-K
64 1,280 F3SG-4SRB1280-25-K
68 1,360 F3SG-4SRB1360-25-K
72 1,440 F3SG-4SRB1440-25-K
76 1,520 F3SG-4SRB1520-25-K
80 1,600 F3SG-4SRB1600-25-K
84 1,680 F3SG-4SRB1680-25-K
88 1,760 F3SG-4SRB1760-25-K
92 1,840 F3SG-4SRB1840-25-K

Note: Connection cables are integrated with the safety light curtain.

Accessories (Sold separately)

Optional Accessories for F3SG-SR-K

Bracket

Appearance Type Application Model
Bracket to mount the F3SG-SR-K.
360° mounting including side mounting and
backside mounting possible.
Beam alignment after mounting of F3SG-SR/PG
not possible.
Two brackets per set		 3736_lu_40_1 IP69K Model Mounting
Bracket
(Top/Bottom Bracket)		 F39-LSGTB-K

last update: July 8, 2024

Product Category

Products

About Us

Solutions

Privacy

Services

Resources

Omron Automation is an industrial automation partner that creates, sells and services fully integrated automation solutions that include sensing, control, safety, vision, motion, robotics and more.

Follow Us

Youtube Facebook Linkedin
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
