Industrial Automation
R89F-M
AC Free Input Axial Fans
Reducing required design work through unified power supply voltage
Related Contents
Application Solutions
last update: January 7, 2019
(Unit: mm)
R89F-MS0938[] AC Free Input Axial Fans (92 × 92 × t38 mm)

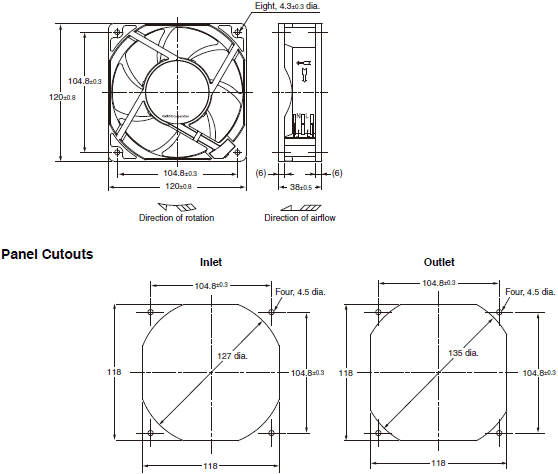

R89F-MS1238[] AC Free Input Axial Fans (120 × 120 × t38 mm)

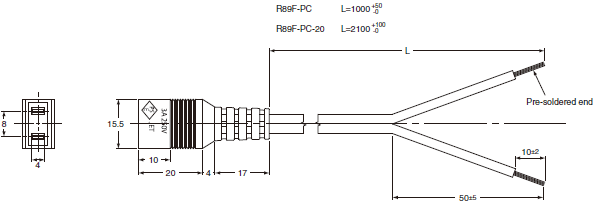

R89F-PC Plug Cord
R89F-PC
Note: This Plug Cord is used for Axial Fans with terminals.

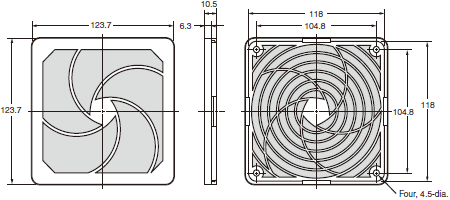

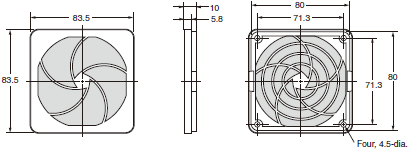

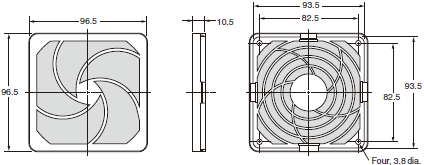

R87F-FG Finger Guards
Material: steel, Joints: spot welded, Surface: nickel-chrome plated
R87F-FG150
R87F-FG120
R87F-FG90
R87F-FG80
R87F-FL Filters
R87F-FL120
R87F-FL90
R87F-FL80
R87F-FL120S
Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
last update: January 7, 2019
