Industrial Automation
K7TM
Heater Condition Monitoring Device
Predictive maintenance by monitoring heater condition
Related Contents
Application Solutions
last update: April 1, 2022

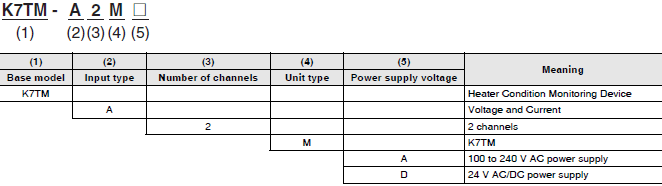

Model Number Structure
Model Number Legend
Ordering Information
K7TM
| Power supply voltage | Model |
|---|---|
| 100 to 240 V AC | K7TM-A2MA |
| 24 V AC/DC | K7TM-A2MD |
CT (Order Separately)
| Rated primary-side current | Model | Model compliant with UL certification |
|---|---|---|
| 5 A | K6CM-CICB005 | K6CM-CICB005-C |
| 25 A | K6CM-CICB025 | K6CM-CICB025-C |
| 100 A | K6CM-CICB100 | K6CM-CICB100-C |
| 200 A | K6CM-CICB200 | K6CM-CICB200-C |
| 400 A | K6CM-CICB400 | K6CM-CICB400-C |
| 600 A | K6CM-CICB600 | --- |
Note: 1. A cable for connection is provided with the CT.
2. K7TM devices are UL-certified when used as a set with a CT model with “-C” at the end. Select a CT with “-C” at
the end of the model name if UL certification is required for equipment.
3. The CT input terminals of the K7TM can be connected in either direction of the special CT regardless of polarity.
2. K7TM devices are UL-certified when used as a set with a CT model with “-C” at the end. Select a CT with “-C” at
the end of the model name if UL certification is required for equipment.
3. The CT input terminals of the K7TM can be connected in either direction of the special CT regardless of polarity.
Accessories (Order Separately)
| DIN Tracks | Model |
|---|---|
 |
PFP-100N |
| PFP-50N |
| End Plate | Model |
|---|---|
 |
PFP-M |
last update: April 1, 2022
