Industrial Automation

XW2K

Ultra-Compact Interface Wiring System

XW2K

The Industry’s Smallest1 Compact Interface Wiring System to Reduce Work and Save Space on Control Panels. 1. Results of OMRON survey conducted in March, 2022

For PLC Connection
For PLC Connection (Integrated Common Terminal Type)
General-Purpose

last update: February 1, 2023

For PLC Connection

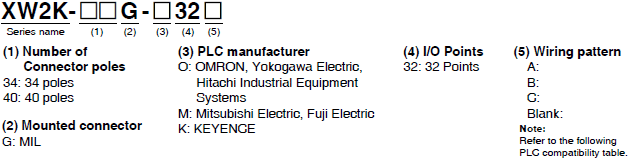

Model Number Structure

Model Number Legend

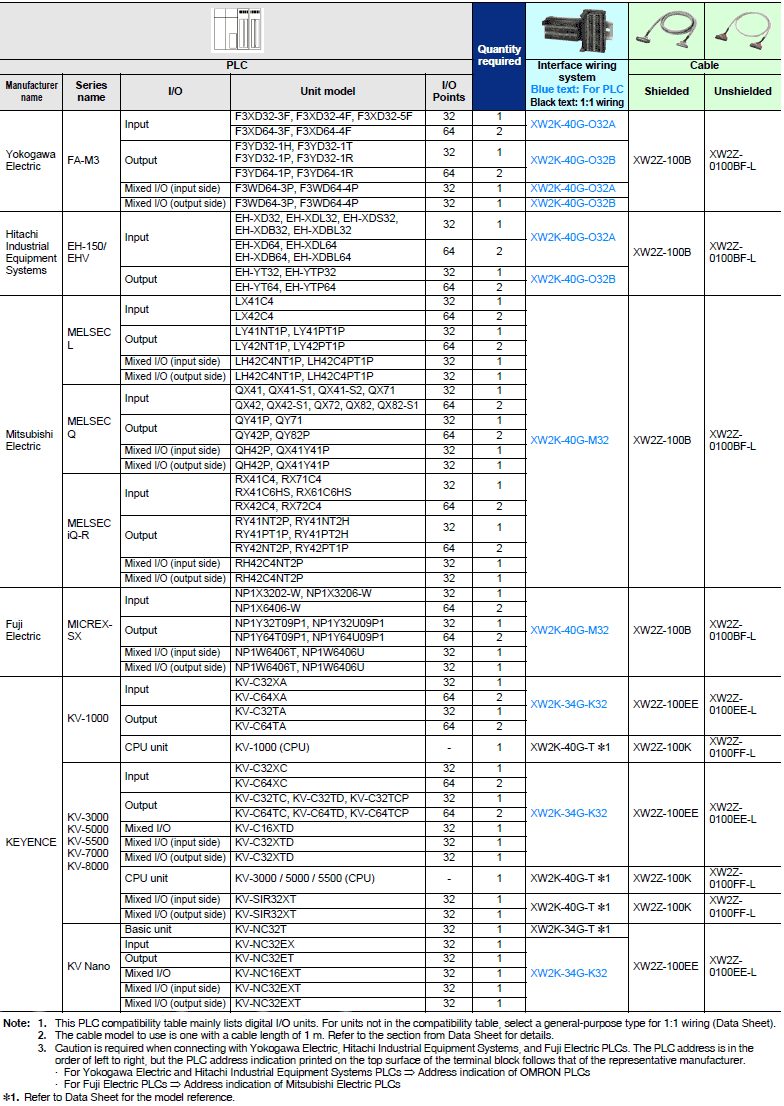

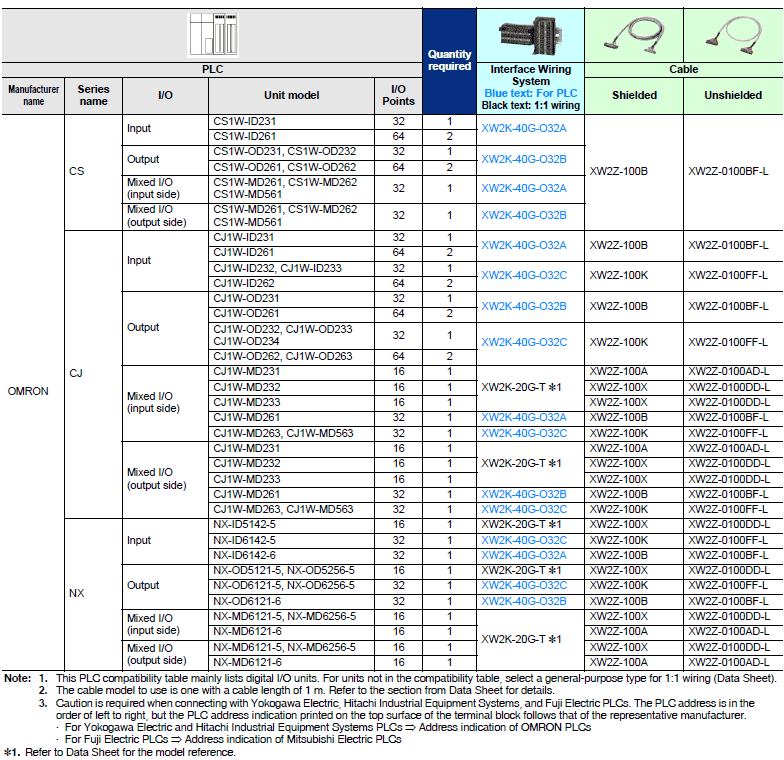

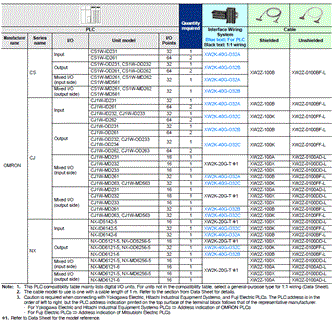

PLC Compatibility Table

Ordering Information

For OMRON, Yokogawa Electric, or Hitachi Industrial Equipment Systems PLC Connection

Mounted connector	I/O Points	PWB color	Model	Dimension (mm)
MIL 40 poles	32	Green	XW2K-40G-O32A	When installed vertically: 39 x 75 x 40.8 When installed horizontally: 75 x 39 x 40.8
		Blue	XW2K-40G-O32B
		Black	XW2K-40G-O32C

For Mitsubishi Electric, Fuji Electric, or KEYENCE PLC Connection

Appearance	Mounted connector	I/O Points	PWB color	Model	Dimension (mm)
	MIL 40 poles	32	Black	XW2K-40G-M32	When installed vertically: 39 x 75 x 40.8 When installed horizontally: 75 x 39 x 40.8
	MIL 34 poles	32	Black	XW2K-34G-K32

For PLC Connection (Integrated Common Terminal Type)

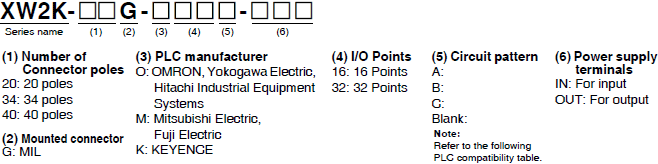

Model Number Structure

Model Number Legend

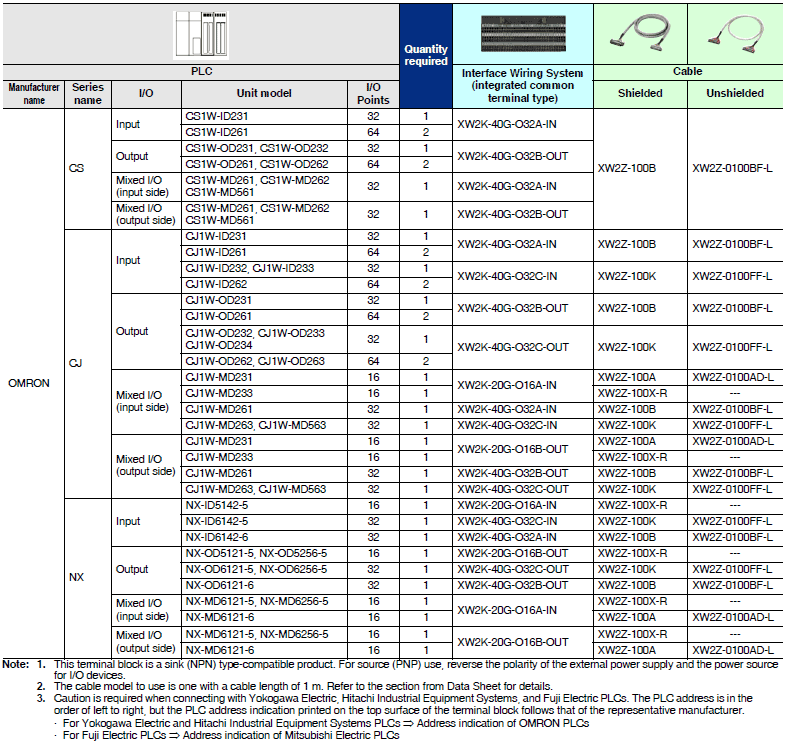

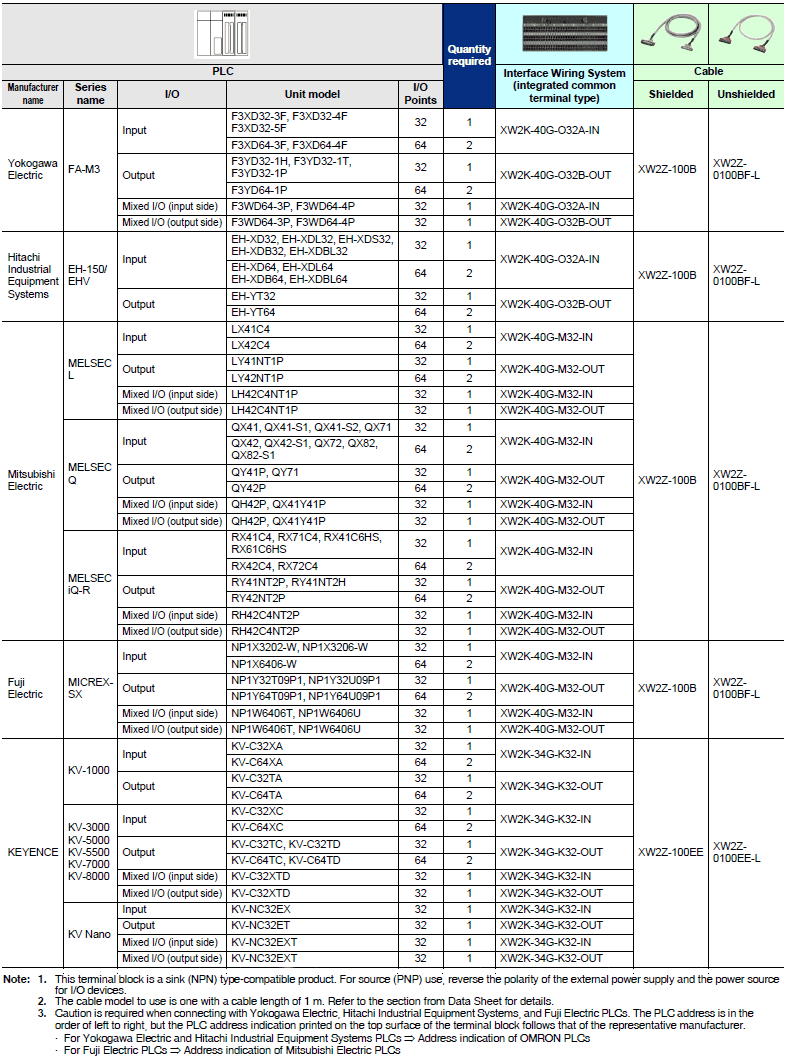

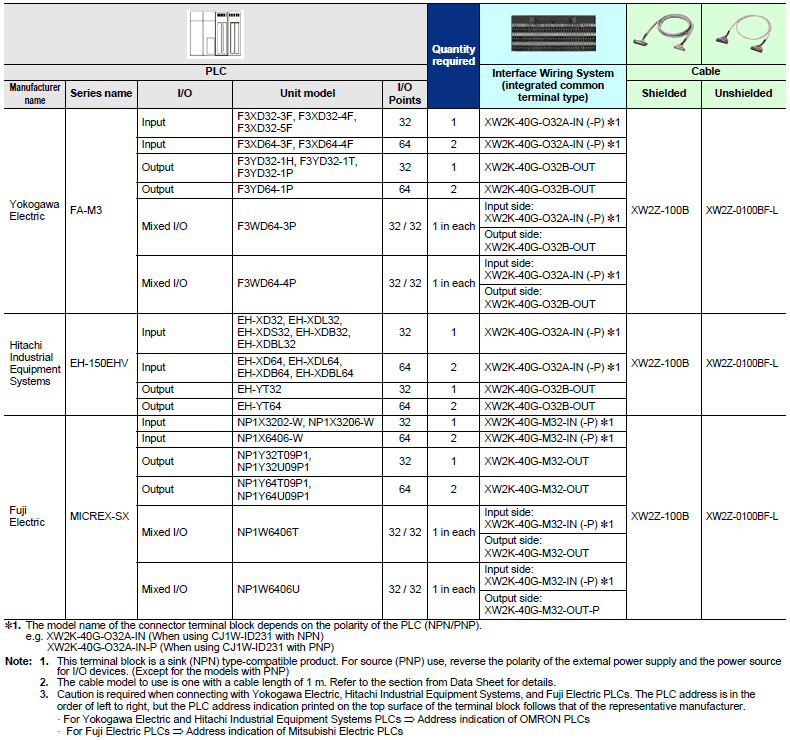

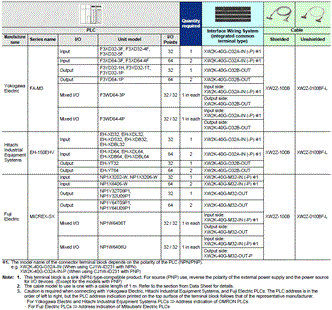

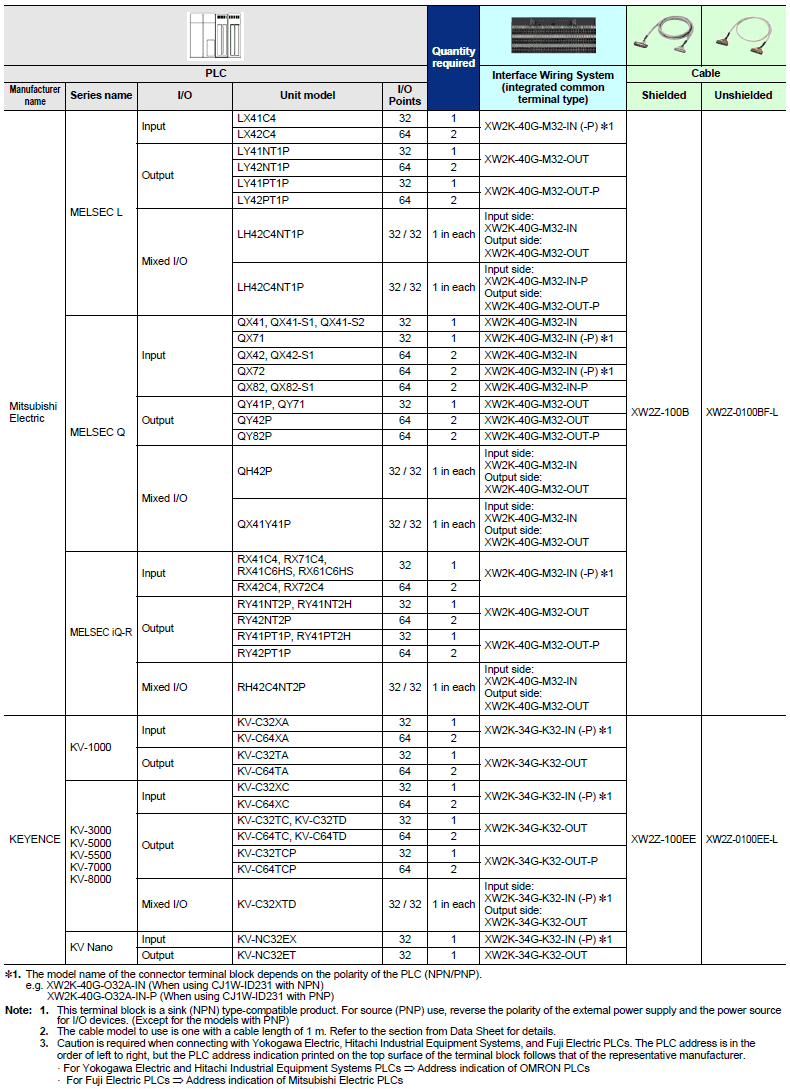

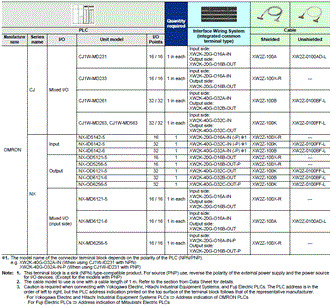

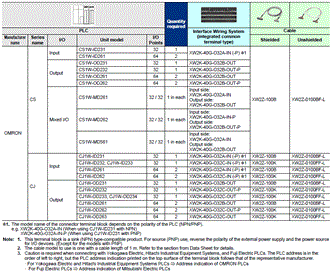

PLC Compatibility Table

Ordering Information

For OMRON PLC Connection

Appearance	Mounted connector	I/O Points	PWB color	Model	Dimension (mm)
	MIL 20 poles	16	Green	XW2K-20G-O16A-IN	When installed vertically: 52.7 x 75 x 40.8 When installed horizontally: 75 x 52.7 x 40.8
	MIL 20 poles	16	Blue	XW2K-20G-O16B-OUT	When installed vertically: 39 x 75 x 40.8 When installed horizontally: 75 x 39 x 40.8

For OMRON, Yokogawa Electric, or Hitachi Industrial Equipment Systems PLC Connection

Mounted connector	I/O Points	PWB color	Model	Dimension (mm)
MIL 40 poles	32	Green	XW2K-40G-O32A-IN	When installed vertically: 52.7 x 124 x 40.8 When installed horizontally: 124 x 52.7 x 40.8
		Black	XW2K-40G-O32C-IN
		Blue	XW2K-40G-O32B-OUT	When installed vertically: 39 x 124 x 40.8 When installed horizontally: 124 x 39 x 40.8
		Black	XW2K-40G-O32C-OUT

*1. The appearance shows the models of circuit patterns A and B. Circuit pattern C (XW2K-40G-O32C-IN/OUT) has a
different appearance and the board color is black.

For Mitsubishi Electric or Fuji Electric PLC Connection

Appearance	Mounted connector	I/O Points	PWB color	Model	Dimension (mm)
	MIL 40 poles	32	Black	XW2K-40G-M32-IN	When installed vertically: 52.7 x 124 x 40.8 When installed horizontally: 124 x 52.7 x 40.8
	MIL 40 poles	32	Black	XW2K-40G-M32-OUT	When installed vertically: 39 x 124 x 40.8 When installed horizontally: 124 x 39 x 40.8

For KEYENCE PLC Connection

Appearance	Mounted connector	I/O Points	PWB color	Model	Dimension (mm)
	MIL 34 poles	32	Black	XW2K-34G-K32-IN	When installed vertically: 52.7 x 124 x 40.8 When installed horizontally: 124 x 52.7 x 40.8
	MIL 34 poles	32	Black	XW2K-34G-K32-OUT	When installed vertically: 39 x 124 x 40.8 When installed horizontally: 124 x 39 x 40.8

General-Purpose

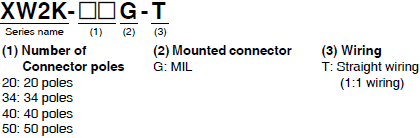

Model Number Structure

Model Number Legend

Ordering Information

Mounted connector	terminal block poles	PWB color	Model	Dimension A (mm)	Dimension (mm)
MIL 20 poles	20	Black	XW2K-20G-T	56	When installed vertically: 39 x A x 40.8 When installed horizontally: A x 39 x 40.8
MIL 34 poles	34		XW2K-34G-T	75
MIL 40 poles	40		XW2K-40G-T	75
MIL 50 poles	50		XW2K-50G-T	92.5

last update: February 1, 2023
