G9SA

Safety Relay Unit

G9SA

Proven and popular safety relay units Output expansion, DC power supply, and AC power supply models

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: August 3, 2015

(Unit: mm)

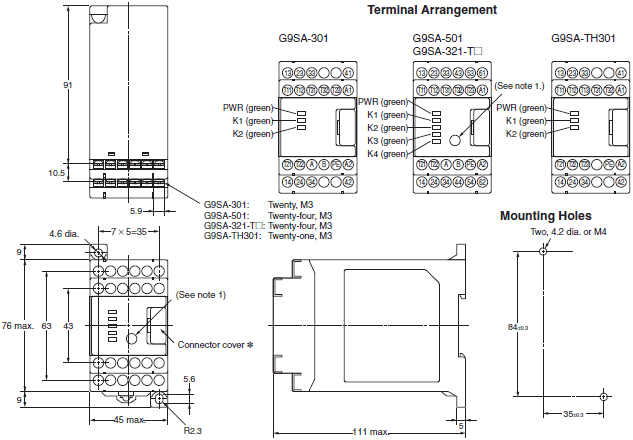

G9SA-301
G9SA-501
G9SA-321-T[]
G9SA-TH301

Note 1: The OFF-delay time setting switch is found on the G9SA-321-T[] only.
2: The K1 to K4 indicators light when the NO contacts of internal relays K1 to K4 close.
* Do not remove unless an Expansion Unit is being used.

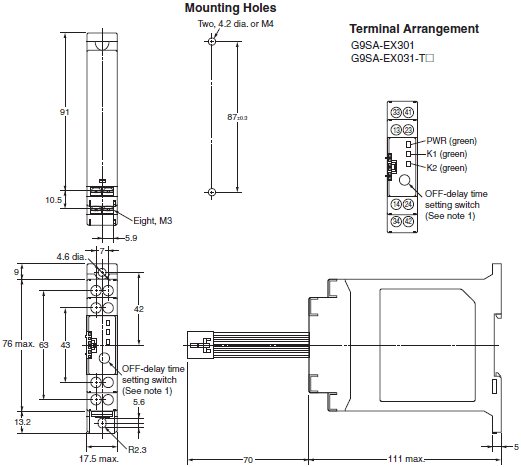

G9SA-EX301
G9SA-EX031-T[]

Note 1: The OFF-delay time setting switch is found on the G9SA-EX031-T[] only.
2: The K1 and K2 indicators light when the NO contacts of internal relays K1 and K2 close.

last update: August 3, 2015
