Industrial Automation

NXR-ILM08C-ECT

Environment-resistive Remote Terminal NXR-series IO-Link Master Unit for EtherCAT®

NXR-ILM08C-ECT

Streamline commissioning and maintenance efforts and stabilize operation

last update: December 18, 2023

General Specifications

Item		Specification
Degree of protection		IP67
Operating environment	Ambient operating temperature	-10 to 55°C
	Ambient operating humidity	25% to 85% (with no condensation)
	Ambient operating atmosphere	Must be free from corrosive gases.
	Storage temperature	-25 to 65°C
	Storage humidity	25% to 85% (with no condensation)
	Altitude	2,000 m max.
	Pollution degree	3 or less: Conforms to IEC 61010-2-201.
	Noise immunity	2 kV on power supply line (Conforms to IEC 61000-4-4.)
	Overvoltage category	Category II: Conforms to IEC 61010-2-201.
	EMC immunity level	Zone B
	Vibration resistance	10 to 60 Hz with amplitude of 0.35 mm, 60 to 150 Hz and 50 m/s² for 80 minutes each in X, Y, and Z directions.
	Shock resistance	150 m/s², 3 times each in 6 directions along X, Y, and Z axes
	Dielectric strength	600 VAC (between isolated circuits)
	Insulation resistance	20 MΩ min. (between isolated circuits)
*Applicable standards 1**		cULus: Listed (UL61010-2-201) EU: EN 61131-2, RCM KC: KC Registration UKCA IO-Link conformance EtherCAT conformance

*1. Ask your OMRON representative for the most recent applicable standards.

EtherCAT Communications Specifications

Item	Specification
Communications protocols	EtherCAT protocol
Modulation	Baseband
Link speed	100 Mbps
Physical layer	100BASE-TX (IEEE802.3)
Connectors	M12 (D-coding, female) x 2 (shielded) CN IN: EtherCAT input CN OUT: EtherCAT output
Topology	Depends on the specifications of the EtherCAT master 12
Transmission media	Category 5 or higher twisted-pair cable (Recommended cable: doubleshielded cable with aluminum tape and braiding)
Transmission distance	Distance between nodes (slaves): 50 m or less
Noise immunity	Conforms to IEC 61000-4-4, 1 kV or more
Node address setting method	Setting with hexadecimal ID switch or Configuration Software
*Node address range 3**	• Setting with hexadecimal ID switch: 01 to FF hex (1 to 255) • Setting with Configuration Software: 0001 to FFFF hex (1 to 65,535)
Indicators	L/A IN (Link/Activity IN) x 1 L/A OUT (Link/Activity OUT) x 1 RUN x 1 ERR x 1
Process data	Variable PDO mapping
PDO size/node	Input: 1 to 270 bytes Output: 2 to 258 bytes
Mailbox	Emergency messages, SDO requests, and SDO responses
Synchronization type	Free-Run Mode (Asynchronous)

*1. The IO-Link Master Unit conforms to the EtherCAT standards. Confirm the specifications of the connected EtherCAT
master for the supported topology. Note that the IO-Link Master Unit supports the ring topology.
*2. For the ring topology, the minimum value of the supported communications cycle is 125 μs. Allowing the IO-Link Master
Unit to operate with a shorter communications cycle than the minimum value may cause the loss of EtherCAT
communications frames or a communications stop.
*3. The setting range of the node address depends on the specifications of the connected EtherCAT master. Check the
specifications of the EtherCAT master for the supported node address setting range of the EtherCAT master.

Unit Specifications

Item		Specification
IO-Link specifications	IO-Link connector type	Class A
	Communications protocol	IO-Link protocol
	Number of ports	8
	Baud rate	COM1: 4.8 kbps COM2: 38.4 kbps COM3: 230.4 kbps
	Topology	1:1
	Compliant standards	• IO-Link Interface and System Specification Version1.1.2 • IO-Link Test Specification Version1.1.2
	Cable specifications	• Cable type: Unshielded • Cable length: 20 m max. • Electrostatic capacity between lines: 3 nF max. • Loop resistance: 6 Ω max.
Unit/input power supply voltage		24 VDC (20.4 to 26.4 VDC)
Output power supply voltage		24 VDC (20.4 to 26.4 VDC)
Maximum power supply current		9 A Sum of Unit/input power supply current and output power supply current
Number of connected Units when supplying power with through-wiring		No restrictions if power supply specifications are met.
Mounting method		Mounting with M5 screws
Mounting strength		100 N
Installation orientation and restrictions		Installation orientation: 6 possible orientations Restrictions: No restrictions
Connector types		• EtherCAT communications connectors: M12 (D-coding, female) × 2 • Power supply connectors: 7/8 inch (male) × 1, 7/8 inch (female) × 1 • I/O connectors: M12 (A-coding, female) × 8
Connector strength		30 N Applicable to all connectors
Screw tightening torque		• EtherCAT communications connectors and I/O connectors (M12 screw): 0.5 to 0.6 N·m • Power supply connectors (7/8 inch screw): 1.5 to 1.7 N·m • Unit mounting (M5 screw): 1.47 to 1.96 N·m • Rotary switch cover (M3 screw): 0.4 to 0.6 N·m • Waterproof covers for EtherCAT communications connectors (M12 screw): 0.5 to 0.6 N·m • Waterproof covers for power supply connectors (7/8 inch screw): 1.5 to 1.7 N·m
Maximum port current		4 A/port Total available current between pin 1 and pin 4
Device power supply *1 in IO-Link Mode or SIO (DI) Mode	Power supply used	Unit/input power supply
	Rated voltage	24 VDC (20.4 to 26.4 VDC)
	Maximum load current	2 A/pin
	Short-circuit protection	Provided *2
	Short-circuit detection	Provided *2
Digital inputs for pin 4 or digital inputs for pin 2 (in SIO (DI) Mode)	Power supply used	Unit/input power supply
	Rated voltage	24 VDC (20.4 to 26.4 VDC)
	Internal I/O common	PNP
	Input current	• Digital inputs for pin 2: 3.0 mA (at 24 VDC) • Digital inputs for pin 4: 6.3 mA (at 24 VDC)
	ON voltage/ON current	• Digital inputs for pin 2: 15 VDC min., 2 mA min. • Digital inputs for pin 4: 15 VDC min., 3 mA min.
	OFF voltage/OFF current	5 VDC max., 1 mA max.
	ON/OFF response time	1.0 ms max.
	Input filter time	No filter, 0.25 ms, 0.5 ms, 1 ms (default), 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms
	Short-circuit protection	Provided *2
	Short-circuit detection	Provided *2
Digital outputs for pin 4 or digital outputs for pin 2 (in SIO (DO) Mode)	Power supply used	Output power supply
	Internal I/O common	PNP
	Output type	Open-drain
	Rated voltage	24 VDC (20.4 to 26.4 VDC)
	Maximum load current	2 A/pin
	Leakage current	0.1 mA max.
	Residual voltage	1.5 V max.
	ON/OFF response time	1.0 ms max.
	Short-circuit protection	Provided *3
	Short-circuit detection	Provided *3
Current consumption	Unit/input power supply	60 mA
Current consumption	Output power supply	100 mA
Weight		440 g
Dimensions		240 × 24.2 × 62 mm (W × H × D) (The height is 38 mm when the connectors are included.)
Isolation method		No isolation

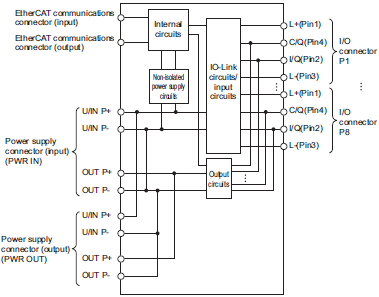

Circuit layout

*1. Used as a power supply for IO-Link devices or non-IO-Link input devices. Supplies power from the Unit/input power
supply of the IO-Link Master Unit to external devices through I/O connectors.
*2. Detects a short-circuit that occurred between pin 1 and pin 3 to protect the IO-Link Master Unit.
*3. Detects a short-circuit that occurred between pin 2 and pin 3 and between pin 4 and pin 3 to protect the IO-Link Master
Unit.

Version Information

The following table describes the relationship between the unit version of the IO-Link Master Units and the versions of the Support Software. With a combination of the following unit version or later and the following version or higher, you can use all of the functions that are supported by that unit version of the IO-Link Master Unit.

Unit version	Corresponding version of Support Software
Unit version	Sysmac Studio	CX-ConfiguratorFDT
Ver.1.0	Ver.1.57	Ver. 3.01, or Ver. 2.59 with automatic update as of January 2024 applied
