R87F / R87T
AC Axial Fans
Optimum Cooling with a Comprehensive Lineup of Axial Fans
Related Contents
Application Solutions
last update: April 3, 2023
Model Number Structure

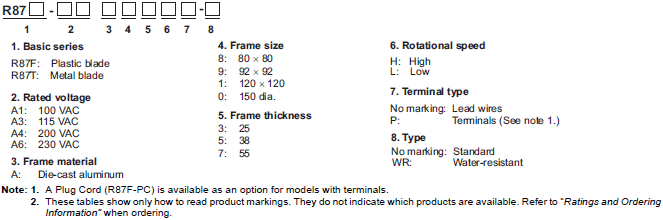

Model Number Legend
Ordering Information
Available Models
AC Axial Fans
| Series | Size (mm) | Model |
|---|---|---|
| R87F
(plastic blades) |
80 × 80 × t25 | R87F-A[]A83 |
| 80 × 80 × t38 | R87F-A[]A85 | |
| 92 × 92 × t25 | R87F-A[]A93 | |
| 120 × 120 × t25 | R87F-A[]A13 | |
| 120 × 120 × t38 | R87F-A[]A15 | |
| R87T
(metal blades) |
80 × 80 × t25 | R87T-A[]A83 |
| 80 × 80 × t38 | R87T-A[]A85 | |
| 120 × 120 × t38 | R87T-A[]A15 | |
| 150-dia. × t38 | R87T-A[]A05 | |
| 150-dia. × t55 | R87T-A[]A07 | |
| 120 × 120 × t38 | R87T-A[]A15H-WR |
Options (Order Separately)
| Product name | Model |
|---|---|
| Plug Cord | R87F-PC |
| Finger Guard | R87F-FG[] |
| Filter | R87F-FL[](S) |
| Set model | R87F-SET[][][][] |
Note: Mounting screws are not attached to Finger Guard. Order the Set model when the screws are needed.
R87F-A[]A83 AC Axial Fans with Lead Wires (80 × 80 × t25 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87F-A1A83H
R87F-A3A83H R87F-A4A83H R87F-A6A83H |
100 VAC
115 VAC 200 VAC 230 VAC |
0.097
0.085 0.048 0.046 |
0.080
0.070 0.041 0.039 |
7 | 6 | 2,600 | 3,000 | 0.6 | 0.7 | 39.2 | 53.9 | 32 | 36 |
| R87F-A1A83L
R87F-A3A83L R87F-A4A83L R87F-A6A83L |
100 VAC
115 VAC 200 VAC 230 VAC |
0.063
0.055 0.033 0.028 |
0.055
0.048 0.030 0.024 |
5 | 4 | 1,900 | 2,100 | 0.4 | 0.5 | 19.5 | 23.5 | 28 | 30 |
R87F-A[]A85 AC Axial Fans with Terminals (80 × 80 × t38 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87F-A1A85HP
R87F-A3A85HP R87F-A4A85HP R87F-A6A85HP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.140
0.120 0.080 0.060 |
0.115
0.100 0.060 0.050 |
10 | 9 | 2,700 | 3,200 | 0.8 | 0.9 | 42.1 | 58.8 | 32 | 36 |
| R87F-A1A85LP
R87F-A3A85LP R87F-A4A85LP R87F-A6A85LP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.090
0.080 0.050 0.040 |
0.080
0.070 0.040 0.040 |
7 | 6 | 2,200 | 2,500 | 0.6 | 0.7 | 25.0 | 32.0 | 26 | 29 |
R87F-A[]A93 AC Axial Fans with Terminals (92 × 92 × t25 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87F-A1A93HP
R87F-A3A93HP R87F-A4A93HP R87F-A6A93HP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.150
0.125 0.070 0.055 |
0.130
0.100 0.060 0.050 |
13 | 11 | 2,550 | 3,050 | 0.9 | 1.0 | 49.0 | 68.6 | 33 | 36 |
| R87F-A1A93LP
R87F-A3A93LP R87F-A4A93LP R87F-A6A93LP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.100
0.090 0.050 0.045 |
0.085
0.075 0.043 0.040 |
7 | 6 | 1,900 | 2,200 | 0.7 | 0.8 | 24.5 | 34.3 | 29 | 32 |
R87F-A[]A13 AC Axial Fans with Terminals (120 × 120 × t25 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87F-A1A13HP
R87F-A3A13HP R87F-A4A13HP R87F-A6A13HP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.180
0.160 0.090 0.080 |
0.150
0.130 0.075 0.070 |
14 | 12 | 2,400 | 2,800 | 1.9 | 2.2 | 44 | 42 | 39 | 43 |
| R87F-A1A13LP
R87F-A3A13LP R87F-A4A13LP R87F-A6A13LP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.140
0.130 0.080 0.060 |
0.120
0.110 0.060 0.050 |
12 | 10 | 1,700 | 2,000 | 1.3 | 1.5 | 20 | 24 | 32 | 34 |
R87F-A[]A15 AC Axial Fans with Terminals (120 × 120 × t38 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87F-A1A15HP
R87F-A3A15HP R87F-A4A15HP R87F-A6A15HP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.230
0.190 0.110 0.090 |
0.200
0.170 0.100 0.080 |
15 | 14 | 2,750 | 3,200 | 2.7 | 3.1 | 93 | 80 | 42 | 46 |
| R87F-A1A15LP
R87F-A3A15LP R87F-A4A15LP R87F-A6A15LP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.170
0.140 0.080 0.070 |
0.150
0.120 0.070 0.060 |
11 | 10 | 2,100 | 2,250 | 2.0 | 2.1 | 44 | 44 | 36 | 38 |
R87T-A[]A83 AC Axial Fans with Lead Wires (80 × 80 × t25 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87T-A1A83H
R87T-A3A83H R87T-A4A83H R87T-A6A83H |
100 VAC
115 VAC 200 VAC 230 VAC |
0.180
0.150 0.087 0.075 |
0.150
0.130 0.075 0.065 |
12 | 11 | 2,500 | 3,000 | 0.5 | 0.6 | 34.0 | 49.0 | 33 | 36 |
R87T-A[]A85 AC Axial Fans with Lead Wires (80 × 80 × t38 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87T-A1A85H
R87T-A3A85H R87T-A4A85H R87T-A6A85H |
100 VAC
115 VAC 200 VAC 230 VAC |
0.180
0.155 0.085 0.080 |
0.160
0.135 0.075 0.070 |
12 | 10 | 2,800 | 3,300 | 0.80 | 0.90 | 42 | 58 | 37 | 40 |
R87T-A[]A15 AC Axial Fans with Terminals (120 × 120 × t38 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87T-A1A15HP
R87T-A3A15HP R87T-A4A15HP R87T-A6A15HP |
100 VAC
115 VAC 200 VAC 230 VAC |
0.240
0.210 0.120 0.110 |
0.210
0.180 0.110 0.090 |
17 | 16 | 2,700 | 3,100 | 2.6 | 2.9 | 80 | 62 | 42 | 46 |
R87T-A[]A05 AC Axial Fans with Lead Wires (150-dia. × t38 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87T-A1A05H
R87T-A3A05H R87T-A4A05H R87T-A6A05H |
100 VAC
115 VAC 200 VAC 230 VAC |
0.550
0.470 0.260 0.220 |
0.460
0.390 0.220 0.190 |
50 | 48 | 2,650 | 3,100 | 4.8 | 5.7 | 104 | 107 | 56 | 58 |
R87T-A[]A07 AC Axial Fans with Lead Wires (150-dia. × t55 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87T-A1A07H
R87T-A3A07H R87T-A4A07H R87T-A6A07H |
100 VAC
115 VAC 200 VAC 230 VAC |
0.480
0.420 0.240 0.210 |
0.420
0.370 0.210 0.190 |
43 | 40 | 2,800 | 3,250 | 5.0 | 5.8 | 118 | 88 | 52 | 56 |
R87T-A[]A15H-WR Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)
Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60
| Model | Rated
voltage (V) |
Rated
current (A) * |
Rated
input (W) * |
Rated
rotational speed (r/min) * |
Maximum
flow rate (m3/min) * |
Maximum
static pressure (Pa) * |
Noise
(dB) * |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
50
Hz |
60
Hz |
||
| R87T-A1A15H-WR
R87T-A3A15H-WR R87T-A4A15H-WR R87T-A6A15H-WR |
100 VAC
115 VAC 200 VAC |
0.350
0.300 0.170 0.145 |
0.280
0.240 0.135 0.115 |
22 | 20 | 2,550 | 2,900 | 2.7 | 3.2 | 75.0 | 80.0 | 42 | 46 |
| 200 to 230 VAC | 15 to 22 | ||||||||||||
Accessories (Order Separately)
R87F-PC Plug Cord
| Cord length | Model number | Weight (g) |
|---|---|---|
| 1 m | R87F-PC | 39 |
| 2 m | R87F-PC-20 | 69 |
R87F-FG Finger Guards
Available Models
| Size | Model number | Weight (g) |
|---|---|---|
| 150 dia. | R87F-FG150 | Approx. 58 |
| 120 × 120 | R87F-FG120 | Approx. 45 |
| 92 × 92 | R87F-FG90 | Approx. 25 |
| 80 × 80 | R87F-FG80 | Approx. 20 |
Applicable Axial Fans
| Axial Fans | Set model | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | Contents | |||||||
| Finger Guard | Hexagonal nuts | Screws | ||||||
| size | Qty | Model | size | Qty | size | Qty | ||
| R87F-A[]A83 | R87F-SET8025 | 80 x 80 | 1 | R87F-FG80 | M4 | 4 | M4 x L38 | 4 |
| R87T-A[]A83 | ||||||||
| R87F-A[]A85 | R87F-SET8038 | 80 x 80 | 1 | R87F-FG80 | M4 | 4 | M4 x L50 | 4 |
| R87T-A[]A85 | ||||||||
| R87F-A[]A93 | R87F-SET9025 | 92 x 92 | 1 | R87F-FG90 | M4 | 3 | M4 x L38 | 3 |
| M3 | 1 | M3 x L38 | 1 | |||||
| R87F-A[]A13 | R87F-SET1225 | 120 x 120 | 1 | R87F-FG120 | M4 | 4 | M4 x L38 | 4 |
| R87F-A[]A15 | R87F-SET1238 | 120 x 120 | 1 | R87F-FG120 | M4 | 4 | M4 x L50 | 4 |
| R87T-A[]A15 | ||||||||
| R87T-A[]A15H-WR | ||||||||
| R87T-A[]A05 | R87F-SET1538 | 150 dia. | 1 | R87F-FG150 | M4 | 2 | M4 x L50 | 2 |
| R87T-A[]A07 | R87F-SET1555 | 150 dia. | 1 | R87F-FG150 | M4 | 2 | M4 x L70 | 2 |
Note: Finger Guards reduce the flow rate by approximately 2% to 5%.
R87F-FL Filters
Available Models
Filter
| Size | Model number | Weight (g) |
|---|---|---|
| 120 × 120 | R87F-FL120 | Approx. 43 |
| 92 × 92 | R87F-FL90 | Approx. 30 |
| 80 × 80 | R87F-FL80 | Approx. 21 |
| 120 × 120 | R87F-FL120S | Approx. 19 |
Note: The filter contains one medium.
Media
| Size | Model number |
|---|---|
| 120 × 120 | R87F-FL120-M120 |
| 92 × 92 | R87F-FL90-M90 |
| 80 × 80 | R87F-FL80-M80 |
Note: Use the following model number to order the Media only.
R87F-FL[]-M[] ([]: 120, 90, or 80)
(One set containing five Media, weight: 5 g max.)
Applicable Axial Fans
| AC Axial Fan | Filter | ||
|---|---|---|---|
| Size | Model | Plastic | Aluminum |
| 150 dia. | R87T-A[]A0 Series | --- | --- |
| 120 × 120 | R89F-DS1225[] series | R87F-FL120 | R87F-FL120S |
| R89F-DS1238[] series | |||
| R89F-MS1238HP | |||
| R87F-A[]A1 Series
R87T-A[]A1 Series |
|||
| 92 × 92 | R87F-A[]A9 Series | R87F-FL90 | --- |
| 80 × 80 | R87F-A[]A8 Series
R87T-A[]A8 Series |
R87F-FL80 | --- |
Note: Filters reduce the flow rate by approximately 20% to 40%.
Ensure that there is no clogging.
Ensure that there is no clogging.
last update: April 3, 2023
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
