Industrial Automation
P2RFZ / P2RF, P2R, P7TF, PYFZ / PYF, PTFZ / PTF, PYD, PT, P7LF, PF, P2CF, PFA, P3G / P3GA, PL
Common Sockets
A Wide Variety of Square and Round Sockets in Front-mounting and Back-mounting Models
Related Contents
last update: May 22, 2023
(Unit: mm)
P2RF
P2RFZ-05 (One Pole)
P2RFZ-05-E (One Pole)
(Finger Protection Structure)
P2RFZ-08 (Two Poles)
P2RFZ-08-E (Two Poles)
(Finger Protection Structure)
Note: If an I/O SSR or Indicator Module is used, the polarity of terminal 1 is negative.
P2R
P2R-05P (One Pole)
P2R-08P (Two Poles)
P2R-057P (One Pole)
P2R-087P (Two Poles)
P2R-05A (One Pole)
P2R-08A (Two Poles)
Note: If an I/O SSR or Indicator Module is used, the polarity of terminal 1 is negative.
P7TF
P7TF-05
Note: If an I/O SSR or Indicator Module is used, the polarity of terminal 1 is positive.
PYFZ/PYF
PYFZ-08
PYFZ-08-E (Finger Protection Structure)
PYF08M
PYF11A
PYFZ-14
PYFZ-14-E (Finger Protection Structure)
PY

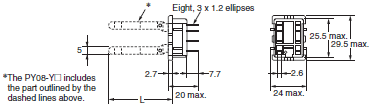

PY08
PY08-Y1 (L = 42 max.)
PY08-Y13 (L = 60 max.)
PY08QN
PY08QN2

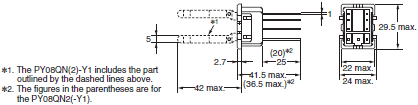

PY08QN-Y1
PY08QN2-Y1

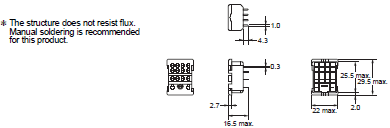

PY08-02
PY11

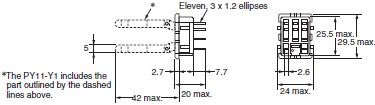

PY11-Y1
PY11QN
PY11QN2

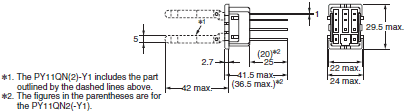

PY11QN-Y1
PY11QN2-Y1

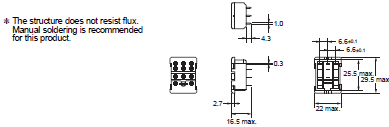

PY11-02

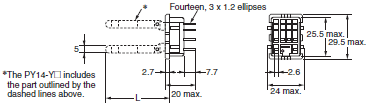

PY14
PY14-Y1 (L = 42 max.)
PY14-Y3 (L = 60 max. )
PY14QN
PY14QN2
PY14QN-Y1 (L = 42 max.)
PY14QN2-Y1 (L = 42 max.)
PY14QN-Y3 (L = 60 max.)
PY14QN2-Y3 (L = 60 max.)

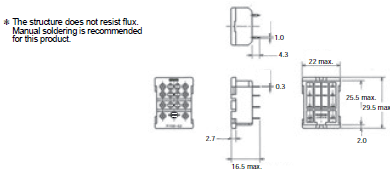

PY14-02
Note: 1. Use a panel with a thickness of 1 to 2 mm when mounting a Socket on it.
2. You can use the PY14-Y1 or PY14QN-Y1 for the MY4 Series, MY4H, MYQ4(Z), or MY2K.
3. You can use the PY14-Y3 or PY14QN-Y3 for H3Y Timers.
2. You can use the PY14-Y1 or PY14QN-Y1 for the MY4 Series, MY4H, MYQ4(Z), or MY2K.
3. You can use the PY14-Y3 or PY14QN-Y3 for H3Y Timers.
PTF
PTF08A
PTFZ-08-E (Finger Protection Structure)
PTF11A
PTF14A
PTFZ-14-E (Finger Protection Structure)
Note: If you use the PTF08A, or PT08 with an LY1 Relay, connect the following terminal pairs: 1-2, 3-4, and 5-6 (for usage
at 10 A or higher).
at 10 A or higher).
PT
PT08
PT08QN
PT08-0
PT11
PT11QN
PT11-0
PT14
PT14QN
PT14-0
Note: Use a panel with a thickness of 1 to 2 mm when mounting a Socket on it.
P7LF

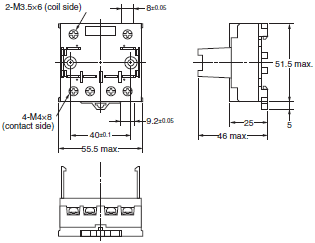

P7LF-06
PF
PF083A
PF083A-E
PF085A
PF113A
PF113A-E
Note: 1. For the PF083A and PF113A, the Socket key slot is on the top. (Applicable model: MK)
2. The structure of []-E models provides finger protection. Round terminals cannot be used. Use forked crimp
terminals.
2. The structure of []-E models provides finger protection. Round terminals cannot be used. Use forked crimp
terminals.
P2CF
P2CF-08
P2CF-08-E
P2CF-11
P2CF-11-E
PFA
8PFA
8PFA1
11PFA

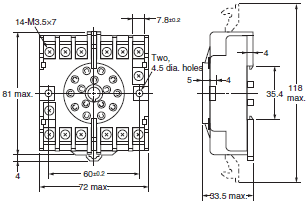

14PFA
P3G/P3GA

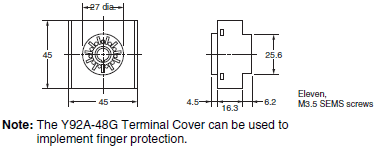

P3G-08
P3GA-11

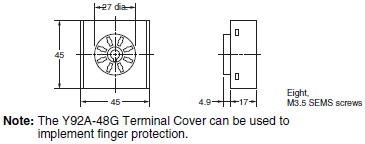

Terminal Cover

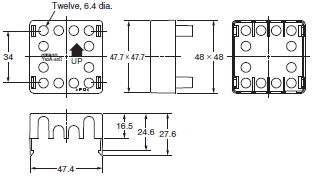

Y92A-48G
PL
PL08
PL08-Q
PLE08-0
PL11
PL11-Q
PLE11-0
PL15
PL20
Note: When mounting, pay due attention to the direction of the key groove of applicable Relays.
