EE-SX91

Discontinued On Mar. 2015

EE-SX91

Compact Pre-wired Photomicrosensor with Built-in Amplifier (Non-modulated)

EE-SX91

Meeting Customer Needs with Compact Sensors that Mount with M3 Screws

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: November 12, 2012

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Photomicrosensors

EE-SX910-R
EE-SX910P-R

EE-SX91 Dimensions 3

EE-SX911-R
EE-SX911P-R

EE-SX91 Dimensions 4

EE-SX912-R
EE-SX912P-R

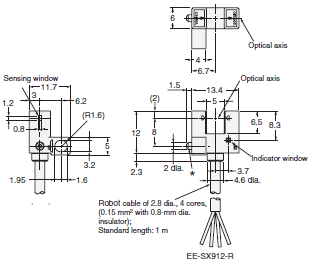

EE-SX91 Dimensions 5

* The lug is used to prevent turning. When installing, make a fixed hole of 2.1 to 2.3 mm dia.

EE-SX913-R
EE-SX913P-R

EE-SX91 Dimensions 6

* The lug is used to prevent turning. When installing, make a fixed hole of 2.1 to 2.3 mm dia.

EE-SX914-R
EE-SX914P-R

EE-SX91 Dimensions 7

last update: November 12, 2012
