EE-SX91

Compact Pre-wired Photomicrosensor with Built-in Amplifier (Non-modulated)

EE-SX91

Meeting Customer Needs with Compact Sensors that Mount with M3 Screws

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: September 24, 2012

Type		Standard	L-shaped	F-shaped	R-shaped	U-shaped
NPN models	Pre-wired models	EE-SX910-R	EE-SX911-R	EE-SX912-R	EE-SX913-R	EE-SX914-R
PNP models	Pre-wired models	EE-SX910P-R	EE-SX911P-R	EE-SX912P-R	EE-SX913P-R	EE-SX914P-R
Sensing distance		5 mm (slot width)
Sensing object		Opaque: 1.2 × 0.8 mm min.
Differential distance		0.025 mm max. *1
Light source		GaAs infrared LED with a peak wavelength of 940 nm
Indicator		Light indicator (orange LED)
Supply voltage		5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption		21 mA max.
Control output		Load power supply voltage: 5 to 24 VDC Load current: 50 mA max. OFF current: 0.5 mA max. 50 mA load current with a residual voltage of 1.0 V max. 5 mA load current with a residual voltage of 0.4 V max.
Protection circuits		Power supply reverse polarity protection; output reverse polarity protection (only OUT2 on models with NPN output)
Response frequency		1 kHz min. (3 kHz average) *2
Ambient illumination		1,000 lx max. with fluorescent light on the surface of the receiver
Ambient temperature range		Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation)
Ambient humidity range		Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation)
Vibration resistance (Destruction)		10 to 2,000 Hz (peak acceleration: 150m/s²) 0.75-mm single amplitude for 2.5 h (15-min periods, 10 cycles) each in X, Y, and Z directions
Shock resistance (Destruction)		500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IEC60529 IP50
Connecting method		Pre-wired Models (standard cable length: 1 m)
Weight (packed state)	Pre-wired Models	Approx. 17 g
Materials	Case/cover	Polybutylene phthalate (PBT)
Materials	Emitter/receiver	Polycarbonate (PC)

*1. The differential distance is the value when a sensing object is moved in a lateral direction to the slot.

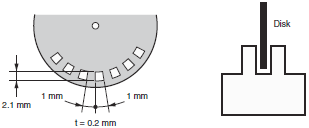

*2. The response frequency was measured by detecting the following rotating disk.

last update: September 24, 2012
