G3PW

Single-phase Power Controller

G3PW

High-precision Control with Easy Setup

(Unit: mm)

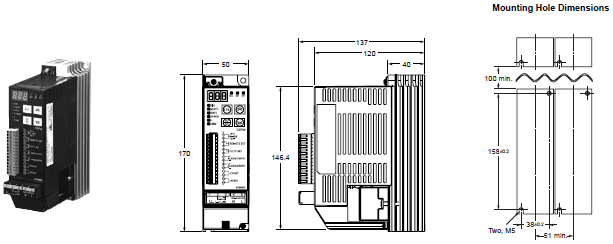

20-A Models with Screwless Clamp Terminal Block
G3PW-A220EU-C
G3PW-A220EC-C-FLK

G3PW Dimensions 1

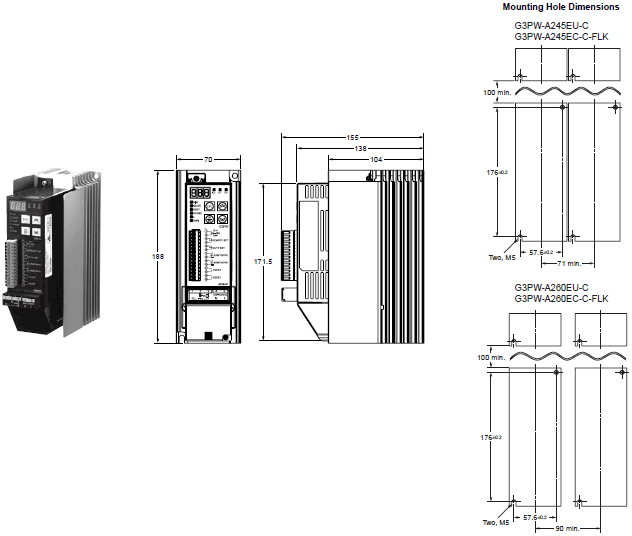

45/60-A Models with Screwless Clamp Terminal Block
G3PW-A245EU-C
G3PW-A260EU-C
G3PW-A245EC-C-FLK
G3PW-A260EC-C-FLK

G3PW Dimensions 2

20-A Models with Terminal Block with Small Slotted Screws
G3PW-A220EU-S
G3PW-A220EC-S-FLK

G3PW Dimensions 3

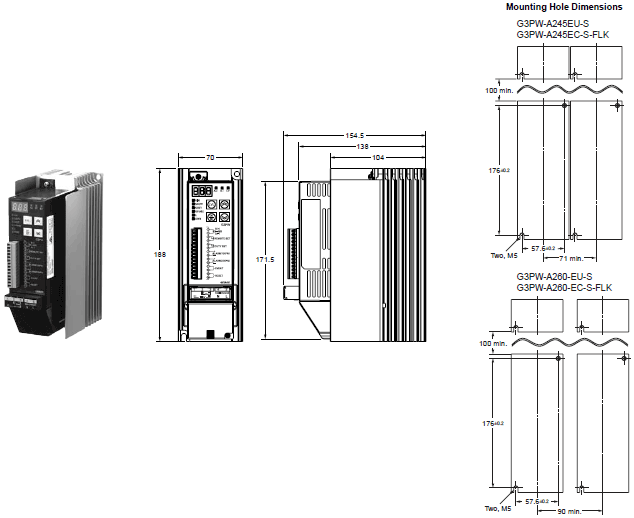

45/60-A Models with Terminal Block with Small Slotted Screws
G3PW-A245EU-S
G3PW-A260EU-S
G3PW-A245EC-S-FLK
G3PW-A260EC-S-FLK

G3PW Dimensions 4

Accessories (Order Separately)

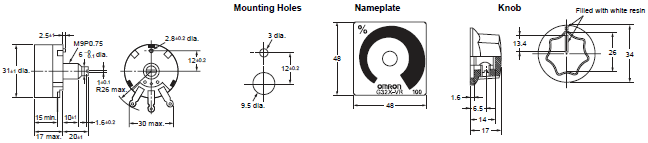

External Variable Resistor
G32X-V2K

G3PW Dimensions 6
