Digital Temperature Controller (48 × 24 mm)


Easy Operation and High Performance of the E5[]C Series in a Compact 48 x 24-mm Body

For building green control panels

Natural disasters caused by global warming and climate change are became global social issue, that drives over 150 countries and regions worldwide to take action toward decarbonization.Our goal is to reduce greenhouse gas (GHG) emissions toward half by through new ways of building control panels, that key figure of the manufacturing site.

Integrating green perspectives into Value Design

Value Design for Panel (Value Design) is the common concept shared across OMRON’s in-panel product specifications to deliver new value to your control panels.
This Value Design also integrate environment consideration concept that enable earth and user-friendly control panel building.

E5GC Features 2

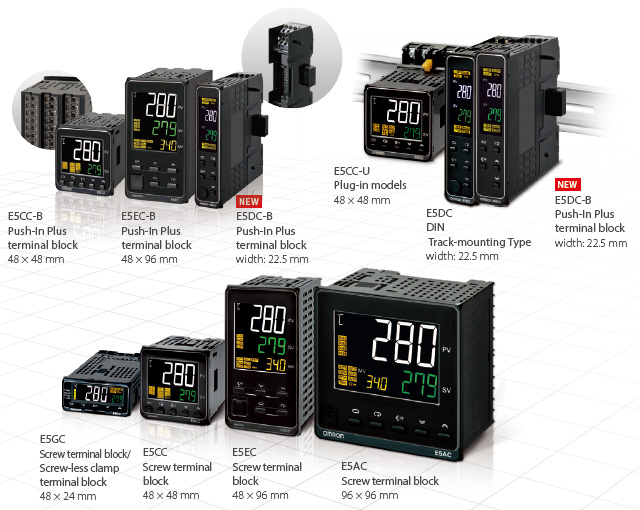

A wide range of lineup to handle various control panel/equipment sizes

Save Space with a Compact Body That’s Only 60 mm in Depth

A short body that’s 77% of our previous model has been achieved.
This makes the Controller applicable in tight spaces with limited depth.

E5GC Features 4

Help Reduce Panel Space

Even with the 48 × 24 size, OMRON has achieved a PV display character height of over 10 mm and dual displays for the present value and set point.
This enables compact panels that are easy to read.

E5GC Features 5

Equal Operability as On-panel Controllers Plus Space-saving Layouts inside Control Panels

The unified operability of the E5[]C Series in a DIN Track-mounting Controller that is 22.5 mm wide.
You can achieve space-saving layouts in control panels.

E5GC Features 6

Push-In Plus technology Enables Horizontal Group Mounting Easily

With Push-In Plus technology, wiring is performed from the back, which facilitates using horizontal group mounting, to achieve compact panel surfaces.

E5GC Features 7

Space-saving 22.5 mm Wide Design Saves Reduce wiring work

The lineup has been expanded to include the 22.5 mm wide in-panel E5DC model with Push-In Plus Terminal Block.
This model is not only space-saving for easy installation in control panel but also reduces wiring work.

E5GC Features 8

Reduce Crossover Wiring with Horizontal Connection Structure

Simply connect the device to enable power line and communication cable, reducing the amount of wiring work required. (Maximum connectable units: 16 devices)

E5GC Features 9

Removable Terminal Block for Easy Mounting and Replacement

The removable terminal block means wiring does not need to be removed during maintenance, making mounting and replacement simple.

E5GC Features 11

*Hooks must be pressed to remove from the terminal block.

Greater efficiency from designing to assembly and operation

E5GC Features 12

Innovating control panel and equipment usability

Easy Display Confirmation On-site.

Big white characters on a black background achieve superior visibility. Operator movement distances are minimized to help increase work efficiency.

E5GC Features 15

High-contrast displays enable easier confirmation regardless of ambient lighting conditions.

E5GC Features 16

A wide viewing angle was achieved with the LCDs to enable easy confirmation of the PV.

Reduces the workload of entering set values on-site.

Functions are provided to reduce work in operating and changing settings for the Controllers.
Just press the shift key (<<PF) to move the digit. This simplifies numeric entry at worksite.

E5GC Features 17

CX-Thermo Functions

Use parameter masks to display only the required parameters. The time required to change settings, such as for changeovers, is greatly reduced.

E5GC Features 18
