Industrial Automation

G70V

I/O Relay Terminal

G70V

Our Value Design Products Increase the Value of Your Control Panels. I/O Relay Terminals with 16 Points and Push-In Plus terminal blocks to Downsize Control Panels and Save Labor.

last update: May 27, 2024

(Unit: mm)

Main unit

I/O Relay Terminals and I/O Terminal Sockets

For Inputs

G70V-SID16P
G70V-SID16P-1

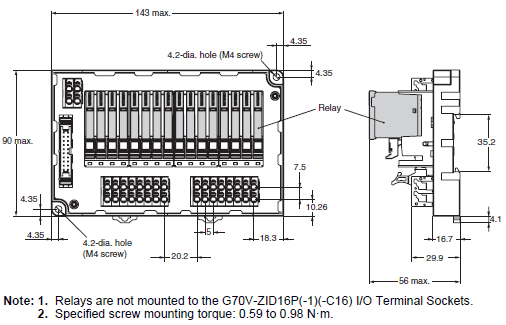

G70V-ZID16P
G70V-ZID16P-1
G70V-SID16P-C16
G70V-SID16P-1-C16
G70V-ZID16P-C16
G70V-ZID16P-1-C16

For Outputs

G70V-SOC16P
G70V-SOC16P-1

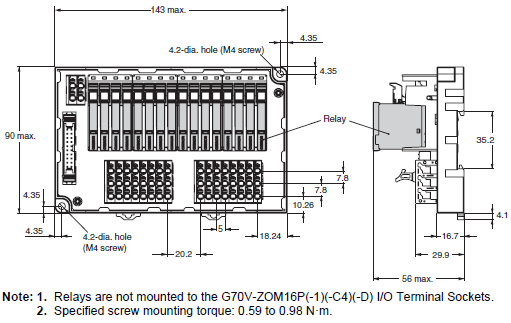

G70V-ZOM16P
G70V-ZOM16P-1
G70V-SOC16P-C4
G70V-SOC16P-1-C4
G70V-ZOM16P-C4
G70V-ZOM16P-1-C4
G70V-ZOM16P-C4-D
G70V-ZOM16P-1-C4-D

Options (Order Separately)

Mountable Relays

Slim I/O Relays

Models without latching lever

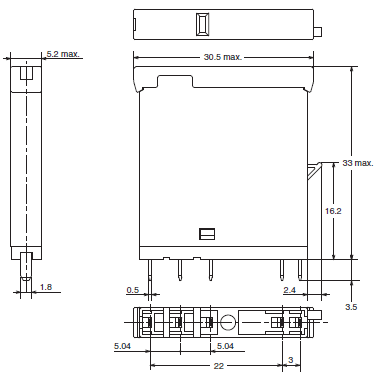

G2RV-1-S-G
G2RV-1-S-AP-G

Slim I/O Relays

Models with latching lever (test switch)

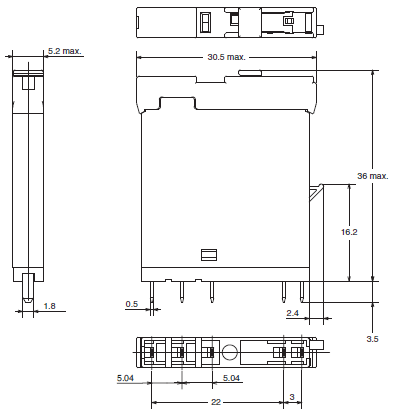

G2RV-1-SI-G

Slim I/O SSRs

G3RV-D03SL
G3RV-202S
G3RV-202SL

Parts for Rail Mounting

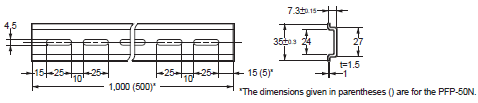

DIN Track

PFP-100N
PFP-50N

End Plate

PFP-M

Spacer

PFP-S
