G70V
I/O Relay Terminal
Our Value Design Products Increase the Value of Your Control Panels. I/O Relay Terminals with 16 Points and Push-In Plus terminal blocks to Downsize Control Panels and Save Labor.
Related Contents
Application Solutions
last update: August 1, 2023

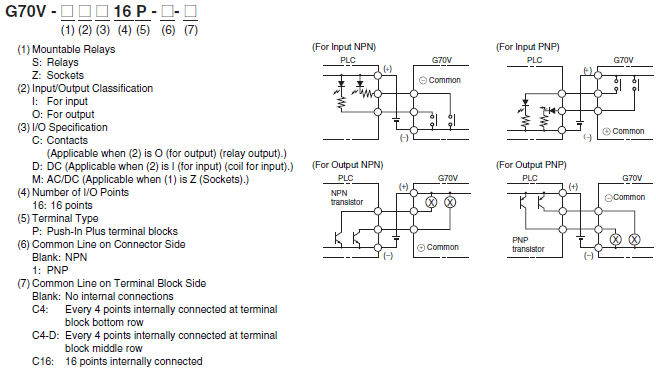

Model Number Legend
Ordering Information
I/O Relay Terminal
| Terminals | Classifi
cation |
Points | Common Line | Rated
voltage |
Model | |
|---|---|---|---|---|---|---|
| Terminal Block Side | Connector Side | |||||
| Push-In
Plus terminal blocks |
Input
*1 |
16 | No internal connections | NPN (- common) | 24
VDC |
G70V-SID16P |
| PNP (+ common) | G70V-SID16P-1 | |||||
| 16 points internally connected | NPN (- common) | G70V-SID16P-C16 | ||||
| PNP (+ common) | G70V-SID16P-1-C16 | |||||
| Output
*2 |
No internal connections | NPN (+ common) | G70V-SOC16P | |||
| PNP (- common) | G70V-SOC16P-1 | |||||
| Every 4 points internally connected
at terminal block bottom row |
NPN (+ common) | G70V-SOC16P-C4 | ||||
| PNP (- common) | G70V-SOC16P-1-C4 | |||||
*1. Mountable Relays: G2RV-1-S-AP-G DC21V.
*2. Mountable Relays: G2RV-1-S-G DC21V.
I/O Terminal Sockets
| Applicable
I/O Relay Terminal |
Classification | Common Line | Model | |
|---|---|---|---|---|
| Terminal Block Side | Connector Side | |||
| G70V-SID16P | Input | No internal connections | NPN (- common) | G70V-ZID16P |
| G70V-SID16P-1 | PNP (+ common) | G70V-ZID16P-1 | ||
| G70V-SID16P-C16 | 16 points internally connected | NPN (- common) | G70V-ZID16P-C16 | |
| G70V-SID16P-1-C16 | PNP (+ common) | G70V-ZID16P-1-C16 | ||
| G70V-SOC16P | Output | No internal connections | NPN (+ common) | G70V-ZOM16P |
| G70V-SOC16P-1 | PNP (- common) | G70V-ZOM16P-1 | ||
| G70V-SOC16P-C4 | Every 4 points internally connected
at terminal block bottom row |
NPN (+ common) | G70V-ZOM16P-C4 | |
| G70V-SOC16P-1-C4 | PNP (- common) | G70V-ZOM16P-1-C4 | ||
| --- * | Every 4 points internally connected
at terminal block middle row |
NPN (+ common) | G70V-ZOM16P-C4-D | |
| PNP (- common) | G70V-ZOM16P-1-C4-D | |||
Note: 1. Relays are not mounted to the G70V-ZID16P(-1)(-C16) I/O Terminal Sockets. Combine the I/O Terminal Sockets with Slim I/O Relays.
2. Relays are not mounted to the G70V-ZOM16P(-1)(-C4) I/O Terminal Sockets. Combine the I/O Terminal Sockets with Slim I/O Relays or Slim I/O SSRs.
* The G70V-ZOM16P(-1)-C4-D does not come with SSRs. Use Slim I/O SSRs (for DC: G3RV-D03SL).
Options (Order Separately)
Mountable Relays
| Applicable
I/O Relay Terminal |
Classification | Type | Model | ||
|---|---|---|---|---|---|
| G70V-SID16P(-1)(-C16)
G70V-ZID16P(-1)(-C16) |
Input | Slim I/O Relays *1 | G2RV-1-S-AP-G DC21 | ||
| G70V-SOC16P(-1)(-C4)
G70V-ZOM16P(-1)(-C4) |
Output | Slim I/O Relays | No Latching Lever *2 | G2RV-1-S-G DC21 | |
| Latching Lever | G2RV-1-SI-G DC21 | ||||
| Slim I/O SSRs | For AC | Zero cross function | G3RV-202S DC24 | ||
| No zero cross function | G3RV-202SL DC24 | ||||
| For DC | G3RV-D03SL DC24 | ||||
| G70V-ZOM16P(-1)-C4-D *3 | Output | Slim I/O SSRs | For DC | G3RV-D03SL DC24 | |
Note: When using Slim I/O SSRs, either remove the Slim I/O Relays from the output G70V-SOC16P(-1)(-C16) to mount them, or order the output G70V-ZOM16P(-1)(-C16) I/O Terminal Sockets and the Slim I/O SSRs separately and combine them.
*1. G2RV-1-S-AP-G Slim I/O Relays are mounted to G70V-SID16P(-1)(-C16) I/O Relay Terminals as a standard feature.
*2. G2RV-1-S-G Slim I/O Relays are mounted to G70V-SOC16P(-1)(-C4) I/O Relay Terminals as a standard feature.
*3. The G70V-ZOM16P(-1)-C4-D does not come with SSRs. Use Slim I/O SSRs (for DC: G3RV-D03SL).
When ordering, designate the rated voltage.
Cables for I/O Relay Terminals XW2Z-R
• Cable with Loose Wire and Crimp Terminals: XW2Z-RY[]C
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with connectors
• Fujitsu/Otax connectors (1:1): XW2Z-R[]C
• Fujitsu/Otax connectors (1:2):
XW2Z-RI[]C-[]
XW2Z-RO[]C-[]
• Fujitsu/Otax connectors (1:3): XW2Z-R[]C-[]-[]
• MIL connectors (1:1):
XW2Z-RI[]C
XW2Z-RO[]C
• MIL connectors (1:2):
XW2Z-RI[]-[]-D[]
XW2Z-RM[]-[]-D[]
XW2Z-RO[]-[]-D1
Refer to Connecting Cables on Data Sheet for details.
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with connectors
• Fujitsu/Otax connectors (1:1): XW2Z-R[]C
• Fujitsu/Otax connectors (1:2):
XW2Z-RI[]C-[]
XW2Z-RO[]C-[]
• Fujitsu/Otax connectors (1:3): XW2Z-R[]C-[]-[]
• MIL connectors (1:1):
XW2Z-RI[]C
XW2Z-RO[]C
• MIL connectors (1:2):
XW2Z-RI[]-[]-D[]
XW2Z-RM[]-[]-D[]
XW2Z-RO[]-[]-D1
Refer to Connecting Cables on Data Sheet for details.
Labels
| Appearance | Model | Minimum order (sheet)
(quantity per sheet) |
|---|---|---|
 |
XW5Z-P2.5LB2 | 5
(1 sheet / 72 pieces) |
Accessories for DIN Track Mounting
| Appearance | Name | Model | Minimum order
(quantity) |
|
|---|---|---|---|---|
 |
DIN
Tracks |
1 m | PFP-100N | 1 |
| 0.5 m | PFP-50N | |||
 |
End Plate | PFP-M * | 10 | |
 |
Spacer | PFP-S * | ||
* These products must be ordered in sets of 10.
last update: August 1, 2023
