E3NX-CA

Color Fiber Amplifier Unit

E3NX-CA

Smart Fiber Amplifier Units with White LEDs. High Color Discrimination Capability with the Same Easy Operation as Previous Fiber Amplifier Units. Existing General-purpose Fiber Units Can Be Connected.

last update: November 18, 2024

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

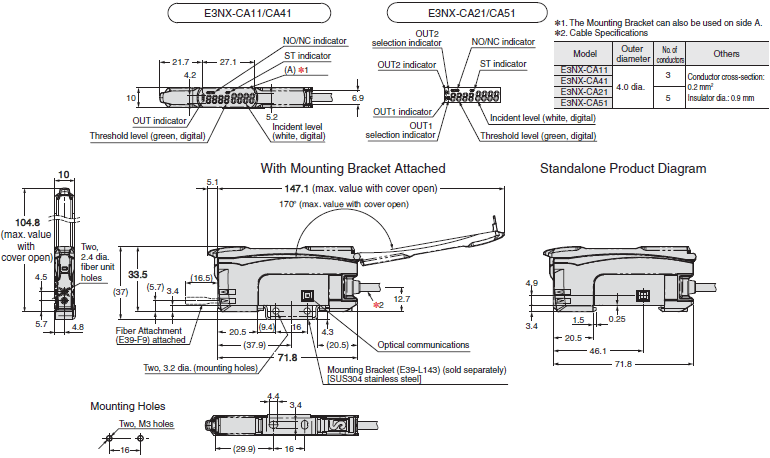

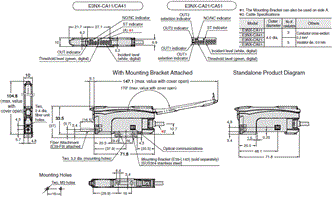

Pre-wired Amplifier Units
E3NX-CA11
E3NX-CA41
E3NX-CA21
E3NX-CA51

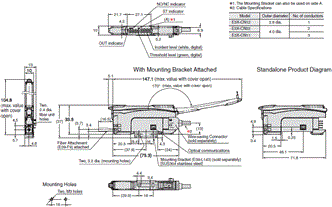

Amplifier Units with Wire-saving Connectors
E3NX-CA6
E3NX-CA8

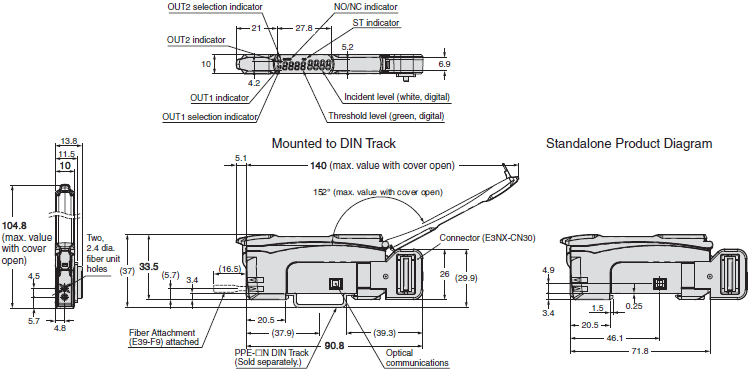

Amplifier Unit with Connector for Sensor Communications Unit
E3NX-CA0

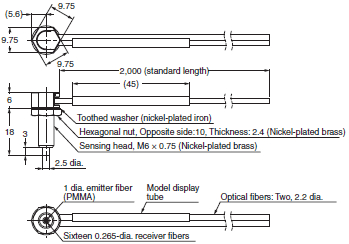

Reflective Models
E32-C91N

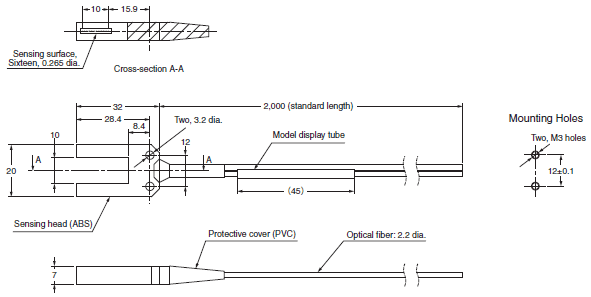

Through-beam Models (Grooved Type)
E32-G16

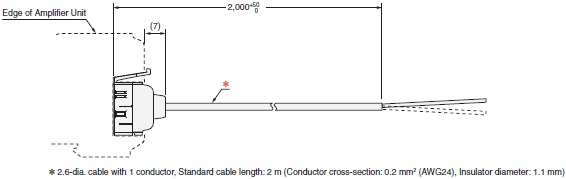

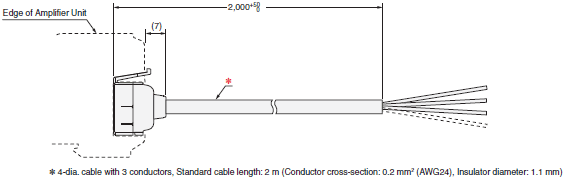

Wire-saving Connectors
Master Connector
E3X-CN11

Slave Connector
E3X-CN12

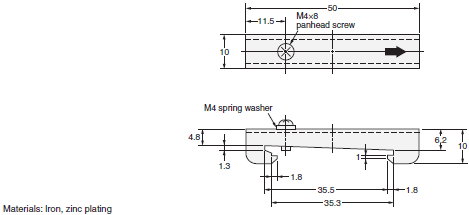

Mounting Bracket
E39-L143

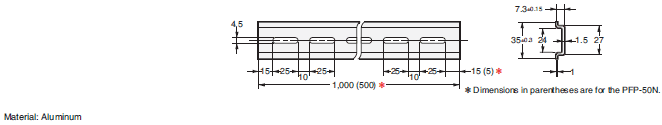

DIN Tracks
PFP-100N
PFP-50N

End Plate
PFP-M
