J7KCA Series

Auxiliary Relay (Contactor Relay)

J7KCA Series

Same shape as J7KC magnetic contactors Ideal for standardizing panel design

last update: April 22, 2024

(Unit: mm)

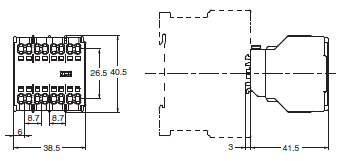

Main unit

J7KCA

J7KCA Series Dimensions 1

Option (Order Separately)

Auxiliary contact unit

J73KC

J7KCA Series Dimensions 4

Coil surge absorption unit

J76KC-RC

J7KCA Series Dimensions 5

J76KC-RC-N

J7KCA Series Dimensions 6

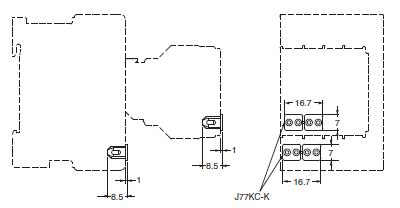

Insulation stop

Guide for insertion into terminal (insertion) holes to stabilize holding of 1mm² or less stranded wire (direct insertion).

J77KC-K

J7KCA Series Dimensions 8

DIN Rails (Order Separately)

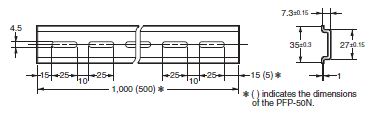

Mounting Rail

PFP-100N
PFP-50N

J7KCA Series Dimensions 10

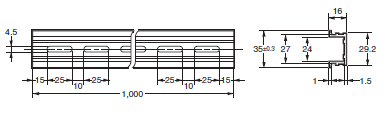

Mounting Rail

PFP-100N2

J7KCA Series Dimensions 11

End Plate

PFP-M

J7KCA Series Dimensions 12

Spacer

PFP-S

J7KCA Series Dimensions 13
