Proximity Sensor

E2E NEXT

Enables easier and standardized designs previously not possible. IO-Link as a standard feature

DC 3-Wire

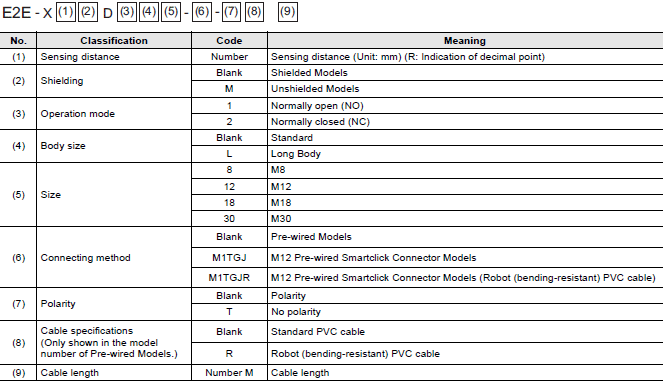

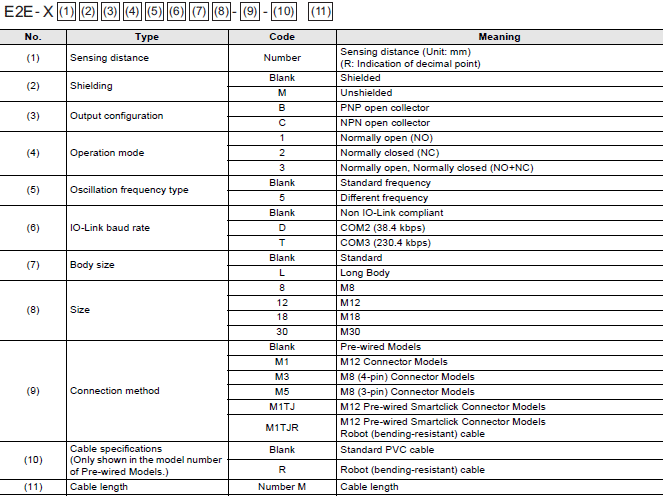

Model Number Legend

E2E NEXT Lineup 2

Note: The purpose of this model number legend is to provide understanding of the meaning of specifications from the
         model number.

PREMIUM Model

E2E NEXT Series (Quadruple distance model)

DC 3-wire Shielded *1

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *5 --- *5
M8
(4 mm)
Pre-wired
(2 m) *2
38 mm
*3
NO E2E-X4B1T8 2M E2E-X4B1D8 2M E2E-X4C18 2M
NC - E2E-X4B28 2M E2E-X4C28 2M
48 mm NO E2E-X4B1TL8 2M E2E-X4B1DL8 2M E2E-X4C1L8 2M
NC - E2E-X4B2L8 2M E2E-X4C2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*4
NO E2E-X4B1T8-M1TJ 0.3M E2E-X4B1D8-M1TJ 0.3M E2E-X4C18-M1TJ 0.3M
NC - E2E-X4B28-M1TJ 0.3M E2E-X4C28-M1TJ 0.3M
48 mm NO E2E-X4B1TL8-M1TJ 0.3M E2E-X4B1DL8-M1TJ 0.3M E2E-X4C1L8-M1TJ 0.3M
NC - E2E-X4B2L8-M1TJ 0.3M E2E-X4C2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X4B1T8-M1 E2E-X4B1D8-M1 E2E-X4C18-M1
NC - E2E-X4B28-M1 E2E-X4C28-M1
53 mm NO E2E-X4B1TL8-M1 E2E-X4B1DL8-M1 E2E-X4C1L8-M1
NC - E2E-X4B2L8-M1 E2E-X4C2L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X4B1T8-M3 E2E-X4B1D8-M3 E2E-X4C18-M3
NC - E2E-X4B28-M3 E2E-X4C28-M3
49 mm NO E2E-X4B1TL8-M3 E2E-X4B1DL8-M3 E2E-X4C1L8-M3
NC - E2E-X4B2L8-M3 E2E-X4C2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X4B1T8-M5 E2E-X4B1D8-M5 E2E-X4C18-M5
NC - E2E-X4B28-M5 E2E-X4C28-M5
49 mm NO E2E-X4B1TL8-M5 E2E-X4B1DL8-M5 E2E-X4C1L8-M5
NC - E2E-X4B2L8-M5 E2E-X4C2L8-M5
M12
(9 mm)
Pre-wired
(2 m) *2
47 mm
*3
NO E2E-X9B1T12 2M E2E-X9B1D12 2M E2E-X9C112 2M
NC - E2E-X9B212 2M E2E-X9C212 2M
69 mm NO E2E-X9B1TL12 2M E2E-X9B1DL12 2M E2E-X9C1L12 2M
NC - E2E-X9B2L12 2M E2E-X9C2L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*4
NO E2E-X9B1T12-M1TJ 0.3M E2E-X9B1D12-M1TJ 0.3M E2E-X9C112-M1TJ 0.3M
NC - E2E-X9B212-M1TJ 0.3M E2E-X9C212-M1TJ 0.3M
69 mm NO E2E-X9B1TL12-M1TJ 0.3M E2E-X9B1DL12-M1TJ 0.3M E2E-X9C1L12-M1TJ 0.3M
NC - E2E-X9B2L12-M1TJ 0.3M E2E-X9C2L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X9B1T12-M1 E2E-X9B1D12-M1 E2E-X9C112-M1
NC - E2E-X9B212-M1 E2E-X9C212-M1
70 mm NO E2E-X9B1TL12-M1 E2E-X9B1DL12-M1 E2E-X9C1L12-M1
NC - E2E-X9B2L12-M1 E2E-X9C2L12-M1
M18
(14 mm)
Pre-wired
(2 m) *2
55 mm
*3
NO E2E-X14B1T18 2M E2E-X14B1D18 2M E2E-X14C118 2M
NC - E2E-X14B218 2M E2E-X14C218 2M
77 mm NO E2E-X14B1TL18 2M E2E-X14B1DL18 2M E2E-X14C1L18 2M
NC - E2E-X14B2L18 2M E2E-X14C2L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm
*4
NO E2E-X14B1T18-M1TJ 0.3M E2E-X14B1D18-M1TJ 0.3M E2E-X14C118-M1TJ 0.3M
NC - E2E-X14B218-M1TJ 0.3M E2E-X14C218-M1TJ 0.3M
77 mm NO E2E-X14B1TL18-M1TJ 0.3M E2E-X14B1DL18-M1TJ 0.3M E2E-X14C1L18-M1TJ 0.3M
NC - E2E-X14B2L18-M1TJ 0.3M E2E-X14C2L18-M1TJ 0.3M
M12
Connector
53 mm NO E2E-X14B1T18-M1 E2E-X14B1D18-M1 E2E-X14C118-M1
NC - E2E-X14B218-M1 E2E-X14C218-M1
75 mm NO E2E-X14B1TL18-M1 E2E-X14B1DL18-M1 E2E-X14C1L18-M1
NC - E2E-X14B2L18-M1 E2E-X14C2L18-M1
M30
(23 mm)
Pre-wired
(2 m) *2
60 mm
*4
NO E2E-X23B1T30 2M E2E-X23B1D30 2M E2E-X23C130 2M
NC - E2E-X23B230 2M E2E-X23C230 2M
82 mm NO E2E-X23B1TL30 2M E2E-X23B1DL30 2M E2E-X23C1L30 2M
NC - E2E-X23B2L30 2M E2E-X23C2L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm
*4
NO E2E-X23B1T30-M1TJ 0.3M E2E-X23B1D30-M1TJ 0.3M E2E-X23C130-M1TJ 0.3M
NC - E2E-X23B230-M1TJ 0.3M E2E-X23C230-M1TJ 0.3M
82 mm NO E2E-X23B1TL30-M1TJ 0.3M E2E-X23B1DL30-M1TJ 0.3M E2E-X23C1L30-M1TJ 0.3M
NC - E2E-X23B2L30-M1TJ 0.3M E2E-X23C2L30-M1TJ 0.3M
M12
Connector
58 mm NO E2E-X23B1T30-M1 E2E-X23B1D30-M1 E2E-X23C130-M1
NC - E2E-X23B230-M1 E2E-X23C230-M1
80 mm NO E2E-X23B1TL30-M1 E2E-X23B1DL30-M1 E2E-X23C1L30-M1
NC - E2E-X23B2L30-M1 E2E-X23C2L30-M1

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X9B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
     E2E-X9B1D12-R 2M/E2E-X9B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
      number. (Example: E2E-X9B1D12-M1TJR 0.3M)
*5. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2E NEXT Series (Quadruple distance model)

DC 3-wire Unshielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *4 --- *4
M8
(8 mm)
Pre-wired
(2 m) *1
38 mm
*2
NO E2E-X8MB1T8 2M E2E-X8MB1D8 2M E2E-X8MC18 2M
NC - E2E-X8MB28 2M E2E-X8MC28 2M
48 mm NO E2E-X8MB1TL8 2M E2E-X8MB1DL8 2M E2E-X8MC1L8 2M
NC - E2E-X8MB2L8 2M E2E-X8MC2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*3
NO E2E-X8MB1T8-M1TJ 0.3M E2E-X8MB1D8-M1TJ 0.3M E2E-X8MC18-M1TJ 0.3M
NC - E2E-X8MB28-M1TJ 0.3M E2E-X8MC28-M1TJ 0.3M
48 mm NO E2E-X8MB1TL8-M1TJ 0.3M E2E-X8MB1DL8-M1TJ 0.3M E2E-X8MC1L8-M1TJ 0.3M
NC - E2E-X8MB2L8-M1TJ 0.3M E2E-X8MC2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X8MB1T8-M1 E2E-X8MB1D8-M1 E2E-X8MC18-M1
NC - E2E-X8MB28-M1 E2E-X8MC28-M1
53 mm NO E2E-X8MB1TL8-M1 E2E-X8MB1DL8-M1 E2E-X8MC1L8-M1
NC - E2E-X8MB2L8-M1 E2E-X8MC2L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X8MB1T8-M3 E2E-X8MB1D8-M3 E2E-X8MC18-M3
NC - E2E-X8MB28-M3 E2E-X8MC28-M3
49 mm NO E2E-X8MB1TL8-M3 E2E-X8MB1DL8-M3 E2E-X8MC1L8-M3
NC - E2E-X8MB2L8-M3 E2E-X8MC2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X8MB1T8-M5 E2E-X8MB1D8-M5 E2E-X8MC18-M5
NC - E2E-X8MB28-M5 E2E-X8MC28-M5
49 mm NO E2E-X8MB1TL8-M5 E2E-X8MB1DL8-M5 E2E-X8MC1L8-M5
NC - E2E-X8MB2L8-M5 E2E-X8MC2L8-M5
M12
(16 mm)
Pre-wired
(2 m) *1
47 mm
*2
NO E2E-X16MB1T12 2M E2E-X16MB1D12 2M E2E-X16MC112 2M
NC - E2E-X16MB212 2M E2E-X16MC212 2M
69 mm NO E2E-X16MB1TL12 2M E2E-X16MB1DL12 2M E2E-X16MC1L12 2M
NC - E2E-X16MB2L12 2M E2E-X16MC2L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*3
NO E2E-X16MB1T12-M1TJ 0.3M E2E-X16MB1D12-M1TJ 0.3M E2E-X16MC112-M1TJ 0.3M
NC - E2E-X16MB212-M1TJ 0.3M E2E-X16MC212-M1TJ 0.3M
69 mm NO E2E-X16MB1TL12-M1TJ 0.3M E2E-X16MB1DL12-M1TJ 0.3M E2E-X16MC1L12-M1TJ 0.3M
NC - E2E-X16MB2L12-M1TJ 0.3M E2E-X16MC2L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X16MB1T12-M1 E2E-X16MB1D12-M1 E2E-X16MC112-M1
NC - E2E-X16MB212-M1 E2E-X16MC212-M1
70 mm NO E2E-X16MB1TL12-M1 E2E-X16MB1DL12-M1 E2E-X16MC1L12-M1
NC - E2E-X16MB2L12-M1 E2E-X16MC2L12-M1
M18
(30 mm)
Pre-wired
(2 m) *1
77 mm
*2
NO E2E-X30MB1TL18 2M E2E-X30MB1DL18 2M E2E-X30MC1L18 2M
NC - E2E-X30MB2L18 2M E2E-X30MC2L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
77 mm
*3
NO E2E-X30MB1TL18-M1TJ 0.3M E2E-X30MB1DL18-M1TJ 0.3M E2E-X30MC1L18-M1TJ 0.3M
NC - E2E-X30MB2L18-M1TJ 0.3M E2E-X30MC2L18-M1TJ 0.3M
M12
Connector
75 mm NO E2E-X30MB1TL18-M1 E2E-X30MB1DL18-M1 E2E-X30MC1L18-M1
NC - E2E-X30MB2L18-M1 E2E-X30MC2L18-M1
M30
(50 mm)
Pre-wired
(2 m) *1
97 mm
*2
NO E2E-X50MB1TL30 2M E2E-X50MB1DL30 2M E2E-X50MC1L30 2M
NC - E2E-X50MB2L30 2M E2E-X50MC2L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
97 mm
*3
NO E2E-X50MB1TL30-M1TJ 0.3M E2E-X50MB1DL30-M1TJ 0.3M E2E-X50MC1L30-M1TJ 0.3M
NC - E2E-X50MB2L30-M1TJ 0.3M E2E-X50MC2L30-M1TJ 0.3M
M12
Connector
95 mm NO E2E-X50MB1TL30-M1 E2E-X50MB1DL30-M1 E2E-X50MC1L30-M1
NC - E2E-X50MB2L30-M1 E2E-X50MC2L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X16MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X16MB1D12-R 2M/E2E-X16MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X16MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2E NEXT Series (Triple distance model)

DC 3-wire Shielded *1

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *5 --- *5
M8
(3 mm)
Pre-wired
(2 m) *2
38 mm
*3
NO E2E-X3B1T8 2M E2E-X3B1D8 2M E2E-X3C18 2M
NC - E2E-X3B28 2M E2E-X3C28 2M
48 mm NO E2E-X3B1TL8 2M E2E-X3B1DL8 2M E2E-X3C1L8 2M
NC - E2E-X3B2L8 2M E2E-X3C2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*4
NO E2E-X3B1T8-M1TJ 0.3M E2E-X3B1D8-M1TJ 0.3M E2E-X3C18-M1TJ 0.3M
NC - E2E-X3B28-M1TJ 0.3M E2E-X3C28-M1TJ 0.3M
48 mm NO E2E-X3B1TL8-M1TJ 0.3M E2E-X3B1DL8-M1TJ 0.3M E2E-X3C1L8-M1TJ 0.3M
NC - E2E-X3B2L8-M1TJ 0.3M E2E-X3C2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X3B1T8-M1 E2E-X3B1D8-M1 E2E-X3C18-M1
NC - E2E-X3B28-M1 E2E-X3C28-M1
53 mm NO E2E-X3B1TL8-M1 E2E-X3B1DL8-M1 E2E-X3C1L8-M1
NC - E2E-X3B2L8-M1 E2E-X3C2L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X3B1T8-M3 E2E-X3B1D8-M3 E2E-X3C18-M3
NC - E2E-X3B28-M3 E2E-X3C28-M3
49 mm NO E2E-X3B1TL8-M3 E2E-X3B1DL8-M3 E2E-X3C1L8-M3
NC - E2E-X3B2L8-M3 E2E-X3C2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X3B1T8-M5 E2E-X3B1D8-M5 E2E-X3C18-M5
NC - E2E-X3B28-M5 E2E-X3C28-M5
49 mm NO E2E-X3B1TL8-M5 E2E-X3B1DL8-M5 E2E-X3C1L8-M5
NC - E2E-X3B2L8-M5 E2E-X3C2L8-M5
M12
(6 mm)
Pre-wired
(2 m) *2
47 mm
*3
NO E2E-X6B1T12 2M E2E-X6B1D12 2M E2E-X6C112 2M
NC - E2E-X6B212 2M E2E-X6C212 2M
NO+NC - E2E-X6B3D12 2M E2E-X6C312 2M
69 mm NO E2E-X6B1TL12 2M E2E-X6B1DL12 2M E2E-X6C1L12 2M
NC - E2E-X6B2L12 2M E2E-X6C2L12 2M
NO+NC - E2E-X6B3DL12 2M E2E-X6C3L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*4
NO E2E-X6B1T12-M1TJ 0.3M E2E-X6B1D12-M1TJ 0.3M E2E-X6C112-M1TJ 0.3M
NC - E2E-X6B212-M1TJ 0.3M E2E-X6C212-M1TJ 0.3M
NO+NC - E2E-X6B3D12-M1TJ 0.3M E2E-X6C312-M1TJ 0.3M
69 mm NO E2E-X6B1TL12-M1TJ 0.3M E2E-X6B1DL12-M1TJ 0.3M E2E-X6C1L12-M1TJ 0.3M
NC - E2E-X6B2L12-M1TJ 0.3M E2E-X6C2L12-M1TJ 0.3M
NO+NC - E2E-X6B3DL12-M1TJ 0.3M E2E-X6C3L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X6B1T12-M1 E2E-X6B1D12-M1 E2E-X6C112-M1
NC - E2E-X6B212-M1 E2E-X6C212-M1
NO+NC - E2E-X6B3D12-M1 E2E-X6C312-M1
70 mm NO E2E-X6B1TL12-M1 E2E-X6B1DL12-M1 E2E-X6C1L12-M1
NC - E2E-X6B2L12-M1 E2E-X6C2L12-M1
NO+NC - E2E-X6B3DL12-M1 E2E-X6C3L12-M1
M18
(12 mm)
Pre-wired
(2 m) *2
55 mm
*3
NO E2E-X12B1T18 2M E2E-X12B1D18 2M E2E-X12C118 2M
NC - E2E-X12B218 2M E2E-X12C218 2M
NO+NC - E2E-X12B3D18 2M E2E-X12C318 2M
77 mm NO E2E-X12B1TL18 2M E2E-X12B1DL18 2M E2E-X12C1L18 2M
NC - E2E-X12B2L18 2M E2E-X12C2L18 2M
NO+NC - E2E-X12B3DL18 2M E2E-X12C3L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm
*4
NO E2E-X12B1T18-M1TJ 0.3M E2E-X12B1D18-M1TJ 0.3M E2E-X12C118-M1TJ 0.3M
NC - E2E-X12B218-M1TJ 0.3M E2E-X12C218-M1TJ 0.3M
NO+NC - E2E-X12B3D18-M1TJ 0.3M E2E-X12C318-M1TJ 0.3M
77 mm NO E2E-X12B1TL18-M1TJ 0.3M E2E-X12B1DL18-M1TJ 0.3M E2E-X12C1L18-M1TJ 0.3M
NC - E2E-X12B2L18-M1TJ 0.3M E2E-X12C2L18-M1TJ 0.3M
NO+NC - E2E-X12B3DL18-M1TJ 0.3M E2E-X12C3L18-M1TJ 0.3M
M12
Connector
53 mm NO E2E-X12B1T18-M1 E2E-X12B1D18-M1 E2E-X12C118-M1
NC - E2E-X12B218-M1 E2E-X12C218-M1
NO+NC - E2E-X12B3D18-M1 E2E-X12C318-M1
75 mm NO E2E-X12B1TL18-M1 E2E-X12B1DL18-M1 E2E-X12C1L18-M1
NC - E2E-X12B2L18-M1 E2E-X12C2L18-M1
NO+NC - E2E-X12B3DL18-M1 E2E-X12C3L18-M1
M30
(22 mm)
Pre-wired
(2 m) *2
60 mm
*3
NO E2E-X22B1T30 2M E2E-X22B1D30 2M E2E-X22C130 2M
NC - E2E-X22B230 2M E2E-X22C230 2M
NO+NC - E2E-X22B3D30 2M E2E-X22C330 2M
82 mm NO E2E-X22B1TL30 2M E2E-X22B1DL30 2M E2E-X22C1L30 2M
NC - E2E-X22B2L30 2M E2E-X22C2L30 2M
NO+NC - E2E-X22B3DL30 2M E2E-X22C3L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm
*4
NO E2E-X22B1T30-M1TJ 0.3M E2E-X22B1D30-M1TJ 0.3M E2E-X22C130-M1TJ 0.3M
NC - E2E-X22B230-M1TJ 0.3M E2E-X22C230-M1TJ 0.3M
NO+NC - E2E-X22B3D30-M1TJ 0.3M E2E-X22C330-M1TJ 0.3M
82 mm NO E2E-X22B1TL30-M1TJ 0.3M E2E-X22B1DL30-M1TJ 0.3M E2E-X22C1L30-M1TJ 0.3M
NC - E2E-X22B2L30-M1TJ 0.3M E2E-X22C2L30-M1TJ 0.3M
NO+NC - E2E-X22B3DL30-M1TJ 0.3M E2E-X22C3L30-M1TJ 0.3M
M12
Connector
58 mm NO E2E-X22B1T30-M1 E2E-X22B1D30-M1 E2E-X22C130-M1
NC - E2E-X22B230-M1 E2E-X22C230-M1
NO+NC - E2E-X22B3D30-M1 E2E-X22C330-M1
80 mm NO E2E-X22B1TL30-M1 E2E-X22B1DL30-M1 E2E-X22C1L30-M1
NC - E2E-X22B2L30-M1 E2E-X22C2L30-M1
NO+NC - E2E-X22B3DL30-M1 E2E-X22C3L30-M1

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available (Example: E2E-X6B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X6B1D12-R 2M/E2E-X6B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X6B1D12-M1TJR 0.3M)
*5. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2E NEXT Series (Triple distance model)

DC 3-wire Unshielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *4 --- *4
M8
(6 mm)
Pre-wired
(2 m) *1
38 mm
*2
NO E2E-X6MB1T8 2M E2E-X6MB1D8 2M E2E-X6MC18 2M
NC - E2E-X6MB28 2M E2E-X6MC28 2M
48 mm NO E2E-X6MB1TL8 2M E2E-X6MB1DL8 2M E2E-X6MC1L8 2M
NC - E2E-X6MB2L8 2M E2E-X6MC2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*3
NO E2E-X6MB1T8-M1TJ 0.3M E2E-X6MB1D8-M1TJ 0.3M E2E-X6MC18-M1TJ 0.3M
NC - E2E-X6MB28-M1TJ 0.3M E2E-X6MC28-M1TJ 0.3M
48 mm NO E2E-X6MB1TL8-M1TJ 0.3M E2E-X6MB1DL8-M1TJ 0.3M E2E-X6MC1L8-M1TJ 0.3M
NC - E2E-X6MB2L8-M1TJ 0.3M E2E-X6MC2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X6MB1T8-M1 E2E-X6MB1D8-M1 E2E-X6MC18-M1
NC - E2E-X6MB28-M1 E2E-X6MC28-M1
53 mm NO E2E-X6MB1TL8-M1 E2E-X6MB1DL8-M1 E2E-X6MC1L8-M1
NC - E2E-X6MB2L8-M1 E2E-X6MC2L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X6MB1T8-M3 E2E-X6MB1D8-M3 E2E-X6MC18-M3
NC - E2E-X6MB28-M3 E2E-X6MC28-M3
49 mm NO E2E-X6MB1TL8-M3 E2E-X6MB1DL8-M3 E2E-X6MC1L8-M3
NC - E2E-X6MB2L8-M3 E2E-X6MC2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X6MB1T8-M5 E2E-X6MB1D8-M5 E2E-X6MC18-M5
NC - E2E-X6MB28-M5 E2E-X6MC28-M5
49 mm NO E2E-X6MB1TL8-M5 E2E-X6MB1DL8-M5 E2E-X6MC1L8-M5
NC - E2E-X6MB2L8-M5 E2E-X6MC2L8-M5
M12
(10 mm)
Pre-wired
(2 m) *1
47 mm
*2
NO E2E-X10MB1T12 2M E2E-X10MB1D12 2M E2E-X10MC112 2M
NC - E2E-X10MB212 2M E2E-X10MC212 2M
NO+NC - E2E-X10MB3D12 2M E2E-X10MC312 2M
69 mm NO E2E-X10MB1TL12 2M E2E-X10MB1DL12 2M E2E-X10MC1L12 2M
NC - E2E-X10MB2L12 2M E2E-X10MC2L12 2M
NO+NC - E2E-X10MB3DL12 2M E2E-X10MC3L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*3
NO E2E-X10MB1T12-M1TJ 0.3M E2E-X10MB1D12-M1TJ 0.3M E2E-X10MC112-M1TJ 0.3M
NC - E2E-X10MB212-M1TJ 0.3M E2E-X10MC212-M1TJ 0.3M
NO+NC - E2E-X10MB3D12-M1TJ 0.3M E2E-X10MC312-M1TJ 0.3M
69 mm NO E2E-X10MB1TL12-M1TJ 0.3M E2E-X10MB1DL12-M1TJ 0.3M E2E-X10MC1L12-M1TJ 0.3M
NC - E2E-X10MB2L12-M1TJ 0.3M E2E-X10MC2L12-M1TJ 0.3M
NO+NC - E2E-X10MB3DL12-M1TJ 0.3M E2E-X10MC3L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X10MB1T12-M1 E2E-X10MB1D12-M1 E2E-X10MC112-M1
NC - E2E-X10MB212-M1 E2E-X10MC212-M1
NO+NC - E2E-X10MB3D12-M1 E2E-X10MC312-M1
70 mm NO E2E-X10MB1TL12-M1 E2E-X10MB1DL12-M1 E2E-X10MC1L12-M1
NC - E2E-X10MB2L12-M1 E2E-X10MC2L12-M1
NO+NC - E2E-X10MB3DL12-M1 E2E-X10MC3L12-M1
M18
(20 mm)
Pre-wired
(2 m) *1
77 mm
*2
NO E2E-X20MB1TL18 2M E2E-X20MB1DL18 2M E2E-X20MC1L18 2M
NC - E2E-X20MB2L18 2M E2E-X20MC2L18 2M
NO+NC - E2E-X20MB3DL18 2M E2E-X20MC3L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
77 mm
*3
NO E2E-X20MB1TL18-M1TJ E2E-X20MB1DL18-M1TJ E2E-X20MC1L18-M1TJ 0.3M
NC - E2E-X20MB2L18-M1TJ 0.3M E2E-X20MC2L18-M1TJ 0.3M
NO+NC - E2E-X20MB3DL18-M1TJ 0.3M E2E-X20MC3L18-M1TJ 0.3M
M12
Connector
75 mm NO E2E-X20MB1TL18-M1 E2E-X20MB1DL18-M1 E2E-X20MC1L18-M1
NC - E2E-X20MB2L18-M1 E2E-X20MC2L18-M1
NO+NC - E2E-X20MB3DL18-M1 E2E-X20MC3L18-M1
M30
(40 mm)
Pre-wired
(2 m) *1
82 mm
*2
NO E2E-X40MB1TL30 2M E2E-X40MB1DL30 2M E2E-X40MC1L30 2M
NC - E2E-X40MB2L30 2M E2E-X40MC2L30 2M
NO+NC - E2E-X40MB3DL30 2M E2E-X40MC3L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
82 mm
*3
NO E2E-X40MB1TL30-M1TJ 0.3M E2E-X40MB1DL30-M1TJ 0.3M E2E-X40MC1L30-M1TJ 0.3M
NC - E2E-X40MB2L30-M1TJ 0.3M E2E-X40MC2L30-M1TJ 0.3M
NO+NC - E2E-X40MB3DL30-M1TJ 0.3M E2E-X40MC3L30-M1TJ 0.3M
M12
Connector
80 mm NO E2E-X40MB1TL30-M1 E2E-X40MB1DL30-M1 E2E-X40MC1L30-M1
NC - E2E-X40MB2L30-M1 E2E-X40MC2L30-M1
NO+NC - E2E-X40MB3DL30-M1 E2E-X40MC3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X10MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X10MB1D12-R 2M/E2E-X10MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X10MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

BASIC Model

E2E NEXT Series (Double distance model)

DC 3-wire Shielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *4 --- *4
M8
(2 mm)
Pre-wired
(2 m) *1
38 mm
*2
NO E2E-X2B1T8 2M E2E-X2B1D8 2M E2E-X2C18 2M
NC - E2E-X2B28 2M E2E-X2C28 2M
48 mm NO E2E-X2B1TL8 2M E2E-X2B1DL8 2M E2E-X2C1L8 2M
NC - E2E-X2B2L8 2M E2E-X2C2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*3
NO E2E-X2B1T8-M1TJ 0.3M E2E-X2B1D8-M1TJ 0.3M E2E-X2C18-M1TJ 0.3M
NC - E2E-X2B28-M1TJ 0.3M E2E-X2C28-M1TJ 0.3M
48 mm NO E2E-X2B1TL8-M1TJ 0.3M E2E-X2B1DL8-M1TJ 0.3M E2E-X2C1L8-M1TJ 0.3M
NC - E2E-X2B2L8-M1TJ 0.3M E2E-X2C2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X2B1T8-M1 E2E-X2B1D8-M1 E2E-X2C18-M1
NC - E2E-X2B28-M1 E2E-X2C28-M1
53 mm NO E2E-X2B1TL8-M1 E2E-X2B1DL8-M1 E2E-X2C1L8-M1
NC - E2E-X2B2L8-M1 E2E-X2C2L8-M1
NO+NC - E2E-X2B3DL8-M1 E2E-X2C3L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X2B1T8-M3 E2E-X2B1D8-M3 E2E-X2C18-M3
NC - E2E-X2B28-M3 E2E-X2C28-M3
49 mm NO E2E-X2B1TL8-M3 E2E-X2B1DL8-M3 E2E-X2C1L8-M3
NC - E2E-X2B2L8-M3 E2E-X2C2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X2B1T8-M5 E2E-X2B1D8-M5 E2E-X2C18-M5
NC - E2E-X2B28-M5 E2E-X2C28-M5
49 mm NO E2E-X2B1TL8-M5 E2E-X2B1DL8-M5 E2E-X2C1L8-M5
NC - E2E-X2B2L8-M5 E2E-X2C2L8-M5
M12
(4 mm)
Pre-wired
(2 m) *1
47 mm
*2
NO E2E-X4B1T12 2M E2E-X4B1D12 2M E2E-X4C112 2M
NC - E2E-X4B212 2M E2E-X4C212 2M
NO+NC - E2E-X4B3D12 2M E2E-X4C312 2M
69 mm NO E2E-X4B1TL12 2M E2E-X4B1DL12 2M E2E-X4C1L12 2M
NC - E2E-X4B2L12 2M E2E-X4C2L12 2M
NO+NC - E2E-X4B3DL12 2M E2E-X4C3L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*3
NO E2E-X4B1T12-M1TJ 0.3M E2E-X4B1D12-M1TJ 0.3M E2E-X4C112-M1TJ 0.3M
NC - E2E-X4B212-M1TJ 0.3M E2E-X4C212-M1TJ 0.3M
NO+NC - E2E-X4B3D12-M1TJ 0.3M E2E-X4C312-M1TJ 0.3M
69 mm NO E2E-X4B1TL12-M1TJ 0.3M E2E-X4B1DL12-M1TJ 0.3M E2E-X4C1L12-M1TJ 0.3M
NC - E2E-X4B2L12-M1TJ 0.3M E2E-X4C2L12-M1TJ 0.3M
NO+NC - E2E-X4B3DL12-M1TJ 0.3M E2E-X4C3L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X4B1T12-M1 E2E-X4B1D12-M1 E2E-X4C112-M1
NC - E2E-X4B212-M1 E2E-X4C212-M1
NO+NC - E2E-X4B3D12-M1 E2E-X4C312-M1
70 mm NO E2E-X4B1TL12-M1 E2E-X4B1DL12-M1 E2E-X4C1L12-M1
NC - E2E-X4B2L12-M1 E2E-X4C2L12-M1
NO+NC - E2E-X4B3DL12-M1 E2E-X4C3L12-M1
M18
(8 mm)
Pre-wired
(2 m) *1
55 mm
*2
NO E2E-X8B1T18 2M E2E-X8B1D18 2M E2E-X8C118 2M
NC - E2E-X8B218 2M E2E-X8C218 2M
NO+NC - E2E-X8B3D18 2M E2E-X8C318 2M
77 mm NO E2E-X8B1TL18 2M E2E-X8B1DL18 2M E2E-X8C1L18 2M
NC - E2E-X8B2L18 2M E2E-X8C2L18 2M
NO+NC - E2E-X8B3DL18 2M E2E-X8C3L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm
*3
NO E2E-X8B1T18-M1TJ 0.3M E2E-X8B1D18-M1TJ 0.3M E2E-X8C118-M1TJ 0.3M
NC - E2E-X8B218-M1TJ 0.3M E2E-X8C218-M1TJ 0.3M
NO+NC - E2E-X8B3D18-M1TJ 0.3M E2E-X8C318-M1TJ 0.3M
77 mm NO E2E-X8B1TL18-M1TJ 0.3M E2E-X8B1DL18-M1TJ 0.3M E2E-X8C1L18-M1TJ 0.3M
NC - E2E-X8B2L18-M1TJ 0.3M E2E-X8C2L18-M1TJ 0.3M
NO+NC - E2E-X8B3DL18-M1TJ 0.3M E2E-X8C3L18-M1TJ 0.3M
M12
Connector
53 mm NO E2E-X8B1T18-M1 E2E-X8B1D18-M1 E2E-X8C118-M1
NC - E2E-X8B218-M1 E2E-X8C218-M1
NO+NC - E2E-X8B3D18-M1 E2E-X8C318-M1
75 mm NO E2E-X8B1TL18-M1 E2E-X8B1DL18-M1 E2E-X8C1L18-M1
NC - E2E-X8B2L18-M1 E2E-X8C2L18-M1
NO+NC - E2E-X8B3DL18-M1 E2E-X8C3L18-M1
M30
(15 mm)
Pre-wired
(2 m) *1
60 mm
*2
NO E2E-X15B1T30 2M E2E-X15B1D30 2M E2E-X15C130 2M
NC - E2E-X15B230 2M E2E-X15C230 2M
NO+NC - E2E-X15B3D30 2M E2E-X15C330 2M
82 mm NO E2E-X15B1TL30 2M E2E-X15B1DL30 2M E2E-X15C1L30 2M
NC - E2E-X15B2L30 2M E2E-X15C2L30 2M
NO+NC - E2E-X15B3DL30 2M E2E-X15C3L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm
*3
NO E2E-X15B1T30-M1TJ 0.3M E2E-X15B1D30-M1TJ 0.3M E2E-X15C130-M1TJ 0.3M
NC - E2E-X15B230-M1TJ 0.3M E2E-X15C230-M1TJ 0.3M
NO+NC - E2E-X15B3D30-M1TJ 0.3M E2E-X15C330-M1TJ 0.3M
82 mm NO E2E-X15B1TL30-M1TJ 0.3M E2E-X15B1DL30-M1TJ 0.3M E2E-X15C1L30-M1TJ 0.3M
NC - E2E-X15B2L30-M1TJ 0.3M E2E-X15C2L30-M1TJ 0.3M
NO+NC - E2E-X15B3DL30-M1TJ 0.3M E2E-X15C3L30-M1TJ 0.3M
M12
Connector
58 mm NO E2E-X15B1T30-M1 E2E-X15B1D30-M1 E2E-X15C130-M1
NC - E2E-X15B230-M1 E2E-X15C230-M1
NO+NC - E2E-X15B3D30-M1 E2E-X15C330-M1
80 mm NO E2E-X15B1TL30-M1 E2E-X15B1DL30-M1 E2E-X15C1L30-M1
NC - E2E-X15B2L30-M1 E2E-X15C2L30-M1
NO+NC - E2E-X15B3DL30-M1 E2E-X15C3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X2B1D8 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X2B1D8-R 2M/E2E-X2B1D8-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X4B1T12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2E NEXT Series (Double distance model)

DC 3-wire Unshielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *4 --- *4
M8
(4 mm)
Pre-wired
(2 m) *1
38 mm
*2
NO E2E-X4MB1T8 2M E2E-X4MB1D8 2M E2E-X4MC18 2M
NC - E2E-X4MB28 2M E2E-X4MC28 2M
48 mm NO E2E-X4MB1TL8 2M E2E-X4MB1DL8 2M E2E-X4MC1L8 2M
NC - E2E-X4MB2L8 2M E2E-X4MC2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*3
NO E2E-X4MB1T8-M1TJ 0.3M E2E-X4MB1D8-M1TJ 0.3M E2E-X4MC18-M1TJ 0.3M
NC - E2E-X4MB28-M1TJ 0.3M E2E-X4MC28-M1TJ 0.3M
48 mm NO E2E-X4MB1TL8-M1TJ 0.3M E2E-X4MB1DL8-M1TJ 0.3M E2E-X4MC1L8-M1TJ 0.3M
NC - E2E-X4MB2L8-M1TJ 0.3M E2E-X4MC2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X4MB1T8-M1 E2E-X4MB1D8-M1 E2E-X4MC18-M1
NC - E2E-X4MB28-M1 E2E-X4MC28-M1
53 mm NO E2E-X4MB1TL8-M1 E2E-X4MB1DL8-M1 E2E-X4MC1L8-M1
NC - E2E-X4MB2L8-M1 E2E-X4MC2L8-M1
NO+NC - E2E-X4MB3DL8-M1 E2E-X4MC3L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X4MB1T8-M3 E2E-X4MB1D8-M3 E2E-X4MC18-M3
NC - E2E-X4MB28-M3 E2E-X4MC28-M3
49 mm NO E2E-X4MB1TL8-M3 E2E-X4MB1DL8-M3 E2E-X4MC1L8-M3
NC - E2E-X4MB2L8-M3 E2E-X4MC2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X4MB1T8-M5 E2E-X4MB1D8-M5 E2E-X4MC18-M5
NC - E2E-X4MB28-M5 E2E-X4MC28-M5
49 mm NO E2E-X4MB1TL8-M5 E2E-X4MB1DL8-M5 E2E-X4MC1L8-M5
NC - E2E-X4MB2L8-M5 E2E-X4MC2L8-M5
M12
(8 mm)
Pre-wired
(2 m) *1
47 mm
*2
NO E2E-X8MB1T12 2M E2E-X8MB1D12 2M E2E-X8MC112 2M
NC - E2E-X8MB212 2M E2E-X8MC212 2M
NO+NC - E2E-X8MB3D12 2M E2E-X8MC312 2M
69 mm NO E2E-X8MB1TL12 2M E2E-X8MB1DL12 2M E2E-X8MC1L12 2M
NC - E2E-X8MB2L12 2M E2E-X8MC2L12 2M
NO+NC - E2E-X8MB3DL12 2M E2E-X8MC3L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*3
NO E2E-X8MB1T12-M1TJ 0.3M E2E-X8MB1D12-M1TJ 0.3M E2E-X8MC112-M1TJ 0.3M
NC - E2E-X8MB212-M1TJ 0.3M E2E-X8MC212-M1TJ 0.3M
NO+NC - E2E-X8MB3D12-M1TJ 0.3M E2E-X8MC312-M1TJ 0.3M
69 mm NO E2E-X8MB1TL12-M1TJ 0.3M E2E-X8MB1DL12-M1TJ 0.3M E2E-X8MC1L12-M1TJ 0.3M
NC - E2E-X8MB2L12-M1TJ 0.3M E2E-X8MC2L12-M1TJ 0.3M
NO+NC - E2E-X8MB3DL12-M1TJ 0.3M E2E-X8MC3L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X8MB1T12-M1 E2E-X8MB1D12-M1 E2E-X8MC112-M1
NC - E2E-X8MB212-M1 E2E-X8MC212-M1
NO+NC - E2E-X8MB3D12-M1 E2E-X8MC312-M1
70 mm NO E2E-X8MB1TL12-M1 E2E-X8MB1DL12-M1 E2E-X8MC1L12-M1
NC - E2E-X8MB2L12-M1 E2E-X8MC2L12-M1
NO+NC - E2E-X8MB3DL12-M1 E2E-X8MC3L12-M1
M18
(16 mm)
Pre-wired
(2 m) *1
55 mm
*2
NO E2E-X16MB1T18 2M E2E-X16MB1D18 2M E2E-X16MC118 2M
NC - E2E-X16MB218 2M E2E-X16MC218 2M
NO+NC - E2E-X16MB3D18 2M E2E-X16MC318 2M
77 mm NO E2E-X16MB1TL18 2M E2E-X16MB1DL18 2M E2E-X16MC1L18 2M
NC - E2E-X16MB2L18 2M E2E-X16MC2L18 2M
NO+NC - E2E-X16MB3DL18 2M E2E-X16MC3L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm
*3
NO E2E-X16MB1T18-M1TJ 0.3M E2E-X16MB1D18-M1TJ 0.3M E2E-X16MC118-M1TJ 0.3M
NC - E2E-X16MB218-M1TJ 0.3M E2E-X16MC218-M1TJ 0.3M
NO+NC - E2E-X16MB3D18-M1TJ 0.3M E2E-X16MC318-M1TJ 0.3M
77 mm NO E2E-X16MB1TL18-M1TJ 0.3M E2E-X16MB1DL18-M1TJ 0.3M E2E-X16MC1L18-M1TJ 0.3M
NC - E2E-X16MB2L18-M1TJ 0.3M E2E-X16MC2L18-M1TJ 0.3M
NO+NC - E2E-X16MB3DL18-M1TJ 0.3M E2E-X16MC3L18-M1TJ 0.3M
M12
Connector
53 mm NO E2E-X16MB1T18-M1 E2E-X16MB1D18-M1 E2E-X16MC118-M1
NC - E2E-X16MB218-M1 E2E-X16MC218-M1
NO+NC - E2E-X16MB3D18-M1 E2E-X16MC318-M1
75 mm NO E2E-X16MB1TL18-M1 E2E-X16MB1DL18-M1 E2E-X16MC1L18-M1
NC - E2E-X16MB2L18-M1 E2E-X16MC2L18-M1
NO+NC - E2E-X16MB3DL18-M1 E2E-X16MC3L18-M1
M30
(30 mm)
Pre-wired
(2 m) *1
82 mm
*2
NO E2E-X30MB1TL30 2M E2E-X30MB1DL30 2M E2E-X30MC1L30 2M
NC - E2E-X30MB2L30 2M E2E-X30MC2L30 2M
NO+NC - E2E-X30MB3DL30 2M E2E-X30MC3L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
82 mm
*3
NO E2E-X30MB1TL30-M1TJ 0.3M E2E-X30MB1DL30-M1TJ 0.3M E2E-X30MC1L30-M1TJ 0.3M
NC - E2E-X30MB2L30-M1TJ 0.3M E2E-X30MC2L30-M1TJ 0.3M
NO+NC - E2E-X30MB3DL30-M1TJ 0.3M E2E-X30MC3L30-M1TJ 0.3M
M12
Connector
80 mm NO E2E-X30MB1TL30-M1 E2E-X30MB1DL30-M1 E2E-X30MC1L30-M1
NC - E2E-X30MB2L30-M1 E2E-X30MC2L30-M1
NO+NC - E2E-X30MB3DL30-M1 E2E-X30MC3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X8MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X8MB1D12-R 2M/E2E-X8MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X8MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2E NEXT Series (Single distance model)

DC 3-wire Shielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *4 --- *4
M8
(1.5 mm)
Pre-wired
(2 m) *1
38 mm
*2
NO E2E-X1R5B1T8 2M E2E-X1R5B1D8 2M E2E-X1R5C18 2M
NC - E2E-X1R5B28 2M E2E-X1R5C28 2M
48 mm NO E2E-X1R5B1TL8 2M E2E-X1R5B1DL8 2M E2E-X1R5C1L8 2M
NC - E2E-X1R5B2L8 2M E2E-X1R5C2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*3
NO E2E-X1R5B1T8-M1TJ 0.3M E2E-X1R5B1D8-M1TJ 0.3M E2E-X1R5C18-M1TJ 0.3M
NC - E2E-X1R5B28-M1TJ 0.3M E2E-X1R5C28-M1TJ 0.3M
48 mm NO E2E-X1R5B1TL8-M1TJ 0.3M E2E-X1R5B1DL8-M1TJ 0.3M E2E-X1R5C1L8-M1TJ 0.3M
NC - E2E-X1R5B2L8-M1TJ 0.3M E2E-X1R5C2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X1R5B1T8-M1 E2E-X1R5B1D8-M1 E2E-X1R5C18-M1
NC - E2E-X1R5B28-M1 E2E-X1R5C28-M1
53 mm NO E2E-X1R5B1TL8-M1 E2E-X1R5B1DL8-M1 E2E-X1R5C1L8-M1
NC - E2E-X1R5B2L8-M1 E2E-X1R5C2L8-M1
NO+NC - E2E-X1R5B3DL8-M1 E2E-X1R5C3L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X1R5B1T8-M3 E2E-X1R5B1D8-M3 E2E-X1R5C18-M3
NC - E2E-X1R5B28-M3 E2E-X1R5C28-M3
49 mm NO E2E-X1R5B1TL8-M3 E2E-X1R5B1DL8-M3 E2E-X1R5C1L8-M3
NC - E2E-X1R5B2L8-M3 E2E-X1R5C2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X1R5B1T8-M5 E2E-X1R5B1D8-M5 E2E-X1R5C18-M5
NC - E2E-X1R5B28-M5 E2E-X1R5C28-M5
49 mm NO E2E-X1R5B1TL8-M5 E2E-X1R5B1DL8-M5 E2E-X1R5C1L8-M5
NC - E2E-X1R5B2L8-M5 E2E-X1R5C2L8-M5
M12
(2 mm)
Pre-wired
(2 m) *1
47 mm
*2
NO E2E-X2B1T12 2M E2E-X2B1D12 2M E2E-X2C112 2M
NC - E2E-X2B212 2M E2E-X2C212 2M
NO+NC - E2E-X2B3D12 2M E2E-X2C312 2M
69 mm NO E2E-X2B1TL12 2M E2E-X2B1DL12 2M E2E-X2C1L12 2M
NC - E2E-X2B2L12 2M E2E-X2C2L12 2M
NO+NC - E2E-X2B3DL12 2M E2E-X2C3L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*3
NO E2E-X2B1T12-M1TJ 0.3M E2E-X2B1D12-M1TJ 0.3M E2E-X2C112-M1TJ 0.3M
NC - E2E-X2B212-M1TJ 0.3M E2E-X2C212-M1TJ 0.3M
NO+NC - E2E-X2B3D12-M1TJ 0.3M E2E-X2C312-M1TJ 0.3M
69 mm NO E2E-X2B1TL12-M1TJ 0.3M E2E-X2B1DL12-M1TJ 0.3M E2E-X2C1L12-M1TJ 0.3M
NC - E2E-X2B2L12-M1TJ 0.3M E2E-X2C2L12-M1TJ 0.3M
NO+NC - E2E-X2B3DL12-M1TJ 0.3M E2E-X2C3L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X2B1T12-M1 E2E-X2B1D12-M1 E2E-X2C112-M1
NC - E2E-X2B212-M1 E2E-X2C212-M1
NO+NC - E2E-X2B3D12-M1 E2E-X2C312-M1
70 mm NO E2E-X2B1TL12-M1 E2E-X2B1DL12-M1 E2E-X2C1L12-M1
NC - E2E-X2B2L12-M1 E2E-X2C2L12-M1
NO+NC - E2E-X2B3DL12-M1 E2E-X2C3L12-M1
M18
(5 mm)
Pre-wired
(2 m) *1
55 mm
*2
NO E2E-X5B1T18 2M E2E-X5B1D18 2M E2E-X5C118 2M
NC - E2E-X5B218 2M E2E-X5C218 2M
NO+NC - E2E-X5B3D18 2M E2E-X5C318 2M
77 mm NO E2E-X5B1TL18 2M E2E-X5B1DL18 2M E2E-X5C1L18 2M
NC - E2E-X5B2L18 2M E2E-X5C2L18 2M
NO+NC - E2E-X5B3DL18 2M E2E-X5C3L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm
*3
NO E2E-X5B1T18-M1TJ 0.3M E2E-X5B1D18-M1TJ 0.3M E2E-X5C118-M1TJ 0.3M
NC - E2E-X5B218-M1TJ 0.3M E2E-X5C218-M1TJ 0.3M
NO+NC - E2E-X5B3D18-M1TJ 0.3M E2E-X5C318-M1TJ 0.3M
77 mm NO E2E-X5B1TL18-M1TJ 0.3M E2E-X5B1DL18-M1TJ 0.3M E2E-X5C1L18-M1TJ 0.3M
NC - E2E-X5B2L18-M1TJ 0.3M E2E-X5C2L18-M1TJ 0.3M
NO+NC - E2E-X5B3DL18-M1TJ 0.3M E2E-X5C3L18-M1TJ 0.3M
M12
Connector
53 mm NO E2E-X5B1T18-M1 E2E-X5B1D18-M1 E2E-X5C118-M1
NC - E2E-X5B218-M1 E2E-X5C218-M1
NO+NC - E2E-X5B3D18-M1 E2E-X5C318-M1
75 mm NO E2E-X5B1TL18-M1 E2E-X5B1DL18-M1 E2E-X5C1L18-M1
NC - E2E-X5B2L18-M1 E2E-X5C2L18-M1
NO+NC - E2E-X5B3DL18-M1 E2E-X5C3L18-M1
M30
(10 mm)
Pre-wired
(2 m) *1
60 mm
*2
NO E2E-X10B1T30 2M E2E-X10B1D30 2M E2E-X10C130 2M
NC - E2E-X10B230 2M E2E-X10C230 2M
NO+NC - E2E-X10B3D30 2M E2E-X10C330 2M
82 mm NO E2E-X10B1TL30 2M E2E-X10B1DL30 2M E2E-X10C1L30 2M
NC - E2E-X10B2L30 2M E2E-X10C2L30 2M
NO+NC - E2E-X10B3DL30 2M E2E-X10C3L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm
*3
NO E2E-X10B1T30-M1TJ 0.3M E2E-X10B1D30-M1TJ 0.3M E2E-X10C130-M1TJ 0.3M
NC - E2E-X10B230-M1TJ 0.3M E2E-X10C230-M1TJ 0.3M
NO+NC - E2E-X10B3D30-M1TJ 0.3M E2E-X10C330-M1TJ 0.3M
82 mm NO E2E-X10B1TL30-M1TJ 0.3M E2E-X10B1DL30-M1TJ 0.3M E2E-X10C1L30-M1TJ 0.3M
NC - E2E-X10B2L30-M1TJ 0.3M E2E-X10C2L30-M1TJ 0.3M
NO+NC - E2E-X10B3DL30-M1TJ 0.3M E2E-X10C3L30-M1TJ 0.3M
M12
Connector
58 mm NO E2E-X10B1T30-M1 E2E-X10B1D30-M1 E2E-X10C130-M1
NC - E2E-X10B230-M1 E2E-X10C230-M1
NO+NC - E2E-X10B3D30-M1 E2E-X10C330-M1
80 mm NO E2E-X10B1TL30-M1 E2E-X10B1DL30-M1 E2E-X10C1L30-M1
NC - E2E-X10B2L30-M1 E2E-X10C2L30-M1
NO+NC - E2E-X10B3DL30-M1 E2E-X10C3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X2B1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X2B1D12-R 2M/E2E-X2B1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X2B1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2E NEXT Series (Single distance model)

DC 3-wire Unshielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *4 --- *4
M8
(2mm)
Pre-wired
(2 m) *1
38 mm
*2
NO E2E-X2MB1T8 2M E2E-X2MB1D8 2M E2E-X2MC18 2M
NC - E2E-X2MB28 2M E2E-X2MC28 2M
48 mm NO E2E-X2MB1TL8 2M E2E-X2MB1DL8 2M E2E-X2MC1L8 2M
NC - E2E-X2MB2L8 2M E2E-X2MC2L8 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm
*3
NO E2E-X2MB1T8-M1TJ 0.3M E2E-X2MB1D8-M1TJ 0.3M E2E-X2MC18-M1TJ 0.3M
NC - E2E-X2MB28-M1TJ 0.3M E2E-X2MC28-M1TJ 0.3M
48 mm NO E2E-X2MB1TL8-M1TJ 0.3M E2E-X2MB1DL8-M1TJ 0.3M E2E-X2MC1L8-M1TJ 0.3M
NC - E2E-X2MB2L8-M1TJ 0.3M E2E-X2MC2L8-M1TJ 0.3M
M12
Connector
43 mm NO E2E-X2MB1T8-M1 E2E-X2MB1D8-M1 E2E-X2MC18-M1
NC - E2E-X2MB28-M1 E2E-X2MC28-M1
53 mm NO E2E-X2MB1TL8-M1 E2E-X2MB1DL8-M1 E2E-X2MC1L8-M1
NC - E2E-X2MB2L8-M1 E2E-X2MC2L8-M1
NO+NC - E2E-X2MB3DL8-M1 E2E-X2MC3L8-M1
M8
Connector
(4-pin)
39 mm NO E2E-X2MB1T8-M3 E2E-X2MB1D8-M3 E2E-X2MC18-M3
NC - E2E-X2MB28-M3 E2E-X2MC28-M3
49 mm NO E2E-X2MB1TL8-M3 E2E-X2MB1DL8-M3 E2E-X2MC1L8-M3
NC - E2E-X2MB2L8-M3 E2E-X2MC2L8-M3
M8
Connector
(3-pin)
39 mm NO E2E-X2MB1T8-M5 E2E-X2MB1D8-M5 E2E-X2MC18-M5
NC - E2E-X2MB28-M5 E2E-X2MC28-M5
49 mm NO E2E-X2MB1TL8-M5 E2E-X2MB1DL8-M5 E2E-X2MC1L8-M5
NC - E2E-X2MB2L8-M5 E2E-X2MC2L8-M5
M12
(5mm)
Pre-wired
(2 m) *1
47 mm
*2
NO E2E-X5MB1T12 2M E2E-X5MB1D12 2M E2E-X5MC112 2M
NC - E2E-X5MB212 2M E2E-X5MC212 2M
NO+NC - E2E-X5MB3D12 2M E2E-X5MC312 2M
69 mm NO E2E-X5MB1TL12 2M E2E-X5MB1DL12 2M E2E-X5MC1L12 2M
NC - E2E-X5MB2L12 2M E2E-X5MC2L12 2M
NO+NC - E2E-X5MB3DL12 2M E2E-X5MC3L12 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm
*3
NO E2E-X5MB1T12-M1TJ 0.3M E2E-X5MB1D12-M1TJ 0.3M E2E-X5MC112-M1TJ 0.3M
NC - E2E-X5MB212-M1TJ 0.3M E2E-X5MC212-M1TJ 0.3M
NO+NC - E2E-X5MB3D12-M1TJ 0.3M E2E-X5MC312-M1TJ 0.3M
69 mm NO E2E-X5MB1TL12-M1TJ 0.3M E2E-X5MB1DL12-M1TJ 0.3M E2E-X5MC1L12-M1TJ 0.3M
NC - E2E-X5MB2L12-M1TJ 0.3M E2E-X5MC2L12-M1TJ 0.3M
NO+NC - E2E-X5MB3DL12-M1TJ 0.3M E2E-X5MC3L12-M1TJ 0.3M
M12
Connector
48 mm NO E2E-X5MB1T12-M1 E2E-X5MB1D12-M1 E2E-X5MC112-M1
NC - E2E-X5MB212-M1 E2E-X5MC212-M1
NO+NC - E2E-X5MB3D12-M1 E2E-X5MC312-M1
70 mm NO E2E-X5MB1TL12-M1 E2E-X5MB1DL12-M1 E2E-X5MC1L12-M1
NC - E2E-X5MB2L12-M1 E2E-X5MC2L12-M1
NO+NC - E2E-X5MB3DL12-M1 E2E-X5MC3L12-M1
M18
(10mm)
Pre-wired
(2 m) *1
55 mm
*2
NO E2E-X10MB1T18 2M E2E-X10MB1D18 2M E2E-X10MC118 2M
NC - E2E-X10MB218 2M E2E-X10MC218 2M
NO+NC - E2E-X10MB3D18 2M E2E-X10MC318 2M
77 mm NO E2E-X10MB1TL18 2M E2E-X10MB1DL18 2M E2E-X10MC1L18 2M
NC - E2E-X10MB2L18 2M E2E-X10MC2L18 2M
NO+NC - E2E-X10MB3DL18 2M E2E-X10MC3L18 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm
*3
NO E2E-X10MB1T18-M1TJ 0.3M E2E-X10MB1D18-M1TJ 0.3M E2E-X10MC118-M1TJ 0.3M
NC - E2E-X10MB218-M1TJ 0.3M E2E-X10MC218-M1TJ 0.3M
NO+NC - E2E-X10MB3D18-M1TJ 0.3M E2E-X10MC318-M1TJ 0.3M
77 mm NO E2E-X10MB1TL18-M1TJ 0.3M E2E-X10MB1DL18-M1TJ 0.3M E2E-X10MC1L18-M1TJ 0.3M
NC - E2E-X10MB2L18-M1TJ 0.3M E2E-X10MC2L18-M1TJ 0.3M
NO+NC - E2E-X10MB3DL18-M1TJ 0.3M E2E-X10MC3L18-M1TJ 0.3M
M12
Connector
53 mm NO E2E-X10MB1T18-M1 E2E-X10MB1D18-M1 E2E-X10MC118-M1
NC - E2E-X10MB218-M1 E2E-X10MC218-M1
NO+NC - E2E-X10MB3D18-M1 E2E-X10MC318-M1
75 mm NO E2E-X10MB1TL18-M1 E2E-X10MB1DL18-M1 E2E-X10MC1L18-M1
NC - E2E-X10MB2L18-M1 E2E-X10MC2L18-M1
NO+NC - E2E-X10MB3DL18-M1 E2E-X10MC3L18-M1
M30
(18mm)
Pre-wired
(2 m) *1
60 mm
*2
NO E2E-X18MB1T30 2M E2E-X18MB1D30 2M E2E-X18MC130 2M
NC - E2E-X18MB230 2M E2E-X18MC230 2M
NO+NC - E2E-X18MB3D30 2M E2E-X18MC330 2M
82 mm NO E2E-X18MB1TL30 2M E2E-X18MB1DL30 2M E2E-X18MC1L30 2M
NC - E2E-X18MB2L30 2M E2E-X18MC2L30 2M
NO+NC - E2E-X18MB3DL30 2M E2E-X18MC3L30 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm
*3
NO E2E-X18MB1T30-M1TJ 0.3M E2E-X18MB1D30-M1TJ 0.3M E2E-X18MC130-M1TJ 0.3M
NC - E2E-X18MB230-M1TJ 0.3M E2E-X18MC230-M1TJ 0.3M
NO+NC - E2E-X18MB3D30-M1TJ 0.3M E2E-X18MC330-M1TJ 0.3M
82 mm NO E2E-X18MB1TL30-M1TJ 0.3M E2E-X18MB1DL30-M1TJ 0.3M E2E-X18MC1L30-M1TJ 0.3M
NC - E2E-X18MB2L30-M1TJ 0.3M E2E-X18MC2L30-M1TJ 0.3M
NO+NC - E2E-X18MB3DL30-M1TJ 0.3M E2E-X18MC3L30-M1TJ 0.3M
M12
Connector
58 mm NO E2E-X18MB1T30-M1 E2E-X18MB1D30-M1 E2E-X18MC130-M1
NC - E2E-X18MB230-M1 E2E-X18MC230-M1
NO+NC - E2E-X18MB3D30-M1 E2E-X18MC330-M1
80 mm NO E2E-X18MB1TL30-M1 E2E-X18MB1DL30-M1 E2E-X18MC1L30-M1
NC - E2E-X18MB2L30-M1 E2E-X18MC2L30-M1
NO+NC - E2E-X18MB3DL30-M1 E2E-X18MC3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X5MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X5MB1D12-R 2M/E2E-X5MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X5MB1D12-M1TJR 2M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

Accessories (Sold Separately)

e-jig (Mounting Sleeves)

A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.

Appearance Model Applicable Sensor size Applicable Sensor type
3790_lu_10_1 Y92E-J8S12 M8 Triple distance model
Shielded models
Pre-wired models
Standard body-sized
Y92E-J12S18 M12
Y92E-J18S30 M18

Nut Sets

A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.

Model Applicable Sensors Applicable
Sensor
diameter
Set contents
Y92E-NWM08-E2EN E2E NEXT Series
Quadruple distance/Triple
distance model
(Shielded models)
M8 Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 2
Y92E-NWM12-E2EN M12
Y92E-NWM18-E2EN M18 Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 1
Y92E-NWM30-E2EN M30
Y92E-NWM08-E2E E2E NEXT Series
Quadruple distance/Triple
distance model
(Unshielded models)
Double distance/Single distance
model
(Shielded/Unshielded models)
M8
Y92E-NWM12-E2E M12
Y92E-NWM18-E2E M18
Y92E-NWM30-E2E M30

Sensor I/O Connectors (Sold Separately)

For details of the connector, refer to XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS5 Series Round Water-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS3 Series Round Water-resistant Connectors (M8) on Catalog.

DC 2-wire (Triple distance model)

Model Number Legend

E2E NEXT Lineup 36

Note: 1. The purpose of this model number legend is to provide understanding of the meaning of specifications from the
             model number.
         2. Pin arrangements vary depending on the model. Refer to I/O Circuit Diagrams on Catalog for details.

DC 2-wire (Triple distance model)

Shielded Models *1

Size
(Sensing
distance)
Connection method Polarity Model
Operation mode: NO Operation mode: NC
M8
(3 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X3D18 2M E2E-X3D28 2M
No E2E-X3D18-T 2M E2E-X3D28-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X3D18-M1TGJ 0.3M E2E-X3D28-M1TGJ 0.3M
No E2E-X3D18-M1TGJ-T 0.3M E2E-X3D28-M1TGJ-T 0.3M
M12
(7 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X7D112 2M E2E-X7D212 2M
No E2E-X7D112-T 2M E2E-X7D212-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X7D112-M1TGJ 0.3M E2E-X7D212-M1TGJ 0.3M
No E2E-X7D112-M1TGJ-T 0.3M E2E-X7D212-M1TGJ-T 0.3M
M18
(11 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X11D118 2M E2E-X11D218 2M
No E2E-X11D118-T 2M E2E-X11D218-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X11D118-M1TGJ 0.3M E2E-X11D218-M1TGJ 0.3M
No E2E-X11D118-M1TGJ-T 0.3M E2E-X11D218-M1TGJ-T 0.3M
M30
(20 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X20D130 2M E2E-X20D230 2M
No E2E-X20D130-T 2M E2E-X20D230-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X20D130-M1TGJ 0.3M E2E-X20D230-M1TGJ 0.3M
No E2E-X20D130-M1TGJ-T 0.3M E2E-X20D230-M1TGJ-T 0.3M

Unshielded Models

Size
(Sensing
distance)
Connection method Polarity Model
Operation mode: NO Operation mode: NC
M8
(6 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X6MD18 2M E2E-X6MD28 2M
No E2E-X6MD18-T 2M E2E-X6MD28-T 2M
M12 Pre-wired
Smartclick Connector
(0.3 m) *4
Yes E2E-X6MD18-M1TGJ 0.3M E2E-X6MD28-M1TGJ 0.3M
No E2E-X6MD18-M1TGJ-T 0.3M E2E-X6MD28-M1TGJ-T 0.3M
M12
(10 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X10MD112 2M E2E-X10MD212 2M
No E2E-X10MD112-T 2M E2E-X10MD212-T 2M
M12 Pre-wired
Smartclick Connector
(0.3 m) *4
Yes E2E-X10MD112-M1TGJ 0.3M E2E-X10MD212-M1TGJ 0.3M
No E2E-X10MD112-M1TGJ-T 0.3M E2E-X10MD212-M1TGJ-T 0.3M
M18
(20 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X20MD1L18 2M E2E-X20MD2L18 2M
No E2E-X20MD1L18-T 2M E2E-X20MD2L18-T 2M
M12 Pre-wired
Smartclick Connector
(0.3 m) *4
Yes E2E-X20MD1L18-M1TGJ 0.3M E2E-X20MD2L18-M1TGJ 0.3M
No E2E-X20MD1L18-M1TGJ-T 0.3M E2E-X20MD2L18-M1TGJ-T 0.3M
M30
(40 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X40MD1L30 2M E2E-X40MD2L30 2M
No E2E-X40MD1L30-T 2M E2E-X40MD2L30-T 2M
M12 Pre-wired
Smartclick Connector
(0.3 m) *4
Yes E2E-X40MD1L30-M1TGJ 0.3M E2E-X40MD2L30-M1TGJ 0.3M
No E2E-X40MD1L30-M1TGJ-T 0.3M E2E-X40MD2L30-M1TGJ-T 0.3M

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X3D18 5M)
*3. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X3D18-R 2M/E2EX3D18-R 5M)
*4. Models with M12 Pre-wired Smartclick Connectors and robot (bending-resistant) cables are also available with "R" in
      the model number. (Example: E2E-X3D18-M1TGJR 0.3M/E2E-X3D18-M1TGJR-T 0.3M)

Accessories (Sold Separately)

e-jig (Mounting Sleeves)

A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.

Appearance Model Applicable Sensor size Applicable Sensor type
3790_lu_15_1 Y92E-J8S12 M8 Triple distance model
Shielded models
Pre-wired models
Standard body-sized
Y92E-J12S18 M12
Y92E-J18S30 M18

Nut Sets

A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.

Model Applicable Sensors Applicable Sensor
diameter
Set contents
Y92E-NWM08-E2EN E2E NEXT Series
Triple distance model
(Shielded models)
M8 Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 2
Y92E-NWM12-E2EN M12
Y92E-NWM18-E2EN M18 Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 1
Y92E-NWM30-E2EN M30
Y92E-NWM08-E2E E2E NEXT Series
Triple distance model
(Unshielded models)
M8
Y92E-NWM12-E2E M12
Y92E-NWM18-E2E M18
Y92E-NWM30-E2E M30

Sensor I/O Connectors (Sold Separately)

For details of the connector, refer to XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS5 Series Round Water-resistant Connectors (M12 Smartclick) on Catalog.

DC 2-wire (Standard/ Double/ Single distance model)

Model Number Legend

E2E NEXT Lineup 48

Note: 1. The purpose of this model number legend is to provide understanding of the meaning of specifications from the
             model number.
         2. Pin arrangements vary depending on the model. Refer to I/O Circuit Diagrams on page 82 for details.

DC 2-wire (Standard model)

Shielded Models

Size
(Sensing
distance)
Connection method Body
size
Polarity Model
Operation mode: NO Operation mode: NC
M8
(2mm)
Pre-wired (2 m) 38 mm Yes E2E-X2D1-N 2M *1 *2 E2E-X2D2-N 2M *1 *2
M12 Pre-wired
Smartclick
Connector (0.3 m)
38 mm Yes E2E-X2D1-M1TGJ 0.3M *4 *5 ---
M12 Connector 43 mm Yes E2E-X2D1-M1G *5 E2E-X2D2-M1G *5
M8 (4-pin) Connector 39 mm Yes E2E-X2D1-M3G E2E-X2D2-M3G
M12
(3 mm)
Pre-wired (2 m) 47 mm Yes E2E-X3D1-N 2M *1 *2 *3 E2E-X3D2-N 2M *1 *2 *3
69 mm E2E-X3D1L 2M *1 *3 E2E-X3D2L 2M *1
M12 Pre-wired
Smartclick
Connector (0.3 m)
47 mm Yes E2E-X3D1-M1TGJ 0.3M *4 *5 ---
No E2E-X3D1-M1TJ-T 0.3M ---
M12 Pre-wired
Standard
Connector (0.3 m)
47 mm No --- E2E-X3D2-M1GJ-T 0.3M
M12 Connector 48 mm Yes E2E-X3D1-M1G *3 *5 E2E-X3D2-M1G *5
M18
(7 mm)
Pre-wired (2 m) 55 mm Yes E2E-X7D1-N 2M *1 *2 *3 E2E-X7D2-N 2M *1 *2 *3
77 mm E2E-X7D1L 2M *1 *3 E2E-X7D2L 2M *1
M12 Pre-wired
Smartclick
Connector (0.3 m)
55 mm Yes E2E-X7D1-M1TGJ 0.3M *4 *5 ---
No E2E-X7D1-M1TJ-T 0.3M ---
M12 Pre-wired
Standard
Connector (0.3 m)
55 mm No --- E2E-X7D2-M1GJ-T 0.3M
M12 Connector 53 mm Yes E2E-X7D1-M1G *3 *5 E2E-X7D2-M1G *5
M30
(10 mm)
Pre-wired (2 m) 60 mm Yes E2E-X10D1-N 2M *1 *2 E2E-X10D2-N 2M *1 *3
82 mm E2E-X10D1L 2M *1 *3 E2E-X10D2L 2M *1
M12 Pre-wired
Smartclick
Connector (0.3 m)
60 mm Yes E2E-X10D1-M1TGJ 0.3M *3 *4 *5 ---
No E2E-X10D1-M1TJ-T 0.3M ---
M12 Connector 58 mm Yes E2E-X10D1-M1G *3 *5 E2E-X10D2-M1G *5

Unshielded Models

Size
(Sensing
distance)
Connection method Body
size
Polarity Model
Operation mode: NO Operation mode: NC
M8
(4 mm)
Pre-wired (2 m) 38 mm Yes E2E-X4MD1 2M *1 *2 E2E-X4MD2 2M *1 *2
M12 Connector 43 mm Yes E2E-X4MD1-M1G *5 E2E-X4MD2-M1G *5
M8 (4-pin) Connector 39 mm Yes E2E-X4MD1-M3G E2E-X4MD2-M3G
M12
(8 mm)
Pre-wired (2 m) 47 mm Yes E2E-X8MD1 2M *1 *2 E2E-X8MD2 2M *1 *3
69 mm E2E-X8MD1L 2M *1 *3 E2E-X8MD2L 2M *1
M12 Pre-wired
Smartclick
Connector (0.3 m)
47 mm Yes E2E-X8MD1-M1TGJ 0.3M *4 *5 ---
M12 Connector 48 mm Yes E2E-X8MD1-M1G *3 *5 E2E-X8MD2-M1G *5
M18
(14 mm)
Pre-wired (2 m) 55 mm Yes E2E-X14MD1 2M *1 *2 *3 E2E-X14MD2 2M *1 *2 *3
77 mm E2E-X14MD1L 2M *1 *3 E2E-X14MD2L 2M
M12 Pre-wired
Smartclick
Connector (0.3 m)
55 mm Yes E2E-X14MD1-M1TGJ 0.3M *4 *5 ---
M12 Connector 53 mm Yes E2E-X14MD1-M1G *3 *5 E2E-X14MD2-M1G *5
M30
(20 mm)
Pre-wired (2 m) 60 mm Yes E2E-X20MD1 2M *1 *2 *3 E2E-X20MD2 2M *1 *3
82 mm E2E-X20MD1L 2M *1 *3 E2E-X20MD2L 2M *1
M12 Pre-wired
Smartclick
Connector (0.3 m)
60 mm Yes E2E-X20MD1-M1TGJ 0.3M *4 *5 ---
M12 Connector 58 mm Yes E2E-X20MD1-M1G *3 *5 E2E-X20MD2-M1G *5

*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X2D1-N 5M)
*2. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X2D1-R 2M/E2EX2D1-R 5M)
*3. Models with different frequencies are also available. The model number is E2E-X[]D[]5. (Example: E2E-X3D15-N 2M/
      E2E-X3D15L 2M)
*4. M12 Pre-wired Standard Connector Models with a 0.3-m cable are also available. The model numbers of models with
      IEC pin arrangement include "-M1GJ". (Example: E2E-X2D1-M1GJ 0.3M)
      The model numbers of models with old pin arrangement include "-M1J". (Example: E2E-X2D1-M1J 0.3M)
      Models with old pin arrangement of M12 Pre-wired Smartclick Connector Models are also available. The model numbers
      include "-M1TJ". (Example: E2E-X3D1-M1TJ 0.3M)
*5. Models with old pin arrangement are also available. The model number is E2E-X[]D[]-M1. (Example: E2E-X2D1-M1)

DC 2-wire (Double distance model)

Shielded Models

Size
(Sensing distance)
Connection method Body size Polarity Model
Operation mode: NO Operation mode: NC
M12
(4 mm)
Pre-wired (2 m) 47 mm No E2E-X4D1-T 2M *1 E2E-X4D2-T 2M *1
M18
(8 mm)
Pre-wired (2 m) 55 mm No E2E-X8D1-T 2M *1 E2E-X8D2-T 2M *1
M30
(15 mm)
Pre-wired (2 m) 60 mm No E2E-X15D1-T 2M *1 E2E-X15D2-T 2M *1

Unshielded Models

Size
(Sensing distance)
Connection method Body size Polarity Model
Operation mode: NO Operation mode: NC
M18
(16 mm)
Pre-wired (2 m) 77 mm No E2E-X16MD1L-T 2M *1 E2E-X16MD2L-T 2M
M30
(30 mm)
Pre-wired (2 m) 82 mm No E2E-X30MD1L-T 2M *1 E2E-X30MD2L-T 2M *1

*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X4D1-T 5M)

DC 2-wire (Single distance model)

Shielded Models

Size
(Sensing
distance)
Connection method Polarity Model
Operation mode: NO Operation mode: NC
M8
(1.5 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X1R5D1-N 2M E2E-X1R5D2-N 2M
No E2E-X1R5D1-T-N 2M E2E-X1R5D2-T-N 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X1R5D1-M1TGJ 0.3M E2E-X1R5D2-M1TGJ 0.3M
No E2E-X1R5D1-M1TGJ-T 0.3M E2E-X1R5D2-M1TGJ-T 0.3M
M12
(2.5 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X2R5D1-N 2M E2E-X2R5D2-N 2M
No E2E-X2R5D1-T-N 2M E2E-X2R5D2-T-N 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X2R5D1-M1TGJ 0.3M E2E-X2R5D2-M1TGJ 0.3M
No E2E-X2R5D1-M1TGJ-T 0.3M E2E-X2R5D2-M1TGJ-T 0.3M
M18
(5 mm)
Pre-wired (2 m) *2 *3 Yes E2E-X5D1-N 2M E2E-X5D2-N 2M
No E2E-X5D1-T-N 2M E2E-X5D2-T-N 2M
M12 Pre-wired
Smartclick Connector (0.3 m) *4
Yes E2E-X5D1-M1TGJ 0.3M E2E-X5D2-M1TGJ 0.3M
No E2E-X5D1-M1TGJ-T 0.3M E2E-X5D2-M1TGJ-T 0.3M

*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X1R5D1-N 5M)
*2. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X1R5D1-R-N 2M/E2E-X1R5D1-R-N 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
      number. (Example: E2E-X1R5D1-M1TGJR 0.3M/E2E-X1R5D1-M1TGJR-T 0.3M)

Accessories (Sold Separately)

Nut Sets

A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.

Model Applicable Sensors Applicable
Sensor diameter
Set contents
Y92E-NWM08-E2E E2E NEXT Series
Standard model (Shielded/Unshielded Models)
Single distance model (Shielded Models)
M8 Clamping nuts
(bronze with nickel
plating): 2
Toothed washer
(iron with zinc
plating): 1
Y92E-NWM12-E2E E2E NEXT Series
Standard model (Shielded/Unshielded Models)
Double distance model (Shielded Models)
Single distance model (Shielded Models)
M12
Y92E-NWM18-E2E E2E NEXT Series
Standard model (Shielded/Unshielded Models)
Double distance model (Shielded/Unshielded Models)
Single distance model (Shielded Models)
M18
Y92E-NWM30-E2E E2E NEXT Series
Standard model (Shielded/Unshielded Models)
Double distance model (Shielded/Unshielded Models)
M30

Sensor I/O Connectors (Sold Separately)

For details of the connector, refer to XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS5 Series Round Water-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS3 Series Round Water-resistant Connectors (M8) on Catalog.
