S8VK-C
Switch Mode Power Supply (60/120/240/480-W Models)
Cost-effective Single Phase Power Supply Universal input and Safety standards for worldwide applications Space-saving Compact Design
Related Contents
Application Solutions
last update: November 5, 2015
(Unit: mm)

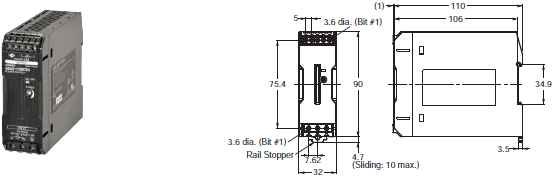

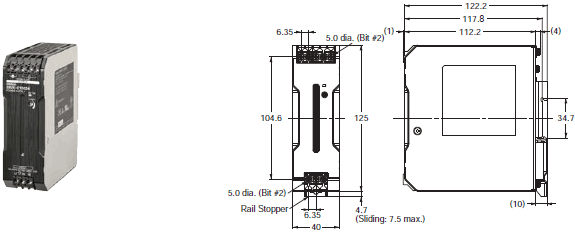

S8VK-C06024 (60 W)
S8VK-C12024 (120 W)

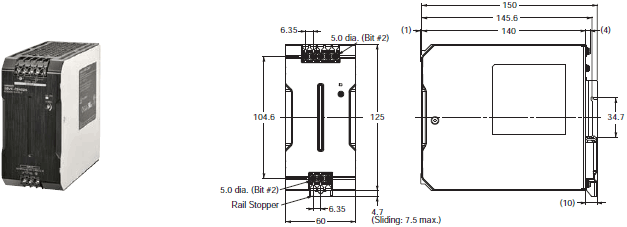

S8VK-C24024 (240 W)

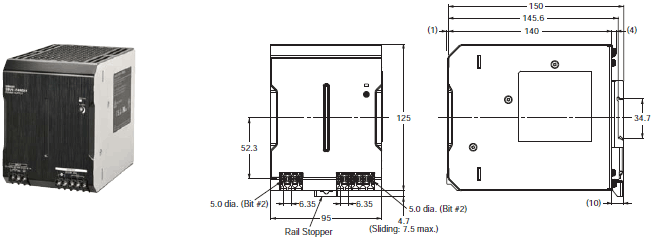

S8VK-C48024 (480 W)
DIN Rail (Order Separately)

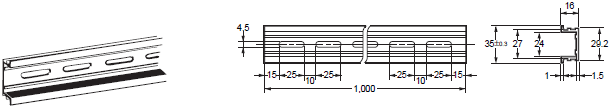

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2

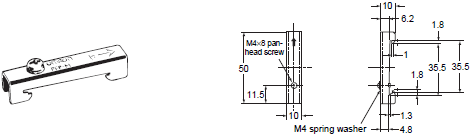

End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
filings may result from aluminum abrasion.
filings may result from aluminum abrasion.

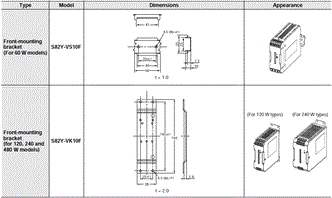

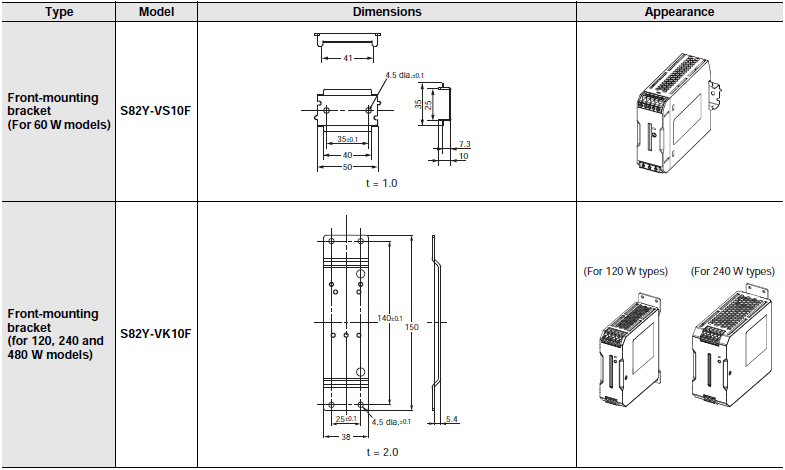

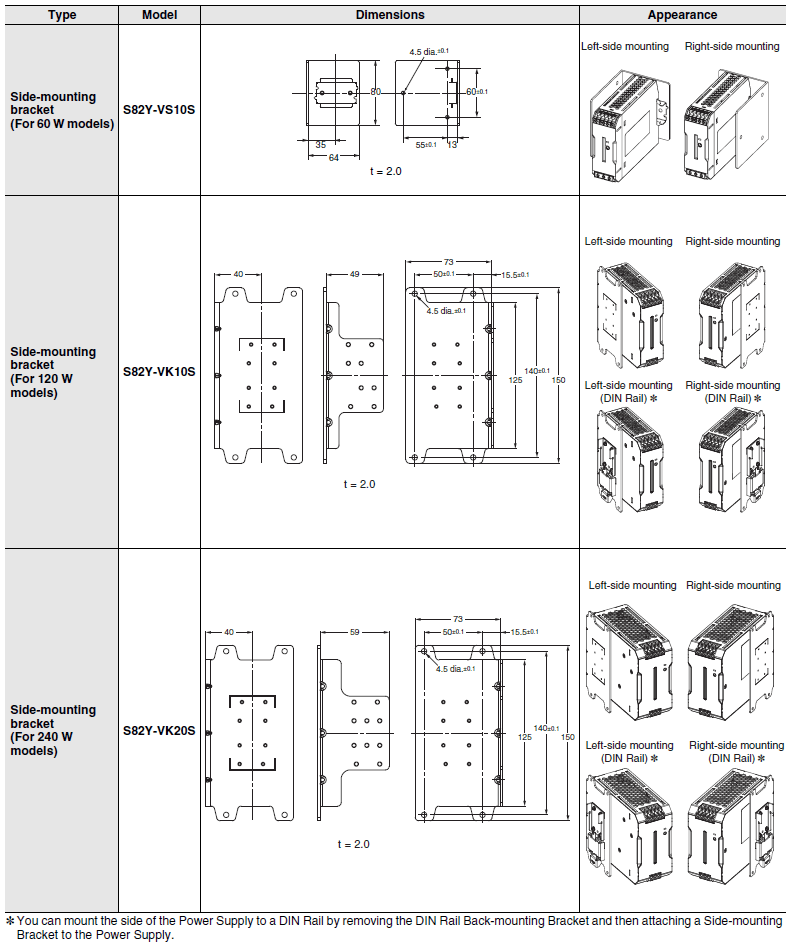

Mounting Brackets
