CP2E

last update: October 1, 2019

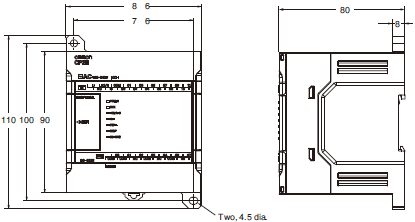

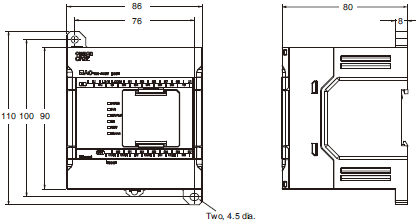

CPU Units with 14 or 20 I/O Points

CP2E-N14/20D[]-[]

CP2E-E14/20D[]-[]

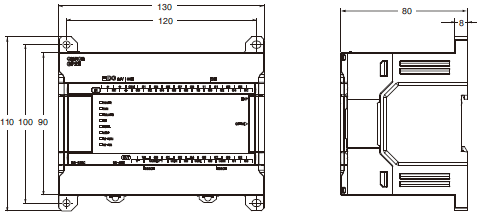

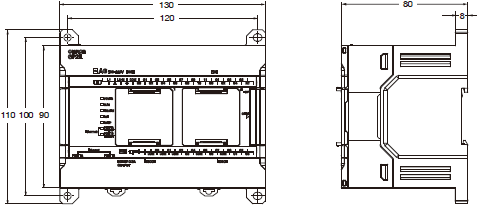

CPU Units with 30 I/O Points

CP2E-N30D[]-[]

CP2E-E30D[]-[], CP2E-S30D[]-[]

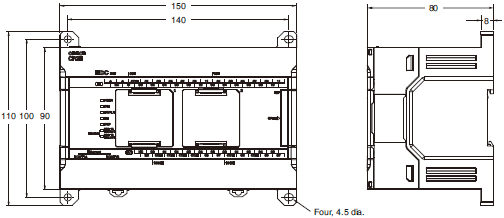

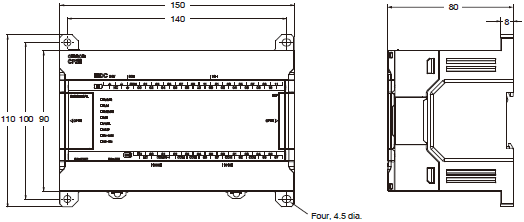

CPU Units with 40 I/O Points

CP2E-N40D[]-[]

CP2E-E40D[]-[], CP2E-S40D[]-[]

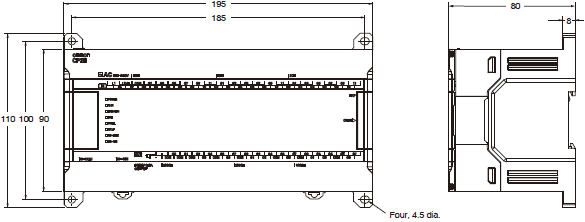

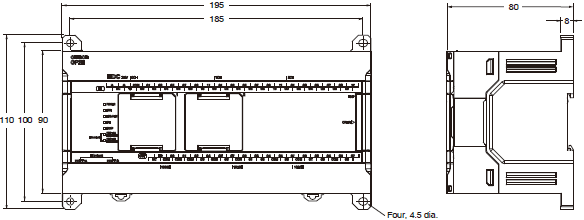

CPU Units with 60 I/O Points

CP2E-N60D[]-[]

CP2E-E60D[]-[], CP2E-S60D[]-[]

Expansion I/O Units and Expansion Units

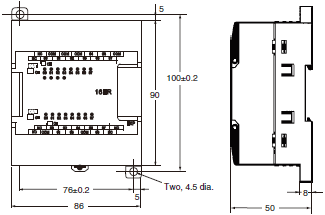

CP1W-8E[][]

CP1W-20ED[]/CP1W-16E[][]/CP1W-AD04[]/CP1W-DA021/CP1W-DA04[]/CP1W-MAD[][]/CP1W-TS[][]1/[][]2/[][]3

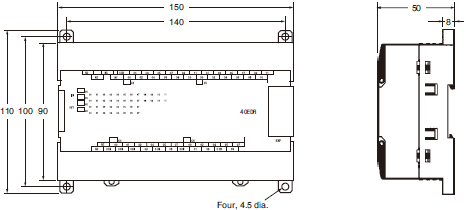

CP1W-40ED[]/CP1W-32E[][]/CP1W-TS004
