CP series CP2E CPU Unit

CP2E

Micro PLC designed to support data collection and Machine to Machine communication

last update: July 8, 2024

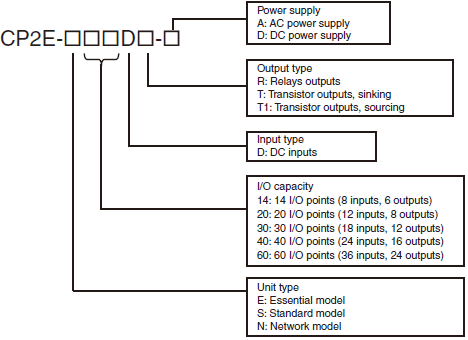

Model Number Structure

Ordering Information

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

CPU Unit

CP2E-N-type/Network model

Number of points	Specifications								Model
	Power Supply	Inputs	Outputs	Output type	Program capacity	Data memory capacity	Current consumption
	Power Supply	Inputs	Outputs	Output type	Program capacity	Data memory capacity	5 VDC	24 VDC
CPU Units with 14 points	100 to 240 VAC	8 points	6 points	Relay	10K steps (FB capacity: 10K steps)	16K words	0.15 A	0.05 A	CP2E-N14DR-A
	100 to 240 VAC			Transistor (sinking)			0.21 A	0.02 A	CP2E-N14DT-A
	24 VDC			Relay			0.15 A	0.05 A	CP2E-N14DR-D
				Transistor (sinking)			0.21 A	0.02 A	CP2E-N14DT-D
				Transistor (sourcing)			0.22 A	0.02 A	CP2E-N14DT1-D
CPU Units with 20 points	100 to 240 VAC	12 points	8 points	Relay			0.17 A	0.06 A	CP2E-N20DR-A
	100 to 240 VAC			Transistor (sinking)			0.27 A	0.02 A	CP2E-N20DT-A
	24 VDC			Relay			0.17 A	0.06 A	CP2E-N20DR-D
				Transistor (sinking)			0.27 A	0.02 A	CP2E-N20DT-D
				Transistor (sourcing)			0.26 A	0.02 A	CP2E-N20DT1-D
CPU Units with 30 points	100 to 240 VAC	18 points	12 points	Relay			0.41 A	0.07 A	CP2E-N30DR-A
	100 to 240 VAC			Transistor (sinking)			0.52 A	0.03 A	CP2E-N30DT-A
	24 VDC			Relay			0.37 A	0.07 A	CP2E-N30DR-D
				Transistor (sinking)			0.51 A	0.03 A	CP2E-N30DT-D
				Transistor (sourcing)			0.51 A	0.03 A	CP2E-N30DT1-D
CPU Units with 40 points	100 to 240 VAC	24 points	16 points	Relay			0.39 A	0.09 A	CP2E-N40DR-A
	100 to 240 VAC			Transistor (sinking)			0.59 A	0.03 A	CP2E-N40DT-A
	24 VDC			Relay			0.39 A	0.09 A	CP2E-N40DR-D
				Transistor (sinking)			0.59 A	0.03 A	CP2E-N40DT-D
				Transistor (sourcing)			0.59 A	0.03 A	CP2E-N40DT1-D
CPU Units with 60 points	100 to 240 VAC	36 points	24 points	Relay			0.44 A	0.13 A	CP2E-N60DR-A
	100 to 240 VAC			Transistor (sinking)			0.71 A	0.03 A	CP2E-N60DT-A
	24 VDC			Relay			0.41 A	0.13 A	CP2E-N60DR-D
				Transistor (sinking)			0.71 A	0.03 A	CP2E-N60DT-D
				Transistor (sourcing)			0.71 A	0.03 A	CP2E-N60DT1-D

CP2E-S-type/Standard model

Number of points	Specifications								Model
	Power Supply	Inputs	Outputs	Output type	Program capacity	Data memory capacity	Current consumption
	Power Supply	Inputs	Outputs	Output type	Program capacity	Data memory capacity	5 VDC	24 VDC
CPU Units with 30 points	100 to 240 VAC	18 points	12 points	Relay	8K steps (FB capacity: 8K steps)	8K words	0.12 A	0.07 A	CP2E-S30DR-A
	24 VDC			Transistor (sinking)			0.28 A	0.02 A	CP2E-S30DT-D
	24 VDC			Transistor (sourcing)			0.28 A	0.02 A	CP2E-S30DT1-D
CPU Units with 40 points	100 to 240 VAC	24 points	16 points	Relay			0.13 A	0.09 A	CP2E-S40DR-A
	24 VDC			Transistor (sinking)			0.34 A	0.02 A	CP2E-S40DT-D
	24 VDC			Transistor (sourcing)			0.34 A	0.02 A	CP2E-S40DT1-D
CPU Units with 60 points	100 to 240 VAC	36 points	24 points	Relay			0.16 A	0.13 A	CP2E-S60DR-A
	24 VDC			Transistor (sinking)			0.48 A	0.02 A	CP2E-S60DT-D
	24 VDC			Transistor (sourcing)			0.48 A	0.02 A	CP2E-S60DT1-D

CP2E-E-type/Essential model

Number of points	Specifications								Model
	Power Supply	Inputs	Outputs	Output type	Program capacity	Data memory capacity	Current consumption
	Power Supply	Inputs	Outputs	Output type	Program capacity	Data memory capacity	5 VDC	24 VDC
CPU Units with 14 points	100 to 240 VAC	8 points	6 points	Relay	4K steps (FB capacity: 4K steps)	4K words	0.06 A	0.04 A	CP2E-E14DR-A
CPU Units with 20 points		12 points	8 points	Relay			0.08 A	0.06 A	CP2E-E20DR-A
CPU Units with 30 points		18 points	12 points	Relay			0.12 A	0.07 A	CP2E-E30DR-A
CPU Units with 40 points		24 points	16 points	Relay			0.13 A	0.09 A	CP2E-E40DR-A
CPU Units with 60 points		36 points	24 points	Relay			0.16 A	0.13 A	CP2E-E60DR-A

Optional Products

Battery

Product name	Specifications	Model
Battery	Mounted in an N/S[][]-type CPU Unit. Mount the Battery when using the clock function. A Battery cannot be mounted to an E[][]-type CPU Unit.	CP2W-BAT02

Option Board

Product name	Specifications	Current consumption		Model
Product name	Specifications	5 VDC	24 VDC	Model
RS-232C Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as an RS-232C port. Maximum transmission distance: 15 m	0.04 A	---	CP1W-CIF01
Non-isolated RS-422A/485 Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as an RS-422A/485 port. Maximum transmission distance: 50 m	0.04 A	---	CP1W-CIF11
Isolated RS-422A/485 Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as an RS-422A/485 port. Maximum transmission distance: 500 m	0.04 A	---	CP1W-CIF12-V1
RS-232C&RS-232C Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as two RS-232C ports. Maximum transmission distance: 15 m	0.04 A	---	CP2W-CIFD1
RS-232C&RS-485 Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as one RS-232C port and one isolated RS-485 port. Maximum transmission distance: 15 m (RS-232C) 500 m (RS-485)	0.06 A	---	CP2W-CIFD2
RS-485&RS-485 Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as two isolated RS-485 ports. Maximum transmission distance: 500 m	0.08 A	---	CP2W-CIFD3
Analog Input Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as an analog input module. • 2 analog inputs 0 to 10 V (Resolution: 1/4000) 0 to 20 mA (Resolution: 1/2000)	0.02 A	---	CP1W-ADB21
Analog Output Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as an analog output module. • 2 analog outputs 0 to 10 V (Resolution: 1/4000)	0.06 A	---	CP1W-DAB21V
Analog Input/Output Option Board	Mounted in the option slot of an N[][]-type CPU Unit and can be used as an analog input/output module. • 2 analog inputs 0 to 10 V (Resolution: 1/4000) 0 to 20 mA (Resolution: 1/2000) • 2 analog outputs 0 to 10 V (Resolution: 1/4000)	0.08 A	---	CP1W-MAB221

Note: 1. Maximum one Analog Option Board can be mounted on an N[][]-type CPU Unit.
2. The CP1W-ME05M Memory Cassette, CP1W-DAM01 LCD Option Board, and CP1W-CIF41 Ethernet Option Board
cannot be used with the CP2E CPU Unit.
3. Option Boards cannot be used with the E/S[][]-type CPU Unit.

Expansion I/O Units and Expansion Units (for E30/40/60, S30/40/60, or N30/40/60 CPU Units)

E14/20 or N14/20 CPU Units do not support Expansion I/O Units and Expansion Units.

Unit type	Product name	Specifications				Current consumption (A)		Model
Unit type	Product name	In- puts	Out- puts	Output type		5 V	24 V	Model
CP1W Expansion I/O Units	Input Unit	8	---	24 VDC Input		0.018	---	CP1W-8ED
	Output Units	---	8	Relay		0.026	0.044	CP1W-8ER
				Transistor (sinking)		0.075	---	CP1W-8ET
				Transistor (sourcing)		0.075	---	CP1W-8ET1
		---	16	Relay		0.042	0.090	CP1W-16ER
				Transistor (sinking)		0.076	---	CP1W-16ET
				Transistor (sourcing)		0.076	---	CP1W-16ET1
		---	32	Relay		0.049	0.131	CP1W-32ER
				Transistor (sinking)		0.113	---	CP1W-32ET
				Transistor (sourcing)		0.113	---	CP1W-32ET1
	I/O Units	12	8	Relay		0.103	0.044	CP1W-20EDR1
				Transistor (sinking)		0.130	---	CP1W-20EDT
				Transistor (sourcing)		0.130	---	CP1W-20EDT1
		24	16	Relay		0.080	0.090	CP1W-40EDR
				Transistor (sinking)		0.160	---	CP1W-40EDT
				Transistor (sourcing)		0.160	---	CP1W-40EDT1
CP1W Expansion Units	Analog Input Unit	4CH	---	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	0.100	0.090	CP1W-AD041
	Analog Input Unit	4CH	---		Resolution: 1/12000	0.100	0.050	CP1W-AD042
	Analog Output Unit	---	2CH	Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	0.040	0.095	CP1W-DA021
		---	4CH		Resolution: 1/6000	0.080	0.124	CP1W-DA041
		---	4CH		Resolution: 1/12000	0.070	0.160	CP1W-DA042
	Analog I/O Unit	4CH	4CH	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/12000	0.120	0.170	CP1W-MAD44
		4CH	2CH		Resolution: 1/12000	0.120	0.120	CP1W-MAD42
		2CH	1CH		Resolution: 1/6000	0.083	0.110	CP1W-MAD11
	Temperature Sensor Unit	2CH	---	Sensor type: Thermocouple (J or K)		0.040	0.059	CP1W-TS001
		4CH	---	Sensor type: Thermocouple (J or K)		0.040	0.059	CP1W-TS002
		2CH	---	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		0.054	0.073	CP1W-TS101
		4CH	---	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		0.054	0.073	CP1W-TS102
		4CH	---	Sensor type: Thermocouple (J or K) 2channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA	Resolution: 1/12000	0.070	0.030	CP1W-TS003
		12CH	---	Sensor type: Thermocouple (J or K)		0.080	0.050	CP1W-TS004

I/O Connecting Cable

Product name	Specifications	Model
I/O Connecting Cable	80 cm (for CP1W Expansion I/O Units and Expansion Units) Only one I/O Connecting Cable can be used in each PLC.	CP1W-CN811

Recommended Ethernet Communications Cables

For the Ethernet communications cable specifications, refer to Catalog

Item		Recommended manufacturer	Cable length (m)	Model
Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: PUR	Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plug type 1 Cable color: Yellow 2	OMRON	0.3	XS6W-6PUR8SS30CM-YF
			0.5	XS6W-6PUR8SS50CM-YF
			1	XS6W-6PUR8SS100CM-YF
			2	XS6W-6PUR8SS200CM-YF
			3	XS6W-6PUR8SS300CM-YF
			5	XS6W-6PUR8SS500CM-YF
Wire Gauge and Number of Pairs: AWG22, 2-pair cable	Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plug type *1 Cable color: Light blue	OMRON	0.3	XS5W-T421-AMD-K
			0.5	XS5W-T421-BMD-K
			1	XS5W-T421-CMD-K
			2	XS5W-T421-DMD-K
			5	XS5W-T421-GMD-K
			10	XS5W-T421-JMD-K

*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
　　7.5 m, 10 m, 15 m, 20 m.
　　Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
　　For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. Cable colors are available in yellow, green, and blue.

RS-232C Connecting Cable

Name	Specifications		Model
PT-to-PLC Connecting Cable	Connection cable with programmable terminal NB / NS For CP2E-N+CP1W-CIF01	Length: 2 m	XW2Z-200T
		Length: 5 m	XW2Z-500T
	Connection cable with programmable terminal NB / NS For CP2E-S/E, CP2E-N+CP2W-CIFD1/CIFD2	Length: 2 m	XW2Z-200T-3
		Length: 5 m	XW2Z-500T-3

DIN Track Accessories

Name		Specifications	Model
DIN Track		Length: 0.5 m; Height: 7.3 mm	PFP-50N
		Length: 1 m; Height: 7.3 mm	PFP-100N
		Length: 1 m; Height: 16 mm	PFP-100N2
	End Plate	A stopper to secure the Units on the DIN Track.	PFP-M

Programming Devices

Software

Product name	Specifications			Model
Product name		Number of licenses	Media	Model
FA Integrated Tool Package CX-One Lite Ver.4.[]	CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite Ver. 4.[] includes Micro PLC Edition CX-Programmer Ver.9.[].	1 license	DVD	CXONE-LT01D-V4
FA Integrated Tool Package CX-One Package Ver. 4.[]	CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].	1 license *1	DVD	CXONE-AL01D-V4

Note: 1. For details, refer to the CX-One Catalog (Cat. No. R134), visit your local OMRON website.
2. CP2E CPU Units are supported by CX-One version 4.51 or higher and CX-Programmer version 9.72 or higher.
3. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*1. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
