S8VK-WB
Switch Mode Power Supply (240/480/960-W Models)
Even more compact three-phase 380 to 480 V input power supplies. Reduces wiring work with the Push-In Plus terminals. With a line-up that includes 24 VDC and 48 VDC models.
Related Contents
Application Solutions
last update: November 6, 2023
Model Number Structure

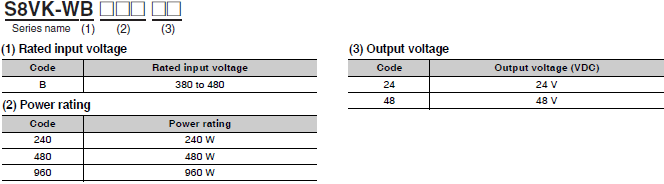

Model Number Legend
Not all combinations are possible. Refer to List of Models in Ordering Information, below.
Ordering Information
List of Models
| Power
rating |
Rated input voltage | Rated output
voltage (VDC) |
Rated output
current |
Maximum boost
current |
Model |
|---|---|---|---|---|---|
| 240 W | Three-phase / two-phase 380 to
480 VAC (Allowable range: Three-phase / two-phase 320 to 576 VAC, 450 to 810 VDC) |
24 V | 10 A | 15 A | S8VK-WB24024 |
| 48 V | 5 A | 7.5 A | S8VK-WB24048 | ||
| 480 W | 24 V | 20 A | 30 A | S8VK-WB48024 | |
| 48 V | 10 A | 15 A | S8VK-WB48048 | ||
| 960 W | 24 V | 40 A | 60 A | S8VK-WB96024 | |
| 48 V | 20 A | 30 A | S8VK-WB96048 |
Accessories (Order separately)
Mounting Brackets (Order Separately)
| Product name | Model |
|---|---|
| Front Mounting Bracket (for 240 W) | S82Y-VKW20F |
| Front Mounting Bracket (for 480 W) | S82Y-VKW40F |
| Front Mounting Bracket (for 960 W) | S82Y-VKW90F |
DIN Rail Mounting Parts (Order Separately)
| Part name | Model |
|---|---|
| End Plate | PFP-M |
last update: November 6, 2023
