K3CV
IO-Link AD Converter
Analog signals are converted to digital signals with high precision and output via IO-Link communication. Improves signal accuracy and reliability while simplifying wiring to reduce costs
Related Contents
Application Solutions
last update: November 4, 2025

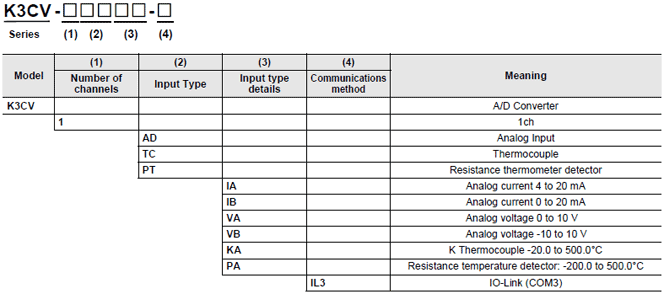

Model Number Legend
Model Number Legend
List of Models
| Number of channels | Input Type | Input type details | Communications
method |
Model |
|---|---|---|---|---|
| 1 | Analog Input | Analog current 4 to 20 mA | IO-Link | K3CV-1ADIA-IL3 |
| Analog current 0 to 20 mA | K3CV-1ADIB-IL3 | |||
| Analog voltage 0 to 10 V | K3CV-1ADVA-IL3 | |||
| Analog voltage -10 to 10 V | K3CV-1ADVB-IL3 | |||
| Thermocouples | K Thermocouple -20.0 to 500.0°C | K3CV-1TCKA-IL3 | ||
| Resistance
Temperature Detector |
Resistance temperature detector:
-200.0 to 500.0°C |
K3CV-1PTPA-IL3 |
Optional Products (sold separately)
Mounting Bracket
| Model |
|---|
| K3CV-F-1 |
Main Unit Fixture
| Model |
|---|
| K3CV-F-2 |
DIN Track Mounting Adapter
| Model |
|---|
| K3CV-F-3 |
Tool for M12 Threaded Connectors
| Model |
|---|
| XY2F-0004 |
When connecting the IO-Link master and K3CV with a cable, use XS5W-D421-[]81-F, connectors with cables, socket and plug on both cable ends (M12 Smartclick). For more details, refer to the XS5 datasheet. This is not necessary when the IO-Link master are connected directly to the K3CV.
Installation of Compensation Conductors
Compensation Conductors for temperature controllers
The following assembly connector plugs and compensating conductor are recommended for use with the TC input type.
| Type | Model | Details |
|---|---|---|
| Assembly Connector Plugs
• 4 poles • Soldering connection |
XS5G-D423 | For 4 dia. (4 to 5 dia.) Cable connection direction: straight type |
| XS5G-D424 | For 4 dia. (4 to 5 dia.) Cable Connection direction: right-angle | |
| Compensating Conductors (K) | WCAG-N 1M | Fully vinyl-covered (waterproof)
(-20 to 70°C) |
| WCAG-N 2M | ||
| WCAG-N 4M | ||
| WCAG-N 8M | ||
| WCAG-N 10M | ||
| WCAG-N 15M | ||
| WCAG-N 20M | ||
| WCAG-N 30M | ||
| WCAG-N 50M | ||
| WCAG-40 1M | Silicone-covered (non-waterproof)
(0 to 150°C) |
|
| WCAG-40 2M | ||
| WCAG-40 4M | ||
| WCAG-40 8M | ||
| WCAG-40 10M | ||
| WCAG-40 15M | ||
| WCAG-40 20M | ||
| WCAG-40 30M | ||
| WCAG-40 50M |
For instructions on how to install the connector and compensation conductors, refer to Assembly Procedure for XS5C/XS5G (IDC models) Connector Assemblies in the XS5 datasheet.
