E2E
DC 2-Wire (PUR Cable/Self-diagnosis Output), AC 2-Wire and AC/DC 2-Wire
Models with DC 2-Wire (Self-diagnosis Output) and AC 2-Wire added to the lineup
E2E-series DC 2-Wire and 3-Wire Models (2E-X[]D[], E2E-X[]E[], E2E-X[]F[]) have been integrated into the E2E NEXT Series. Refer to the catalog (Cat. No. D120) for details.
Related Contents
Application Solutions
last update: November 11, 2024

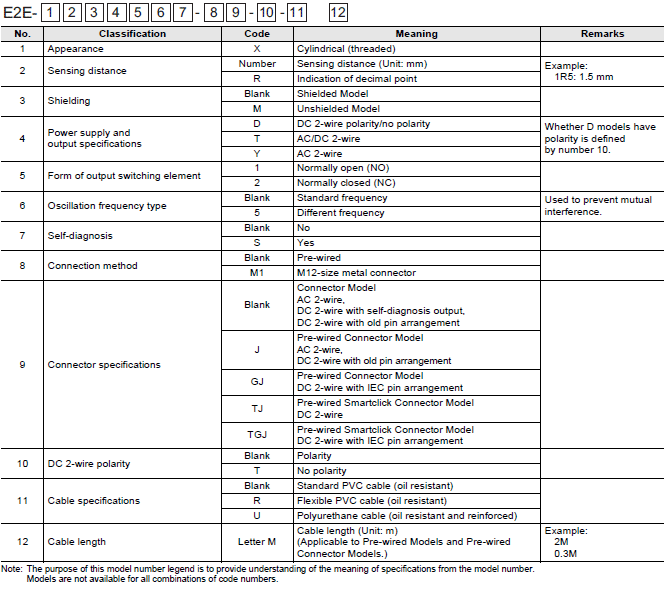

E2E Model Number Legend
Ordering Information
DC 2-Wire (No Self-diagnosis Output, PUR Cable models)
Shielded Models
| Appearance | Sensing
distance |
Connection
method |
Cable
specifi- cations |
Polarity | Operation
mode |
Pin
arrangement |
Model |
|---|---|---|---|---|---|---|---|
| M8 | 2 mm | Pre-wired
Models (2 m) |
PUR | Yes | NO | --- | E2E-X2D1-U 2M |
| NC | E2E-X2D2-U 2M | ||||||
| M12
Pre-wired Smartclick Connector Models (0.3 m) |
PUR | NO | 1: +V, 4: 0 V | E2E-X2D1-M1TGJ-U 0.3M | |||
| NC | 1: +V, 2: 0 V | E2E-X2D2-M1TGJ-U 0.3M | |||||
| M12 | 3 mm | Pre-wired
Models (2 m) |
PUR | Yes | NO | --- | E2E-X3D1-U 2M |
| NC | E2E-X3D2-U 2M | ||||||
| M12
Pre-wired Smartclick Connector Models (0.3 m) |
PUR | NO | 1: +V, 4: 0 V | E2E-X3D1-M1TGJ-U 0.3M | |||
| NC | 1: +V, 2: 0 V | E2E-X3D2-M1TGJ-U 0.3M | |||||
| M18 | 7 mm | Pre-wired
Models (2 m) |
PUR | Yes | NO | --- | E2E-X7D1-U 2M |
| NC | E2E-X7D2-U 2M | ||||||
| M12
Pre-wired Smartclick Connector Models (0.3 m) |
PUR | NO | 1: +V, 4: 0 V | E2E-X7D1-M1TGJ-U 0.3M | |||
| NC | 1: +V, 2: 0 V | E2E-X7D2-M1TGJ-U 0.3M | |||||
| M30 | 10 mm | Pre-wired
Models (2 m) |
PUR | Yes | NO | --- | E2E-X10D1-U 2M |
| NC | E2E-X10D2-U 2M | ||||||
| M12
Pre-wired Smartclick Connector Models (0.3 m) |
PUR | NO | 1: +V, 4: 0 V | E2E-X10D1-M1TGJ-U 0.3M | |||
| NC | 1: +V, 2: 0 V | E2E-X10D2-M1TGJ-U 0.3M |
DC 2-Wire (Self-diagnosis Output models)
Shielded Models
| Appearance | Sensing
distance |
Connection
method |
Cable
specifi- cations |
Po-
lar- ity |
Opera-
tion mode |
Pin
arrangement |
Model |
|---|---|---|---|---|---|---|---|
| M12 | 3 mm | Pre-wired
Models (2 m) |
PVC
(oil- resistant) |
Yes | NO | --- | E2E-X3D1S 2M *1 |
| M12
Connector Models |
--- | 2: +V and diagnostic output
3: 0 V 4: +V and control output |
E2E-X3D1S-M1 | ||||
| M18 | 7 mm | Pre-wired
Models (2 m) |
PVC
(oil- resistant) |
--- | E2E-X7D1S 2M *1 | ||
| M12
Connector Models |
--- | 2: +V and diagnostic output
3: 0 V 4: +V and control output |
E2E-X7D1S-M1 | ||||
| M30 | 10 mm | Pre-wired
Models (2 m) |
PVC
(oil- resistant) |
--- | E2E-X10D1S 2M *1 | ||
| M12
Connector Models |
--- | 2: +V and diagnostic output
3: 0 V 4: +V and control output |
E2E-X10D1S-M1 |
*1. Models with different frequencies are also available. The model number is E2E-X []D15S (example: E2E-X3D15S 2M).
Unshielded Models
| Appearance | Sensing
distance |
Connection
method |
Cable
specifi- cations |
Po-
lar- ity |
Opera-
tion mode |
Pin
arrangement |
Model |
|---|---|---|---|---|---|---|---|
| M12 | 8 mm | Pre-wired
Models (2 m) |
PVC
(oil- resistant) |
Yes | NO | --- | E2E-X8MD1S 2M *1 |
| M12
Connector Models |
--- | 2: +V and diagnostic output
3: 0 V 4: +V and control output |
E2E-X8MD1S-M1 | ||||
| M18 | 14 mm | Pre-wired
Models (2 m) |
PVC
(oil- resistant) |
--- | E2E-X14MD1S 2M *1 | ||
| M12
Connector Models |
--- | 2: +V and diagnostic output
3: 0 V 4: +V and control output |
E2E-X14MD1S-M1 | ||||
| M30 | 20 mm | Pre-wired
Models (2 m) |
PVC
(oil- resistant) |
--- | E2E-X20MD1S 2M *1 | ||
| M12
Connector Models |
--- | 2: +V and diagnostic output
3: 0 V 4: +V and control output |
E2E-X20MD1S-M1 |
*1. Models with different frequencies are also available. The model number is E2E-X[]MD15S (example: E2E-X8MD15S 2M).
Connector Pin Assignments of DC 2-Wire Models
• The connector pin assignments of each New E2E DC 2-Wire Model conform to IEC 947-5-2 Table III. (Only DC 2-Wire Models have been changed in comparison to the previous models.)
• The following models with conventional connector pin assignments are available as well. (Only NO Models can be used.) The cable at the right should also be used if the XW3D-P[]55-G11/XW3B-P[]55-G11 Connector Junction Box is already being used.
| Cable length | Model |
|---|---|
| 500 mm | XS2W-D421-BY1 |
AC 2-Wire
Shielded Models
| Appearance | Sensing
distance |
Connection
method |
Cable
specifications |
Operation
mode |
Pin
arrangement |
Model |
|---|---|---|---|---|---|---|
| M8 | 1.5 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X1R5Y1 2M *2 |
| NC | E2E-X1R5Y2 2M *2 | |||||
| M12 | 2 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X2Y1 2M *1, *3 |
| NC | E2E-X2Y2 2M | |||||
| M12 Connector
Models |
--- | NO | (3, 4): (AC, AC) | E2E-X2Y1-M1 *4 | ||
| NC | (1, 2): (AC, AC) | E2E-X2Y2-M1 | ||||
| M18 | 5 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X5Y1 2M *1, *3 |
| NC | E2E-X5Y2 2M *3 | |||||
| M12 Connector
Models |
--- | NO | (3, 4): (AC, AC) | E2E-X5Y1-M1 *4 | ||
| NC | (1, 2): (AC, AC) | E2E-X5Y2-M1 | ||||
| M30 | 10 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X10Y1 2M *1, *3 |
| NC | E2E-X10Y2 2M | |||||
| M12 Connector
Models |
--- | NO | (3, 4): (AC, AC) | E2E-X10Y1-M1 | ||
| NC | (1, 2): (AC, AC) | E2E-X10Y2-M1 |
*1. Models with different frequencies are also available. The model number is E2E-X[]Y[]5 (example: E2E-X5Y15 2M).
*2. Discontinued at the end of March 2022.
*3. UL certification models are also available. The model number is E2E-X[]Y[]-US (example: E2E-X5Y1-US 2M).
*4. M4 Connector Models are also available. The model number is E2E-X[]Y[]-M4 (example: E2E-X5Y1-M4). Not sold within
Japan.
Unshielded Models
| Appearance | Sensing
distance |
Connection
method |
Cable
specifications |
Operation
mode |
Pin
arrangement |
Model |
|---|---|---|---|---|---|---|
| M8 | 2 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X2MY1 2M *2 |
| NC | E2E-X2MY2 2M *2 | |||||
| M12 | 5 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X5MY1 2M *1, *3 |
| NC | E2E-X5MY2 2M | |||||
| M12 Connector
Models |
--- | NO | (3, 4): (AC, AC) | E2E-X5MY1-M1 | ||
| NC | (1, 2): (AC, AC) | E2E-X5MY2-M1 | ||||
| M18 | 10 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X10MY1 2M *1, *3 |
| NC | E2E-X10MY2 2M *3 | |||||
| M12 Connector
Models |
--- | NO | (3, 4): (AC, AC) | E2E-X10MY1-M1 | ||
| NC | (1, 2): (AC, AC) | E2E-X10MY2-M1 | ||||
| M30 | 18 mm | Pre-wired
Models (2 m) |
PVC
(oil-resistant) |
NO | --- | E2E-X18MY1 2M *1, *3 |
| NC | E2E-X18MY2 2M | |||||
| M12 Connector
Models |
--- | NO | (3, 4): (AC, AC) | E2E-X18MY1-M1 | ||
| NC | (1, 2): (AC, AC) | E2E-X18MY2-M1 |
*1. Models with different frequencies are also available. The model number is E2E-X[]MY[]5 (example: E2E-X5MY15 2M).
*2. Discontinued at the end of March 2022.
*3. UL certification models are also available. The model number is E2E-X[]MY[]-US (example: E2E-X5MY1-US 2M).
AC/DC 2-Wire
Shielded Models
| Appear-
ance |
Sensing
distance |
Connection
method |
Cable
specifications |
Operation
mode |
Pin
arrange- ment |
Applicable
connector code |
Model |
|---|---|---|---|---|---|---|---|
| M12 | 3 mm | Pre-wired Models (2 m) | PVC (oil-resistant) | NO | --- | --- | E2E-X3T1 2M |
| M18 | 7 mm | Pre-wired Models (2 m) | PVC (oil-resistant) | --- | --- | E2E-X7T1 2M | |
| M30 | 10 mm | Pre-wired Models (2 m) | PVC (oil-resistant) | --- | --- | E2E-X10T1 2M |
Note: There are no unshielded models.
Accessories (Sold Separately)
Sensor I/O Connectors
A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
Round Water-resistant Connectors XS5 Series
| Appearance | Cable
Specification |
Type | Cable
diameter (mm) |
Cable
Connection Direction |
Cable
length (m) |
Sensor I/O
Connector model number |
Applicable
Proximity Sensor model number |
|---|---|---|---|---|---|---|---|
| M12
Smartclick Connector  |
Oil-resistant
polyurethane cable |
Sockets on One
Cable End |
6 dia. | Straight | 2 m | XS5F-D421-D80-P | E2E-X[]D[]-M1TGJ-U |
| 5 m | XS5F-D421-G80-P | ||||||
| Right-angle | 2 m | XS5F-D422-D80-P | |||||
| 5 m | XS5F-D422-G80-P | ||||||
| Socket and Plug
on Cable Ends |
Straight
(Socket)/ Straight (Plug) |
2 m | XS5W-D421-D81-P | ||||
| 5 m | XS5W-D421-G81-P |
Round Water-resistant Connectors XS2 Series
| Appearance | Cable
Specification |
Type | Cable
diameter (mm) |
Cable
Connection Direction |
Cable
length (m) |
Sensor I/O
Connector model number |
Applicable
Proximity Sensor model number |
|---|---|---|---|---|---|---|---|
| M12
Screw Connector  |
Fire-retardant,
PVC Robot Cable |
Sockets
on One Cable End |
6 dia. | Straight | 2 m | XS2F-D421-D80-F | E2E-X[]D[]S-M1 |
| 5 m | XS2F-D421-G80-F | ||||||
| Right-angle | 2 m | XS2F-D422-D80-F | |||||
| 5 m | XS2F-D422-G80-F | ||||||
| Socket
and Plug on Cable Ends |
Straight
(Socket)/ Straight (Plug) |
2 m | XS2W-D421-D81-F | ||||
| 5 m | XS2W-D421-G81-F | ||||||
| Fire-retardant,
PVC Robot Cable |
Sockets
on One Cable End |
6 dia. | Straight | 2 m | XS2F-A421-DB0-F | E2E-X[]Y1-M1 | |
| 5 m | XS2F-A421-GB0-F | ||||||
| Right-angle | 2 m | XS2F-A422-DB0-F | |||||
| 5 m | XS2F-A422-GB0-F | ||||||
| Fire-retardant,
PVC Robot Cable |
Sockets
on One Cable End |
6 dia. | Straight | 2 m | XS2F-A421-D90-F | E2E-X[]Y2-M1 | |
| 5 m | XS2F-A421-G90-F |
Note: For details, refer to Sensor I/O Connectors/Sensor Controllers.
