INTRODUCING OMRON ROBUST COMPONENTS
RESIST
OIL FOR
4 YEARS
OMRON’s oil-resistant components has been evaluated according to IP67G of JIS C 0920*2. We performed oil resistance testing with eight representative cutting oils that were used in manufacturing sites. Click to viewÂ
Based on our results, we are able to demonstrate and prove the competence of our product in achieving 4 Years Of Stable Operations In Resisting Oil.
| OMRON’s Oil-Resistant Component Evaluation Standards | |
|---|---|
| Oil type | A1 (water-soluble cutting oil) |
| Evaluation time | 2,000 hours of machining*3 800 hours of conveyance*4 |
| Evaluation temperature | 55ËšC |
| Dilution concentration | Undiluted |
| Criteria | Appearance, performance, and no labeling text loss |

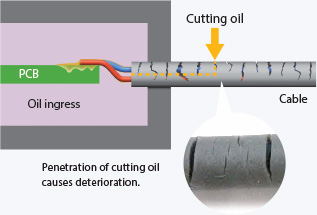

Through analysis of the ingress paths of cutting oil, we determine that deterioration of cable sheaths is a large factor in causing component failure.

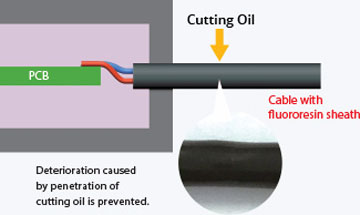

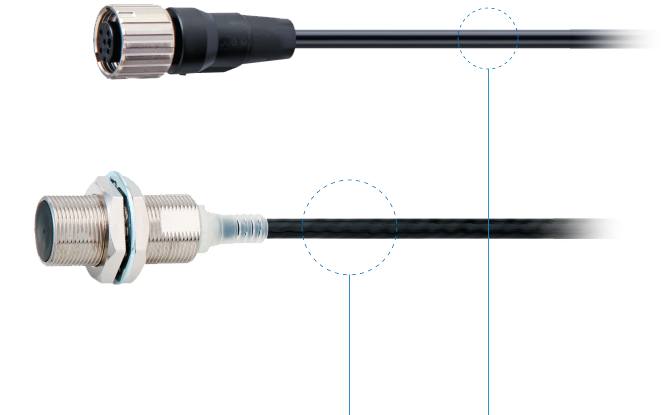

Henceforth, the cable sheaths of OMRON’s oil resistant components are made from fluororesin materials to provide maximum protection against the deterioration. This results in an impregnable cable to even highly aggressive cutting oils.
Previous Models Cable Sheath: PVC or PUR
New Cable Sheath: Fluororesin

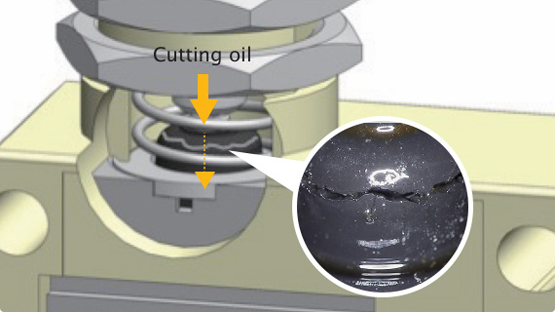

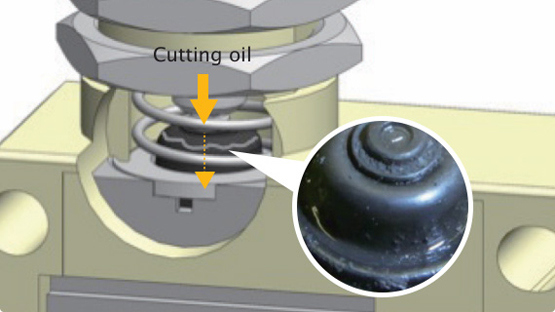

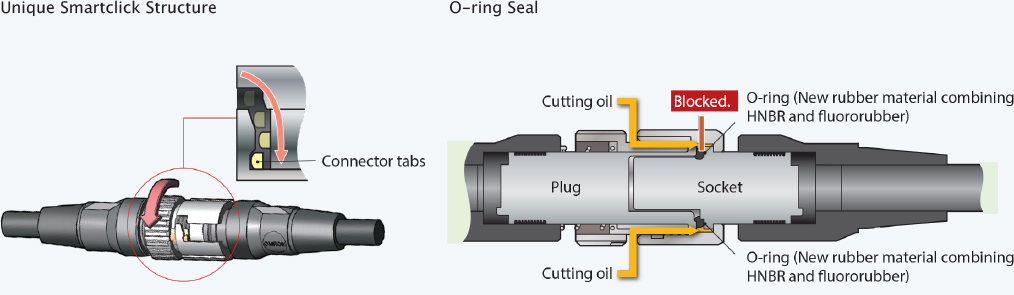

In addition to the deterioration of cable sheaths, deterioration of rubber used at joints and moving sections is also a major cause of the ingress of cutting oil.
Hence to prevent rubber deterioration, we uniquely develop a new fluorinated rubber used at joins and moving sections. Combined with fluororesin cables, this form an impregnable wall of oil resistance.
Previous Models Rubber Seal: NBR
New Rubber Seal: Material Combining HNBR and Fluororubber
In addition to cable sheaths, joints, and moving sections, cutting oil also enters easily in the gaps of different materials.

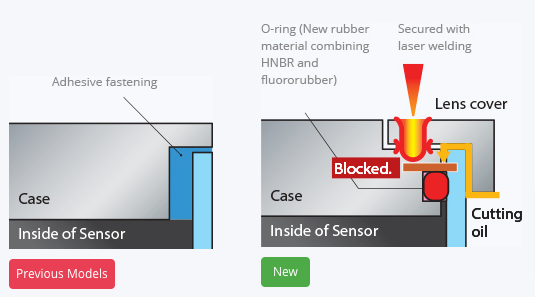

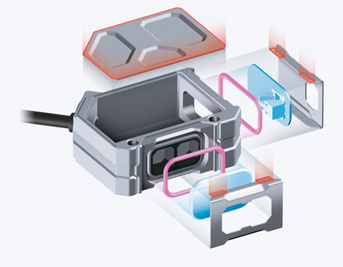

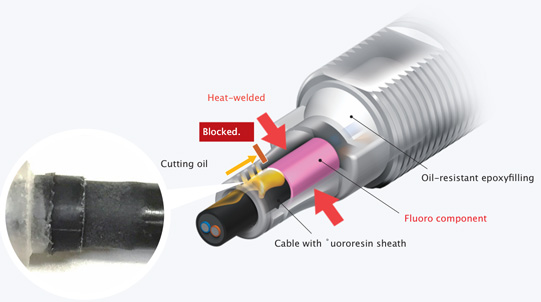

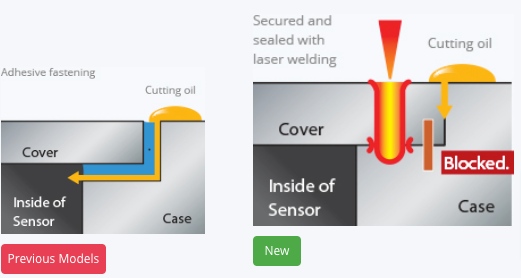

With OMRON Advanced Sealing Methods,the Heat-Sealing Method and the Laser Welding Method (for complete sealing without Adhesive), it allows completing sealing of joints of both metal and non metal parts, thus blocking the ingress of cutting oil by preventing the creation of gaps.
