Process Improvement Tool

Q-upNavi Series

Q-upAuto System for executing association, collection, monitoring and improvement of each facility data, using the quality information of OMRON inspection system as a starting point.

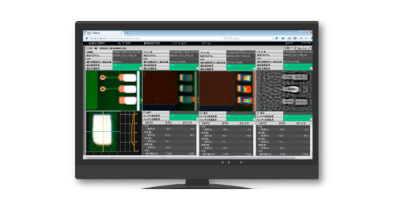

Q-upNavi is an Analysis Software Tool that combines 3D-SPI, 3D-AOI and 3D-AXI Result Data for True Root-Cause Analysis.

Features

Navigates Engineers and Operators in locating all Process Defects.
Quick Result Feedback of Manufacturing Process Changes.
Quality Analysis of Process Defects, supported by High Quality Color Images.
Stabilise your Process providingAchievable Process Target’s to 99% FPY.
Real Time SMT Process Monitoring, with coverage of all Production Lines.
Reduction in AOI Optimisation and Verification.
Reduction in Material Waste

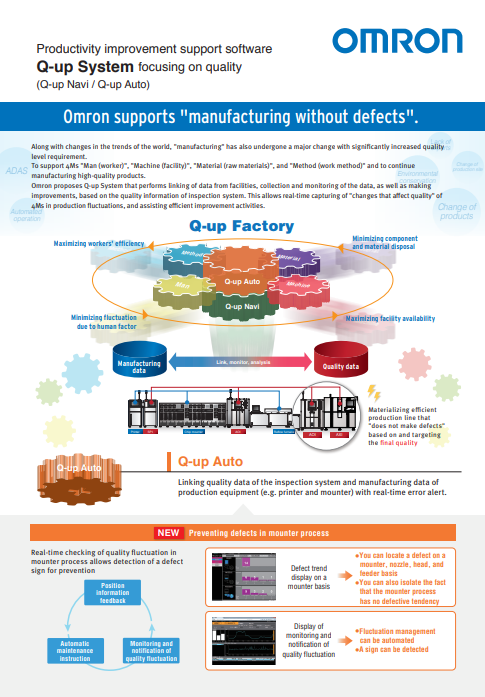

Productivity Improvement Support Software (Q-up Navi / Q-up Auto)

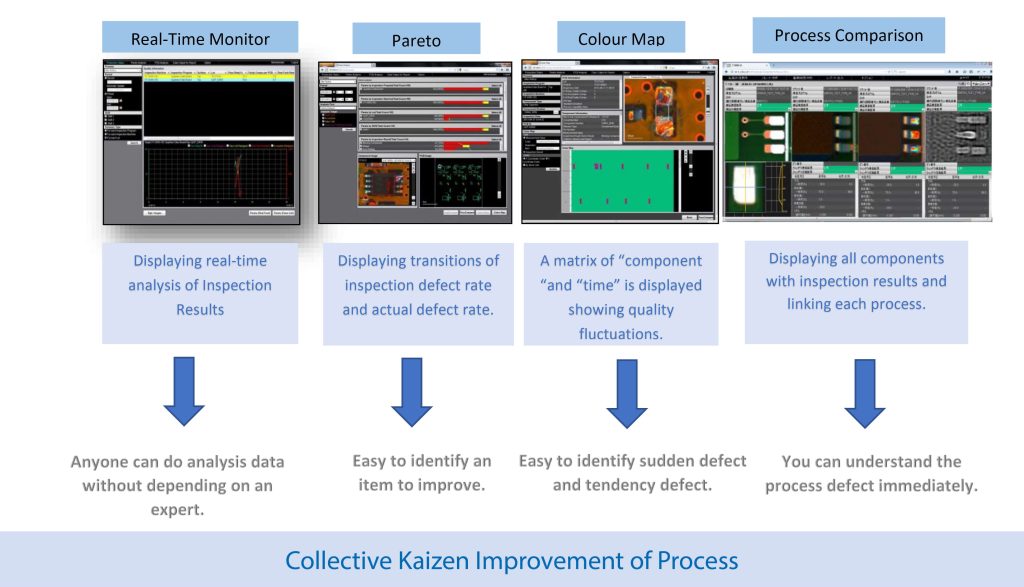

Q-up Navi software

Q-upNAVI is designed with the Process Engineer in mind, providing High Level Statistical Analysis supported by High Quality Color Imagery of your Process. Data is collected from any of Omron’s SPI, AOI and AXI Systems that’s presented in a format for Easy Process Diagnosis for Engineers and Operators.

Q-up Auto

Advanced Manufacturing Analysis Combining Q-upNavi Inspection Result Data,
with Manufacturing Process Data for High Level Process Improvement.

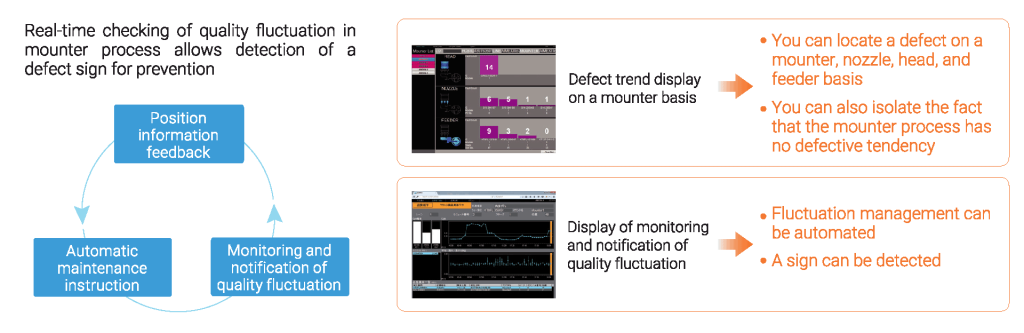

New values by linking Inspection and Mounting systems

Mounter-related defects are detected and notified instantly. Pinpoint identification of research target is
possible, thanks to listed defect component and mounting information. Detection of Mounter defect is
correlating to each nozzle, head and reel, within all CAD locations from both pre and post reflow AOI
systems. As a result, line stop time can be reduced, contributing to productivity improvement
